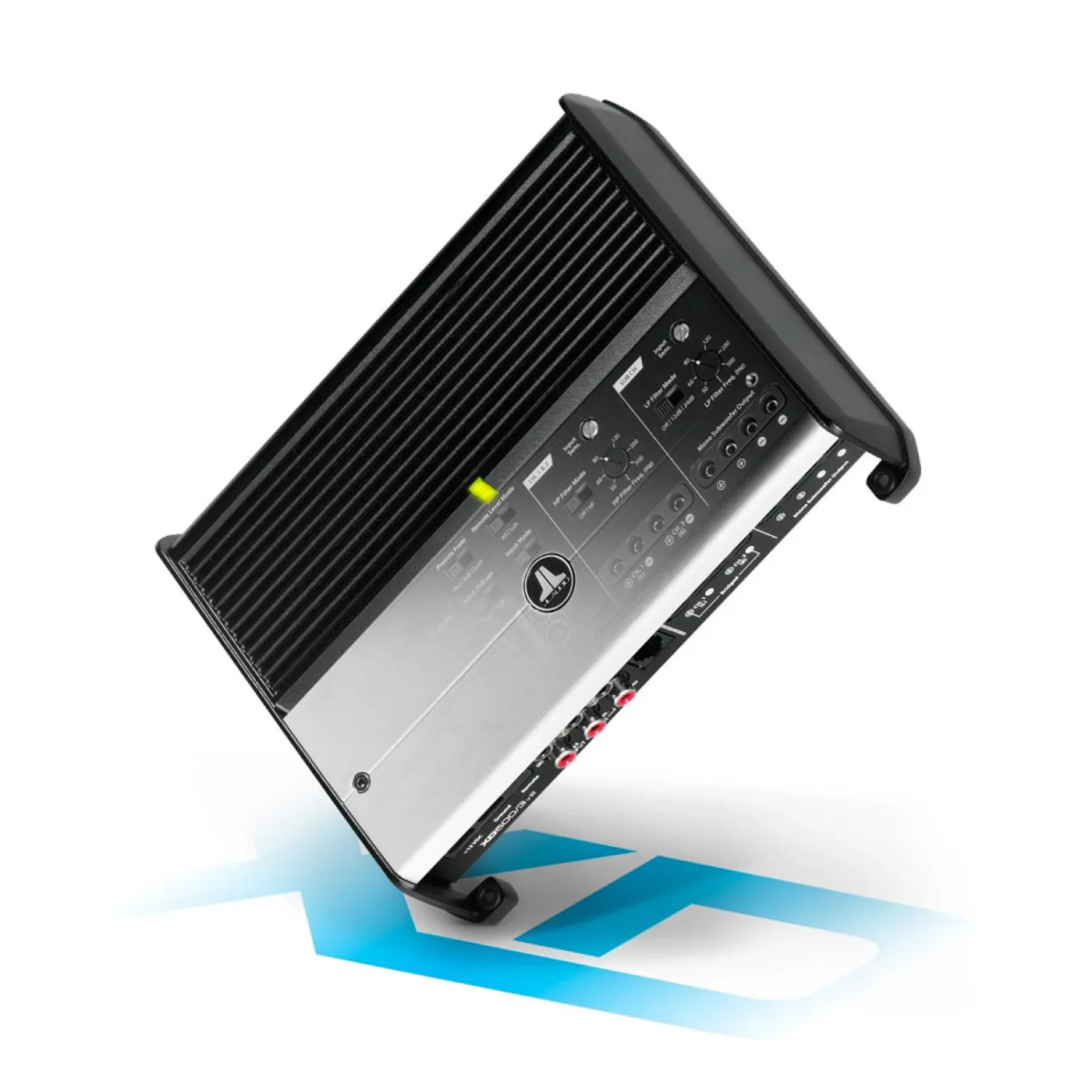

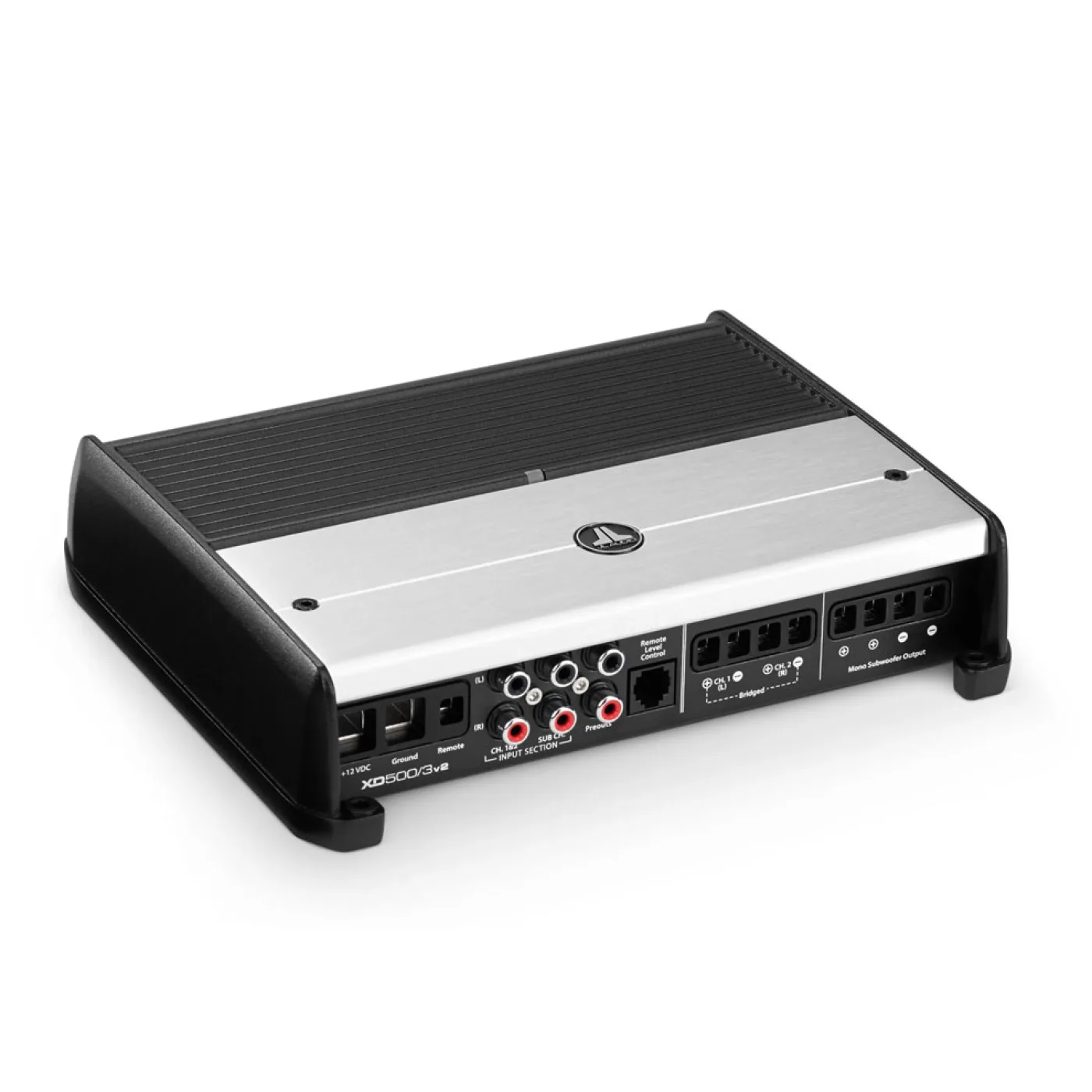

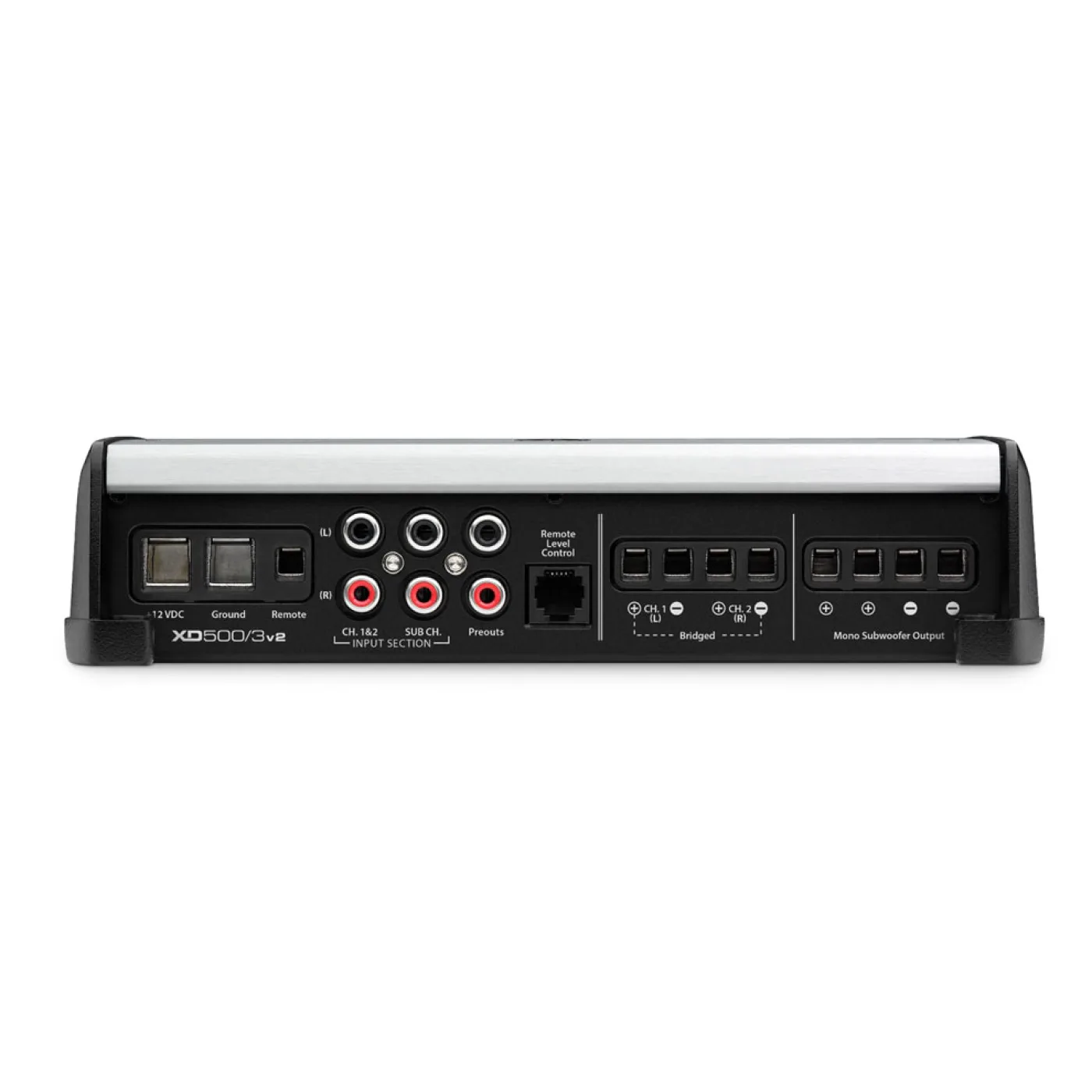

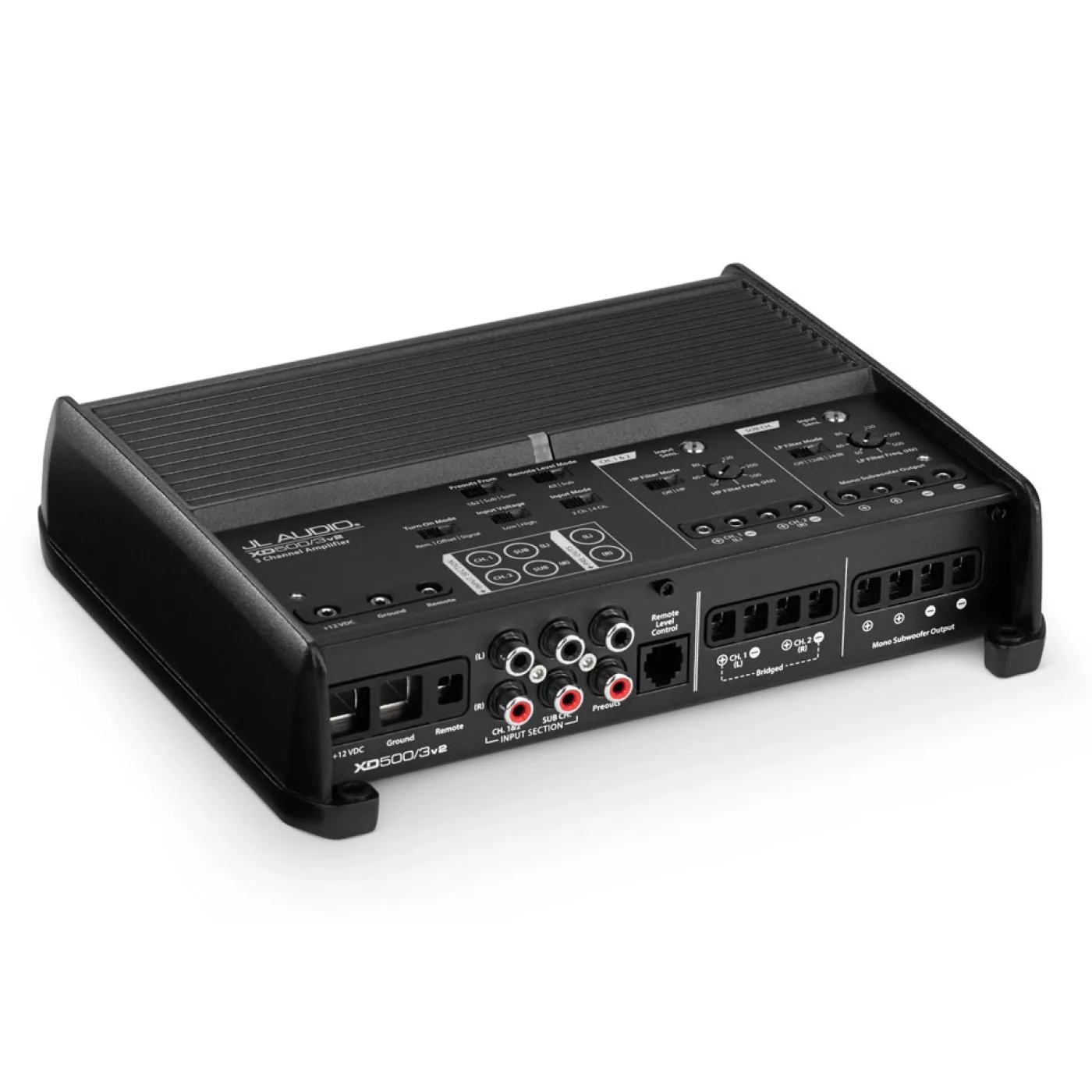

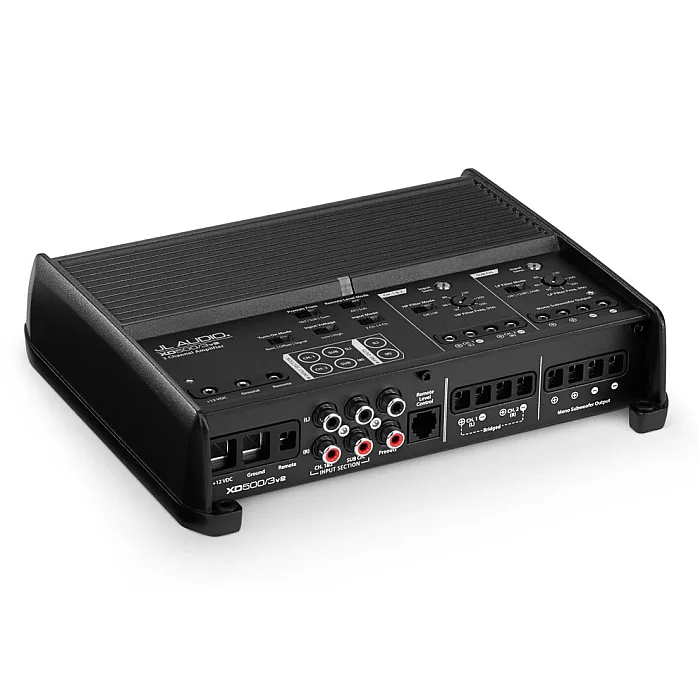

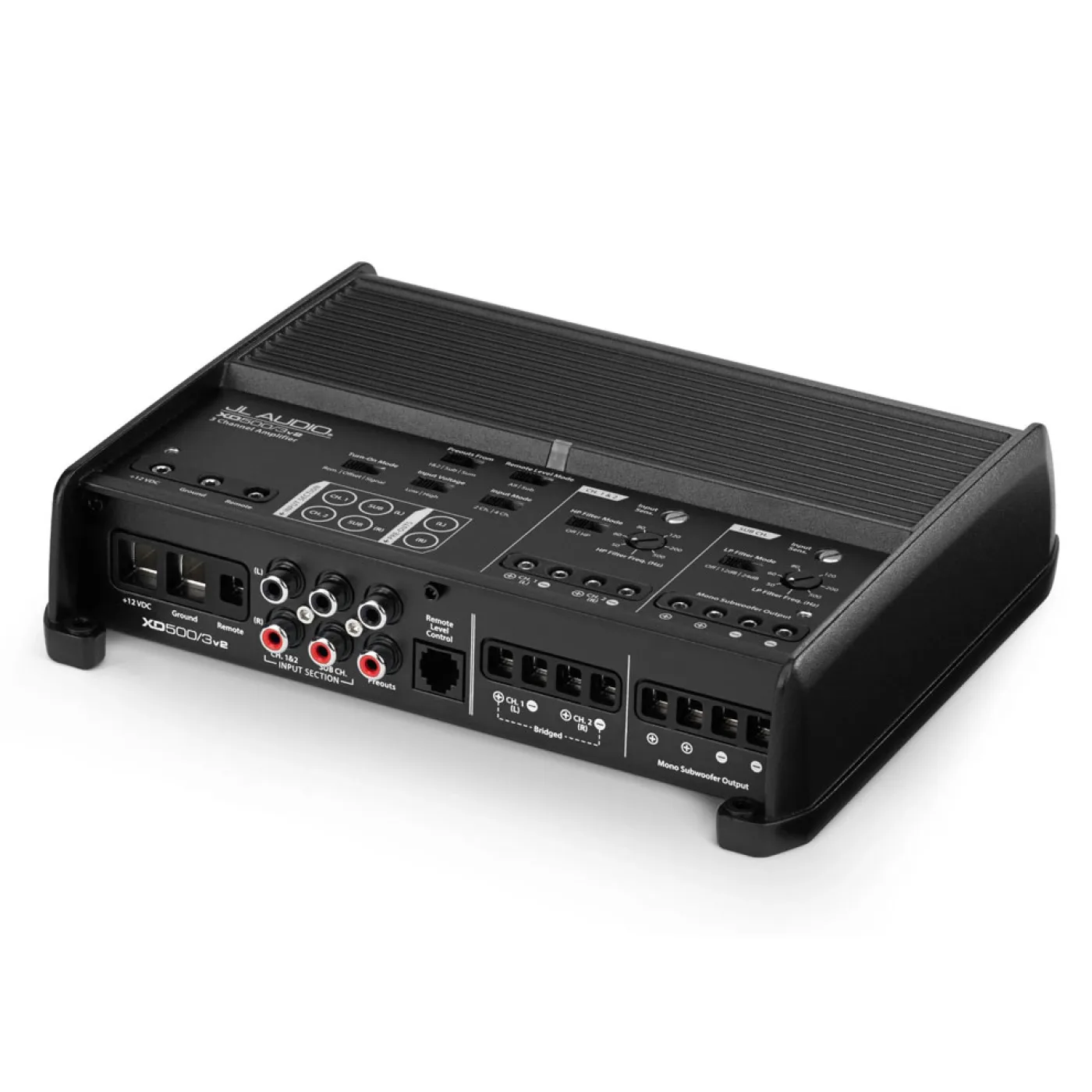

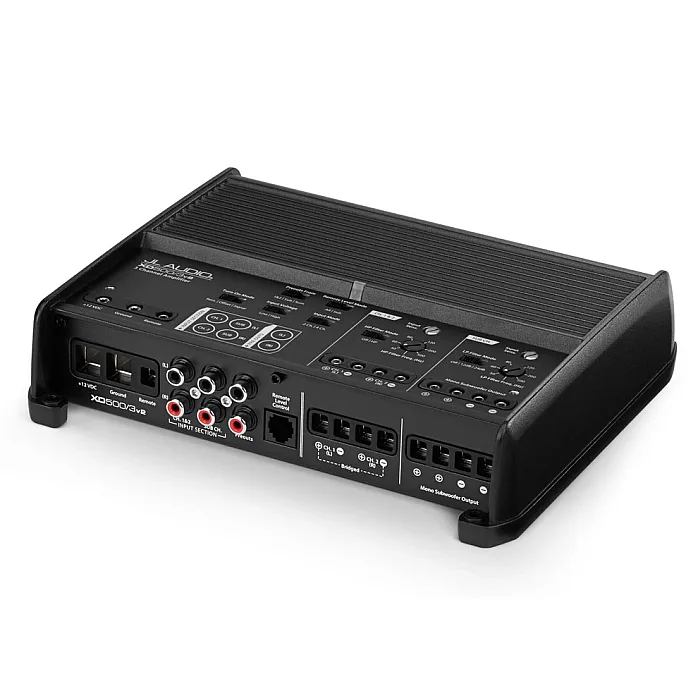

JL Audio XD500/3 - 3 Channel Class D System Car Amplifier, 500W

Availability:In Stock
Available:1 in stock
Item Condition:New
Brand:JL Audio
Product Code:XD500/3
EAN / UPC:7427306995909
Warranty:1 Year Warranty

£549.99

Order within for same-day dispatch

XD500/3 - 3 Channel Car Amplifier

3-Channel Class D System Amplifier, 75 W x 2 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V

This compact amplifier is ideal for a simple audiophile-grade, subwoofer / satellite system. With the XD500/3v2, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to your subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

The XD500/3v2 includes a 12 dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500 Hz.

The XD500/3v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

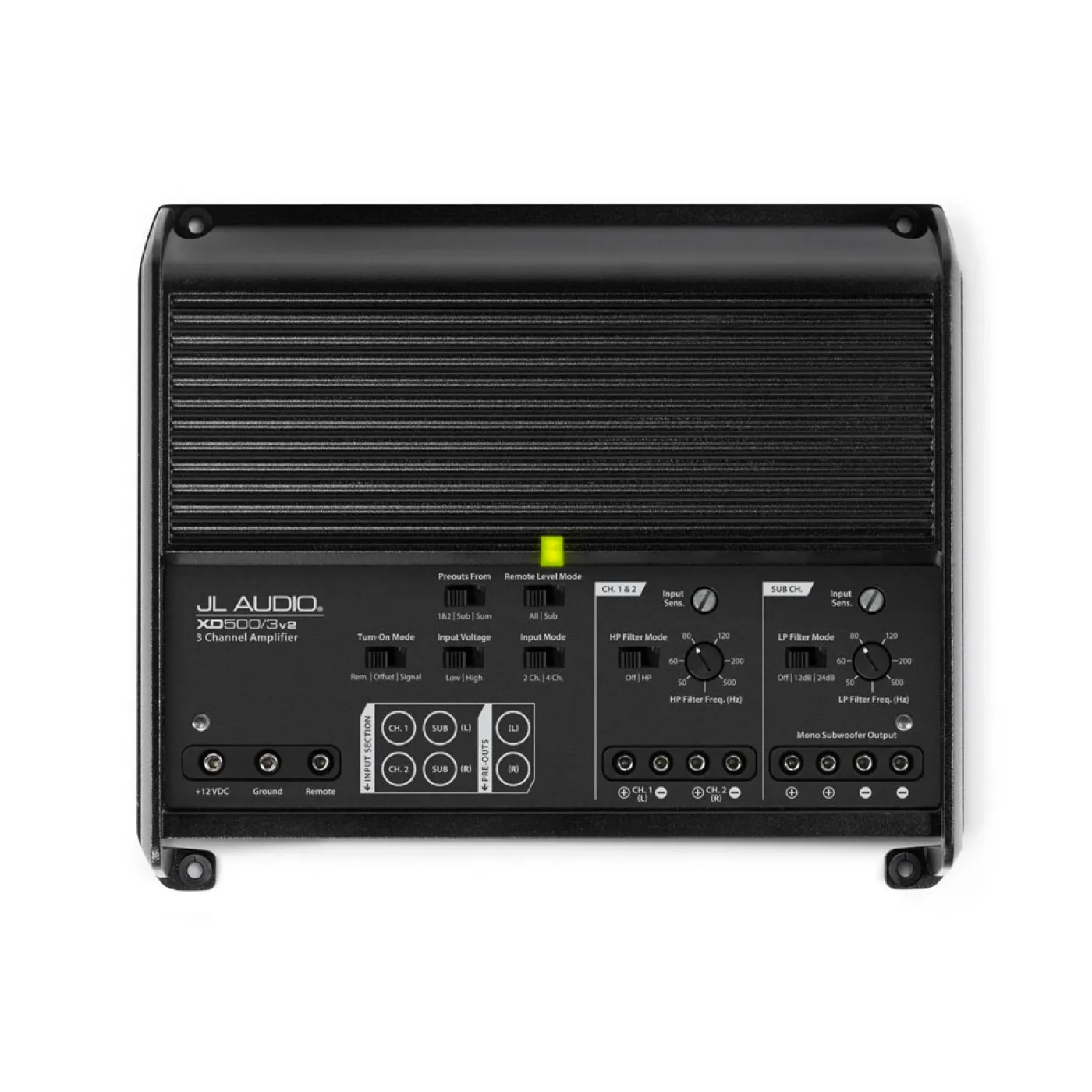

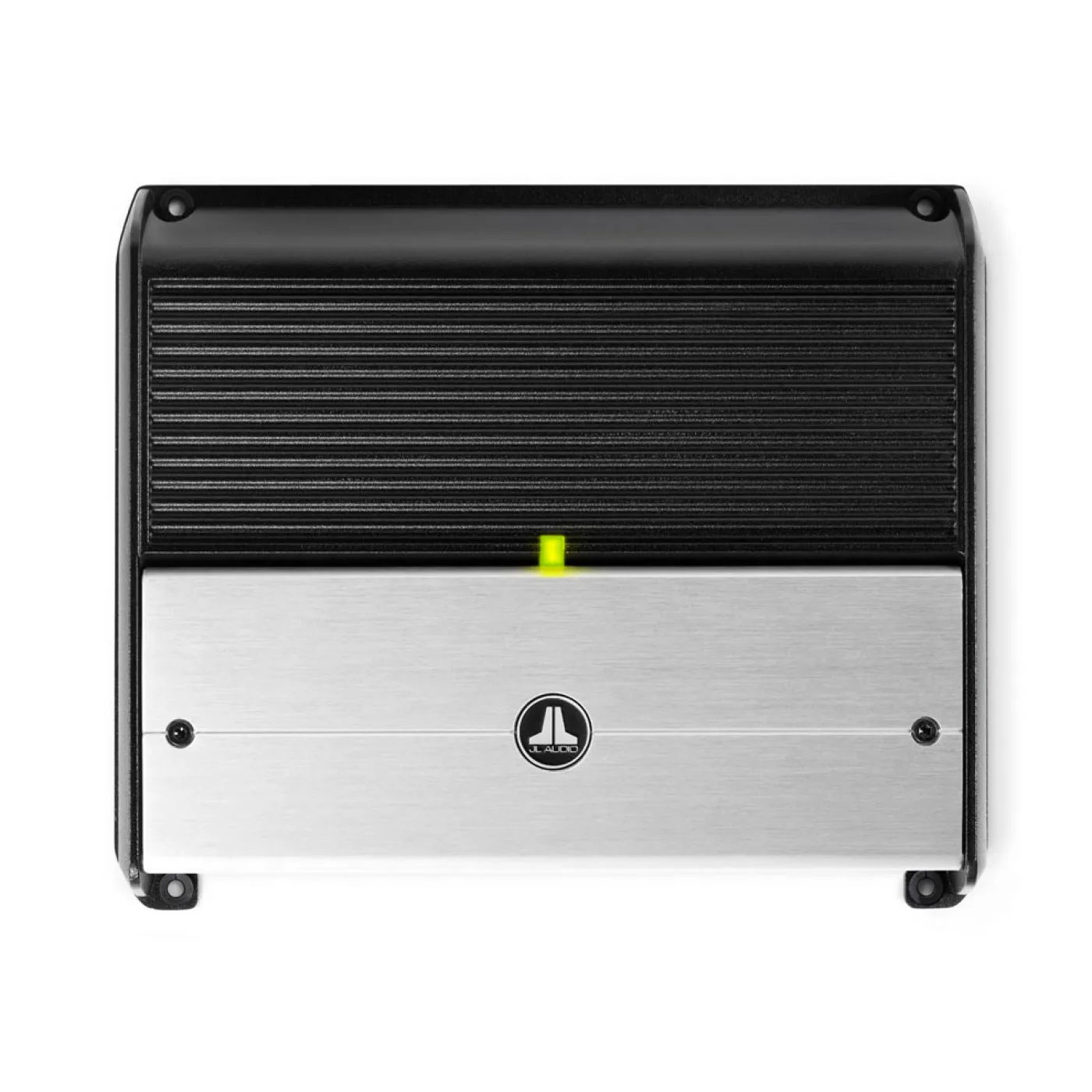

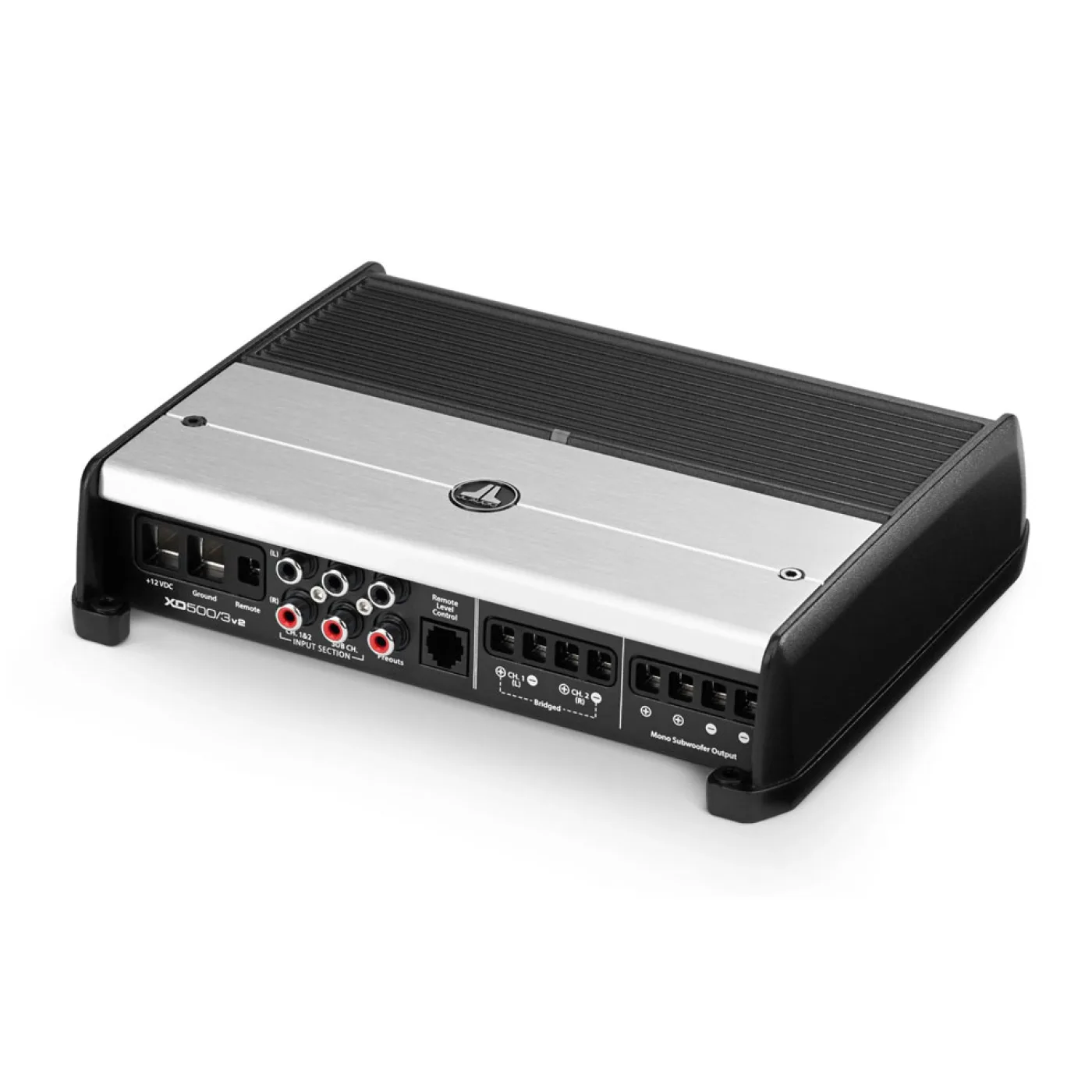

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Specifications

General Specifications

Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB); Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels): >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth); S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth); Damping Factor @ 4 Ω >120 / 50 Hz; Damping Factor @ 2 Ω >60 / 50 Hz; THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.; THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.; Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High); Min.Copper Power / Ground Wire Gauge 4 AWG wire; Fuse Rating 50 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s): Channels 1 & 2 (front) High-Pass only
Filter Slope(s): Channels 1 & 2 (front) 12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 500 Hz
Filter Mode(s): Channels 3 & 4 (rear) N/A
Filter Slope(s): Channels 3 & 4 (rear) N/A
Filter Frequency Range: Channels 3 & 4 N/A
Filter Mode(s): Subwoofer Channel Low-Pass only
Filter Slope(s): Subwoofer Channel 12/24 dB/octave
Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz; Detented, Calibrated Filter Freq. Potentiometers; Filter Defeat Function
Infrasonic Filter: Subwoofer Channel none; Remote Level Control Optional (HD-RLC); Remote Level Modes Sub Ch. or All Channels; Channel Input Mode Switch Yes (2/4 ch.); Pass-Through Preamp Output Buffered; Source Channel Selection for PreOuts Yes (1&2/Sum/Sub)

Specifications

Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 Ω 75 W RMS x 2

Main Channels @ 2 Ω 100 W RMS x 2

Main Channels - Bridged @ 4Ω 200 W RMS x 1

Subwoofer Channel @ 4 Ω 180 W RMS x 1

Subwoofer Channel @ 3 Ω 240 W RMS x 1

Subwoofer Channel @ 2 Ω 300 W RMS x 1

Subwoofer Channel @ 1.5 Ω N/A

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 Ω 60 W RMS x 2

Main Channels @ 2 Ω 90 W RMS x 2

Main Channels - Bridged @ 4Ω 180 W RMS x 1

Subwoofer Channel @ 4 Ω 180 W RMS x 1

Subwoofer Channel @ 3 Ω 240 W RMS x 1

Subwoofer Channel @ 2 Ω 300 W RMS x 1

Subwoofer Channel @ 1.5 Ω N/A
