JVC 6.8" CarPlay / Android Auto USB, Bluetooth Car Stereo Upgrade Pack For Skoda
- Availability:In Stock
- Available:8 in stock
- Item Condition:New
- Brand:JVC
- Product Code:KW-M593BT + FK-714
- EAN / UPC:7427288119560
- Warranty:1 Year Warranty

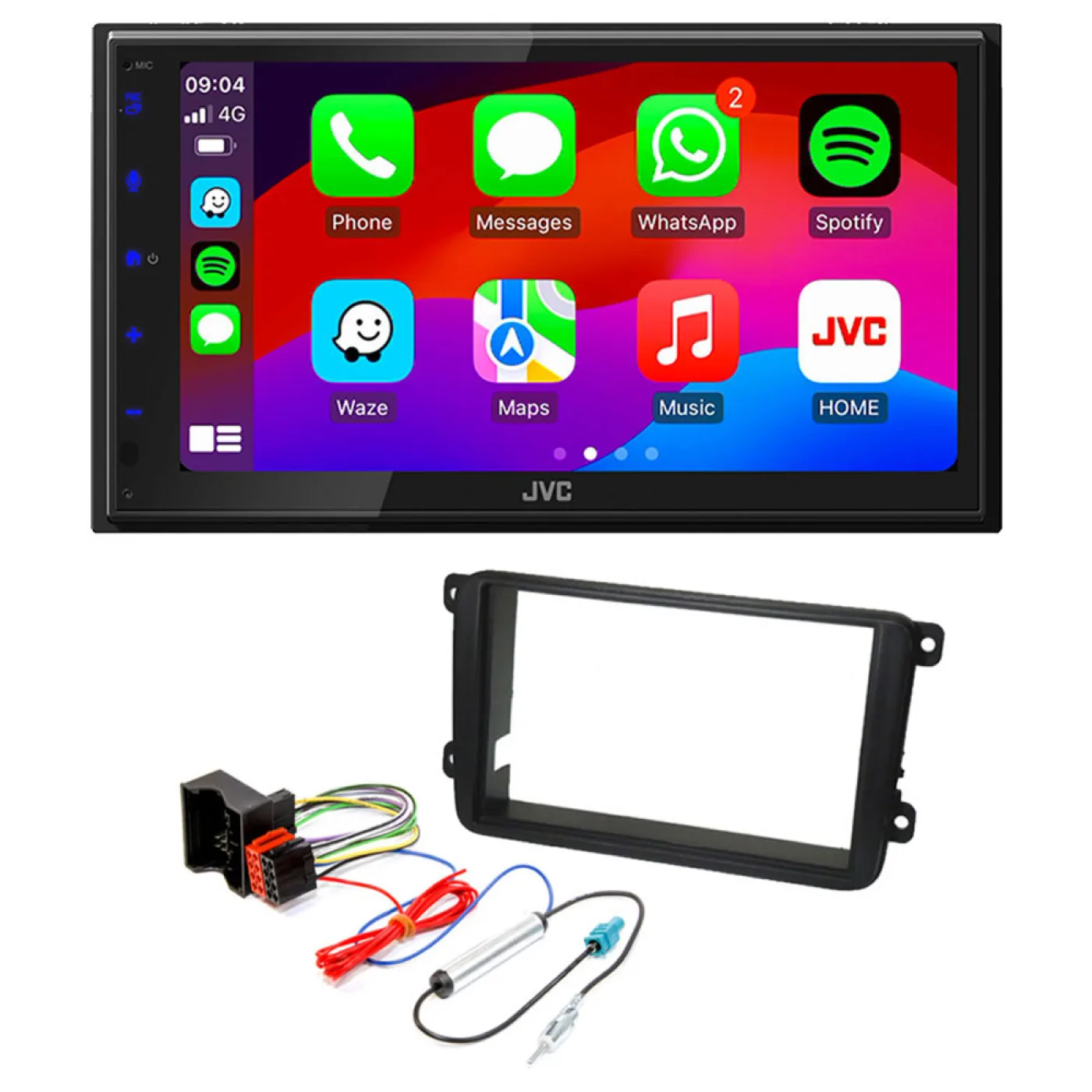

Package Includes
- JVC KW-M593BT 6.8" CarPlay / Android Auto USB, Bluetooth Screen Mirroring Car Stereo
- Double DIN Facia Adaptor Panel
- Quadlock to ISO Radio Adaptor Harness, With Antenna Adaptor, Hardwire Ignition
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Skoda | Fabia | 2007 - 2014 | Mk2 |
| Skoda | Octavia | 2004 - 2009 | Mk2 (Typ 1Z) |
| Skoda | Octavia | 2009 - 2013 | Mk2 facelift (Typ 1Z) |
| Skoda | Roomster | 2006 - 2015 | (Typ 5J) |
| Skoda | Superb | 2008 - 2015 | B6 (Typ 3T) |
Fitting kit
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Car radio fascia adaptor panel to allow the fitting of an aftermarket Double Din car radio upgrade. The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.
The fascia adapter panel takes a 113mm high cage, this is the size of cages supplied with all the major brand head unit manufactures.
Quadlock to ISO Radio Adaptor Harness, With Antenna Adaptor, Hardwire Ignition
ISO adapter harness with quadlock connectors at the back of the radio. The harness has a built in phantom powered Fakra to DIN antenna adapter.
This lead has a loose fly wire, this needs to be connected to an ignition power supply. The original radio in the car is turned on via a CANbus data signal so there is no ignition power supply in the vehicle's original connector.
This adapter harness is designed to adapt from the original quadlock style connector in the dashboard to a standard aftermarket ISO connector to allow the fitting of a new radio.
KW-M593BT
Digital Media Receiver featuring 6.8" High Res WSVGA Monitor / Wired Apple CarPlay® & Android Auto™ / iPhone & Android USB Mirroring / Bluetooth® / 13-Band EQ / Short Chassis.
Features
- Apple CarPlay® & Android Auto™ Ready
- USB Mirroring for iPhone / Android
- Advanced Wireless Bluetooth® Technolgy
- High Speed USB port with up to 2.1A High Current Charging
- Rear View Camera Input with Parking Guidelines
- 2 Preouts 2.5V & Subwoofer Out
- 6.8" WSVGA LCD Display & Convenient and Easy-to-Use Capacitive Touch Panel
- Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
- Short body (86mm) for easy installation in a wide range of cars
Apple CarPlay – Connect via USB
Apple CarPlay is a safer and more fun way to use your iPhone in the car via USB connection. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
- Some features, applications, and services are not available in all areas
Android Auto – Connect via USB
Android Auto* was designed with safety in mind, helping you to minimize distractions and stay focused on the road. JVC’s multimedia receiver, connected via USB, combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Spotify.
- Compatible Android phone and compatible active data plan required.
- Some features and devices may not be available in all countries. Subject to availability.
USB Mirroring for iPhone & Android Smartphone.
By installing the “MirroringAPP+”, your iPhone & Android phone* is seamlessly displayed on the JVC receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
Wide Super VGA LCD Display
The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Short Chassis Design
The reduced depth and the P-shape of the chassis contributes to a weight reduction and facilitates easier installation.
Technical Specification
Monitor
- Screen Size 6.8 inches (diagonal) wide
- High Definition Monitor WSVGA (1024 x 600px)
- Touch Panel Type Capacitive
- Display System TN LCD panel
- Drive System TFT active matrix system
- Number of Pixels 1.843.200 (1024H x 600V x RGB)
- Effective Pixels 99.99 %
- Pixel Arrangement RGB striped arrangment
- Back Lighting LED
- Touch Control
- Key Illumination Colour Blue
- Dimmer, Manual/Sync (Auto/On/Off)
- Customizable GUI
- Multilanguage Display, 14 languages
- English(UK(Default) / English US / Spanish / French / German / Italian / Dutch / Portuguese / Arabic / Hebrew / Greek / Polish / Czech / Hungarian.
Radio Tuner
- FM Tuner
- Radio Data System (RDS)
- FM Frequency Range 87.5 ~108.0 MHz (50kHz Step)
- AM Tuner
- AM Frequency Range 531kHz ~ 1611kHz (9kHz Frequency Step)
- Preset Stations 36(FM
- 24ch, AM:12ch)
- Automatic Preset / SSM (FM only)
Media Playback
- Audio Decoder
- MP3 Compatible with Tag USB
- WMA Compatible with Tag USB
- WAV Compatible with Tag USB
- AAC Compatible with Tag USB
- FLAC Compatible with Tag USB
- Video Decoder
- MPEG-1 / MPEG-2 Compatible USB
- MPEG-4 Compatible USB
- WMV Compatible USB
- H.264 Compatible USB
- MKV Compatible USB
- JPEG File Playback USB (For user background only)
- BMP File Playback USB (For user background only)
- PNG File Playback USB (For user background only)
USB
- USB Port(s) x 1
- Location Rear
- USB Standard High Speed
- File System FAT16 / FAT32 / exFAT / NTFS
- USB Mass Storage Class
- Drive Change Mode for Mass Storage Class
- Tag Information Display
- Album Art Display
- List Access
- Category search
- Link Search
- Random / Repeat Play
- Skip
- Time Code Display
- Last Position Memory / Resume
- Digital / Analog Converter (DAC) 24 bit
- Signal-to-Noise Ratio (S/N) 75 dB
- 2.1A Max Power Supply Current
Bluetooth
- Bluetooth Technology V 5.0
- Hands Free Call (HFP) HFP1.8 Wideband Speech
- Advanced Audio Distribution Profile (A2DP) V1.3
- Audio/Video Remote Control Profile (AVRCP) V 1.6
- Phone Book Access Profile (PBAP)
- Alphabetical Search for Phone Book
- Secure Simple Pairing (SSP)
- Audio Codec AAC / SBC
- Noise Canceller (Auto)
- Echo Canceller (Auto)
- Built-in BT Microphone
Android Control
- Android Auto
- Android Auto wired, (via USB)
- USB mirroring for Android
- Android Music Playback (via Bluetooth(R)
iPod/iPhone Control
- CarPlay
- CarPlay wired, (via USB)
- Mirroring for iPhone (via USB)
- iPhone Music Playback (via USB or Bluetooth®)
- Random/Repeat Play
App(s)
- MirrorApp+ via USB
Audio
- Maximum Power Output (Front & Rear) 50W x 4
- Full Bandwidth Power (at less than 1%THD) 22W x 4
- Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
- Output Frequency Band 20 - 20,000Hz
- EQUALIZER
- 13-Band Graphic EQ
- Preset EQ Preset x 7 + User set x 3 / All SRC
- High-Pass Filter/Low-Pass Filter
- Digital Sound Processor (DSP)
- Time Alignment
- Loudness Control (Off/Low/High)
- Bass Boost (Hyper Bass System) (on/off)
Inputs and Outputs
- Audio Inputs and Outputs
- Pre-Out Terminals Front (L+R), Rear (L+R), Subwoofer (mono)
- Pre-Output Level 2.5V
- Pre-Out Impedance 1,4 kΩ
- Video Inputs and Outputs
- Video Out x 1 (V:RCA)
- Colour System NTSC/PAL
- Video Output Level/Impedance 1Vp-p / 75 ohms
- Camera inputs
- Rear view camera Input
General
- Back Up Memory
- GPS Antenna Input
- Wireless Remote Control
- Wired Steering Remote Control Ready
- Learning Direct OEM Remote (Resistive protocol only)
- ISO Connector 22pin (New Type) to ISO Wiring harness
- Short Chassis (86mm)
- Operation Voltage 12 VDC
- Installation Size (W x H x D) 182 x 112 x 86mm
- Weight, inlcuding sleeve and escutcheon 1.27 kg
| Technical | |
|---|---|
| Android Auto | Wired Android Auto Ready |
| Apple CarPlay | Wired Apple CarPlay Ready |
| Rear Camera Input | Yes |
| Screen | Capacitive Touch Panel 6.8 inches (diagonal) wide WSVGA (1024 x 600px) |
| Size | Double Din |
| Plays | MP3, WMA, WAV,AAC, FLAC |
| Button Illumination | Blue |
| Bluetooth | Built In |
| Works with iPhone | Yes (via USB or Bluetooth(R) |
| USB | Rear USB |
| Pre Out | 2 Preouts 2.5V & Subwoofer Out |
