Kenwood 2" LCD Display GPS, Wifi 2K HD Recording Dashcam with Rear Camera and Hard Wired Kit
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:Kenwood
- Product Code:DRV-A510W + KCA-R110 + CA-DR1130 + 32GB MEMORY CARD
- EAN / UPC:7427307011530
- Warranty:1 Year Warranty

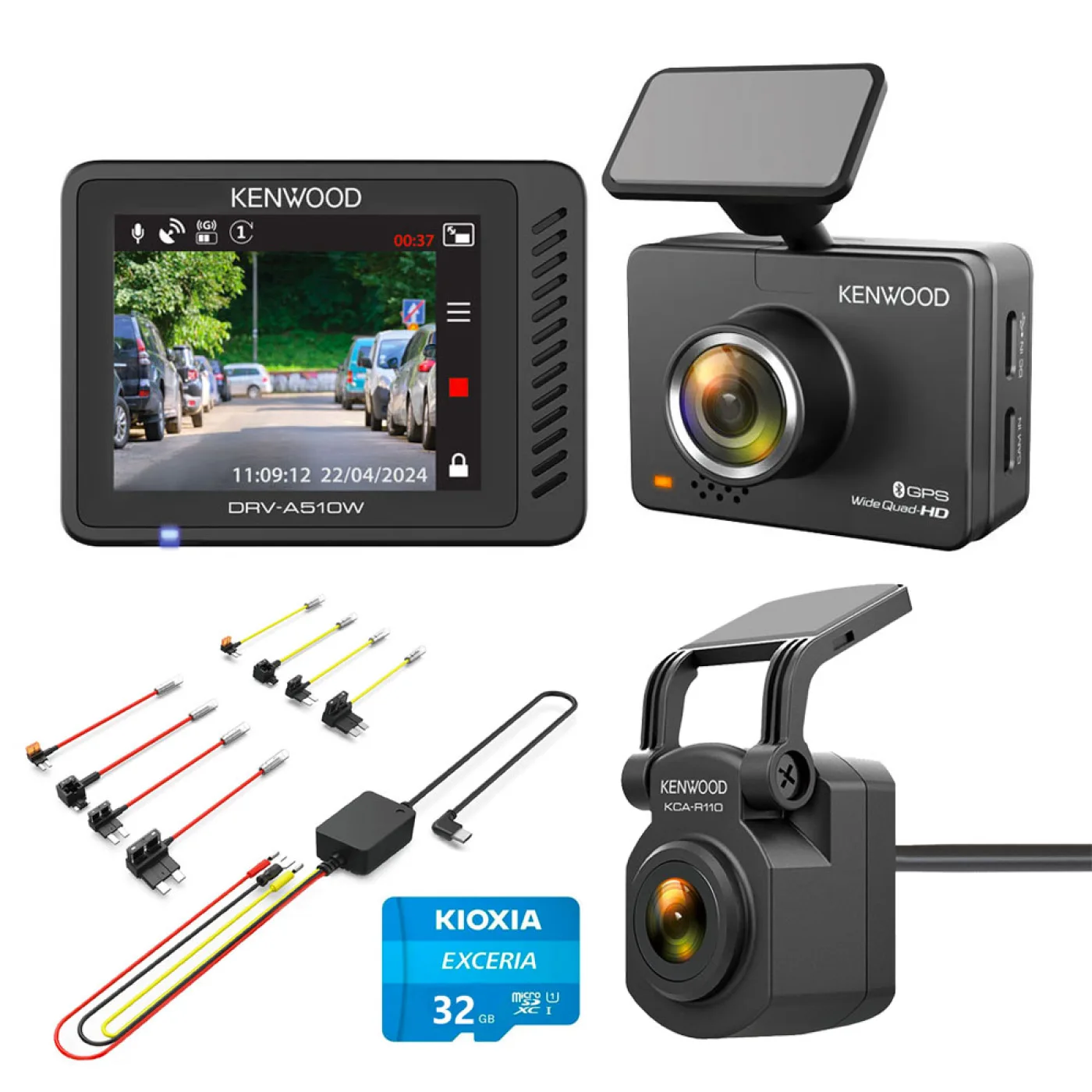

Package Includes
- Kenwood 2" LCD Display Dashcam GPS, Wifi 2K HD Recording Dashboard Camera
- Kenwood IP67 HD Rear View Camera
- Kenwood Dash Cams Hard Wired Kit for Extended Parking Mode

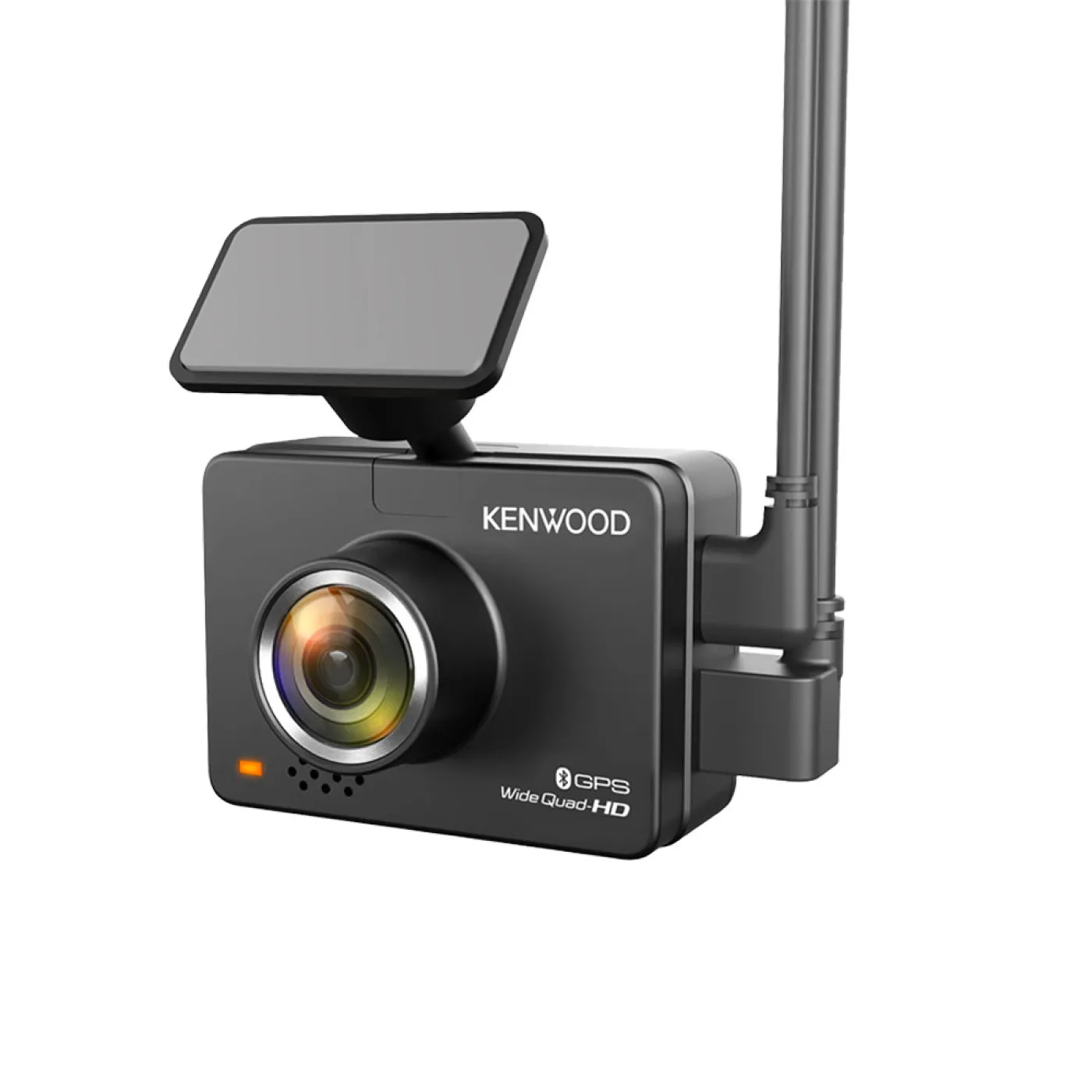

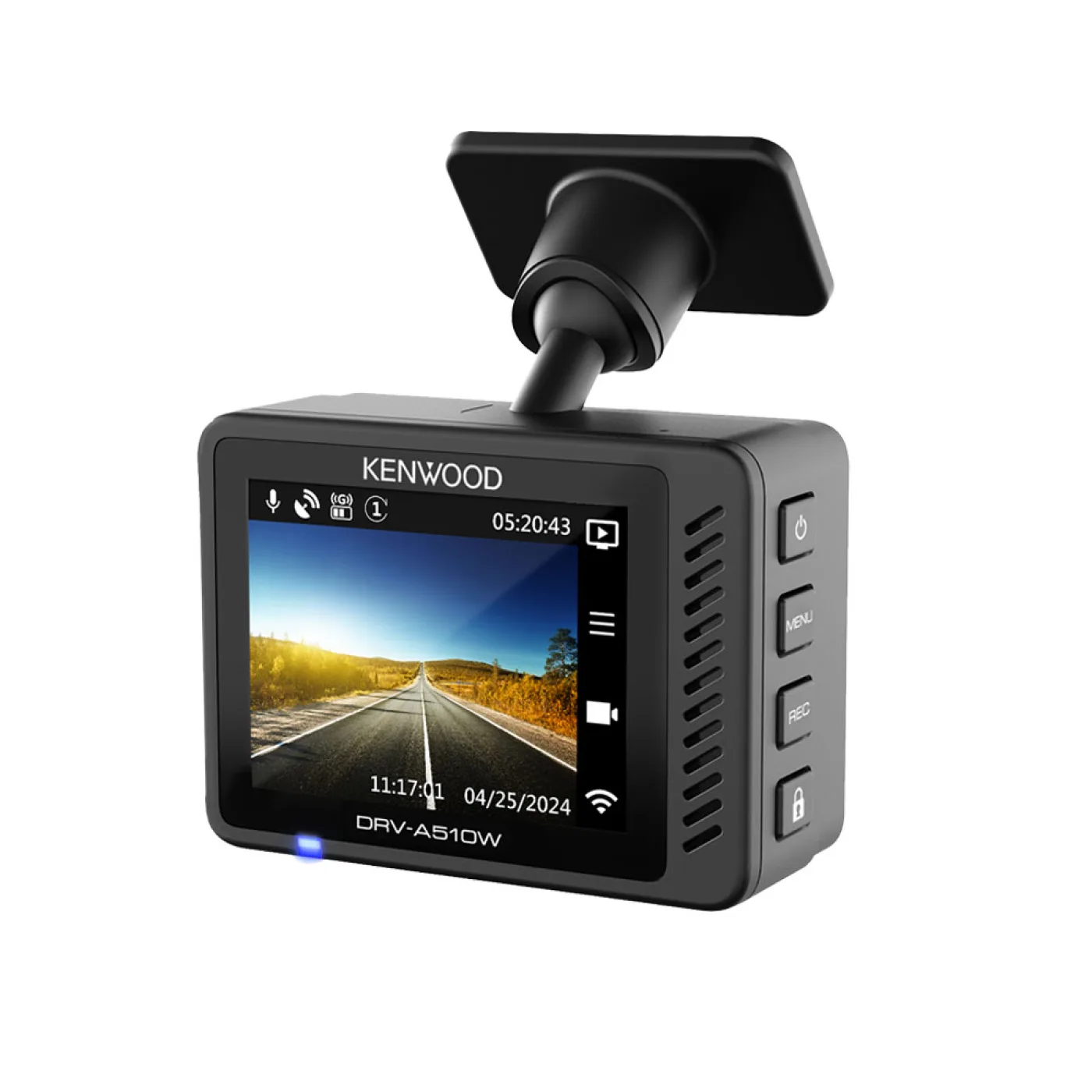

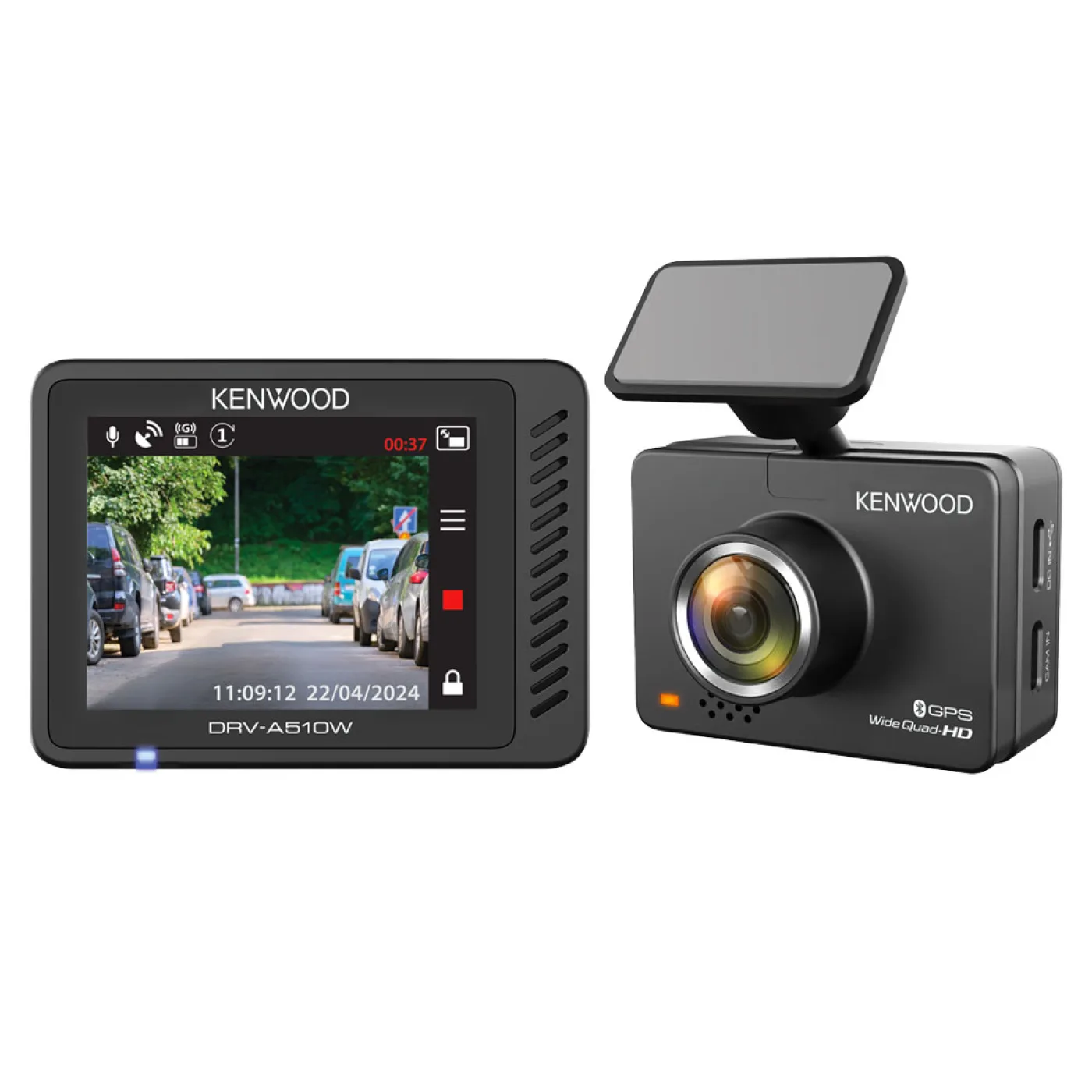

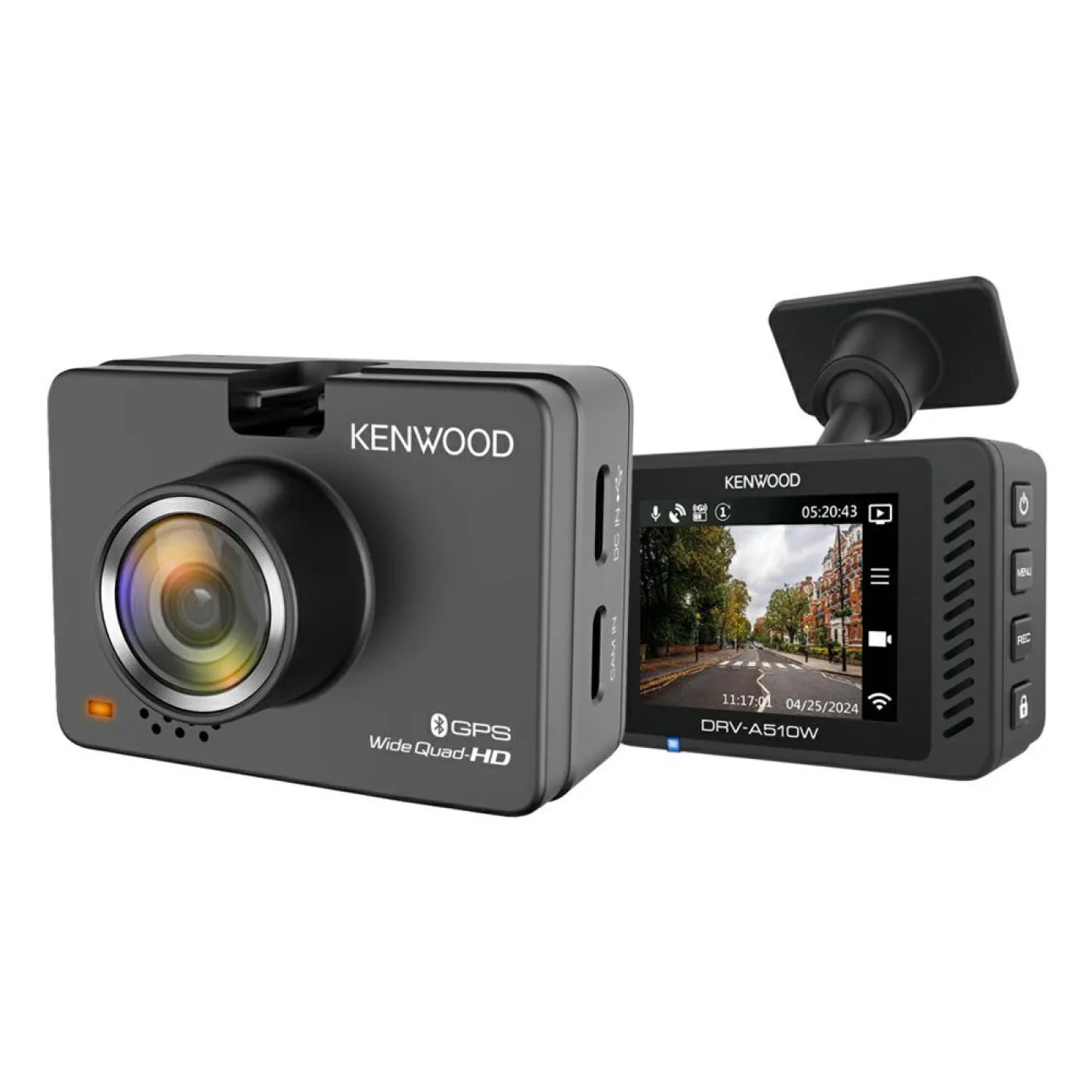

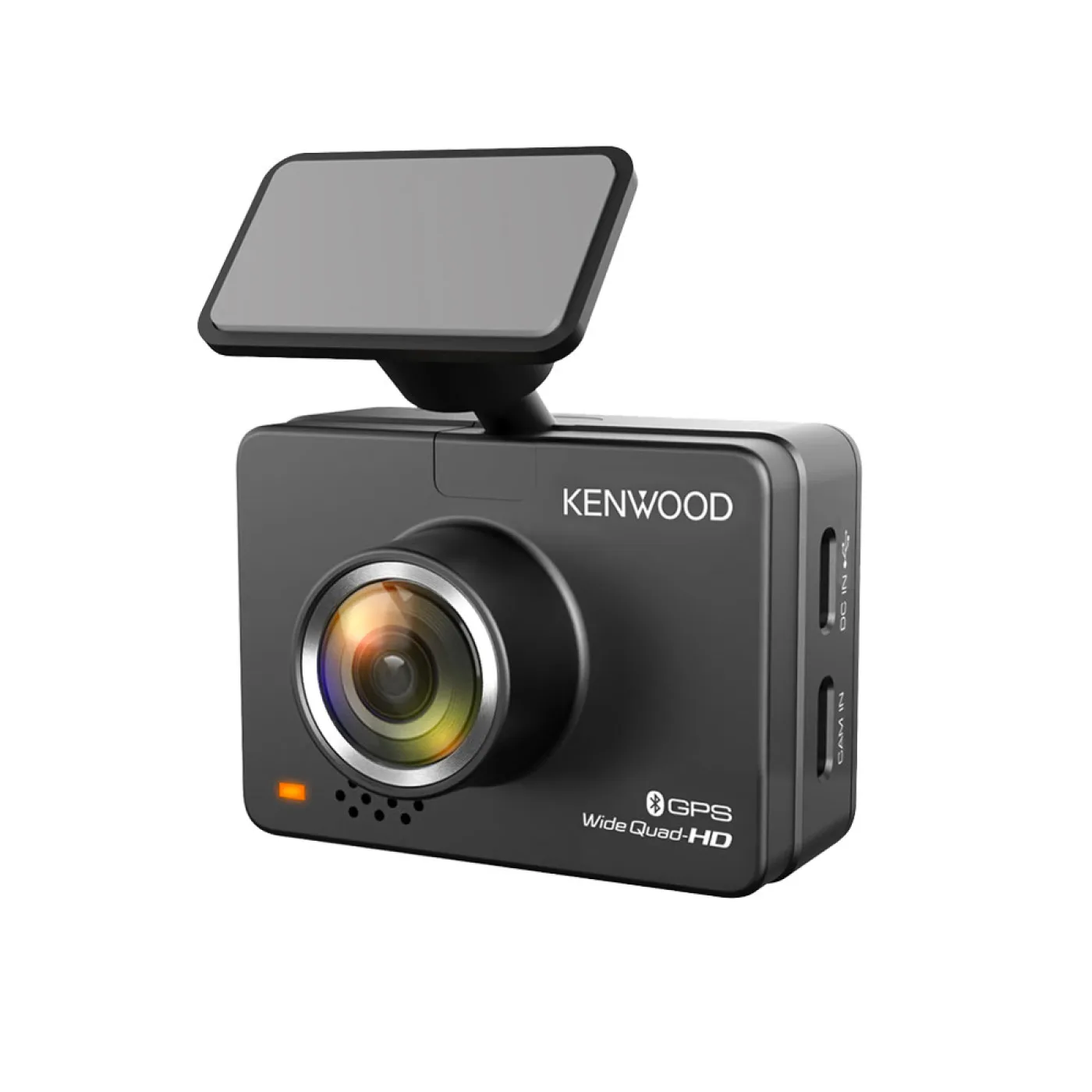

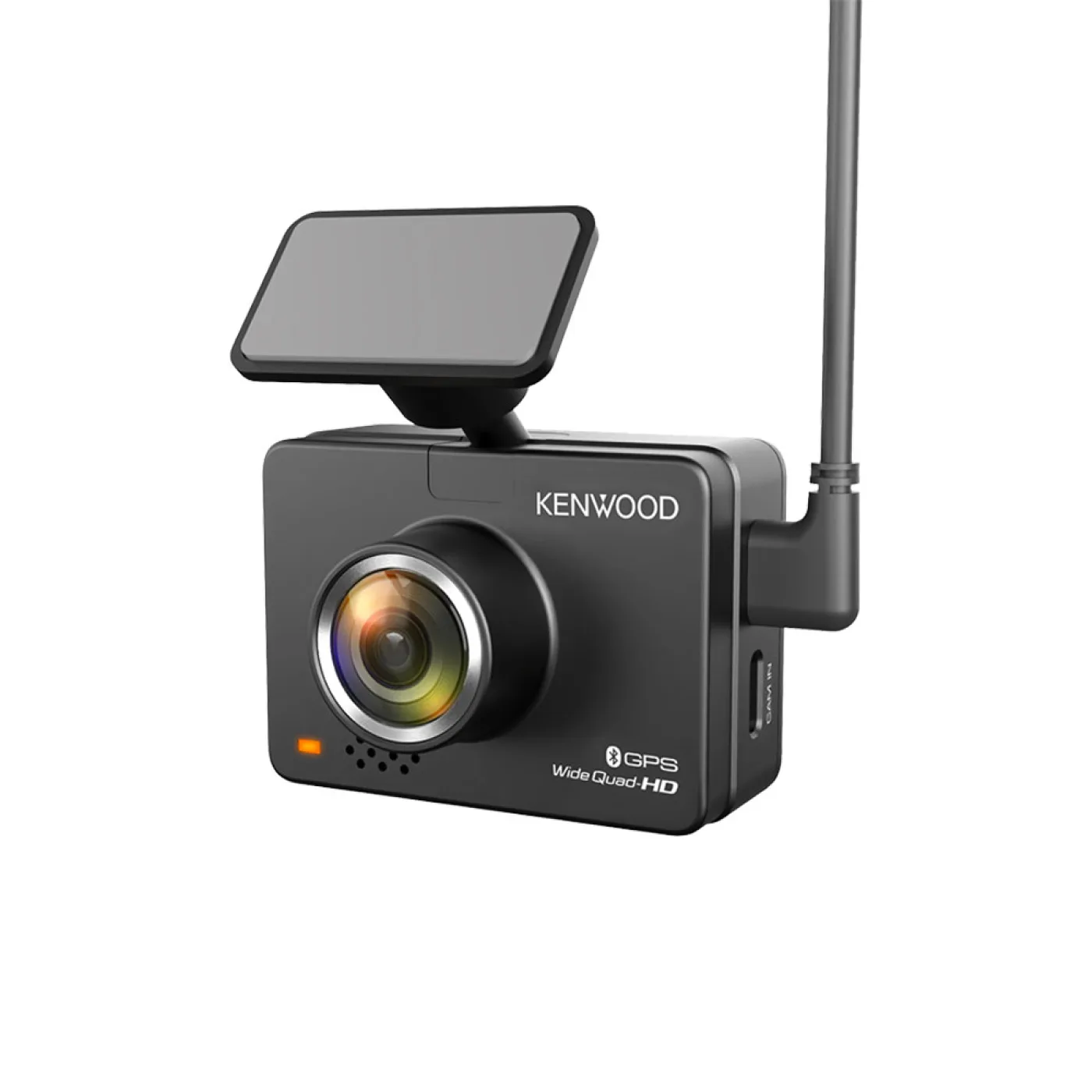

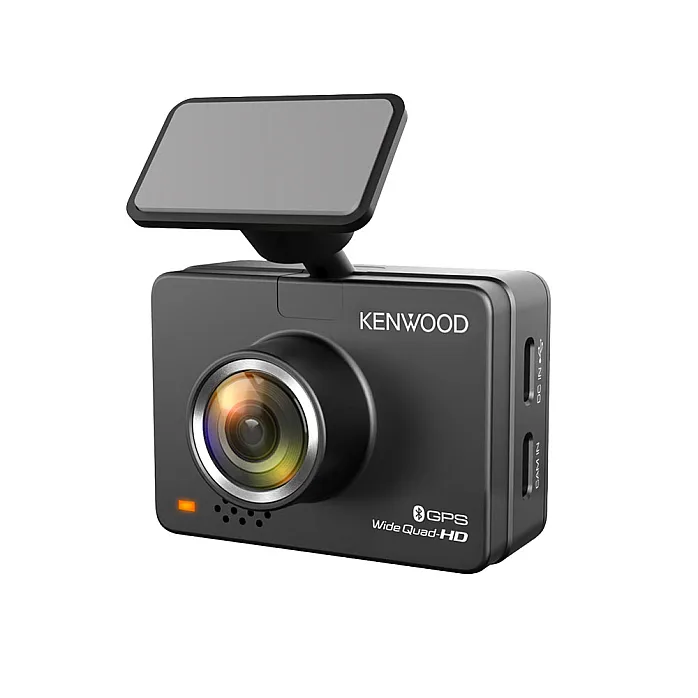

DRV-A510W Dashboard Camera
Dashboard Camera with 2.0" LCD Display, 2K High Definition Recording & Wireless Link
The DRV-A510W Dashboard Camera is equipped with 2K Quad HD Recording and captures clear video even while driving. Access your Dash Cam Data Wirelessly with the KENWOOD DASH CAM MANAGER smartphone application (IOS & Android) and share recorded videos directly to social media.
Connect the optional KCA-R110 rear camera to enable dual channel (front in 2K and rear camera in Full HD simultaneously) recording. Connect the optional CA-DR1130 to activate the Smart parking mode (Vibration or motion detection or Time-lapse recording)
Key Features
- 2K Wide Quad High Definition Recording, making super-high resolution recording and replay possible.
- Captures 2560x1440px H.265/ MP4 Video @ 30fps, AAC Audio & JPEG (2560x1440px) Picture Format.
- Features the F1.8 lens which boasts industry-leading-brightness and 136° diagonal ultra-wide viewing angle.
- HDR (High Dynamic Range) Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

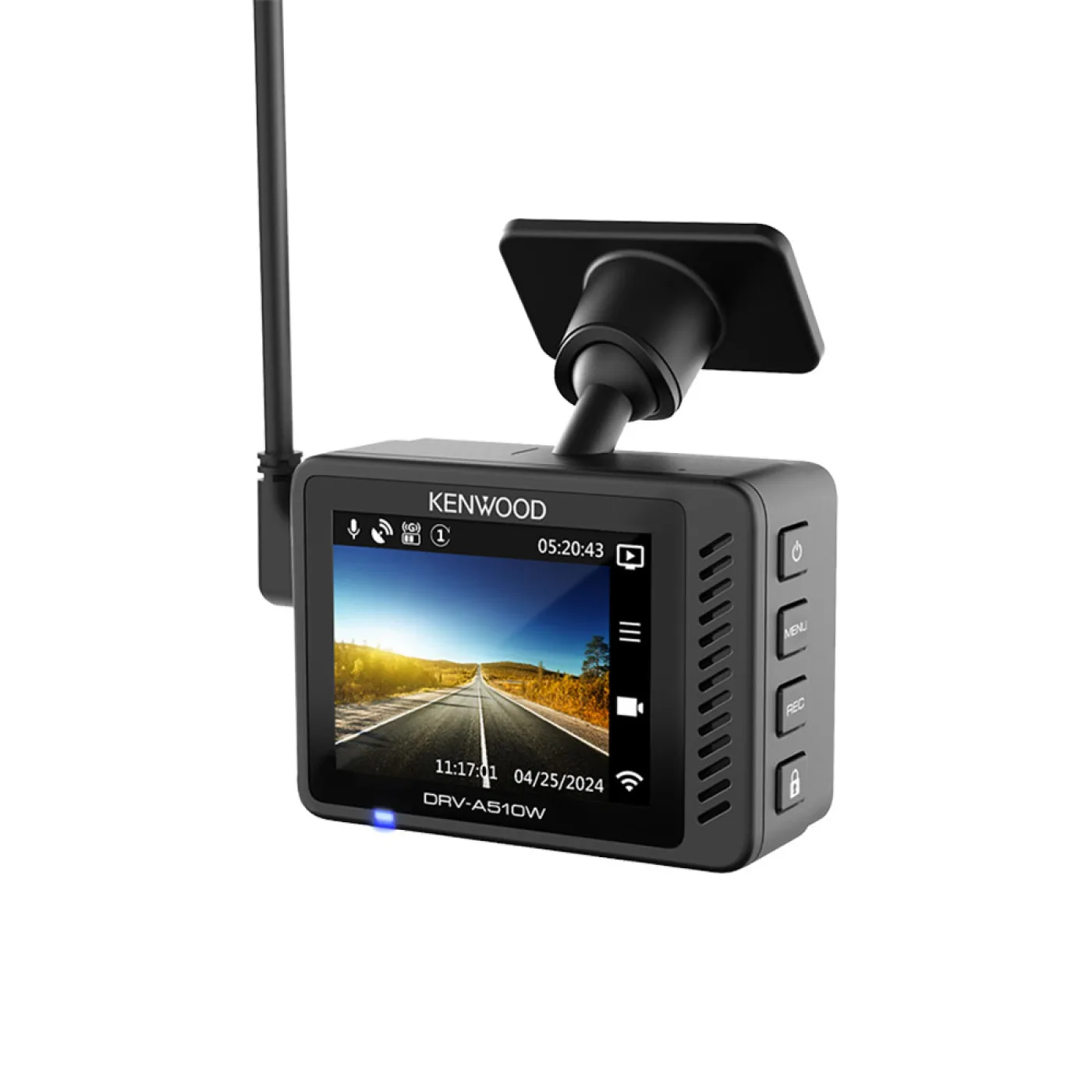

- 2.0" Full Colour TFT Display provides easy access to checking recorded videos and changing settings.
- Access Your Dash Cam Data Wirelessly using the KENWOOD DASH CAM MANAGER smartphone application.
- Review and edit recorded videos using KENWOOD VIDEO PLAYER desktop software.
- Equipped with a G-Sensor designed to detect a outside force, and GPS receiver that records speed, latitude, and longitude.
- Rear Camera Input to record front and rear images simultaneously (KCA-R110 sold separately).
- Smart Parking Surveillance Mode (Vibration, Motion detection or Time-lapse mode) with Optional Hardwired Kit CA-DR1130.
- Micro SDHC/SDXC Card Slot (8 ~ 256GB, UHS Speed Class 3(U3) recommended).
- Supplied with Adjustable Adhesive Mount, USB Car Charger, Power Cable & Cable Clips.
With its 5 megapixel CMOS sensor, the DRV-A510W captures 2K HD video at 30fps, more then 2 times as many pixels as Full-HD, making super-high resolution recording and replay possible.
*By connecting the optional rear camera (KCA-R110) it is possible to record front and rear directions simultaneously, Front in 2K maximum recording resolution and rear in Full HD maximum recording resolution.
F1.8 Lens Ultra-Wide Viewing Angle
This camera features a F1.8 Lens, which boasts industry-leading brightness. Easily records razor-sharp videos in 2K resolution both during the day and in low light without underexposing or overexposing the image. The camera ultra-wide viewing angle with a diagonal angle of 136º can capture information at wide ranges without missing anything. Small details are clearly visible as a result, such as the license plates of other vehicles.
3-axis G Sensor & GPS Receiver
The built-in 3-axis G Sensor with adjustable sensitivity detects an outside force, forcing the device to save what has just been recorded. In addition, the GPS Receiver allows your videos to add location and speed data.
Specifications
Dashboard Camera Specifications
- Image Sensor 1/2.8" CMOS
- Number of Pixels 3.7M Pixels (2560 x 1440)
- Lens Type F1.8 Fixed focus lens
- Diagonal field of view 136°
- LCD screen 2,0" full colour TFT
- Recording Resolution 2K Wide Quad HD (2560 x 1440) Resolution (3.7M) (max)
- Front & Rear 2 Camera Recording ready for optional KCA-R110
- 2 Channel Recording Resolution 2K Wide Quad HD Front & Full HD Rear
- Frame Rate 30 fps
- Photo Format JPEG
- Photo Size 2560 x 1440 Pixels
- Recording Format H.265 / MP4
- Video Clip Lenght 1 minute
- Audio File Fomat AAC (Advanced Audio Coding)
- G-Sensor Built-in High / Medium(default) / Low / Off
- HDR record enhancement
- Built-in GPS Receiver
- Parking surveillance mode with optional hardwire kit (CA-DR1130)
- Parking Mode Vibration Detection / Motion Detection / Time-Lapse
- Wireless LAN & App Link
- Recording Media micro SDHC/SDHC card UHS Speed Class (U3)
- Maximum Size Recording Media 8GB up to 256 GB
- Menu Language EN(Default)/GE/FR/DU/IT/ES/PT/PL/CZ/RO
- Operation voltage 5 VDC
- Power Supply type USB Car Charger + 4m power cable
- Power Supply voltage 12 - 24 VDC
- Dimensions 58.5 x 42.8 x 24.4 mm
- Weight 65 gr (Camera Only)
- PC application KENWOOD VIDEO PLAYER (PC & MAC)
- Smartphone Application KENWOOD DASC CAM MANAGER (IOS & Android)
Accessories
- DC cable 4.0 meter USB-A type to USB-C type power cable.
- Car Charger Adapter Car Cigarette Lighter to USB-A
- Cable Clip 4 pieces
- Adhesive car mount bracket
- Spare Adhesive pad 2 pieces
Kenwood KCA-R110 IP67 HD Rear View Camera
Connect the waterproof Full HD Rear Camera KCA-R110 to DRV-A510W or DRV-A310W Dashboard Camera as part of a dual channel, high-quality video resolution, system and provide additional coverage where desired. The rugged body is both IP67 waterproof and dustproof allowing you to place the camera outside of the car, this provides you with clearer video footage as no windshield is obstructing the view. Supplied with adjustable pivot bracket and 8m connection cable.
Key Features
- Full High Definition Recording, making super-high resolution recording and replay possible.
- IP67 Dust & Waterproof protection rating allows you to install the camera inside or outside your car
- Features the F2.0 lens which boasts industry-leading-brightness and 131.6° diagonal ultra-wide viewing angle.
- High Dynamic Range (HDR): for enhancing the suppression of over-exposure under intense light.
- Supports Motion, Vibration Detection or Time-lapse in Smart Parking Mode.
- Video files are stored separately as F(front) and R(Rear) on the microSD card of dashboard camera.
- Compatible with DRV-A510W & DRV-A310W dashboard camera to record in front and behind of your vehicle.
- Adjustable Rear Camera mounting holder enables viewing position change by up to 170 degrees .
- Camera with adhesive bracket and 2.5m cable.
- 5.5m Connection cable & double-joint bracket included
Specifications
Camera Unit
- Image Sensor 1/2.9 inch colour CMOS sensor
- Number of Pixels Full HD (2.0M Pixels)
- Recording Resolution 1920 x 1080 pixels
- Recording Format h.264 (MP4)
- IPX ratings IP67 Dust & Waterproof
- HDR (High Dynamic Range)
- Mounting system adhesive tape / Screws
- Lens Type F2.0 Fixed Focus
- Field of View (Diagonal) 131.6°
- Frame Rate 30fps
- Video signal format H.264 (MP4)
- Operation Voltage 5VDC
- Weight 300gr (incl cable)
General Specifications
- Operation voltage 5VDC
- Maximum Current Consumption 0.3A
- Dimensions (WxHxD) 50 x 27 x 32mm
Accessories
- Camera Rear Camera with 2.5m cable
- Bracket Mounting bracket (170° up/down angle adjustment)
- Bracket Double-joint Bracket
- Connection cable 550 cm
- Screws (Parker-type) Ø 2.5 x 10mm, 4 pieces
- Adhesive tape pad 2 piece(s)

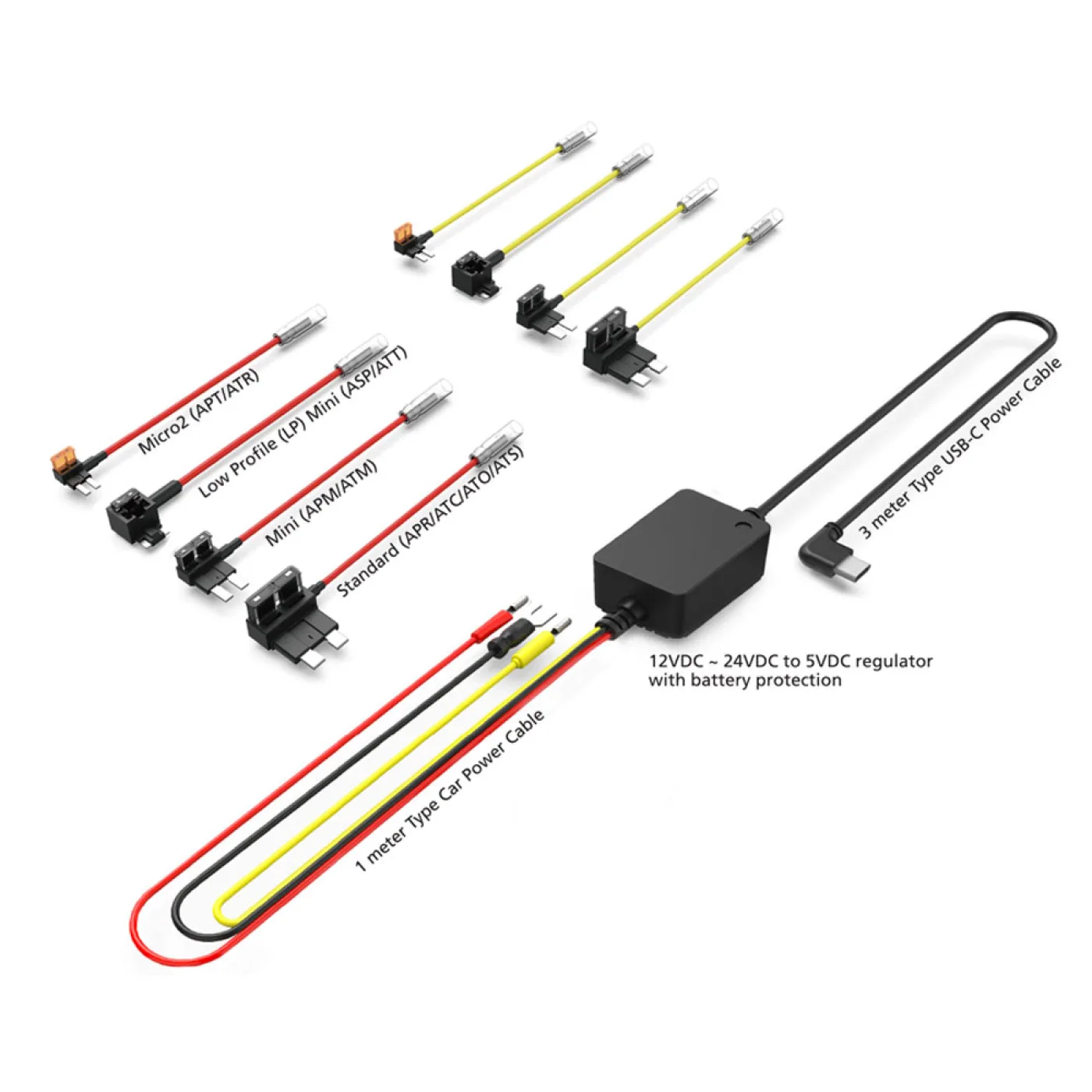

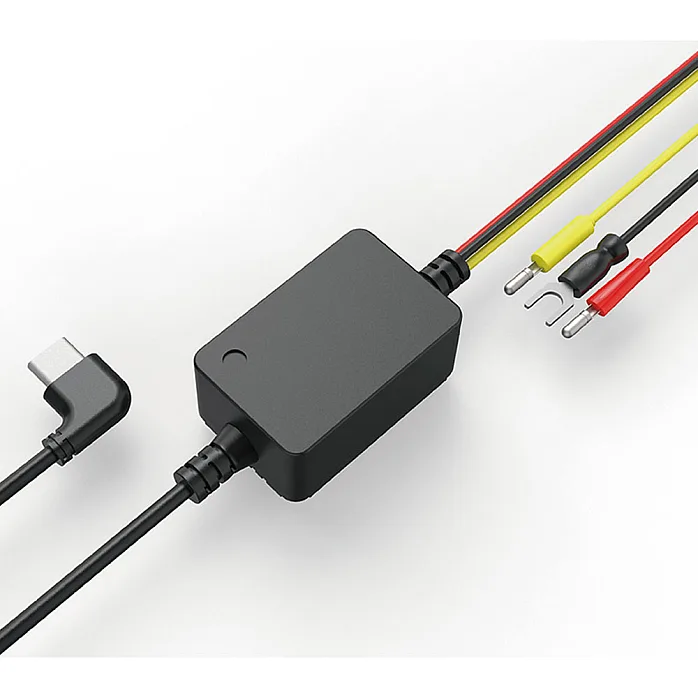

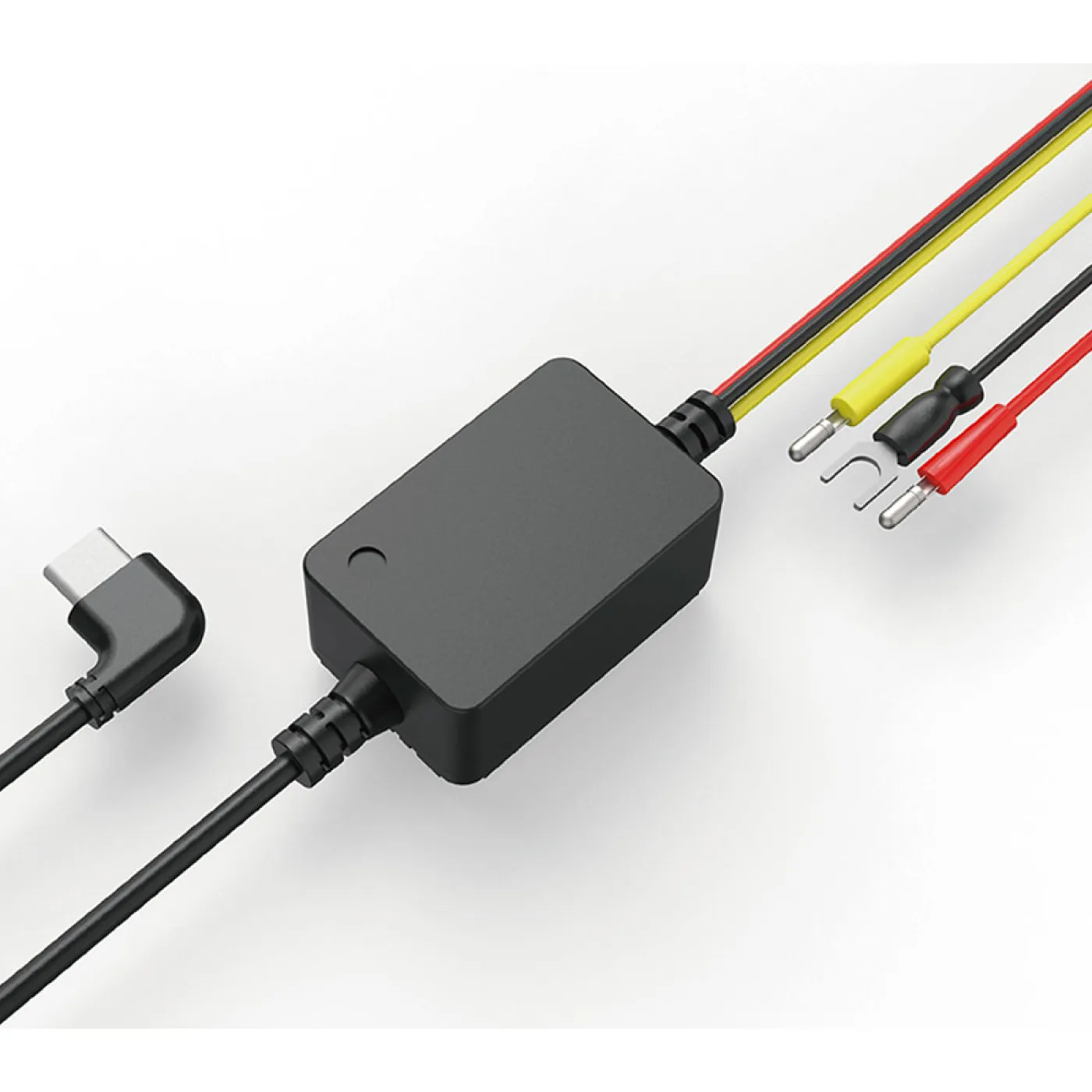

Kenwood CA-DR1130 Dash Cams Hard Wired Kit for Extended Parking Mode
Dashboard camera hard-wired kit for extended Parking Mode
You can select one of the following modes: Vibration or Motion detection: The camera will automatically record 30-second videos as long as the camera senses vibrations or motions (depending of the setting) and store them safely. When Time-lapse is set, the camera will create time-lapse videos and store them safely. The parking mode becomes automatically active when the car engine is turned off until the next time the car is started.
Key Features
- Hard-Wired kit to Enabled Enhanced Smart Parking Surveillance Mode.
- Connects a compatible dashboard camera directly to the fuse box in the vehicule
- Made for DRV-A610W, DRV-A510W and DRV-A310W
- The 4m long cable can help you to easily tuck and hide the car power cable into the headliner
- Smart Parking mode is ACC power (accessory power) controlled
- The parked monitoring time is up to a maximum 24 hours to protect the battery
- When the car battery voltage drops below 12V, it will automatically power-off to protect the car battery.

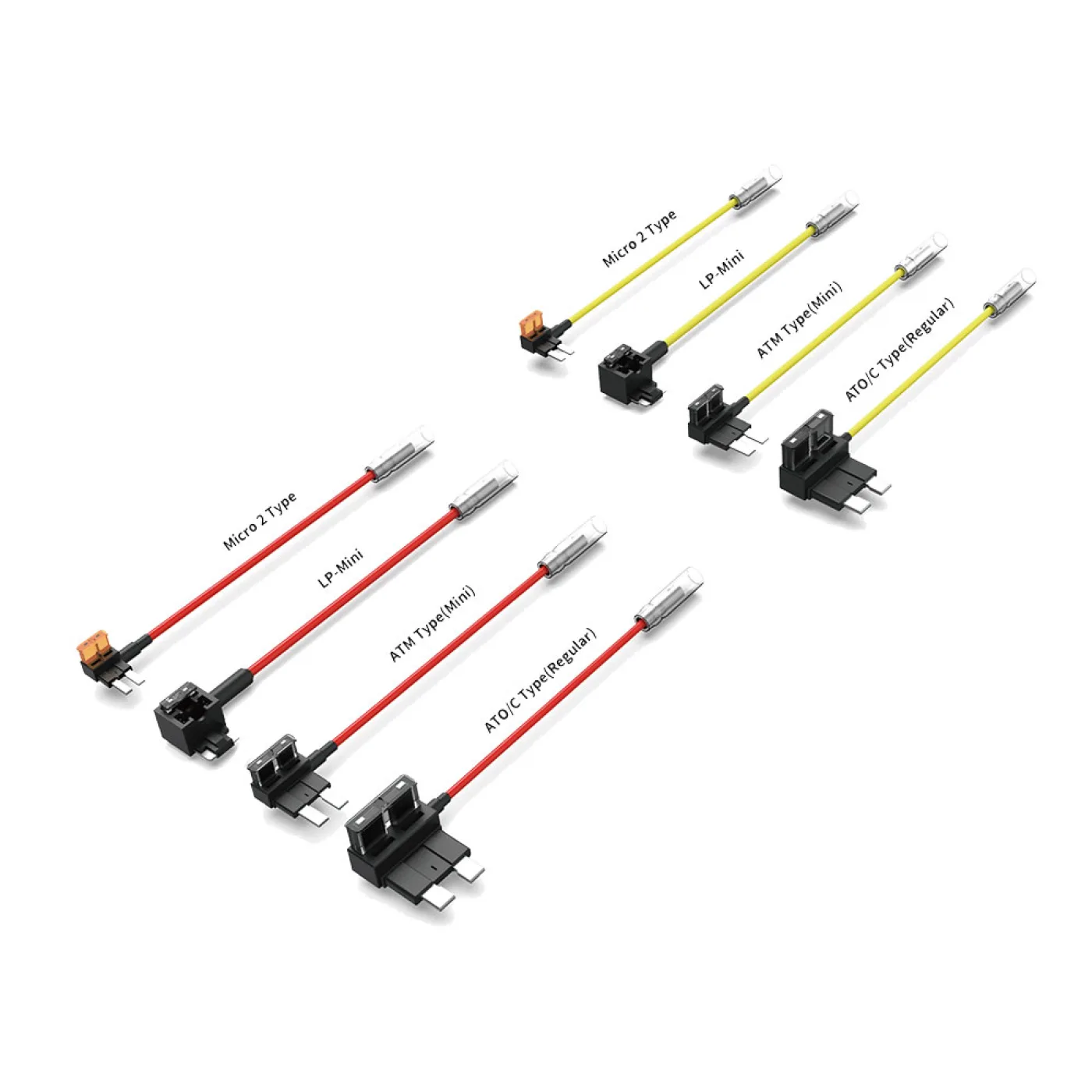

- 2 sets of 4 types "add a circuit" Fuse Tap Included
- 2Amp fuses for Low Profile, Mini & Standard Fuse Tap and 5Amp fuse for Micro2 Fuse Tap Included.

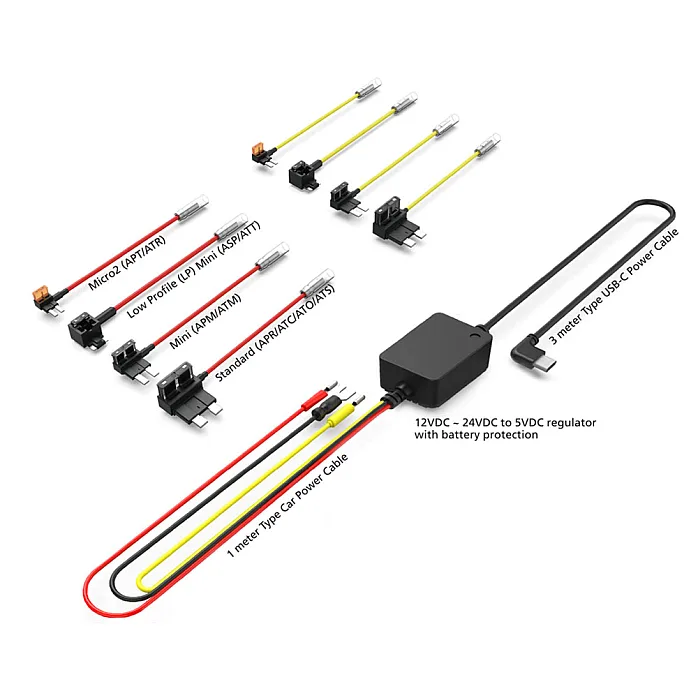

What's in the Box

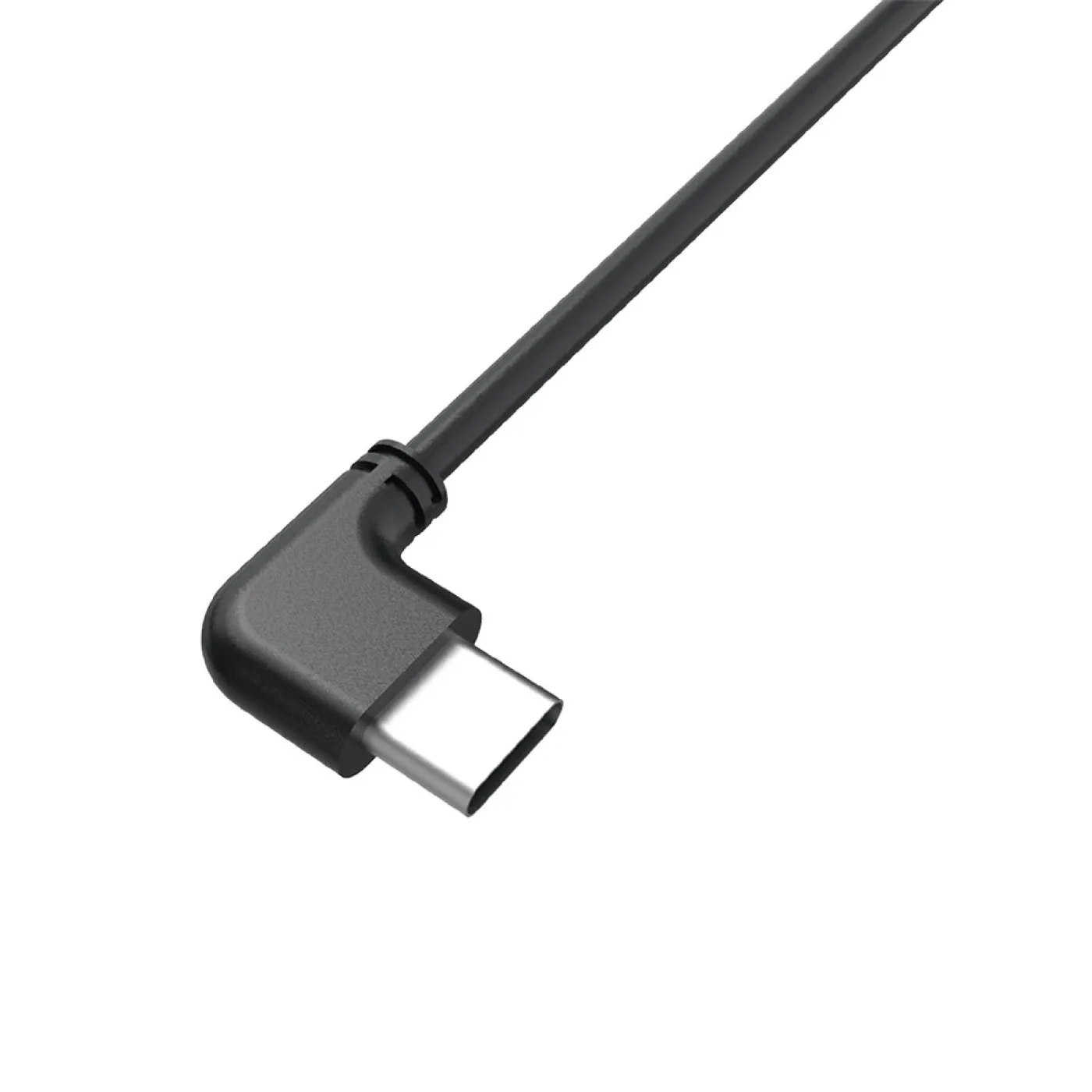

- 12V/USB adapter with attached 10' USB-C cable and 40" power & ground wires
- 2 x 6" ATC/ATO fuse-tap wires (red & yellow) with installed 2A fuses
- 2 x 6" ATM fuse-tap wires (red & yellow) with installed 2A fuses
- 2 x 6" LP-mini fuse-tap wires (red & yellow) with installed 2A fuses
- 2 x 6" Micro2 fuse-tap wires (red & yellow) with installed 5A fuses
- Instruction manual (En/Sp/Fr/Others)
- Warranty information (En/Sp/Fr/Others)
