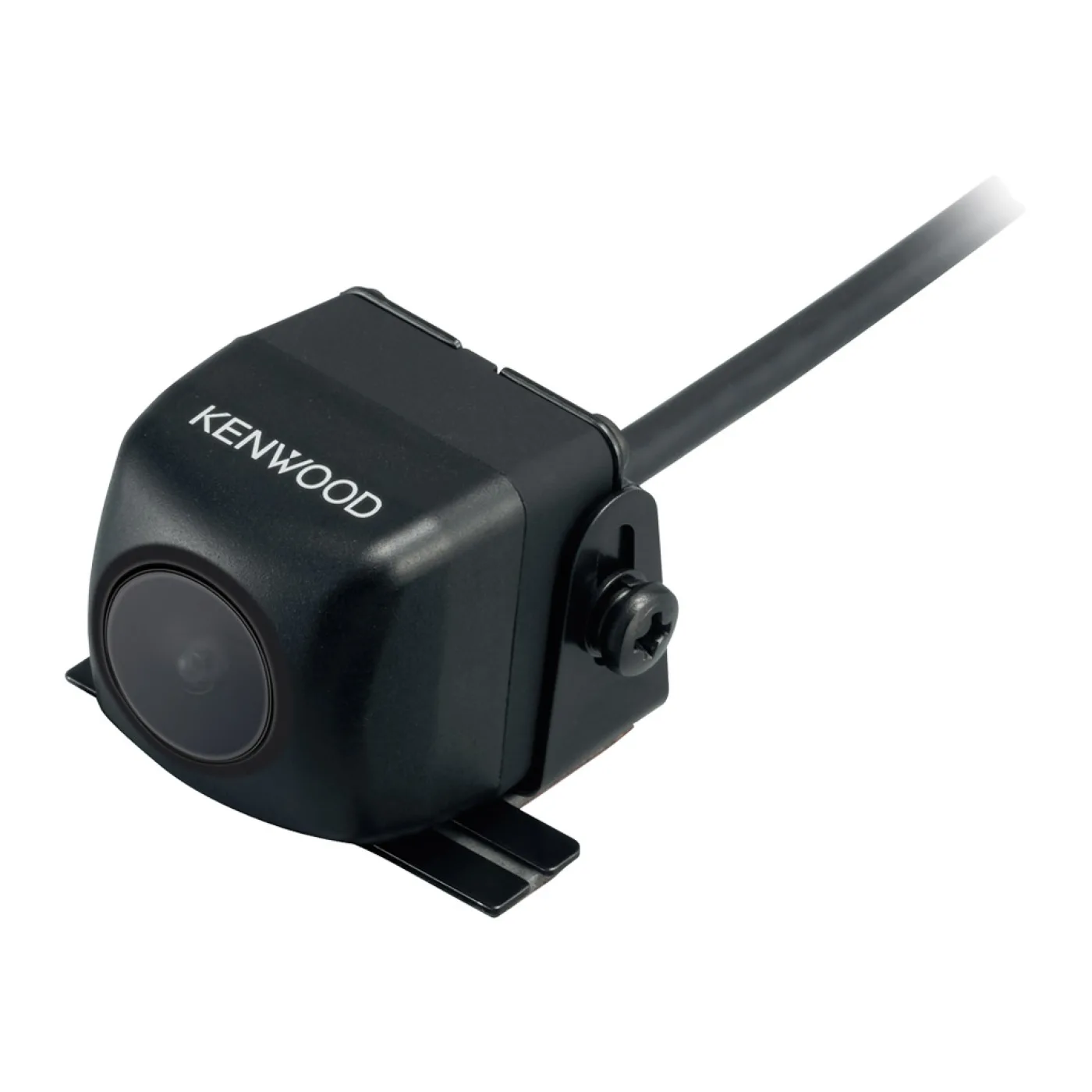

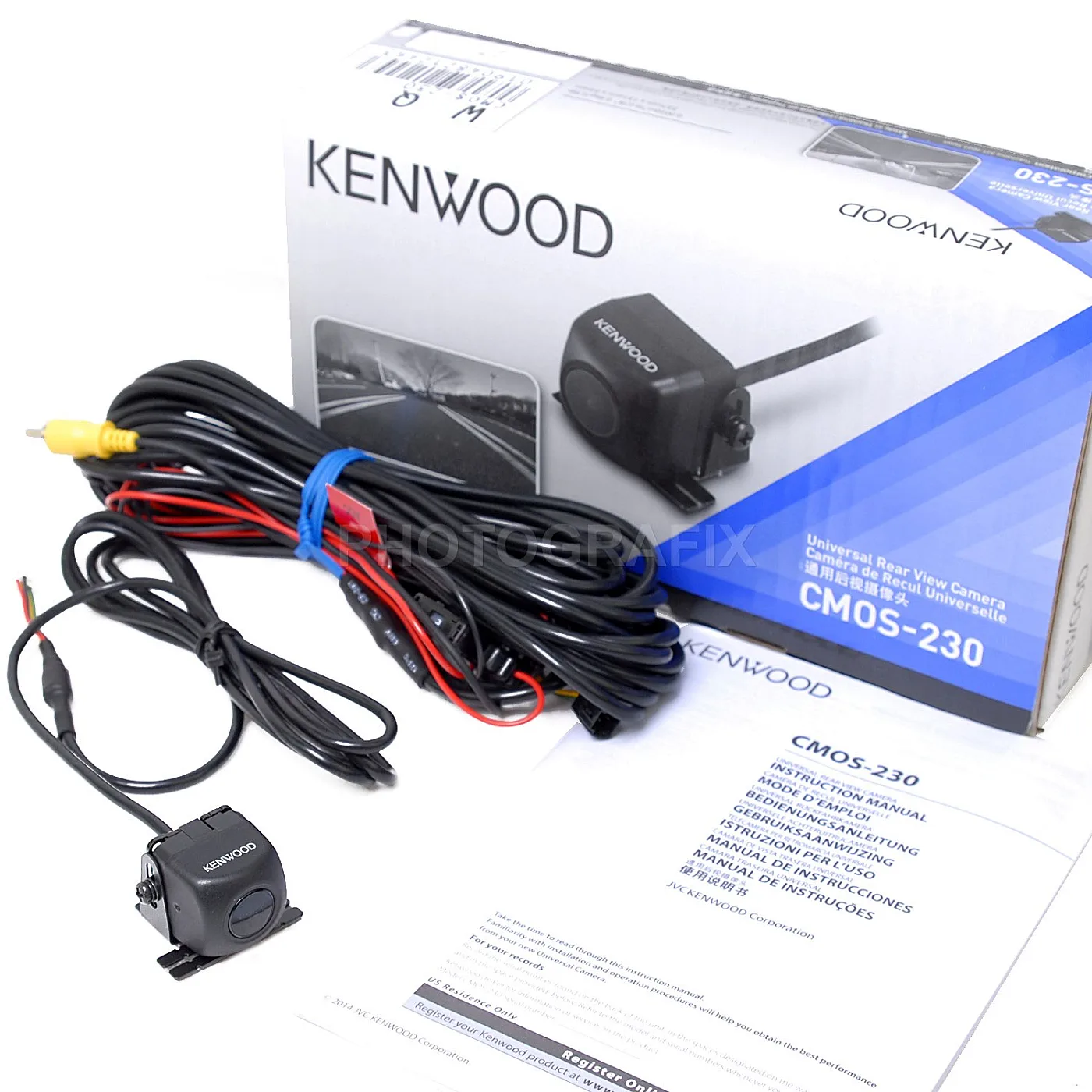

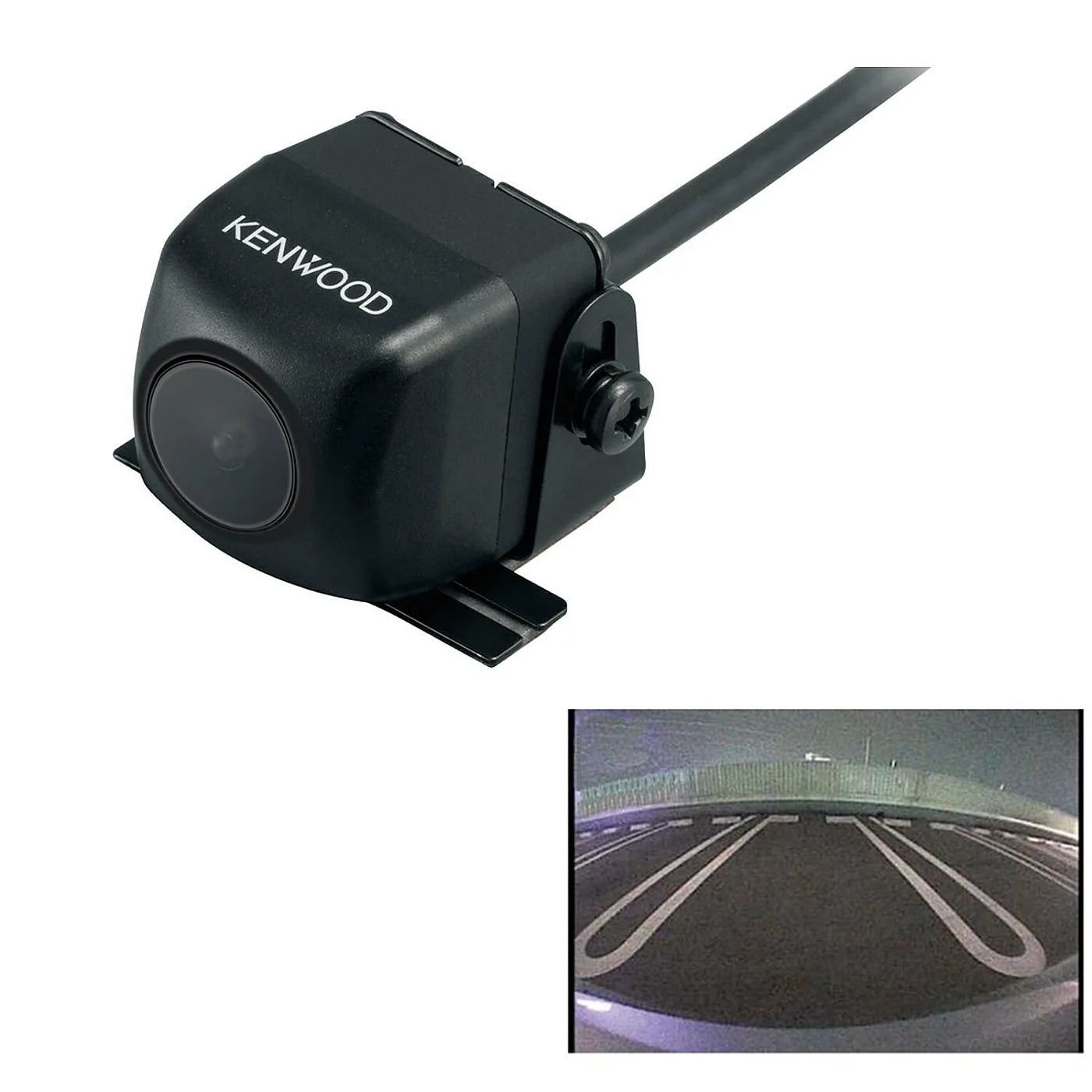

Kenwood CMOS-230 Universal InCar Rear View Reversing Camera
- Availability:In Stock
- Available:10+ in stock
- Item Condition:New
- Brand:Kenwood
- Product Code:CMOS-230
- EAN / UPC:019048212443
- Warranty:1 Year Warranty
£89.99
£149.99
Key Features

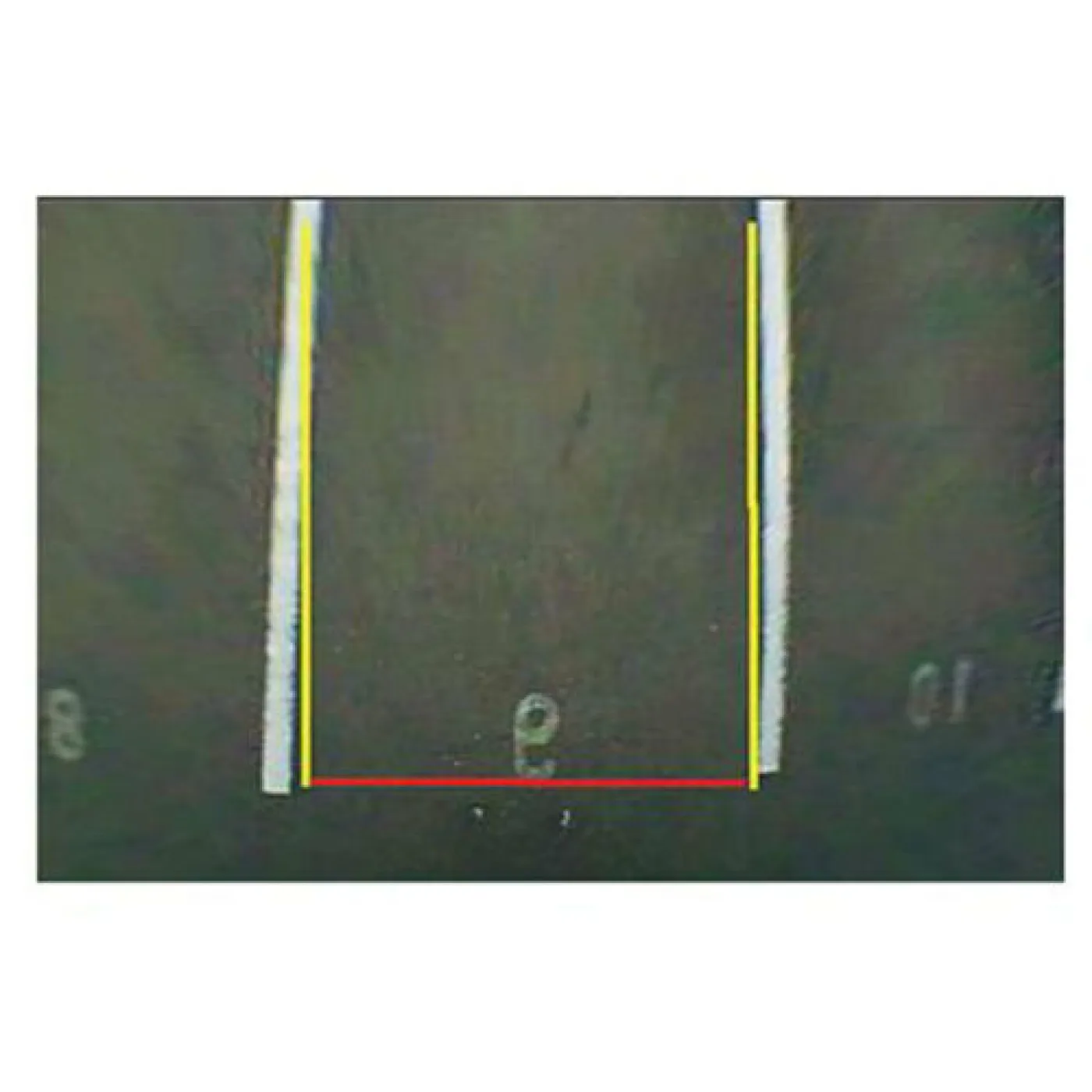

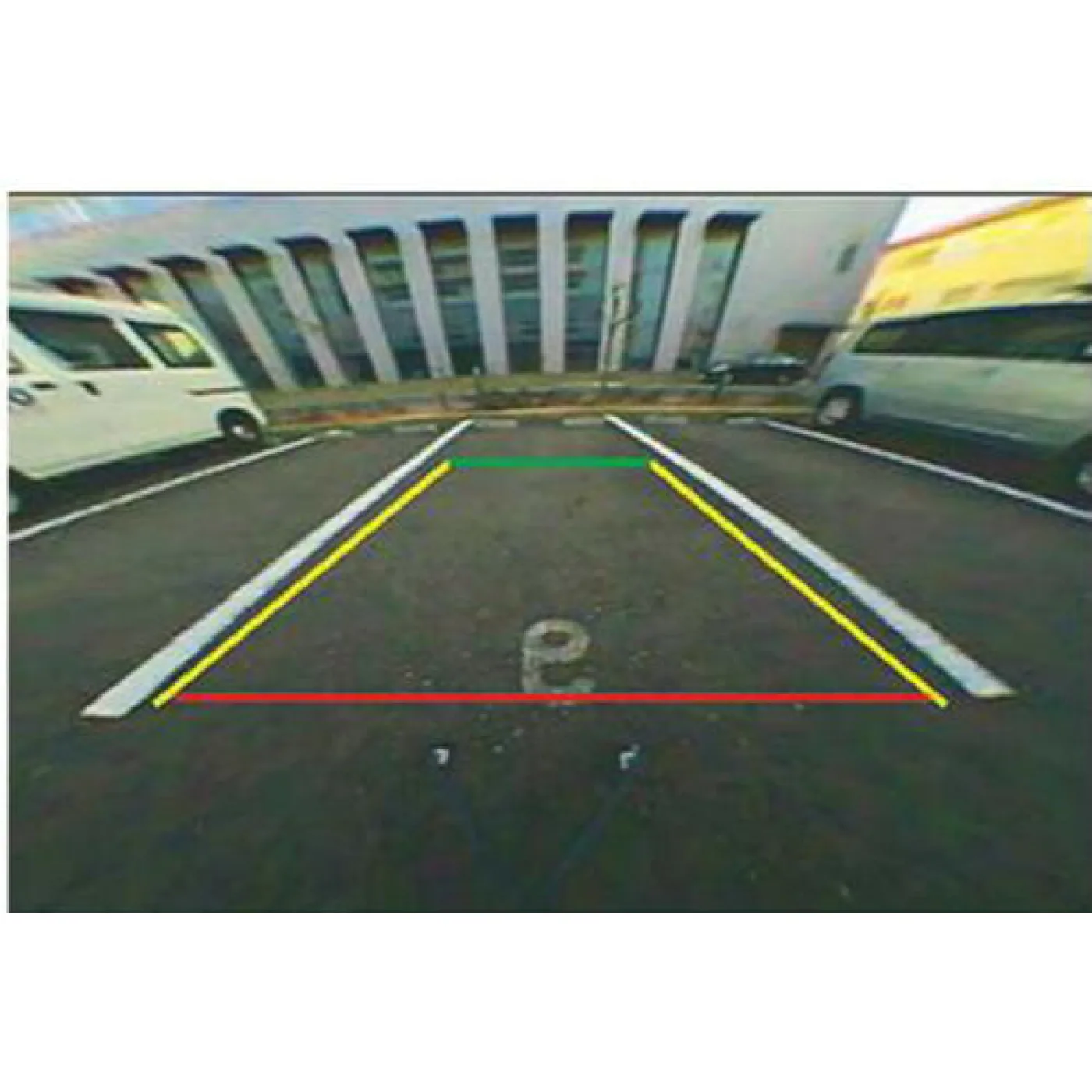

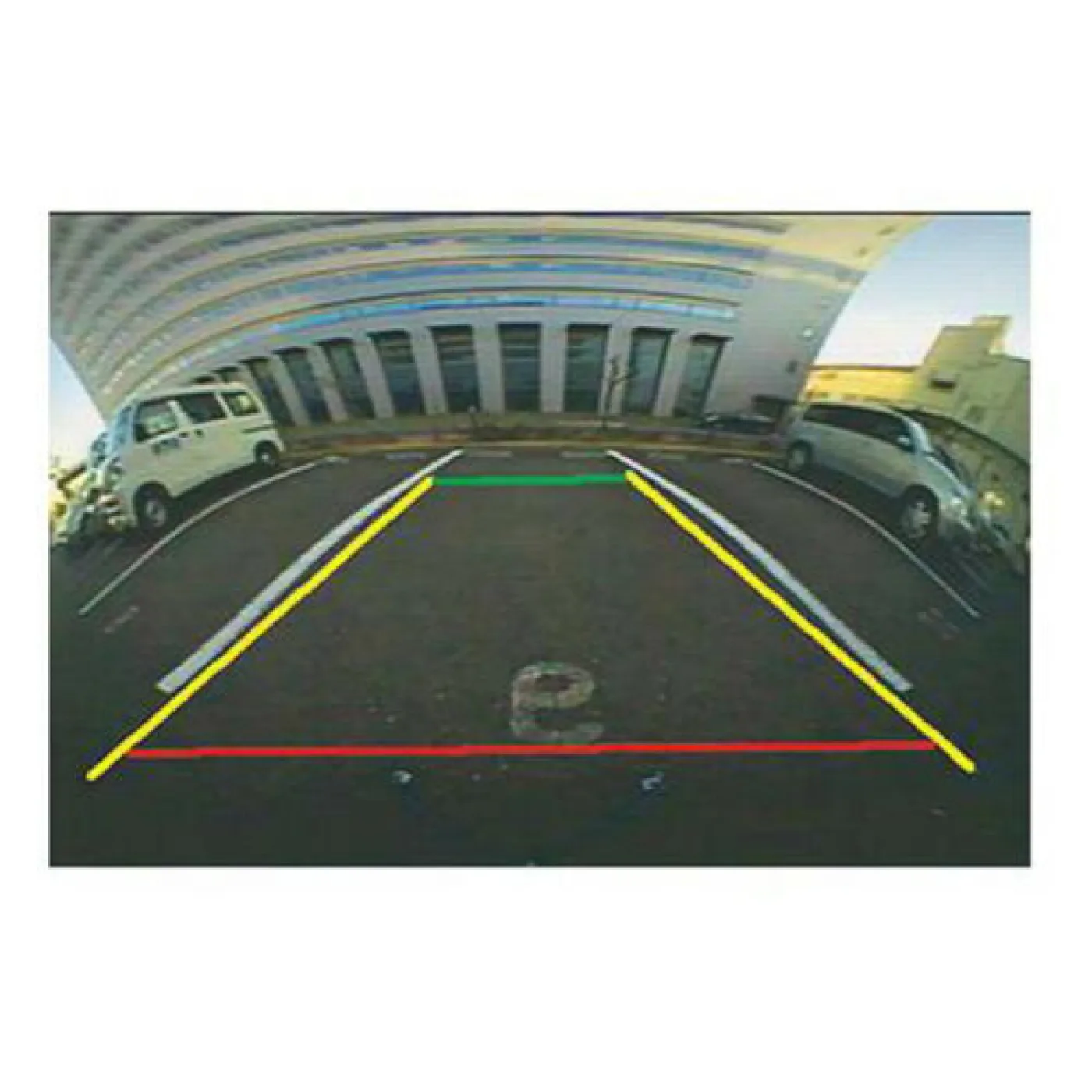

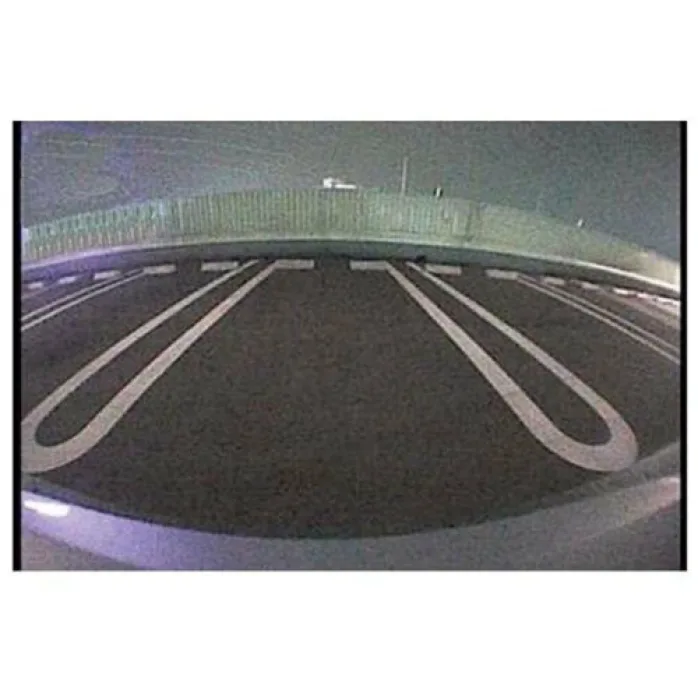

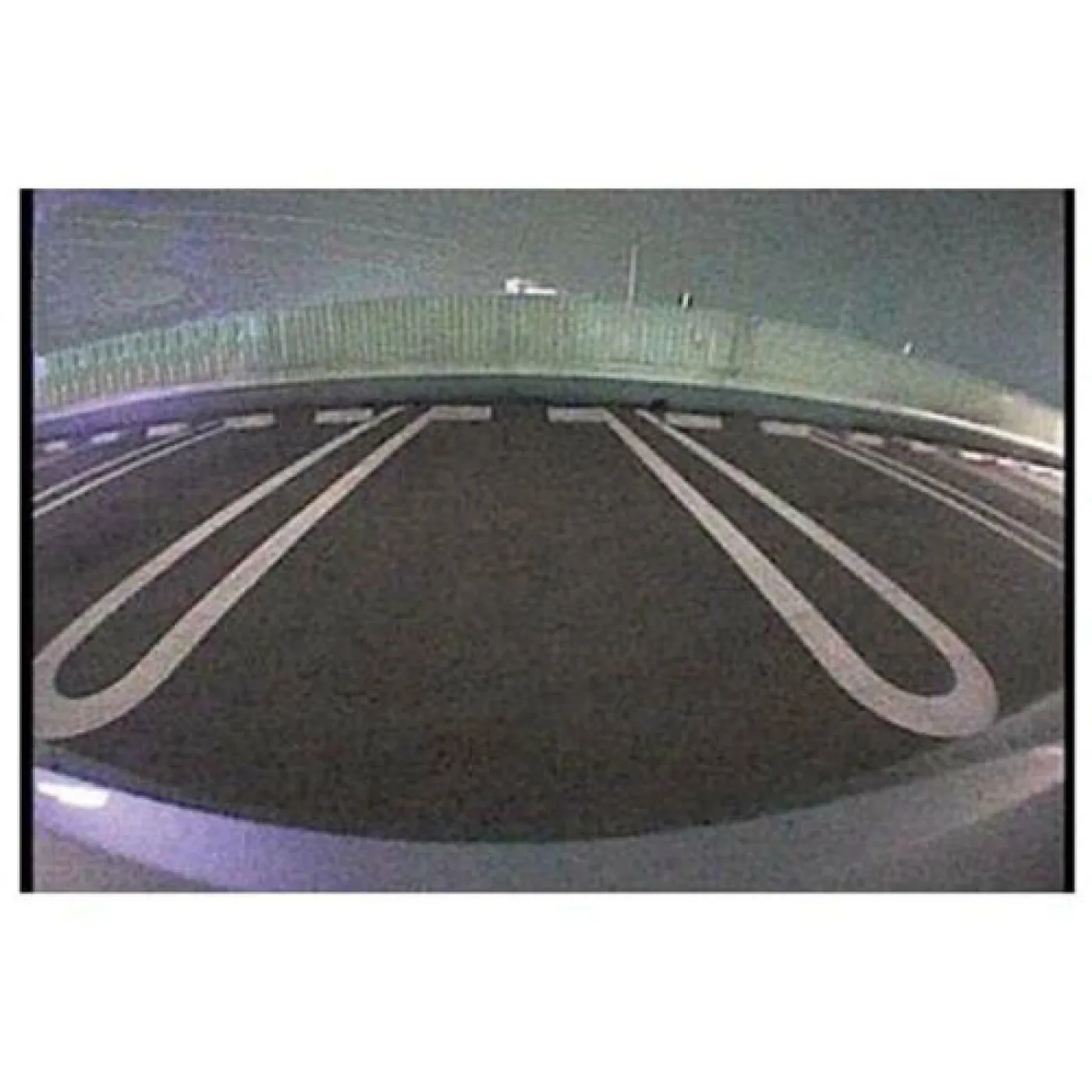

- Wide-angle mirror image
- 1/3.6" Colour CMOS sensor
- Waterproof unit with flexible mount base
- NTSC Video Signal Out (RCA)
Specifications
Camera Unit
- Camera Type 1/3.6" colour CMOS sensor
- Colour type
- Effective number of pixels roughly 330000
- High sensitivity Pixels
- Output video wide-angle mirror image
- Waterproof chassis
- Mounting system
- Fexible mount base
- Installation positions Rear
- Rear view switching Reverse line
- High voltage protection
- Wide angle lens
- Focal length f
- 1.12mm, F value 2.2
- Horizontal Angle view +/- 128°
- Vertical Angle View +/- 103°
- Illumination range approx. 0.9 to 100000 lux
- Iris System Electronic
- White balance Automatically
- Scanning System
- Interlace
- Synchronizing System Internal
- Video output level 1Vpp, 75O
- Video signal format NTSC (Mirror view)
- Connection cable (DC+video) 9 m
General Specifications
- Operating voltage 14.5V (9 ~ 16V Allowable)
- Maximum Current Consumption 0.05A
- Dimensions (WxHxD) 23.4 x 23.4 x 23.9mm
- Weight 22gr
- Operation Temperature Range -30°C ~ 70°C
- Storage Temperature Range -40°C ~ 80°C
