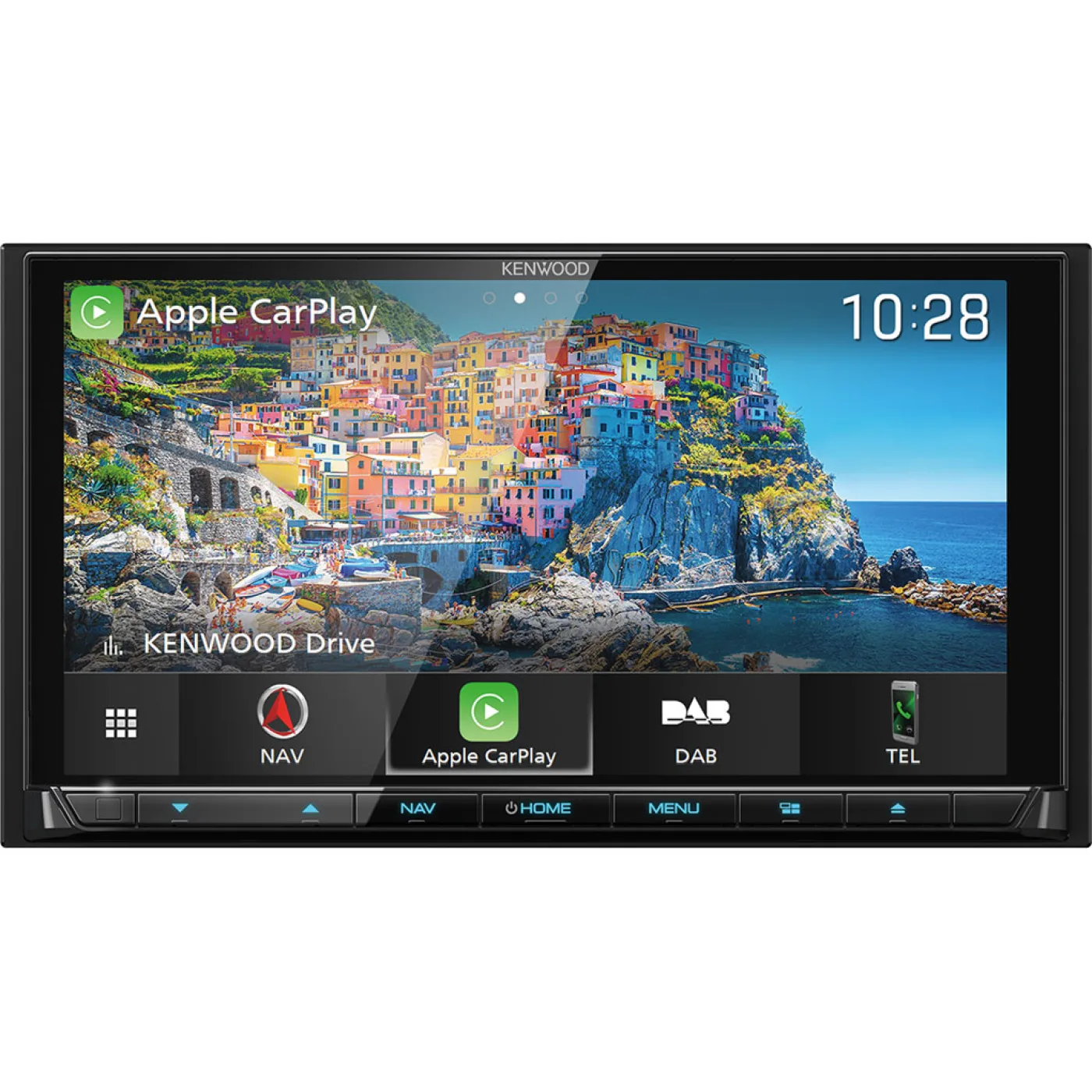

Kenwood DNX9190DABS 6.8” AV-Receiver/Navigation System WiFi & DAB Radio Built-in With Aerial

General Features

DIN Size 2 DIN

Security Code Function ( user set) 8-digit code

On Screen Display (OSD) Operation

Smooth GUI

Selectable GUI Background Wallpaper

Key Illumination Variable color

Installer Memory

Back-up Memory

Attenuator with Smooth Volume Return

Touch Sensor Tone

Optional IR remote controller KNA-RCDV331

Digital Clock (24H)

Built-in Bluetooth

Navigation unit built-in

DAB Tuner Built-in

Works with Apple CarPlay

Works Wireless with Apple CarPlay

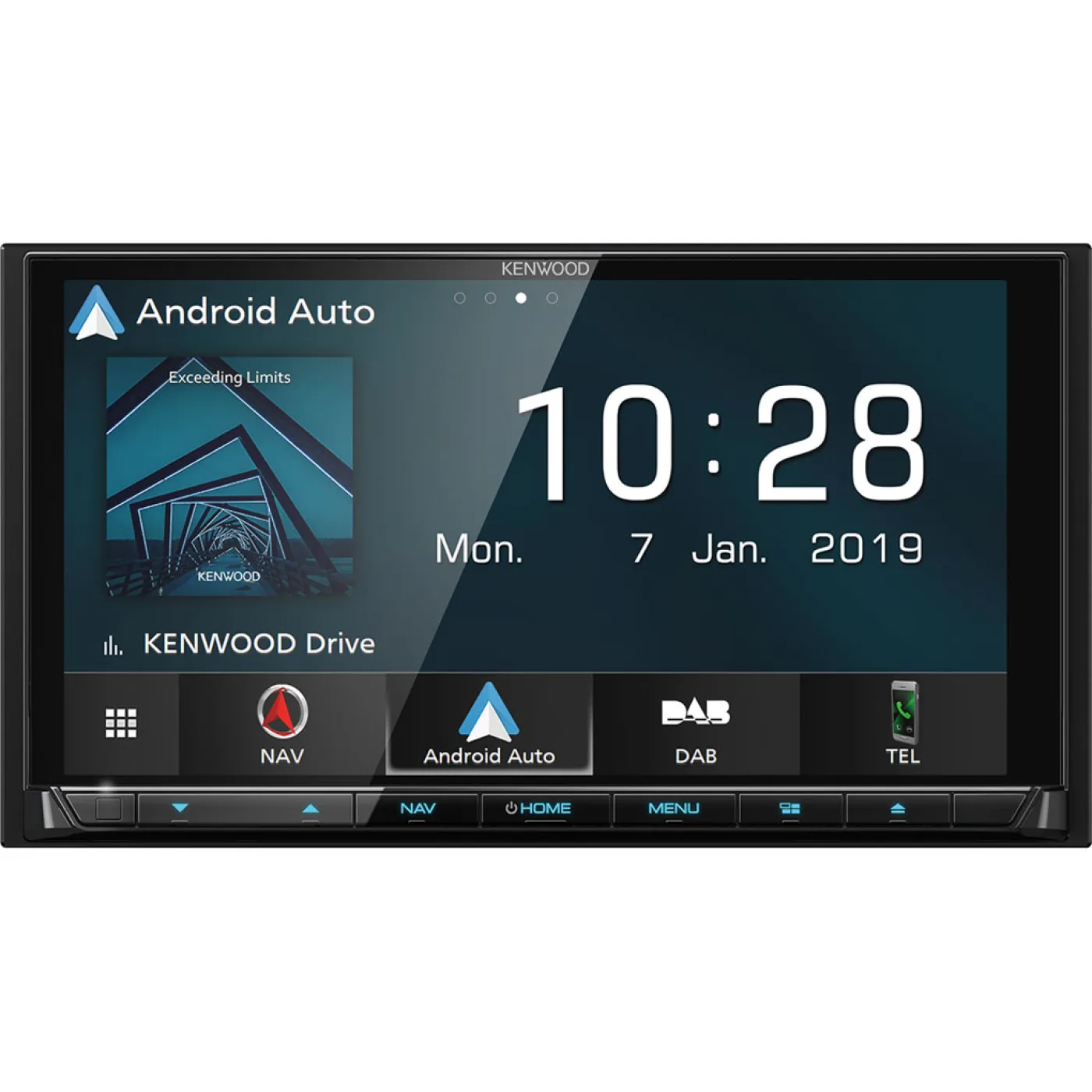

Works with Android Auto

Works Wireless with Android Auto

Wireless Mirroring for Android

Firmware upgreadable

HDMI input for video playback

Dashcam Link

Multimedia GUI Features

OSDC Type Graphic

Variable Colour illumination 32766

Menu text 22 languages:

• English(UK)(Default)
• English(US)
• Spanish
• French
• German
• Italian
• Dutch
• Russian
• Portuguese
• Chinese (Simplified)
• Chinese (Traditional)
• Thai
• Turkish
• Arabic
• Persian
• Hebrew
• Greek
• Malaysian
• Indonesian
• Polish
• Czech
• Hungarian

Software updates (SoC) via USB

Graphics Type Graphics

Spectrum Analyzer

Demonstration Mode

Top Menu Customize

Opening Screen Type standard

Customize short-cut keys on home screen

Background Customize 6 preset (4x Static, 1x Colour customize, 1x Sync album art) + 2x User set

Display customize (capture)

Animation

Slide Touch Operation

Multi touch function

Screen Capture

R-CAM interrupt

R-CAM Caution On Screen Display

R-CAM Parking Guide Lines customizable

Front Camera Interruption

DashCam Control

Monitor Features

Screen Type 6.8" Wide XVGA

LCD type 6.8" WXGA (Wide High-Definition)

LCD backlight LED

Display Mode 3 Mode (Full(default)/Auto/Normal)

Display full mode default

Display auto mode Full - Normal / Regular

Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast/Backlight.

Screen adjust

Noon / Night Memory

Dimmer function Manual/Sync/Navi Sync

Dimmer Level Auto/On/Off

Visual Source Mode Mirorring/CarPlay/Android Auto.

Touch Panel Capacitive

Display Type Glare

Display film 18 Film (Anti-fingerprint, anti-reflection, anti-glare)

High Resolution VGA Display

Mechanism Angle Adjustment -1 (Reverse tilt) to 5 steps angle dajust

Mechanism Postion Memory

LCD viewing angle control "0" (Default) / "-1" / "-2" / "-3"

NTSC/PAL judge (Auto)

Display Off Mode

Audio Features

Max. Output Power (MOSFET Power IC) 4 x 50W

Pre-out 3RCA

Front/Rear/Subwoofer

RCA Gold Plated

Pre-out Output Level 5V

Volume Offset

2 Zone Control

Balance/Fader Control

Att.(-20dB) with smooth Volume Return

Equalizer 13 Band Graphic EQ

Digital Sound Processor (DSP)

Digital Time Aligment (DTA)

Beep On/Off

Multimedia DSP Features

DSP Chip AK7738

Position Control

Position Preset 4 Presets

Graphic Equalizer 13 bands

G-EQ KBS 8 x Preset + 4 x User set

G-EQ manual setting

G-EQ adjustable level -9 / ... /+9 dB

High Pass Filter (HPF) (Front/Rear/Center)

HPF Cut Off Frequency 14

HPF Cut Slope Level 4 steps

Low Pass Filter (LPF) (Non-Fading)

LPF Cut Off Frequency 14

LPF Cut Slope Level 4 steps

3-Way X'Over

Source DSP Memory

Channel Level Control

Space Enhancer

Supreme

Realizer

Loudness

Stage EQ

Tweeter volume

Bass Boost

Hi-Resolution Audio

Car type control

• Off
• Compact
• Sedan
• Wagon
• Minivan
• SUV

Passenger Van

Speaker Size & Location Control

Video Features

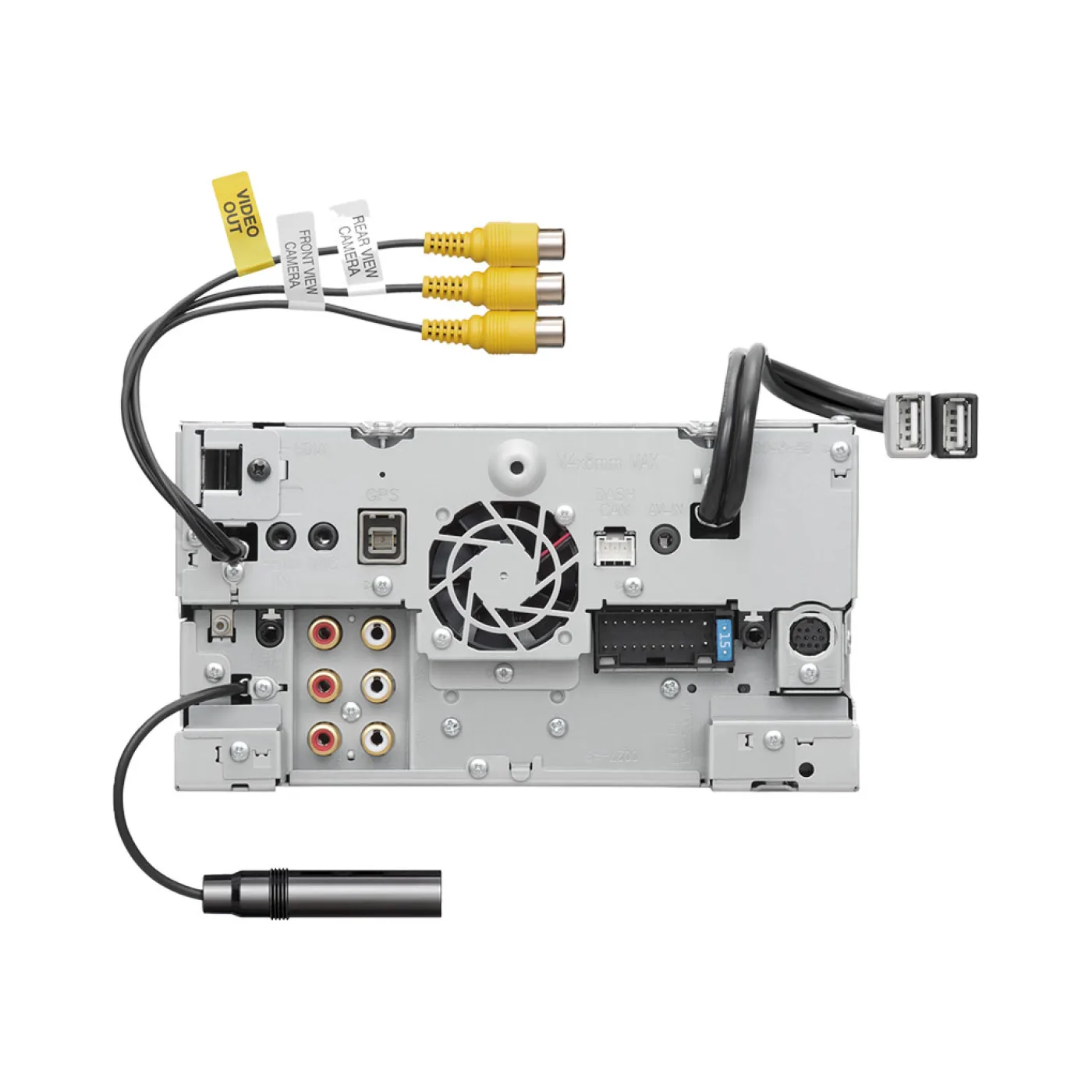

Audio Video Output Video

RCA, Audio: mini-jack

Audio/Video Input Video & Audio mini-jack

HDMI input

Video-In for Rear-view Camera 1 dedicated video input (RCA)

Detection Mode Rear View Camera Reverse sensor wire

(Rear) camera display view control

Parking Guide Line

DVD Menu Direct Touch Operation

MPEG Decoder (audio) 2ch downmix

Tuner Features

Frequency step selectable

Station Select List

Tuner Type Lithio

FM Reception

AM (MW/LW) Reception

Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)

Tuning mode Auto1/Auto2/Manual

Up/Down Seek/Scan

Automatic Memory Entry (AME)

FM Stereo / Mono Selector

Radio Data System

Radio Text Plus

Local search

Enhanced Other Networks Function (EON)

Program Type Function (PTY)

CE DAB Tuner Features

DAB+ tuner built-in

Digital Radio Certification Mark

Intelligent seek

Tuning mode / Seek mode Auto1/Auto2/Manual

Service preset 15 ch * 1 bank presets,

Service list by alphabet order

Preset list

Alphabet Search

DAB-DAB/DAB-FM auto switch

Seamless DAB-FM blending

DLS (Dynamic Label)

PTY (Programme Type) search

PTY (Programme Type) watch

DMB Audio (Digital multimedia broadcasting)

Soft linking

Antenna power supply on/off switch

Playable Audio File

AAC (*.m4a) files are playable USB/SD/Disc

AAC (*.aac) files are playable USB/SD/Disc

MP3 files are playable USB/SD/Disc

WMA (.wma) files are playable USB/SD/Disc

WAV (.wav) files are playable USB/SD/Disc

FLAC files are playable USB/SD/Disc

CE_Playable Video File

MPEG1/2 files are playable USB/SD/Disc

MPEG4 files are playable USB/SD/Disc

WMV files are playable USB/SD/Disc

H.264 files are playable USB/SD/Disc

mkv files are playable USB/SD/Disc

JPEG files are playable USB/SD/Disc

BMP files are playable USB/SD/Disc

PNG files are playable USB/SD/Disc

DVD-Features

Disc Capacity 1 Disc(s)

DVD Region Code 2 (Europe)

DVD-Video

DVD±R/RW Compatible

CD-DA

CD-R/RW Compatible

CD-DA Repeat/Scan/Random play

Jacket Picture with Tag

Supported audio files Linear PCM/Dolby Audio/MP3/WMA/AAC/WAV/FLAC/Vorbis

Supported video files MPEG1/MPEG2/MPEG4/WMV/H.264/MKV

Zoom Control (DVD/VCD)

MPEG Audio 2Ch Downmix

Down mix 2ch for Dolby Audio & MPEG Audio

2nd Disc Prevention Mechanism

Digital/Analog Converter 24/32 bit

Time Code Display

Skip/Search

Random Play Folder

Repeat Play Folder/File/All

Time Code Display

Resume Play / Last Position Memory

Disc Menu Direct Touch

USB Features

Rear USB Terminal x2

USB Type 2.0 High speed

USB extension cable supplied 2x 1 meter

Spotify App link iPhone

Works with Android Auto

Supported audio files MP3/WMA/AAC/WAV/FLAC/Vorbis

Supported video files MPEG1/MPEG2/MPEG4/WMV/H.264/MKV

Tag Information Display

Album Art Display

Repeat/Scan/Random search

Repeat / Random Play

Repeat Play Folder/File/All

Random play Folder

Category search

Resume play

Time code display

1,5A Smartphone Quick Charge

iPod Features

Made for iPod & iPhone

USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103

Album art support

Music library search

Alphabet search

Skip search

Related search

My playlist

Control by hand

App & iPod control mode

Spotify App Link

Works with Apple CarPlay

Reverse browsing

Bluetooth Auto Paring for iPhone

Battery charge + power control

Android Phone Control

Spotify Link for Android

Works with Android Auto

SD-card Features

SD card type

SD / SDHC / SDXC

Max capacity 2000 Gb

Music playback

Supported audio files MP3/WMA/AAC/WAV/FLAC/Vorbis

Supported video files MPEg1/MPEG2/MPEG4/WMV/H.264/MKV

Repeat play Folder/File/All

Random play

Alfabetical search

Random & Repeat Play

List access

Resume play

Jacket Picture with Tag

Bluetooth General Features

Max num. of regist. phones for HFP & A2DP 10 phones

Hands Free Profile with High Sound Quality HFP V1.7

Max num. of regist. phones for HFP 5 phones

2 Phones Switchable Hands Free

2 phones fulltime connection

Audio Streaming (A2DP) (SBC/AAC)

Max num. of regist. units for A2DP 5 units

Serial Port Profile (SPP)

Simple Secure Pairing (SSP)

Phonebook Access Profile (PBAP) Accessible phonebook entries & alphabet search

Number of PBAP entries Up to 1000 phonebook entries

PBAP call history Up to 50 entries of dialed, received and missed calls

Audio/Video Remote Control Profile (AVRCP) V1.6

Multi Profile Support

Easy pairing function

iPhone & Android automatic pairing via USB

Spotify App Link iPhone & Android

KENWOOD Music Mix Support

Catchphone / Call Waiting

Private mode

Interrupt call request

Alphabet Search (Phonebook)

Noise Canceller

Echo Canceller

Phone device status display

Audio device status display

Signal strength display

Remaining battery display

Bluetooth Paring Indicator

Bluetooth phones to register 5

High-quality noise canceling microphone Included (rear wired)

Bluetooth firmware upgradeable

* depends on phone model/make & Kenwood unit

Network & Wifi Features

Frequency Range Dual Band (2.4GHz / 5GHz)

IEEE standard 802.11a/b/g/n/ac

Wireless Local Area Network (WLAN) channels

1 - 11Ch

Wifi connection for Apple CarPlay

Wifi connection for Android Mirroring

Transfer rates (Max)

• 11a: 54Mbps
• 11b: 11Mbps
• 11g: 54Mbps
• 11n: 300Mbps
• 11ac: 867Mbps

Preinstalled Apps_Widgets

Clock

Spectrum Analyzer

Compass

Climate

Vehicle Information

Photo Frame

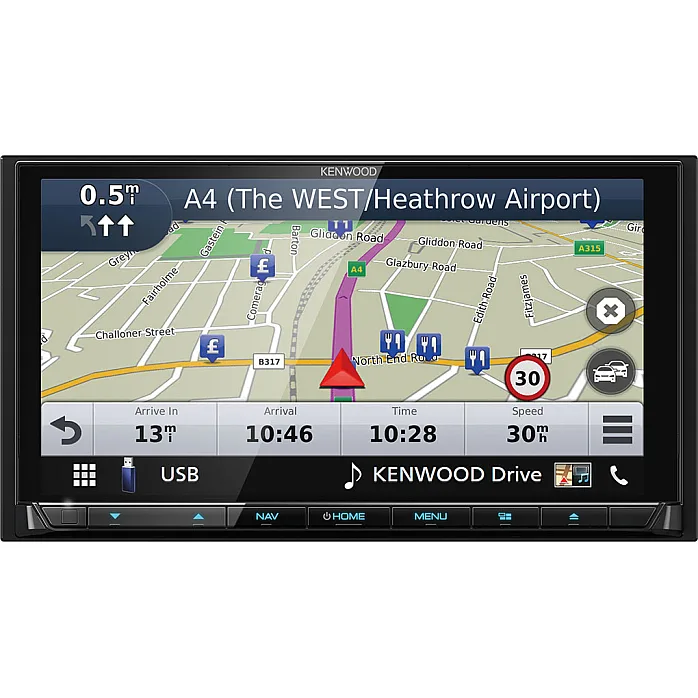

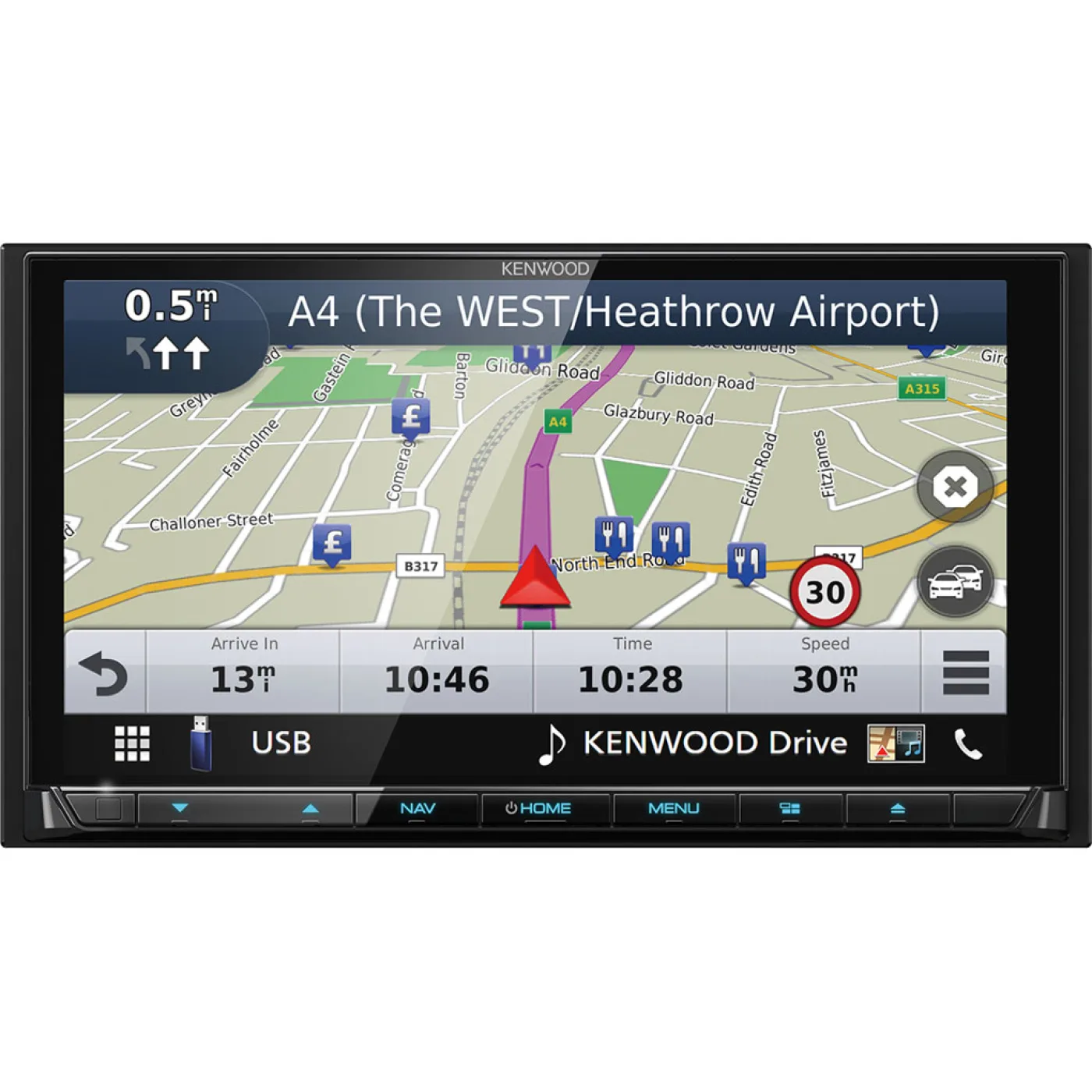

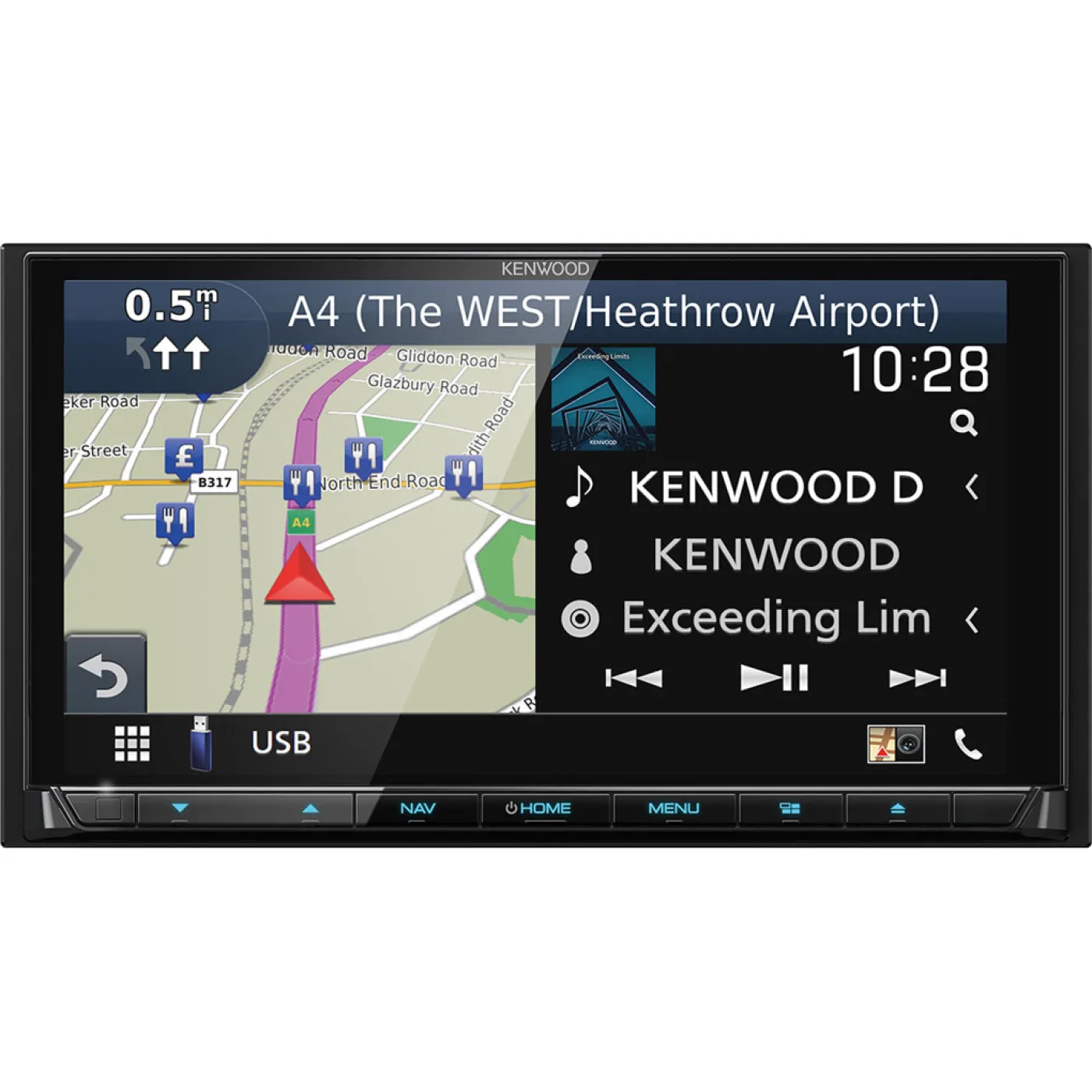

Navigation Features

Guidance by Garmin

Touch-screen controllable

Graphical Resolution WVGA

Inner Memory Size 16 GB

Built-in Map Data OEM CN Europe NTU 2018 ALL North

Built-in Map Data OEM CN Europe NTU 2018 ALL South

Map Coverage Great Britain and Republic of Ireland

Great Britain

Full coverage

Scotland

Full coverage

Wales

Full coverage

Isle of Man

Full coverage

Northern Ireland

Full coverage

Ireland

Full coverage

Channel Islands

Full coverage

Gibraltar

Full coverage

Denmark, Finland, Iceland, Norway, and Sweden

Denmark

Full coverage

Finland

Full coverage

Iceland

Full coverage

Norway

Full coverage

Sweden

Full coverage

France and Benelux

Andorra

Full coverage

Belgium

Full coverage

France

Full coverage

French Guiana

Full coverage

Guadeloupe

Full coverage

Martinique

Full coverage

Netherlands

Full coverage

Luxembourg

Full coverage

Réunion

Full coverage

Saint Barthélemy

Full Coverage

Map Coverage

Italy, Austria, Switzerland, and Liechtenstein

Italy

Full coverage

Austria

Full coverage

Switzerland

Full coverage

Liechtenstein

Full coverage

Malta

Malta

Full coverage

Spain and Portugal

Spain

Full coverage

Portugal

Full coverage

Gibraltar

Full coverage

Azores Islands

Full coverage

Canary Islands

Full coverage

Baleric Islands

Full coverage

Madeira

Full coverage

Germany

Germany

Full coverage

Czech Republic

Czech Republic

Full coverage

Greece and Cyprus

Greece

Full coverage

Cyprus

Full coverage of Republic of Cyprus; Major urban areas with intertown roads in disputed areas

Map Coverage (Russia)

Eastern Europe

Estonia

Full coverage

Latvia

Full coverage

Lithuania

Full coverage

Poland

Full coverage

Czech Republic

Full coverage

Slovakia

Full coverage

Hungary

Full coverage

Slovenia

Full coverage

Croatia

Full coverage

Bulgaria

Full coverage

Romania

Full coverage

Turkey

Full coverage

Moldova

Major urban areas with intertown roads

Bosnia & Herzegovina

Full coverage

Serbia

Full coverage

Kosovo

Full coverage

Montenegro

Full coverage

Albania

Full coverage

Republic of Macedonia (FYROM)

Full coverage

Belarus

Major urban areas with intertown roads

Ukraine

Full coverage

Map Update  Via download on SD card

Map care 3 Years (Starts after 20km first time driving)

Default Position Depend on locale setting

3-Dimensional Map Display

2-Dimensional Map Display

Auto Zoom Function

Voice Language American English-Samantha, British English-James, British English-Kate, British English-Serena (Default), British English-Daniel.

Keyboard Language American English, Arabic, British English, Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian(Cyrillic & latin), Simplified Chinese, Slovakian, Slovenian, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Ukrainian, Vietnamese.

Keyboard Layout QWERTY or ABCDE

Destination Search

Home

Adress

Restaurants

Petrol Stations

Shopping

personlise

Categories

Restaurants

Shopping

Everyday Life

Petrol Stations

Banks & Cashpoints

Parking

Roadside Service

Art & Entertainment

Attractions

Recreation

Medical Care

Public Transport

Lodging

Favourites

History

Multi Destination Search Faster Time / Shorter Distance / Less Fuel

Automatic Re-Route

Way Points (Favorites)

Traffic Message Channel Built-in

Easy-to-use Graphical Interface

ecoRoute™

Turn-by-turn' directions

Lane assist

Junction view

Half junction view

PhotoReal junction view

3D Terrain

Globe view (world mapping)

Customizable main menu

Localized road signs and auto text

Trip log output to PC via USB

Traffic Trend / My Trend

Traffic Trends

My Trends

Speedcamera allert upload via USB (third party poi)

Speed Limit Indicator

Map Buttons and Map Tools

Door to Door Navigation (point addressing)

Points of intrest (POI) more than 6 million points

Custom POI's

Smart POI Search

POI Call Button

Insta Search

Insta Route

Birds Eye lane guidance

Vehicle Position Sensing by GPS

Day/Night Colour mode

Route Preference Function

GPS Info page

Phone call by POI search (Bluetooth Function)

Phone number search

Connectivity

USB interface 2 x USB 2.0 (pigtail)

OEM Wired Remote Control ready with optional Plug & Play cable + interface

OEM Display Control ready Optional interface (KIM) needed

Programmable OEM Steeringwheel Remote Function

Display input/output control

DC-Cord

Mitsumi to ISO

Parking sensor (handbrake) wire

Power Control (P.CON) wire

2-way (Tel/Navi) mute wire

Dimmer control wire

Speedpuls input wire

AV-Input 1x mini-jack (selectable

AV-in / Camera-in)

AV Output Video

RCA / Audio: mini-jack

Available AV-Out source DVD/AV-in/USB

Reverse sensor wire

Rear View Camera Input Dedicated RCA Video-in

Front View Camera Input selectable

Front / Dash-Camera-in

Front/Rear Camera Control Line

Dashcam Link

Amplifier pre-out 3 x RCA

Front/Rear/Subwoofer

HDMI input Type A

GPS Aerial Input HRS GT5-1S connector

FM Antenna Input JASO connector

DAB Aerial input SMB connector

External microphone input 3,5mm mini-jack
