Kenwood KAC-M1814 4 Channel Compact Digital Speaker Amplifier 400 Watt
- Availability:Out Of Stock
- Item Condition:New
- Brand:Kenwood
- Product Code:KAC-M1814
- EAN / UPC:019048226358
- Warranty:1 Year Warranty
£129.99
KAC-M1814 Compact 4-Channel Digital Amplifier

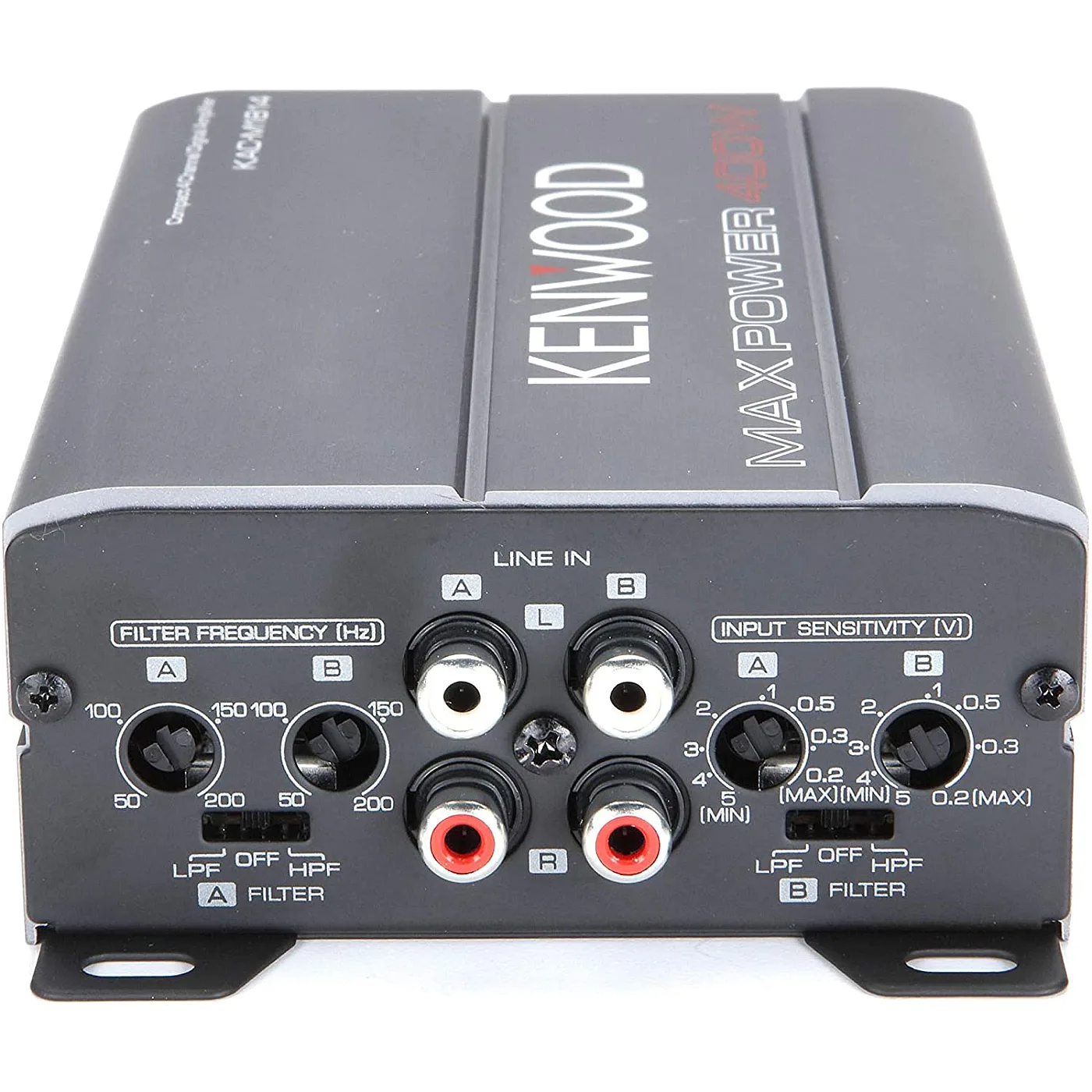

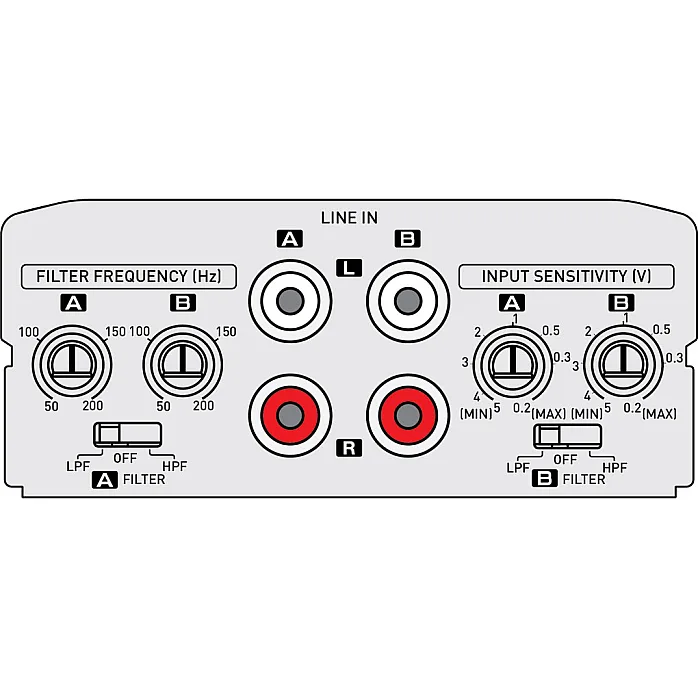

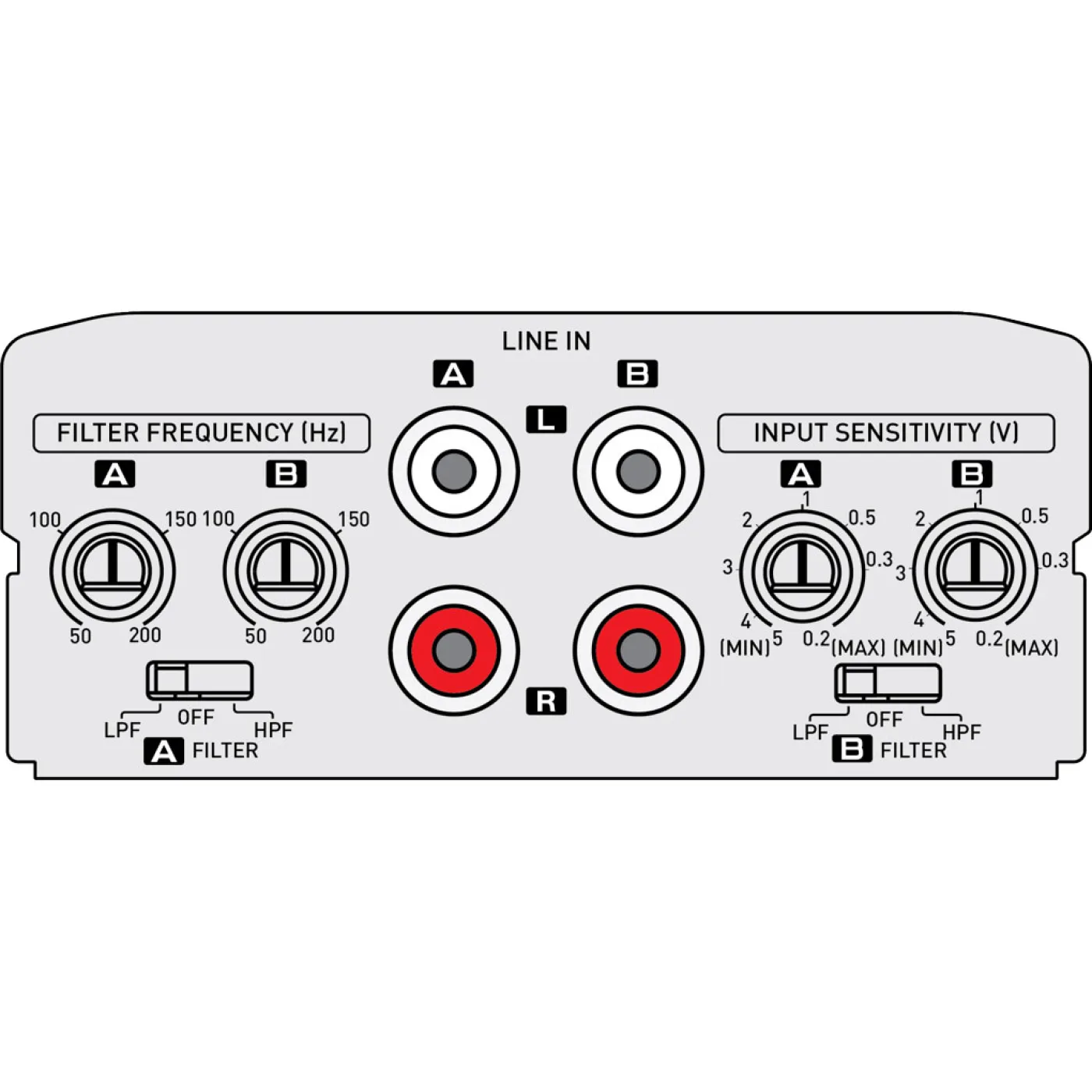

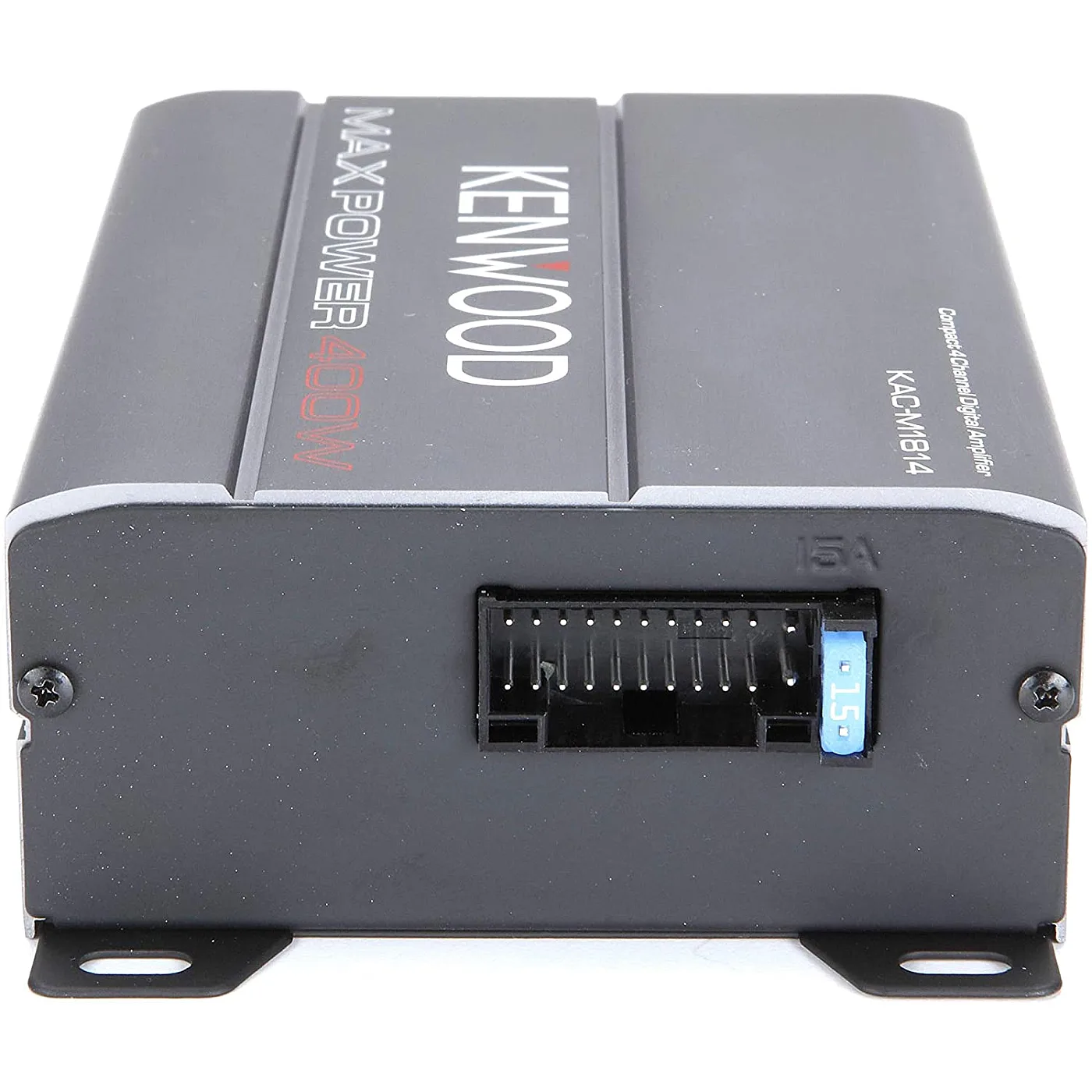

The Multi-Application KAC-M1814 Compact 4 channel Class-D amplifier with 400 peak power supports louder volume for Car, Marine and Motorsports users with low-noise. Plastic covered connector helps to keep out water and dust and the Conformal Coating provides vibration resistance and helps prevent the PCB from rusting. RCA Line-In terminal or Speaker Level Input, with Signal Sensing Turn-on, to connect any type of receiver. A.ch and/or B.ch Filter Frequency Control and Filter Switch to apply HPF / OFF / LPF. Bridgeable Connection. Pre-amp and Power-amp sections are separated to reduce radiation noise.
Key Features
- 4 channel digital (Class D) amplifier
- Maximum output power 400W
- 4 x 45W @ 4ohm (CEA-2006 standard)
- RCA / Speaker level input
- Signal sensing turn-on/off
- Variable Low- & High-Pass filter
- Compact size (145 x 45 x 99mm)
- Conformal coating protection
Specifications
Amplifier Features
- Class D Amplifier
- Full Range Digital Amplifier
- Load Capability 4Ω Stable
- Maximum power output 400W
- Rated power output (4Ω) 45W x 4 (4Ω)
- CEA-2006 Compliant
- Low-pass Filter
- High-pass Fliter
- Switched Mode Power supply Power MOS-FET
- Signal Sensing Turn-on
- Line in 4 RCA / Speaker level
- Speaker level Input
- Die-Cast Aluminium Heat Sink
- DC cable Supplied
Amplifier Specifications
- Rated power output (CEA-2006) 45Watts RMS x 4 at 4 ohms and 1% THD
- Low-pass Filter 50~200Hz (-12dB/oct)
- High-pass Fliter 50~200Hz (12dB/oct)
- Input Impedance 10kΩ
- Signal to Noise Ratio 98dB
- Signal to noise ratio (CEA-2006) 82dBa (Reference
- 1 Watt into 4 Ohms)
- Frequency response (+0dB, -3dB) 20Hz ~ 20Hz
- Operating voltage 14.4V (11V ～ 16V allowable)
- Maximum current consumption 15A
- Dimensions (WxHxD) 145 x 45 x 99(mm),
- Weight 0.7kg
- Unit weight in individual package 0.99 kg.
