1 Year Warranty

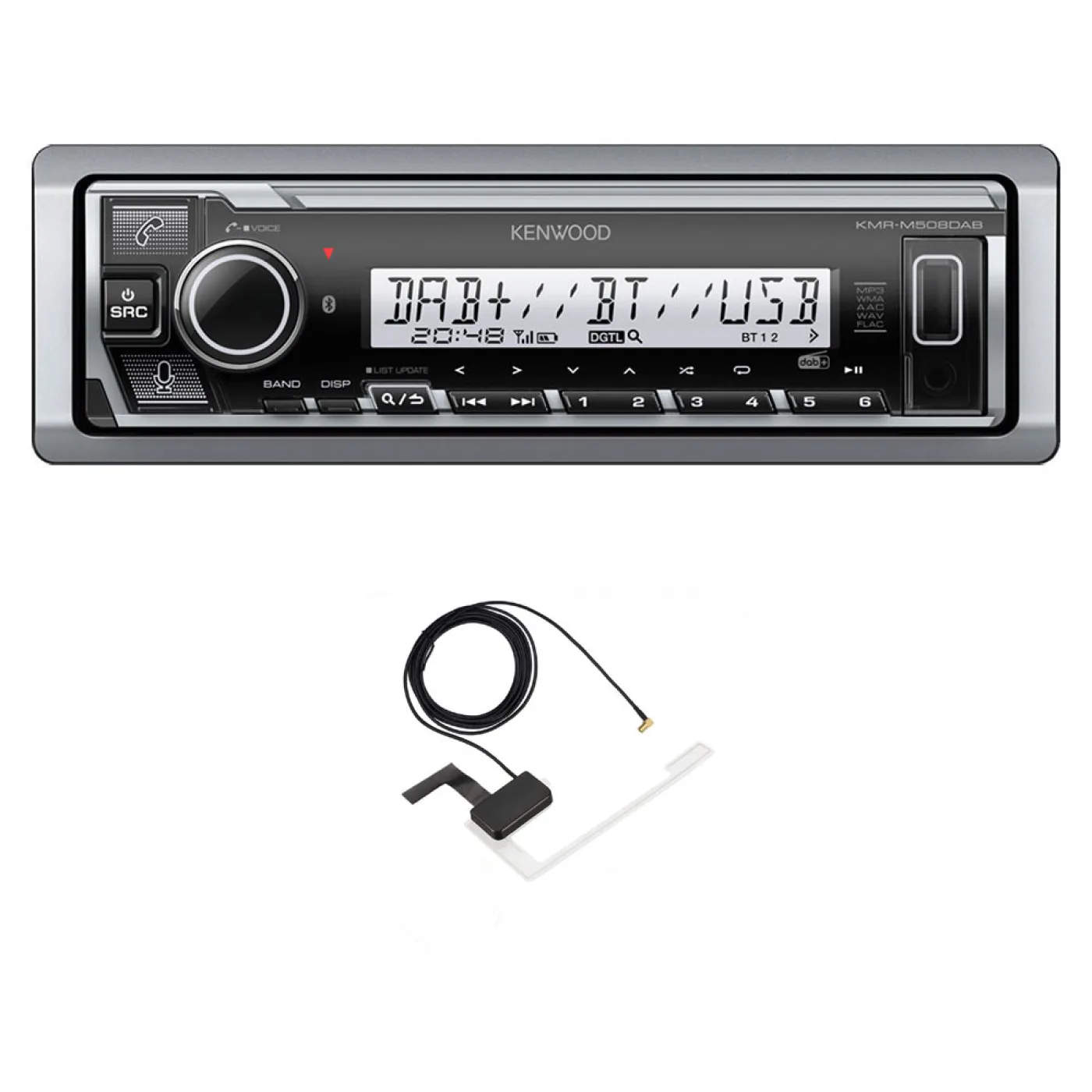

Kenwood KMR-M508DAB Marine Digital Media Receiver with DAB+ Bluetooth and Amazon Alexa With Aerial
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:Kenwood
- Product Code:KMR-M508DAB + Aerial
- EAN / UPC:7427282742061
- Warranty:1 Year Warranty
£164.99
KMR-M508DAB
Enjoy convenient control. Cristal clear Digital Radio DAB+. Built-in Bluetooth technology for hands-free calls and music streaming, the ability to use your smartphone like a wireless remote control and interactions with Amazon Alexa cloud-based voice service. The Digital Sound Processor, Time Alignment & 13-Band EQ ensures you of optimal sound tuning enhancements.
Key Features
- DAB+ Digital radio tuner built-in
- Bluetooth handsfree & audio streaming built-in
- MP3/WMA/AAC/WAV/FLAC playback
- DSP, DTA & 13-band EQ built-in
- KENWOOD Remote & Music Mix app ready
- Amazon Alexa cloud-based voice service ready
- Positive, 13 digits, 1,5 Line Wide LCD Display
- Variable Colour Illumination
- English/Russian/Spanish/Frenh&German GUI language
- 2 RCA (front + rear/sub) Preouts (2,5V)
- Resistance to moisture by conformal coated PCB
Specifications
General Features
- DIN Size 1 DIN
- Detachable Faceplate
- Key Illumination Variable LED
- Rotary Encoder & Control Knob
- Dual Accent Key Handsfree & Audio Streaming
- Back-up Memory Tuner presets & menu settings
- Attenuator with Smooth Volume Return
- Touch Sensor Tone
- Digital Clock (24H)
- All-off Select (20/40/60 minutes)
- Built-in Connector Mitsumi, 16 pin
- ISO connector Mitsumi to ISO cable
- Bluetooth unit built-in
- USB interface x 1 (Front)
- Firmware upgreadable
- Mechless receiver
- Short body
- Conformal Coating
Display Features
- Display Type Positive, Liquid Crystal Display (LCD)
- Display Layout 2 line text + custom icons
- Vertical Aligment Liquid Crystal Display
- Display Illumination Variable by RGB LED
- Dimmer Control Manual / Set by Timer
- Brightness control 0 - 31 steps
- Menu text in selectable language English(default) / Spanish / French / German / Russian
Cosmetics Features
- Dress plate Piano Black
- Preset key finish Piano Black
- Escutcheon finish Piano Black
- Volume & operation knob or wheel Transparant Lighting & Chrome Finished Ring
- Triangle Illumination Red LED
- Front terminals dust cover
- Key illumination Variable by RGB LED
- Illuminated front USB port Variable by RGB LED
- Brightness Control (Key) 0 - 31 step
- Dimmer Control (Key) Manual / Set by Timer
- Variable color illumination
- Color Zone Concept 2 zone colour control
- Brightness zone concept 2 zone brightness control
- Chrome-finished accents Volume knod & faceplate
Tuner Features
- Station Select Manual / Preset
- FM Reception
- FM Stereo / Mono Selector
- AM (MW/LW) Reception
- Up/Down Seek/Scan
- Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
- Mixed preset memory (FM & AM) 6 presets
- Automatic Memory Entry (AME)
- Tuner Preset Back-up Memory
- Radio Data System
- Radio Text Plus
- Traffic Information
- Local search
- AF Regional Selectable
- AF/AF Reg/OFF
- Auto TP search
- Enhanced Other Networks Function (EON)
- Program Type Function (PTY)
CE DAB Tuner Features
- DAB+ tuner built-in
- Digital Radio Certification Mark
- Intelligent seek
- Ensemble seek
- Tuning mode / Seek mode Auto1/Auto2/Manual
- Service preset 6 ch * 3 bank presets,
- Auto service memory (AME)
- Service list by alphabet order
- Preset list
- Related service
- Audio interrupt standby by PTY
- Audio interrupt standby by announcement
- DAB-RDS integrated TI
- Traffic Information
- DAB-AF (Alternative frequency)
- Announcement Switching (ASW) Select
- DMB Audio (Digital multimedia broadcasting)
- Soft linking
- Antenna power supply on/off switch
USB Features
- USB terminal Front with dust cover
- USB Type 2.0 High speed
- MP3, WMA, AAC, WAV, FLAC playback
- Repeat/Scan/Random search
- Repeat / Random Play
- Direct search
- Resume play
- Time code display
- 1,5A Smartphone Quick Charge
iPod Features
- Made for iPod & iPhone *
- USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
- Music playback
- Alphabet search
- Skip search
- Related search
- Direct Search
- iPod EQ Mode
- Control by hand
- App & iPod control mode
- Spotify App Link
- iAP over Bluetooth
- iTunes Radio App iAP1
- Reverse browsing
- Battery charge + power control
- * Always update to latest Apple firmware
Audio Features
- Maximum Output Power 50W x 4
- MOSFET Power IC
- Auxiliary Type Mini-jack, front panel
- Pre-out 2 RCA
- Pre-out Output Level 2.5V
- Preout Rear / Subwoofer Switchable
- Subwoofer Reference Level Adj.
- 2-Way X'over network
- 3-Way x'over (bi-amp connection)
- Tone Control / Easy EQ 13 band, 8 presets
- Balance/Fader/Loudness Control
- Bass Boost Circuit Off/+1/+2/+3/+4/+5
- Att.(-20dB) with smooth Volume Return
- Easy 3-band EQ mode
- Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
- Digital Sound Processor (DSP) Built-in
- Digital Time Aligment (DTA)
- Low- & High-pass Filter
- Speaker Size Control Front/rear/subwoofer independently
- Kenwood Sound Reconstruction
- Sound Reconstruction
- Space Enhancer
- Realizer
- Stage EQ
- Drive EQ
Bluetooth General Features
- Max num. of regist. phones for HFP & A2DP 5 phones
- Hands Free Profile with High Sound Quality HFP V1.6
- Max num. of regist. phones for HFP 5 phones
- 2 phones full time connection
- Audio Streaming (A2DP)
- High Quality Audio Streaming SBC/AAC
- Max num. of regist. units for A2DP 5 units
- Serial Port Profile (SPP)
- Simple Secure Pairing (SSP)
- Phonebook Access Profile (PBAP)
- Wireless Music Browsing (AVRCP 1.5)
- Easy pairing function
- iPhone & Android automatic pairing via USB
- Voice Dialing / Siri Eyes Free
- KENWOOD Remote App Ready
- KENWOOD Music Mix Support
- Amazon Alexa ready
- Catchphone / Call Waiting
- Private mode
- Alphabet Search (Phonebook)
- Noise Canceller
- Echo Canceller
- Phone device status display
- Audio device status display
- Signal strength display
- Remaining battery display
- Bluetooth Paring Indicator
- High-quality noise canceling microphone Rear Wired
- Bluetooth firmware upgradeable
- * depends on phone model/make & Kenwood unit

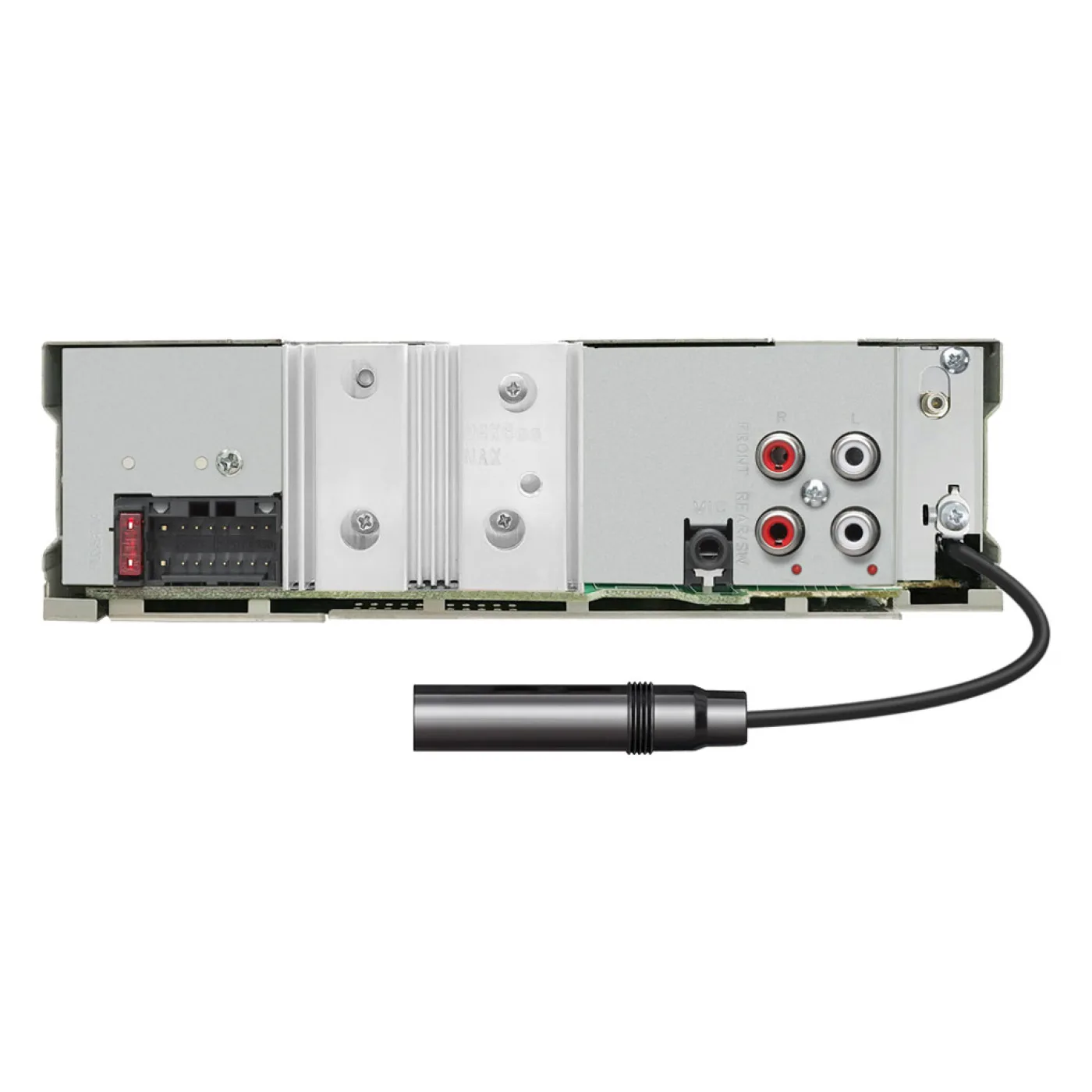

Connectivity
- Front USB & AUX Input
- OEM Wired Remote Control ready
- DC-Cord Mitsumi to ISO
- Power Control (P.CON) wire
- Amplifier pre-out 2 x RCA
- Front + Rear/Sub (selectable)
- FM Antenna Input JASO connector
- DAB Aerial input SMB connector
- External microphone input 3,5mm mini-jack
| Technical | |
|---|---|
| Dab Radio | Yes |
| Size | Single Din |
| Plays | MP3/WMA/AAC/WAV |
| Max. Power Output | 50W x 4 MOSFET |
| Tuner | FM AM Tuner |
| Radio Data System | Yes |
| Front Panel | Detachable |
| Display Illumination | Variable by RGB LED |
| Button Illumination | Variable LED |
| Bluetooth | Built In |
| Android Ready | Yes |
| iPod Ready | Yes |
| Works with iPhone | Yes |
| Aux In | Front Aux In |
| USB | Front USB |
| Pre Out | 2 RCA Pre Out |
