1 Year Warranty

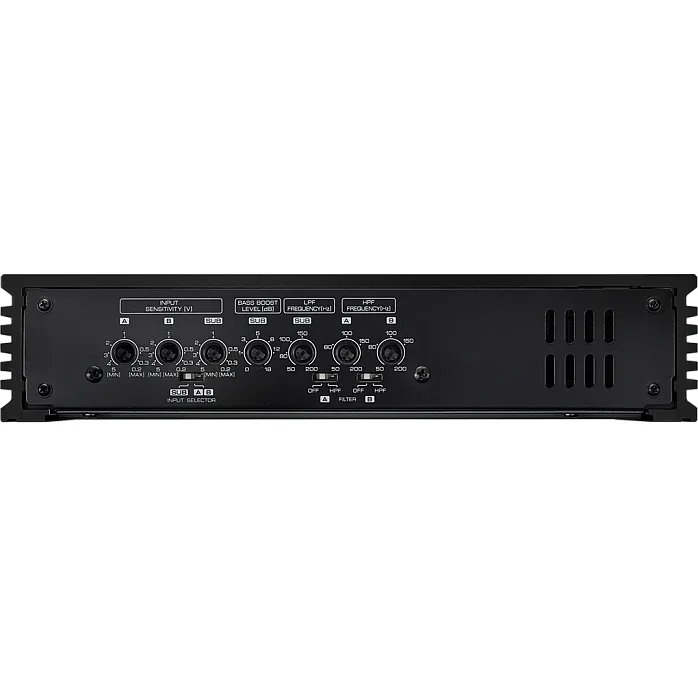

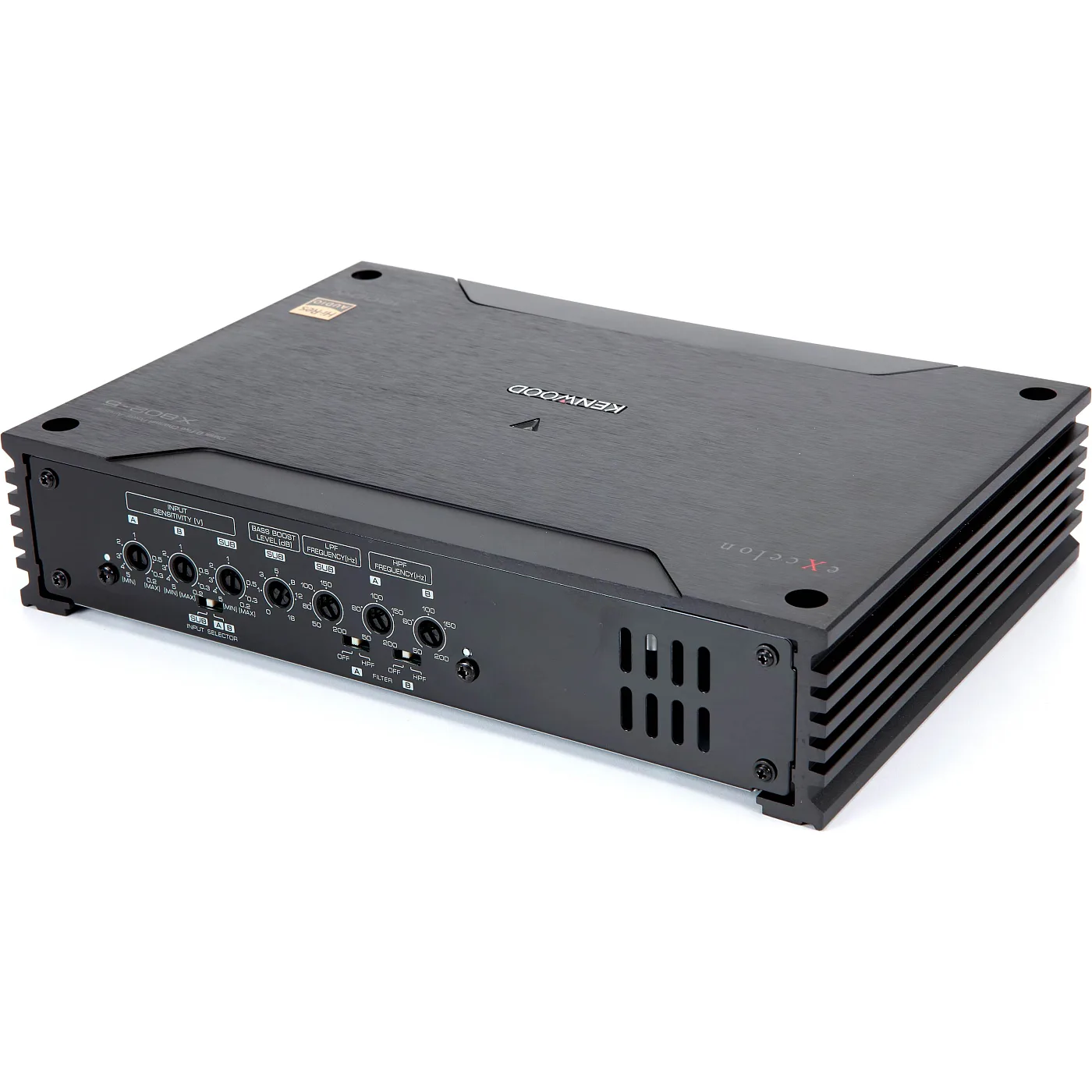

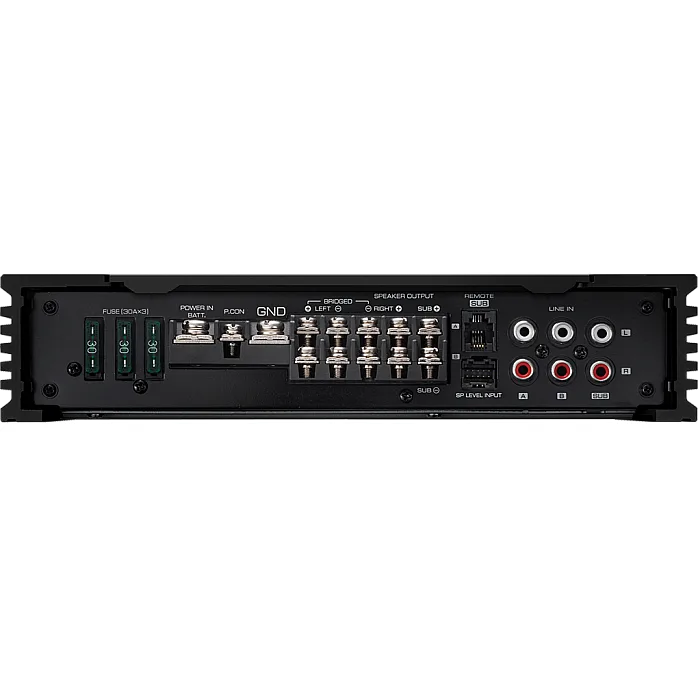

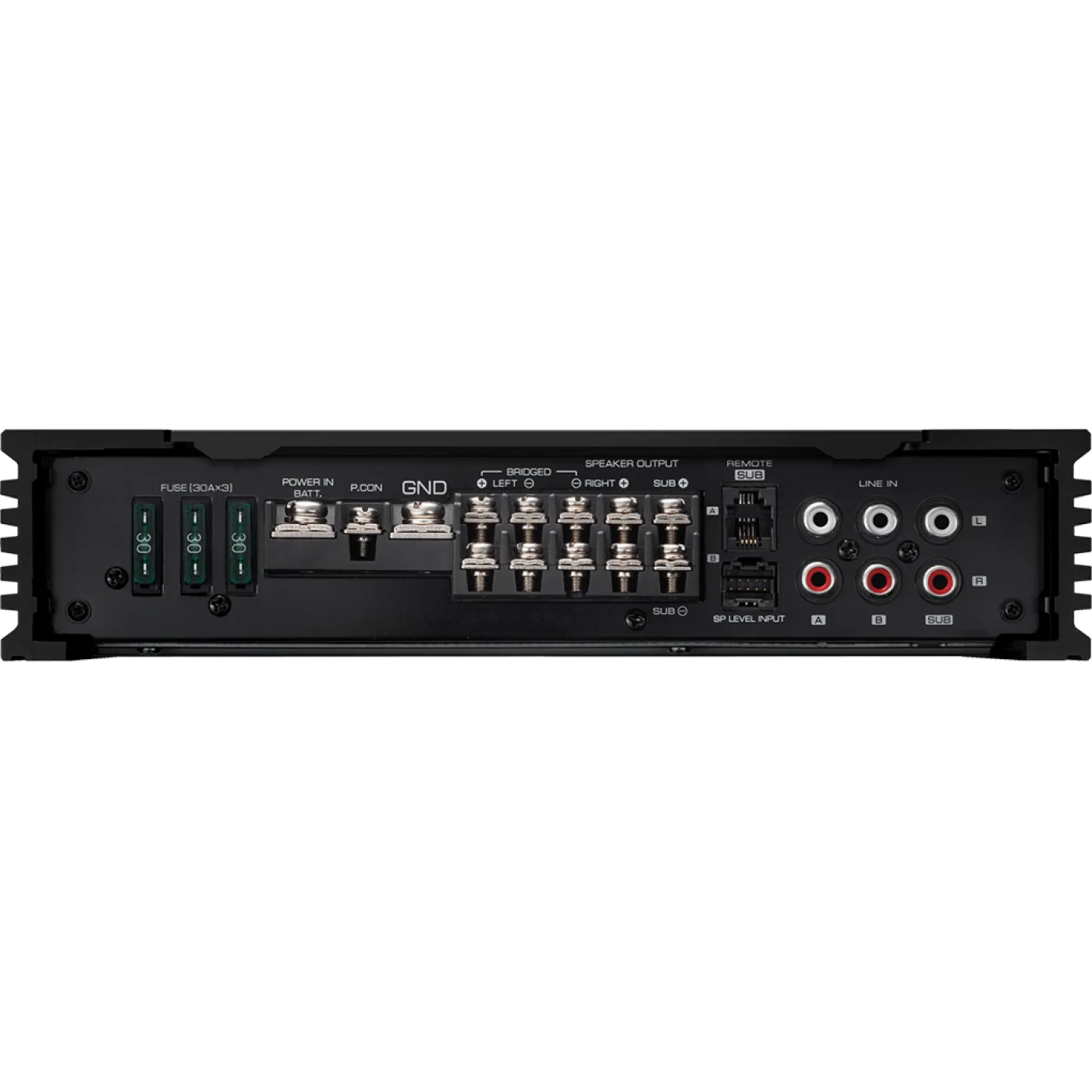

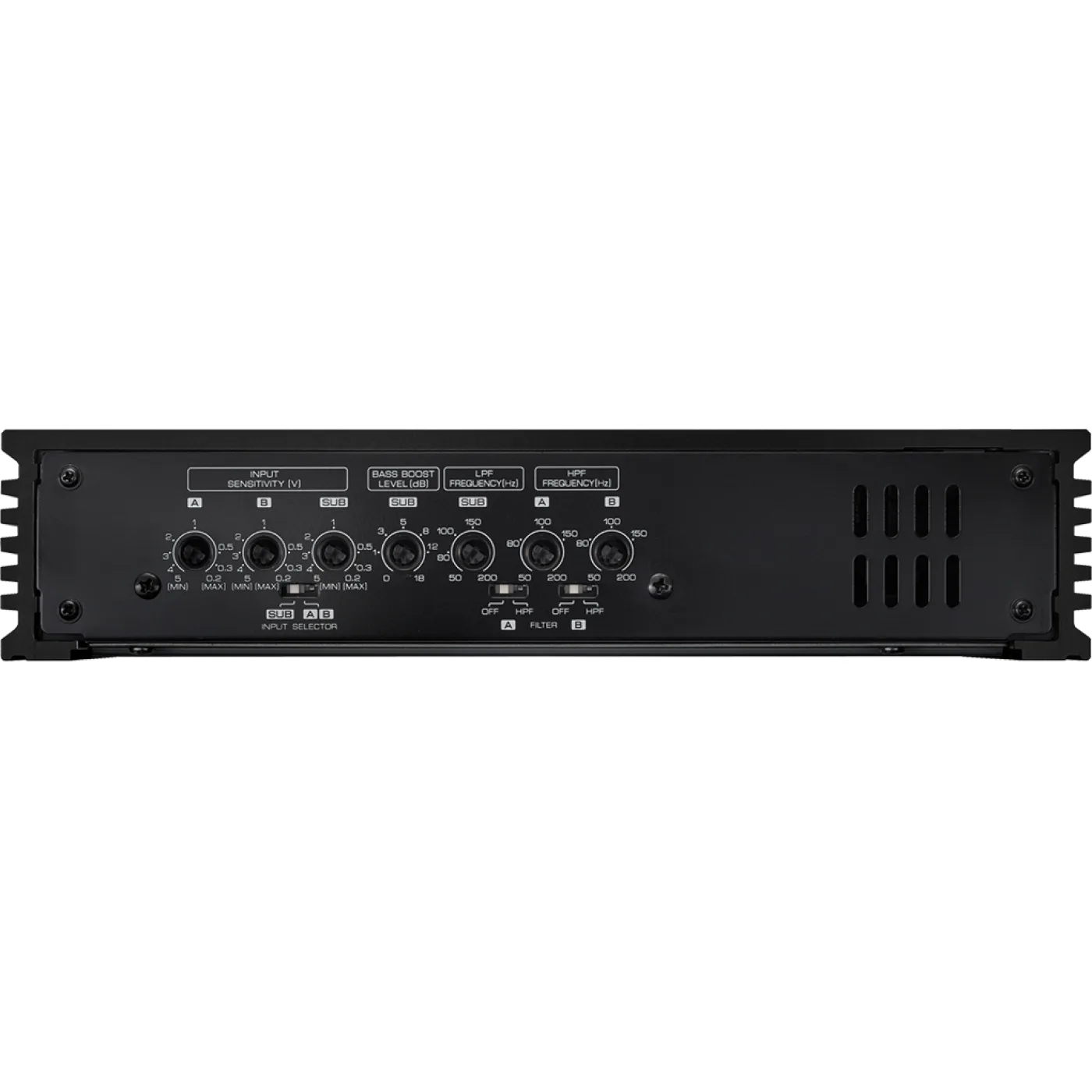

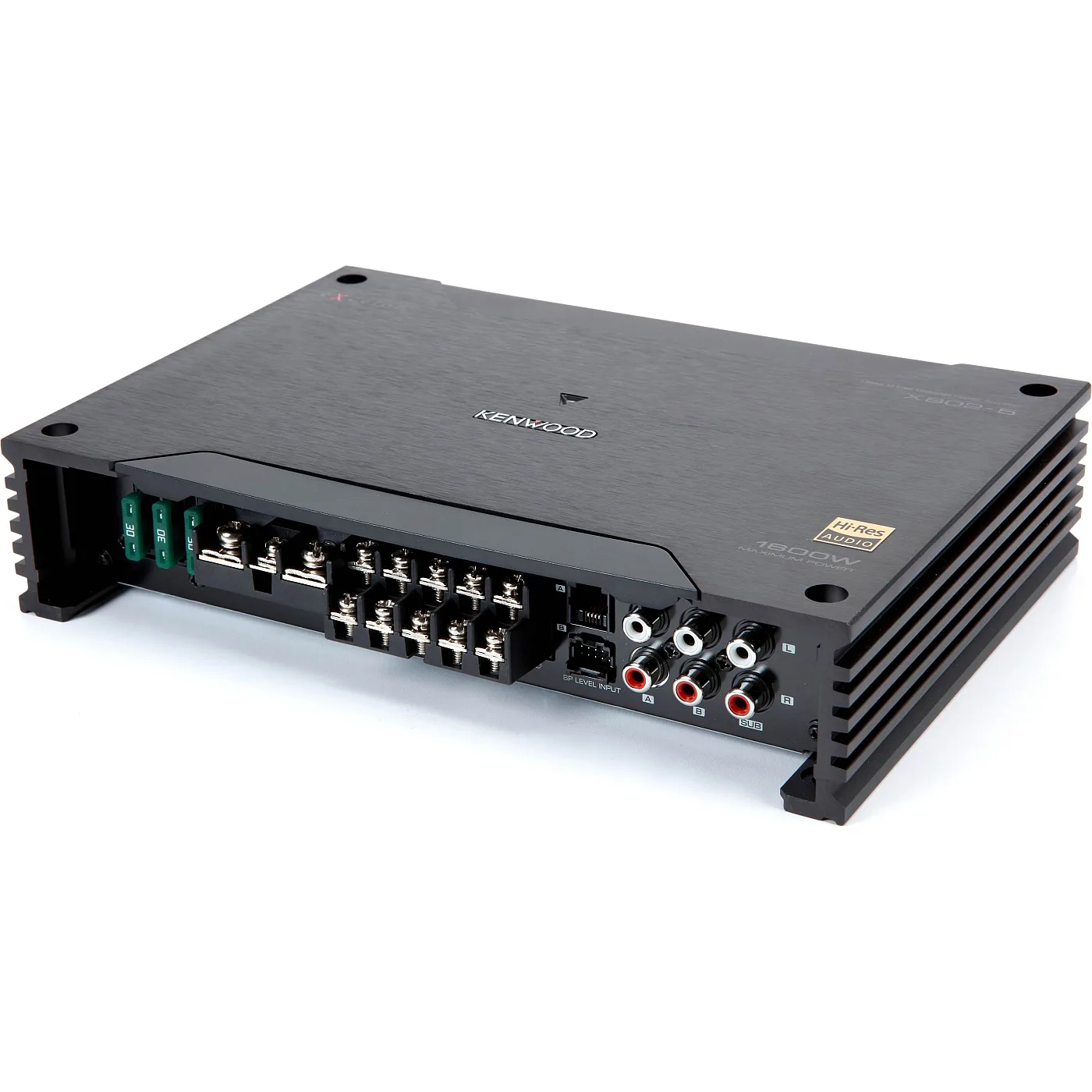

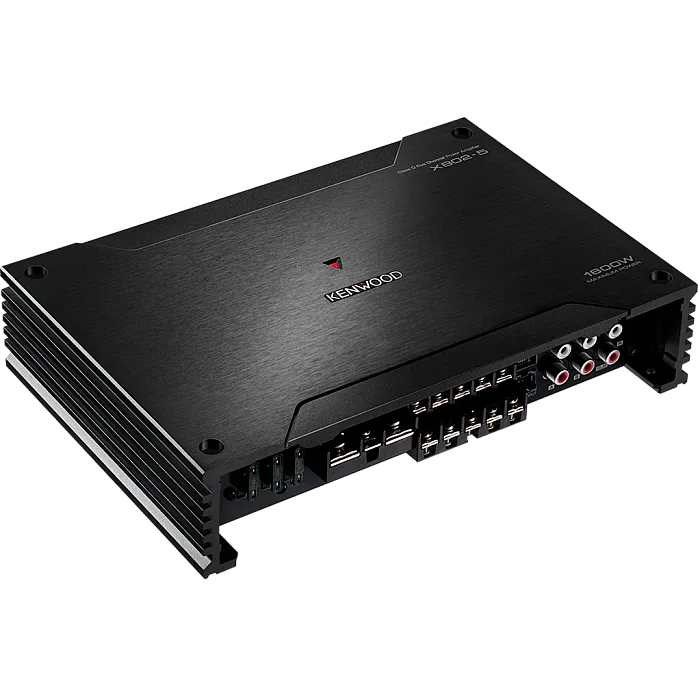

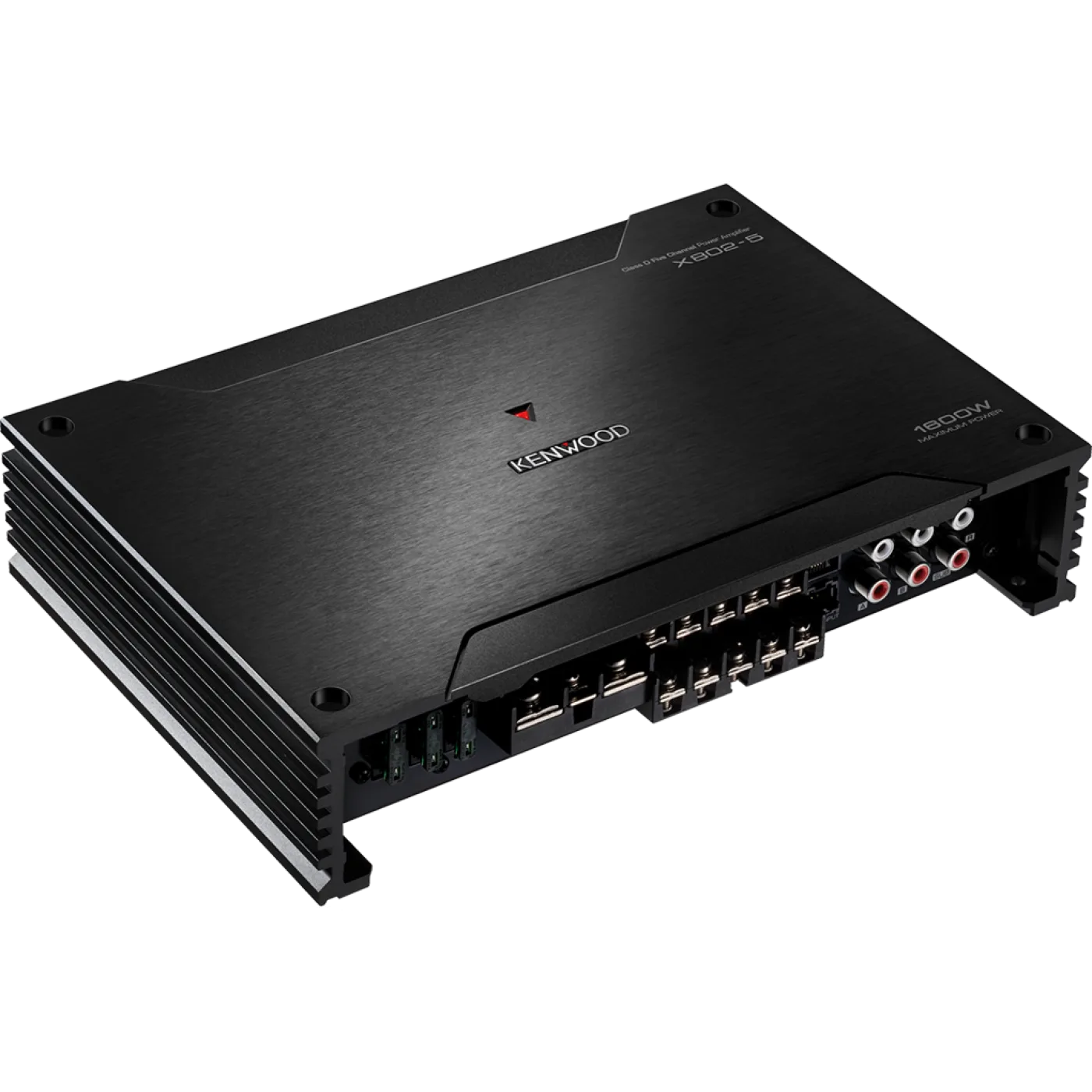

Kenwood X802-5 X-Series Class D 5-Channel Power Amplifier
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:Kenwood
- Product Code:X802-5
- EAN / UPC:7426871610316
- Warranty:1 Year Warranty
£269.99
X802-5 X-Series, Class D 5-Channel Power Amplifier
Ultra-high grade range amplifi ers and speakers that deliver high density realistic sound and a spatial sound impression. The new X-Series amplifiers are precisely designed for High-Resolution Audio to create a truly authentic listening experience with every detail and nuance.
Key Features
- D-class digital power amplifier
- Variable high & low pass filter
- Speaker Level Input
- Signal sensing Turn-on
- 2 ohms load capability
- CEA-2006 compliant
- Hi-Res Audio compliant
- One side terminals for smart installation
- Screw-type terminals
Specifications
Amplifier Features
- Class D Amplifier Yes
- Full Range Digital Amplifier Yes
- Load Capability 2Ω Stable
- Rated power output (4Ω) 50W x 4 (4Ω)
- Rated Subwoofer power output (4Ω) 300W x 1
- Rated power output 75W x 4 (2Ω)
- Rated Subwoofer power output (2Ω) 500W x 1
- Bridged power output (4Ω) 150W x 2
- CEA-2006 Compliant Yes
- Low-pass Filter Yes
- High-pass Fliter Yes
- Switched Mode Power supply Yes, with Power MOS-FET
- Signal Sensing Turn-on Yes
- Speaker level Input Yes
- Single Side Terminals Yes
- Chassis Extruded aluminum het sink design
- Removable Coverplate Yes
Amplifier Specifications
- Rated power output (4Ω, 14,4V) 50W x 4 (20Hz ~ 20000Hz, 1%THD)
- Rated subwoofer power output (4Ω, 14,4V) 300 W (20Hz - 200Hz, 1% THD)
- Rated power output (2Ω, 14,4V) 75W x 4 (1000Hz, 1%THD)
- Rated subwoofer power output (2Ω, 14,4V) 500W (100Hz, 1% THD)
- Rated power output (CEA-2006) 50Watts RMS x 4 at 4 ohms and 1% THD
- Rated subwoofer power output (CEA-2006) 300W
- Low-pass Filter 50~200Hz (-24dB/oct)
- High-pass Fliter 50~200Hz (12dB/oct)
- Bass Boost Circuit 40Hz, 18dB (B-Channel)
- RCA Input Sensitivity 0.2 ~ 5V
- Speaker Level Input Sensitivity 4 ~ 12V
- Input Impedance 10kΩ
- Signal to Noise Ratio 100dB
- Signal to noise ratio (CEA-2006) 80dBa (Reference
- 1 Watt into 4 Ohms)
- Frequency response (+0dB, -1dB) 20Hz ~ 50000Hz
- Freq. resp. (+0dB, -3dB) (SUB) 20Hz ~ 200Hz
- Operating voltage 14.4V (11V ～ 16V allowable)
- Maximum current consumption 42A
- Installation Size (WxHxD) 248 x 53 x 169 (mm)
- Weight 2.1kg
