Deal 8% Off
1 Year Warranty
Pioneer

Mercedes Pioneer 6.8" Screen Wireless Android Auto/Apple CarPlay Bluetooth DAB+ Stereo Upgrade Kit

  • Availability:In Stock
  • Available:9 in stock
  • Item Condition:New
  • Brand:Pioneer
  • Product Code:SPH-DA77DAB + Aerial + CTKMB12
  • EAN / UPC:7427307004990
  • Warranty:1 Year Warranty
£414.99 £449.99
Addons
Navigation App

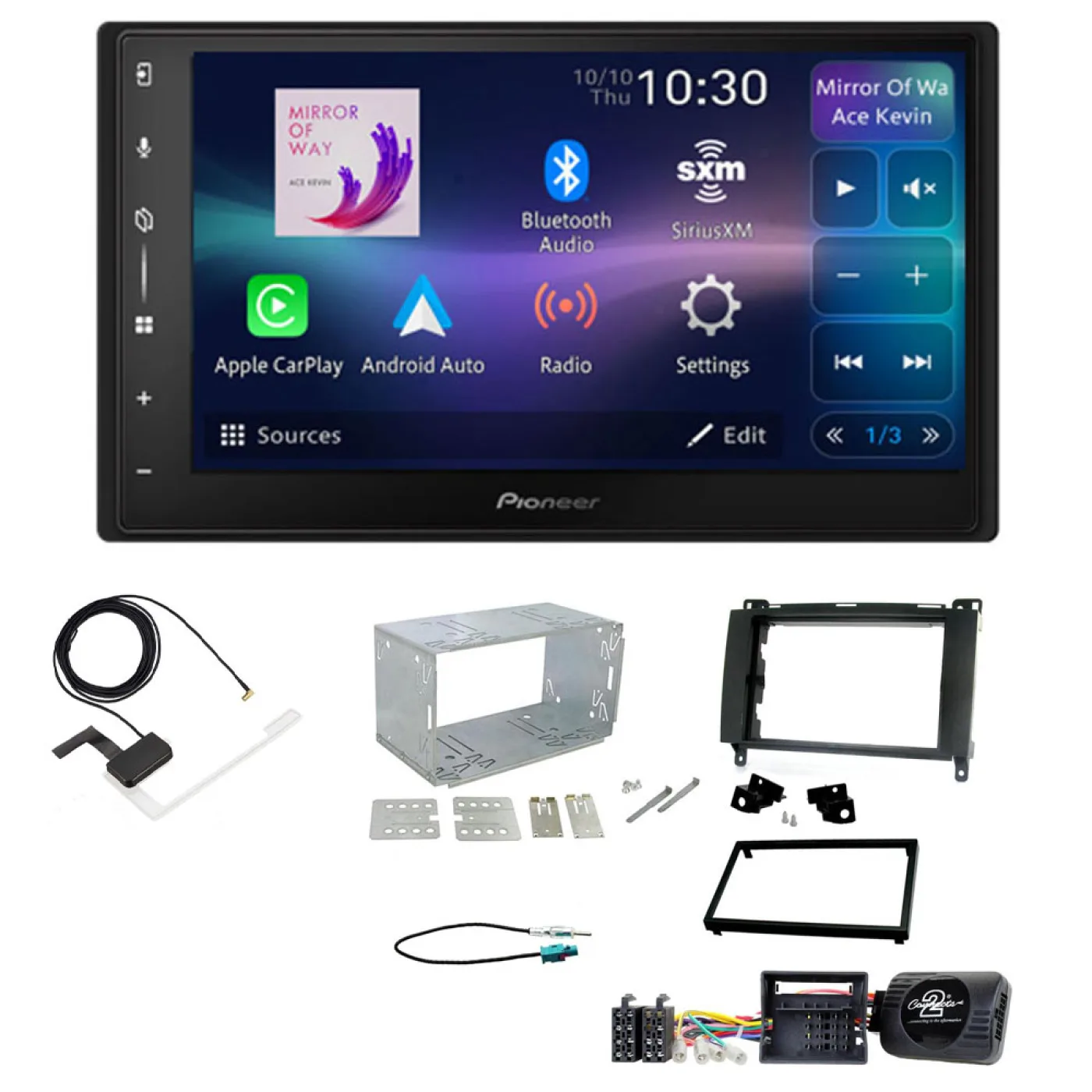

Package Includes

  • Pioneer SPH-DA77DAB 6.8" WVGA Capacitive Multi-touch Panel Screen Weblink 3.0 Android Auto/ Apple CarPlay DAB Car Stereo
  • DAB Aerial
  • Double Din Fascia Kit (Black)
  • Steering Wheel Control
  • Fakra Antenna Adaptor
  • Stereo Patch Lead

Product Compatibility Chart

Make Model Years Notes
Mercedes-Benz A Class 2004 - 2012
Mercedes-Benz B Class 2005 - 2011
Mercedes-Benz Sprinter 2006 - 2018
Mercedes-Benz Viano 2006 - 2014
Mercedes-Benz Vito 2006 - 2014 Not For Vehicles With Audio 15 Head Unit

Connection: Quadlock (Fakra)

Fitting kit

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

The product

Pioneer SPH-DA77DAB

Pioneer SPH-DA77DAB. Getting the latest technology doesn’t have to break the budget with the Pioneer SPH-DA77DAB featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.

Choose from a host of entertainment options, including USB with Full HD video playback supported**, DAB+ tuner, AM/FM tuner or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.

To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.

Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.

Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!

The Pioneer SPH-DA77DAB is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!

  • Apple CarPlayIs the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
  • Android AutoExtends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
  • DAB+Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
  • Digital Radio Tick Mark Approved productManufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
  • Bluetooth®Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
  • 6.8" Capacitive TouchscreenA fully flat touchscreen that allows for fast and responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips, in very high detail.
  • MechafreeThis product is designed for modern digital music formats.
  • Made for iPod / iPhoneDirectly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
  • Compatible with AndroidConnect and listen to music stored on your device without the need for an app
  • USB InputConnect any device with an USB interface cable to charge your device or listen to clean, clear sound.
  • SpotifyWith Spotify, just connect your smartphone to comfortably browse your favourite playlists, albums, tracks and artists using your headunit controls.
  • Wazeis a social GPS driving/navigation app that offers map, real-time traffic, and various other information for you to access on the large display of Pioneer compatible multimedia devices .
  • FLACEnjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
  • 13-band Graphical EQAdjust your audio output in detail for a music experience tailored to your preferences.
  • Siri Eyes Freemake use of your iPhone's Siri functionality through your unit's external microphone and the speakers of your vehicle
  • Multi colour illuminationMatch the display and key illumination to your vehicle's interior lighting with a range of endless colour combinations.

Main Features

  • Mechafree, iconic cosmetic design, with large 6.8” Capacitive Multi-touch touchscreen panel
  • Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
  • Improved GUI allowing for simple smartphone connectivity, compatible with Apple CarPlay and Android Auto
  • 1Din – Short Chassis backside design
  • RGB illumination
  • Single Rear USB with 1.5A power supply (Type A)
  • USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
  • Rear View and 2nd Camera Input
  • Bluetooth (A2DP/HFP/AVRCP) DAB / DAB+ Digital Radio built-in (Optional DAB Antenna required)
  • Bluetooth®: handsfree calling, phonebook transfer, audio streaming (A2DP). (External BT microphone included)
  • Wired Remote Input
  • CAN-BUS support (No HUD)
  • Advanced audio features
  • Wireless Android Auto and CarPlay and its direct launch key, (Easy to use)
  • 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
  • Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)

SPH-DA360DAB vs SPH-DA77DAB comparison

SPH-DA77DAB Chassis design

SPH-DA77DAB Installation Benefit

Specifications

General

Mechafree 6.8” WVGA Capacitive touchscreen
Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
Bluetooth® and DAB / DAB+ Digital Radio combined
Digital Radio Tick Mark approved product
Siri Eyes Free
Advanced audio features
Premium sound quality
RGB
multicolour key illumination and LCD display
iPhone Direct Control
Compatible with Android
Reverse camera compatible
2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
Selectable wall paper (User customisation with jpeg file)

Connectivity

Apple CarPlay (wireless & wired)
Android Auto (wireless & wired)
WEBLINK 3.0
Rear USB / Rear Aux-In
Made for iPhone / Compatible with Android
USB Mirroring via WebLink® 3.0 for iOS, Android smartp­hone/tablets
Wired Remote Control / Rear View Camera Input
Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)

Audio and Video

13-BAND GEQ and Time alignment
3Way Network Mode
Video output & Audio 3 Pre-Out (4V)

DOP Related

EZ MyCarSetting
Setting Memory for Agricultural Business
Start Stop Function

Bluetooth

Pioneer Bluetooth for hands-free calling & audio streaming
Bluetooth auto pairing
External microphone Included
Wireless audio browsing

Audio

Premium Sound Quality
MOSFET 50W x 4 Max Output Power
Music Browsing
13-band Graphic Equaliser
Low Pass/High Pass Filter
3 x 4 Volt RCA Pre-outs

Tuner

DAB/DAB+ Digital Radio
Auto Tune, Pre-set buttons
Digital Radio Tick Mark approved product
RDS FM/AM Tuner
24 Pre-set

File Playback

Audio
WMA/MP3/WAV/AAC/FLAC
Video
H.264/Mpeg4/JPEG/TS/ WMV/MKV/FLV/TS

Accessories

Included - Microphone for Hands-free Calling
Included - USB extension cable
Fitting information

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.

Technical
Android AutoYes
Apple CarPlayYes
Dab RadioYes
MirrorLink ReadyMirroring via WebLink® 3.0 for iOS and Android smartphone/tablets.
Navigation SystemYes
Screen6.8 WVGA screen with capacitive Multi-touch panel
SizeDouble Din
Max. Power OutputMOSFET 50W x 4 Max Output Power
Button IlluminationRGB: multicolour key illumination and LCD display
BluetoothYes
Aux InRear
USBSingle Rear USB with 1.5A power supply (Type A)
Pre OutVideo output & Audio 3 Pre-Out (4V)
