ACV 621190-24-2 Mercedes SLK (R171) 2004-2011 Double Din Car Stereo Fascia Fitting Kit
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:ACV
- Product Code:621190-24-2
- EAN / UPC:7427288173852
- Warranty:1 Year Warranty
This complete Double Din Radio Replacement Kit by ACV, allows the fitment of a Double DIN aftermarket headunit to the selected vehicle. The kit includes everything you need to complete the installation including fascia, steering stalk controls, and aerial connections.

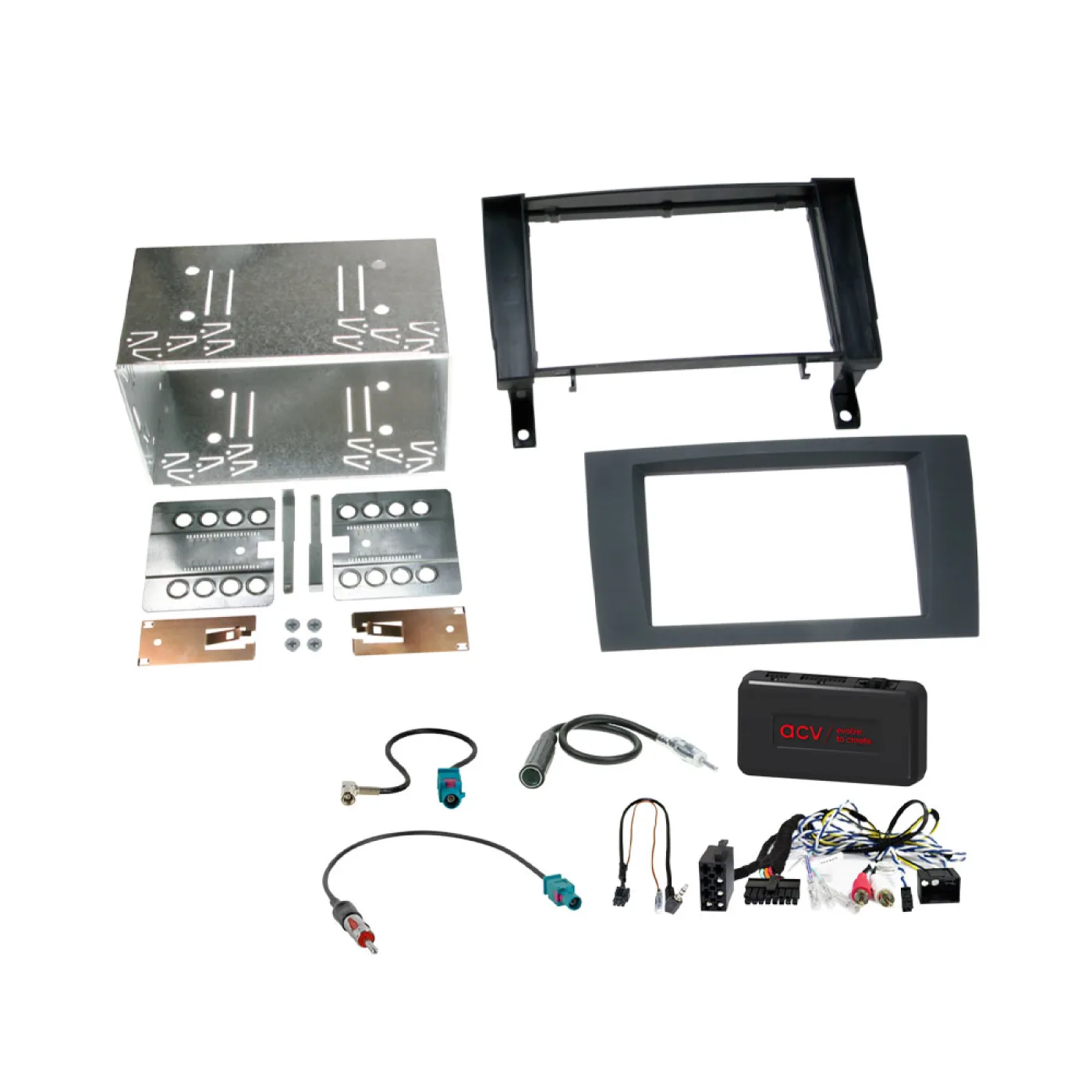

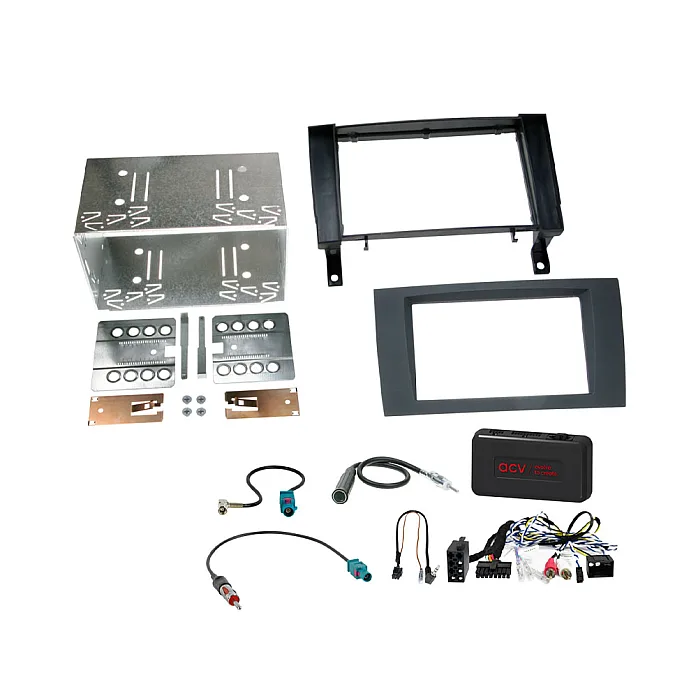

Fitting Kit Includes
- Double Din Fascia Kit (Black)
- Steering Wheel Control
- Fakra Antenna Adaptor
- Antenna Cable Extension
- Stereo Patch Lead (Free CTMULTILEAD.2 Included)
Product Compatibility Chart
| Make | Model | Variations | Years | Notes |
|---|---|---|---|---|
| Mercedes-Benz | SLK | R171 (2004 - 2008) R171 Roadster (2004 - 2008) R171 Roadster (2008 - 2011) | 2004 - 2011 |
Color: Rubber Touch, rubberized surface coating, black.
Radio display cutout:173mm x 98.5mm
Steering wheel remote control OEM MOST sound system supported
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Steering Wheel Interface
A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
The following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in terms of functions.
- Red: +12V ignition terminal 15;
- Orange: +12V lighting terminal 58;
- Purple/White: +12V reverse signal;
- Pink: speed signal;
- Green: ground (GND); Handbrake signal;
Output current rating: 250 mA max.
- Current requirement greater than 250 mA:
- 1 relay coil resistance 75 ohms min.;
- 2 relays coil resistance 150 ohms min.
CTMULTILEAD.2 Universal Patch Lead
Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.
Compatible aftermarket headunits:
- Alpine (3.5mm jack)
- Beat (single wire connection)
- Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
- Clarion (3.5mm jack)
- JVC (3.5mm or single wire)
- Kenwood (single wire)
- LG (3.5mm jack)
- Nakamichi (single wire connection)
- Panasonic (single wire but NOT AV units)
- Philips (single wire connection)
- Pioneer (3.5mm jack)
- Sony (3.5mm jack)
- Zenec (single wire)
- EONON
- JOYING
- XTRONS
- PUMPKIN
- Other Chinese SWC learning head units
