Mini R55, R56, R57 (2006-2013) Kenwood DMX7525DABS Wireless Apple CarPlay Stereo Upgrade Kit
- Availability:In Stock
- Available:9 in stock
- Item Condition:New
- Brand:Kenwood
- Product Code:DMX7525DABS + Aerial + CTKBM02
- EAN / UPC:7427306988659
- Warranty:1 Year Warranty
£494.99

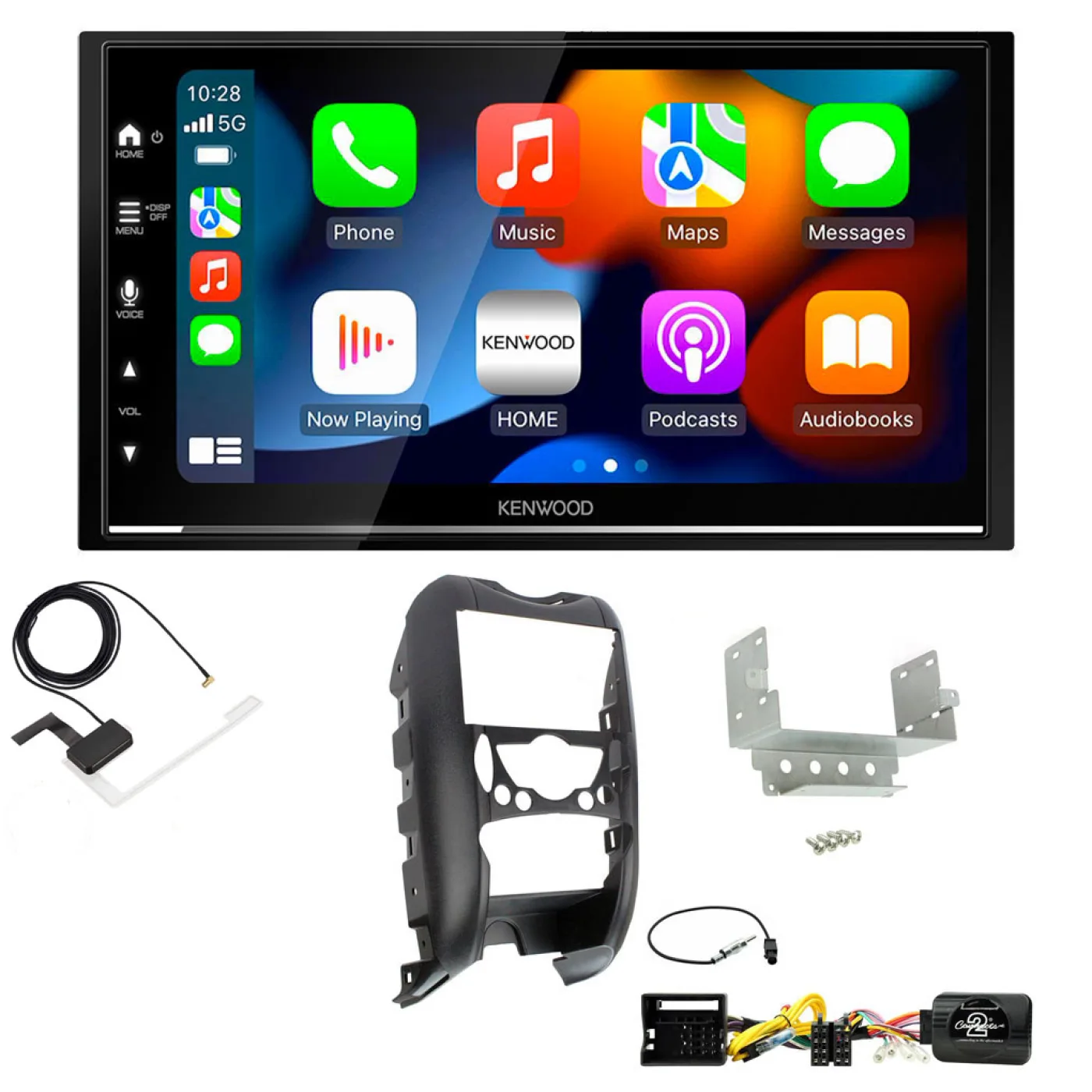

Package Includes
- Kenwood DMX7525DABS Wireless Apple CarPlay Android Auto Digital Media AV Receiver DAB Stereo
- DAB Aerial
- Double Din Fascia kit
- CAN-Bus Steering Wheel Control
- Fakra Antenna Adaptor
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| MINI | All Models | 2006 - 2013 | R55, R56, R57 |
For non-amplified vehicles with automatic A/C
Fascia Colour: Black
PLEASE NOTE: How to mount bracket from CTKBM02. Some Trimming of Internal Plastics of The Dash May Be Required For This Bracket For This Bracket to Sit In Its Final Position.
Fitting kit
Fascia Adaptor
This Adaptor will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Steering Wheel Interface
A stalk/steering wheel control Adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
By connecting your smartphone and DMX7525DABS wirelessly, your driving time will be more fun and convenient: Safe, Smart and Comprehensive Control with Apple CarPlay™ & Android Auto™ and the USB Mirroring allows you to display and control your Android smartphone on the KENWOOD receiver screen. Furthermore enjoy the Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment and an optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Key Features
- 6.8 "WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
- Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
- DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
- Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).
- Supports CarPlay wirelessly (Wifi) and wired (USB).
- Supports Android Auto wirelessly (Wifi) and wired (USB).
- Supports Android USB Mirroring including 2-way touch control capability.
- Dedicated rear view camera input with parking guide lines
- 3 RCA high power (2.5V) preouts (front/rear/sub)
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements
- Short body (75mm) for easy installation.
Specifications
General Features
- DIN Size 2 DIN
- Smooth GUI
- Selectable GUI Background Wallpaper
- Key Illumination Variable color
- Touch sensor
- Installer Memory
- Back-up Memory
- Attenuator with Smooth Volume Return
- Touch Sensor Tone
- Optional IR remote controller KNA-RCDV340
- Digital Clock (24H)
- Built-in Bluetooth
- DAB Tuner Built-in
- Wifi built-in
- Made for iPod
- Firmware upgreadable
Monitor Features
- LCD type 6,8 inch Wide VGA
- LCD backlight LED
- Display Mode 3 Mode (Full(default)/Auto/Normal)
- Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast
- Dimmer function Manual/Sync
- Dimmer Level Auto/On/Off
- Visual Source Mode CarPlay/Android Auto.
- Touch Panel Capacitive
- Display Type Glare
- Display film Anti Fingerprint
- Viewing Angle Adjustment "0" (Default) / "-1" / "-2" / "-3"
- NTSC/PAL judge (Auto)
- Display Off Mode
Multimedia GUI Features
- Menu text 14 languages:
- English(UK)(Default)
- English(US)
- Spanish
- French
- German
- Italian
- Dutch
- Russian
- Portuguese
- Hebrew
- Greek
- Polish
- Czech
- Hungarian
- Software updates (SoC) via USB
- Demonstration Mode
- Top Menu Customize
- Background Customize preset x 9 + user set x 1
- Screen Capture
- R-CAM interrupt
- R-CAM Caution On Screen Display
- R-CAM Parking Guide Lines
Network & Wifi Features
- WiFi built-in built-in
- Frequency Range Dual Band (2.4GHz / 5GHz)
- IEEE standard 802.11a/b/g/n/ac
Tuner Features
- Station Select List
- Tuner Type JKTS
- FM Reception
- AM (MW/LW) Reception
- AM Reception
- FM(RDS) + AM(MW/LW) Tuner
- Tuner Presets (FM/AM) 5 Presets (15FM / 5AM)
- Tuning mode Auto1/Auto2/Manual
- Up/Down Seek/Scan
- Automatic Memory Entry (AME)
- FM Stereo / Mono Selector
- Radio Data System
- Radio Text Plus
- Traffic Information
- Local search
- Auto TP search
- Enhanced Other Networks Function (EON)
- Program Type Function (PTY)
CE DAB Tuner Features
- DAB+ tuner built-in
- Digital Radio Certification Mark
- DAB/DAB+ Band Band III
- DAB/DAB+ Mode I, II, III, IV
- Intelligent seek
- Tuning mode / Seek mode Auto1/Auto2/Manual
- Service preset 5 ch * 3 bank presets,
- Preset list
- Alphabet Search
- Traffic Information
- DAB-DAB/DAB-FM auto switch
- Seamless DAB-FM blending
- DMB (Digital Multimedia Broadcasting) support
- Announcement Switching (ASW) Select
- EPG (Electronic Program Guide)
- Soft linking
- Antenna power supply on/off switch
Bluetooth General Features
- Hands Free Profile (HPF) Ver. 1.8
- 2 phones full time connection
- Audio Streaming (A2DP)
- High Quality Audio Streaming SBC/AAC
- Serial Port Profile (SPP)
- Simple Secure Pairing (SSP)
- Phonebook Access Profile (PBAP)
- Audio/Video Remote Control Profile (AVRCP) V1.6
- Multi Profile Support
- iPhone & Android automatic pairing via USB
- KENWOOD Music Mix Support
- Private mode
- Interrupt call request
- Voice Control
- Noise Canceller
- Echo Canceller
- High-quality noise canceling microphone External microphone unit
Playable Audio File
- AAC (*.m4a) files are playable USB
- AAC (*.aac) files are playable USB
- MP3 files are playable USB
- WMA (.wma) files are playable USB
- WAV (.wav) files are playable USB
- FLAC files are playable USB
CE_Playable Video File
- MPEG1/2 files are playable USB
- MPEG4 files are playable USB
- WMV files are playable USB
- H.264 files are playable USB
- mkv files are playable USB
- JPEG files are playable USB (for wallpaper)
- BMP files are playable USB (for wallpaper)
- PNG files are playable USB (for wallpaper)
USB Features
- USB terminal rear side
- USB Type 2.0 High speed
- Drive Change
- Works with Android Auto
- Works with Apple CarPlay
- USB Mirroring for Android install "Mirroring OA for KENWOOD" from Playstore
- Repeat Play Folder/File/All
- Random play Folder / File
- Category search
- Resume play
- Time code display
- 1,5A Smartphone Quick Charge
iPod Features
- Connection via
- USB / BT / Wifi
- iPod Accessory Protocol (iAP) iAP2
- Works with Apple CarPlay
Audio Features
- Max. Output Power 4 x 50W
- Pre-out 3RCA
- Front/Rear/Subwoofer
- Pre-out Output Level 2.5V
- Volume Offset
- Att.(-20dB) with smooth Volume Return
Multimedia DSP Features
- DSP Chip JKTS DSP
- Position Control
- Position Preset 4 Presets
- Position Cabin Size
- Graphic Equalizer 13 bands
- G-EQ KBS
- G-EQ manual setting
- G-EQ adjustable level +9dB / -9dB
- High Pass Filter (HPF)
- Low Pass Filter (LPF)
- 3-Way X'Over
- Channel Level Control
- Space Enhancer
- Supreme
- Realizer
- Loudness
- Stage EQ
- Bass Boost
- Drive EQ
- Speaker Size & Location Control
- Listening postion control / Time Alignment
- Equalizer presets / User set 8 presets / 4 User set
- Balance & Fader Control
- Source Volulme Offset source independent
Video Features
- Audio Video Output Video
- RCA, Audio: mini-jack
- Audio/Video Input Mini-jack (Rear)
- Video-In for Rear-view Camera 1 dedicated video input (RCA)
- Detection Mode Rear View Camera Reverse sensor wire
- Parking Guide Line
Connectivity
- USB interface 1x Rear
- OEM Wired Remote Control ready
- Programmable OEM Steering wheel Remote Function
- DC-Cord NEW Mitsumi to ISO
- Parking sensor (handbrake) wire
- Power Control (P.CON) wire
- Dimmer control wire
- Preout 3 x RCA (Front/rear/subwoofer)
- AV-Input 1x mini-jack (selectable
- AV-in / Camera-in)
- Video Out RCA x1
- Reverse sensor wire
- Rear View Camera Input Dedicated RCA Video-in
- GPS Aerial Input HRS GT5-1S connector
- FM Antenna Input JASO connector
- DAB Aerial input SMB connector
- External microphone input 3,5mm mini-jack
| Technical | |
|---|---|
| Android Auto | Work With Android Auto |
| Apple CarPlay | Yes |
| Dab Radio | Yes |
| Rear Camera Input | Yes |
| Screen | 6.8 "WVGA capacitive touch panel |
| Size | Double Din |
| Max. Power Output | MOSFET 4 x 50W |
| Tuner | FM/AM, DAB+ tuner built in |
| Radio Data System | Yes |
| Button Illumination | White |
| Bluetooth | Built-In |
| iPod Ready | Yes |
| Works with iPhone | Yes |
| USB | Rear USB 2.0 High speed |
| Pre Out | 3 RCA high power (5V) preouts (front/rear/sub) |
