Nissan NV200 2010-2019 6.8" CarPlay / Android Auto USB, Bluetooth Car Stereo Upgrade Pack
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:JVC
- Product Code:KW-M593BT + FK-644-SWC
- EAN / UPC:7427288195915
- Warranty:1 Year Warranty

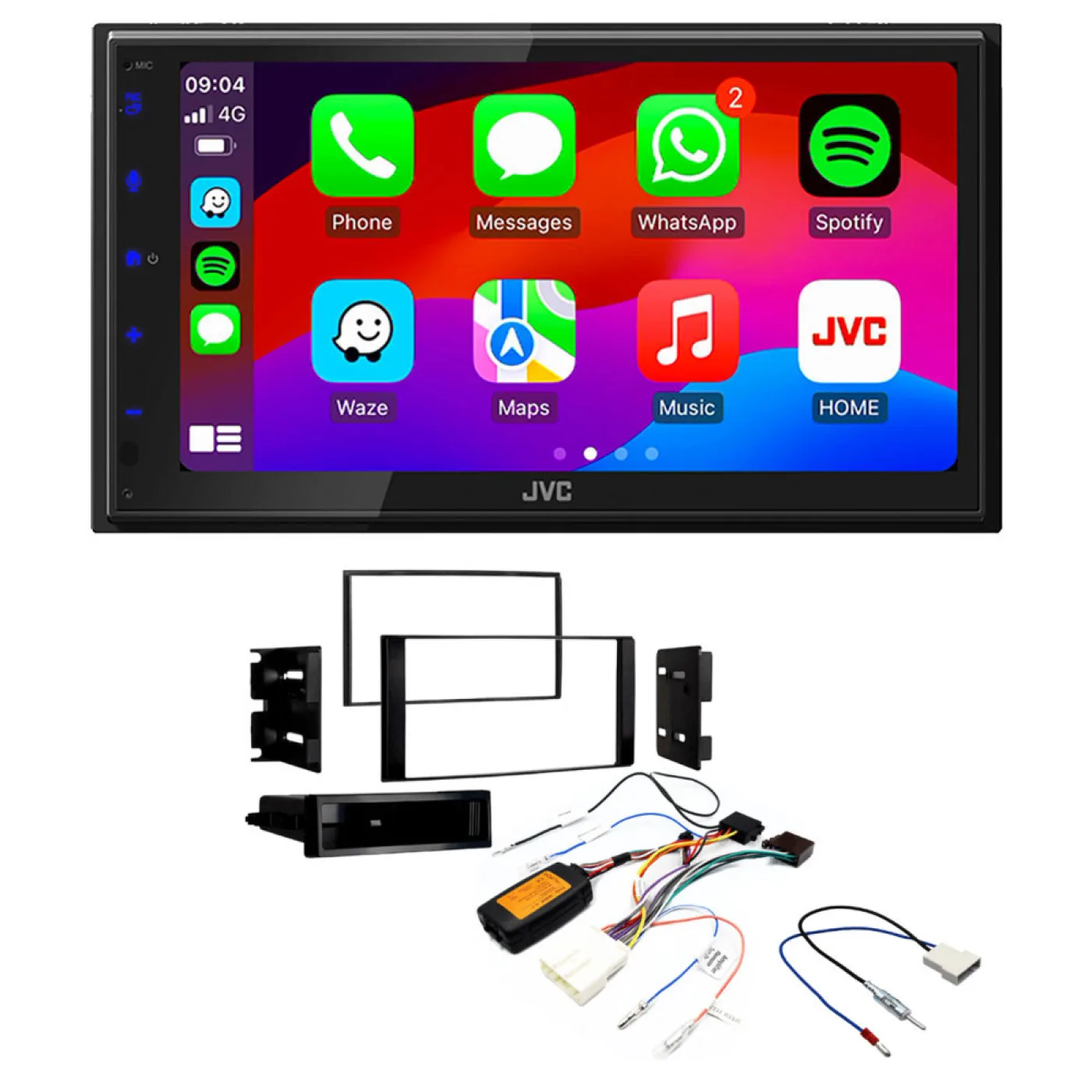

Package Includes
- JVC KW-M593BT 6.8" CarPlay / Android Auto USB, Bluetooth Screen Mirroring Car Stereo
- Single/Double Din Fascia Adapter (Matt Black)
- Steering Wheel Control Interface Adaptor
- Aerial Antenna Adapter Cable
- Stereo patch lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Nissan | NV200 | 2010 - 2019 |
For vehicles with navigation systems and factory fitted reverse camera please use FK-644-SWC-CAM
Original Stereo Should Be Look Like This
.jpg)
Fitting kit
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Replacement audio fascia to enable you to change the original radio in the vehicle to a Double DIN aftermarket version
The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.
This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation.
Steering Control Adaptor
A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.
Steering wheel control interface and adapter cable for Nissan Navara D40, NV200, Pathfinder, Patrol and Qashqai cars to fit an aftermarket radio upgrade.
The cable adapts from the 20 pin Nissan connector (the connector has a larger size terminal at either end of the connector) in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.
The steering wheel control interface is built in to the adapter cable. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source and phone buttons. (6 function steering wheels)
This interface fits cars with the newer 20 way car audio connector that has two larger size terminals at either end of the connector. These radios will also have an additional smaller connector, this is used for CD changer and navigation audio. It is not used when changing the head unit.
Installation notes
- Connect male ISO(S) of the steering wheel control interface to the female ISO(S) of the aftermarket radio lead/head unit
- Loose black wire - Connect the radio ground earth ring to the vehicles chassis ground
- Loose pink wire - Connect the pink wire to the speed pulse connector on the aftermarket radio (Not all radios have this, please check manufacturers instructions)
- Loose blue wire (Amplifier turn-on) - This is only required on amplified systems such as BOSE.
- Loose blue wire (Antenna turn-on) - This needs to be connected to the antenna turn on cable on the antenna adapter cable
Fitting kit
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Nissan (grey rectangle female antenna to male DIN connection) car aerial antenna adapter cable.
This cable adapts from the grey plastic rectangle Nissan antenna connector in the car to a standard aftermarket male DIN connector, used when fitting a new aftermarket stereo.
The loose blue wire (male bullet) on the adapter needs to be connected to the antenna turn on output from the new radio, this turns on the original antenna amplifier in the car.
KW-M593BT
Digital Media Receiver featuring 6.8" High Res WSVGA Monitor / Wired Apple CarPlay® & Android Auto™ / iPhone & Android USB Mirroring / Bluetooth® / 13-Band EQ / Short Chassis.
Features
- Apple CarPlay® & Android Auto™ Ready
- USB Mirroring for iPhone / Android
- Advanced Wireless Bluetooth® Technolgy
- High Speed USB port with up to 2.1A High Current Charging
- Rear View Camera Input with Parking Guidelines
- 2 Preouts 2.5V & Subwoofer Out
- 6.8" WSVGA LCD Display & Convenient and Easy-to-Use Capacitive Touch Panel
- Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
- Short body (86mm) for easy installation in a wide range of cars
Apple CarPlay – Connect via USB
Apple CarPlay is a safer and more fun way to use your iPhone in the car via USB connection. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
- Some features, applications, and services are not available in all areas
Android Auto – Connect via USB
Android Auto* was designed with safety in mind, helping you to minimize distractions and stay focused on the road. JVC’s multimedia receiver, connected via USB, combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Spotify.
- Compatible Android phone and compatible active data plan required.
- Some features and devices may not be available in all countries. Subject to availability.
USB Mirroring for iPhone & Android Smartphone.
By installing the “MirroringAPP+”, your iPhone & Android phone* is seamlessly displayed on the JVC receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
Wide Super VGA LCD Display
The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Short Chassis Design
The reduced depth and the P-shape of the chassis contributes to a weight reduction and facilitates easier installation.
Technical Specification
Monitor
- Screen Size 6.8 inches (diagonal) wide
- High Definition Monitor WSVGA (1024 x 600px)
- Touch Panel Type Capacitive
- Display System TN LCD panel
- Drive System TFT active matrix system
- Number of Pixels 1.843.200 (1024H x 600V x RGB)
- Effective Pixels 99.99 %
- Pixel Arrangement RGB striped arrangment
- Back Lighting LED
- Touch Control
- Key Illumination Colour Blue
- Dimmer, Manual/Sync (Auto/On/Off)
- Customizable GUI
- Multilanguage Display, 14 languages
- English(UK(Default) / English US / Spanish / French / German / Italian / Dutch / Portuguese / Arabic / Hebrew / Greek / Polish / Czech / Hungarian.
Radio Tuner
- FM Tuner
- Radio Data System (RDS)
- FM Frequency Range 87.5 ~108.0 MHz (50kHz Step)
- AM Tuner
- AM Frequency Range 531kHz ~ 1611kHz (9kHz Frequency Step)
- Preset Stations 36(FM
- 24ch, AM:12ch)
- Automatic Preset / SSM (FM only)
Media Playback
- Audio Decoder
- MP3 Compatible with Tag USB
- WMA Compatible with Tag USB
- WAV Compatible with Tag USB
- AAC Compatible with Tag USB
- FLAC Compatible with Tag USB
- Video Decoder
- MPEG-1 / MPEG-2 Compatible USB
- MPEG-4 Compatible USB
- WMV Compatible USB
- H.264 Compatible USB
- MKV Compatible USB
- JPEG File Playback USB (For user background only)
- BMP File Playback USB (For user background only)
- PNG File Playback USB (For user background only)
USB
- USB Port(s) x 1
- Location Rear
- USB Standard High Speed
- File System FAT16 / FAT32 / exFAT / NTFS
- USB Mass Storage Class
- Drive Change Mode for Mass Storage Class
- Tag Information Display
- Album Art Display
- List Access
- Category search
- Link Search
- Random / Repeat Play
- Skip
- Time Code Display
- Last Position Memory / Resume
- Digital / Analog Converter (DAC) 24 bit
- Signal-to-Noise Ratio (S/N) 75 dB
- 2.1A Max Power Supply Current
Bluetooth
- Bluetooth Technology V 5.0
- Hands Free Call (HFP) HFP1.8 Wideband Speech
- Advanced Audio Distribution Profile (A2DP) V1.3
- Audio/Video Remote Control Profile (AVRCP) V 1.6
- Phone Book Access Profile (PBAP)
- Alphabetical Search for Phone Book
- Secure Simple Pairing (SSP)
- Audio Codec AAC / SBC
- Noise Canceller (Auto)
- Echo Canceller (Auto)
- Built-in BT Microphone
Android Control
- Android Auto
- Android Auto wired, (via USB)
- USB mirroring for Android
- Android Music Playback (via Bluetooth(R)
iPod/iPhone Control
- CarPlay
- CarPlay wired, (via USB)
- Mirroring for iPhone (via USB)
- iPhone Music Playback (via USB or Bluetooth®)
- Random/Repeat Play
App(s)
- MirrorApp+ via USB
Audio
- Maximum Power Output (Front & Rear) 50W x 4
- Full Bandwidth Power (at less than 1%THD) 22W x 4
- Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
- Output Frequency Band 20 - 20,000Hz
- EQUALIZER
- 13-Band Graphic EQ
- Preset EQ Preset x 7 + User set x 3 / All SRC
- High-Pass Filter/Low-Pass Filter
- Digital Sound Processor (DSP)
- Time Alignment
- Loudness Control (Off/Low/High)
- Bass Boost (Hyper Bass System) (on/off)
Inputs and Outputs
- Audio Inputs and Outputs
- Pre-Out Terminals Front (L+R), Rear (L+R), Subwoofer (mono)
- Pre-Output Level 2.5V
- Pre-Out Impedance 1,4 kΩ
- Video Inputs and Outputs
- Video Out x 1 (V:RCA)
- Colour System NTSC/PAL
- Video Output Level/Impedance 1Vp-p / 75 ohms
- Camera inputs
- Rear view camera Input
General
- Back Up Memory
- GPS Antenna Input
- Wireless Remote Control
- Wired Steering Remote Control Ready
- Learning Direct OEM Remote (Resistive protocol only)
- ISO Connector 22pin (New Type) to ISO Wiring harness
- Short Chassis (86mm)
- Operation Voltage 12 VDC
- Installation Size (W x H x D) 182 x 112 x 86mm
- Weight, inlcuding sleeve and escutcheon 1.27 kg
| Technical | |
|---|---|
| Android Auto | Wired Android Auto Ready |
| Apple CarPlay | Wired Apple CarPlay Ready |
| Rear Camera Input | Yes |
| Screen | Capacitive Touch Panel 6.8 inches (diagonal) wide WSVGA (1024 x 600px) |
| Size | Double Din |
| Plays | MP3, WMA, WAV,AAC, FLAC |
| Button Illumination | Blue |
| Bluetooth | Built In |
| Works with iPhone | Yes (via USB or Bluetooth(R) |
| USB | Rear USB |
| Pre Out | 2 Preouts 2.5V & Subwoofer Out |
