Peugeot Partner II 2008-2018 JVC 6.8" CarPlay / Android Auto USB, Bluetooth Car Stereo Upgrade Pack
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:JVC
- Product Code:KW-M593BT + FK-743-PDC
- EAN / UPC:7427288188269
- Warranty:1 Year Warranty

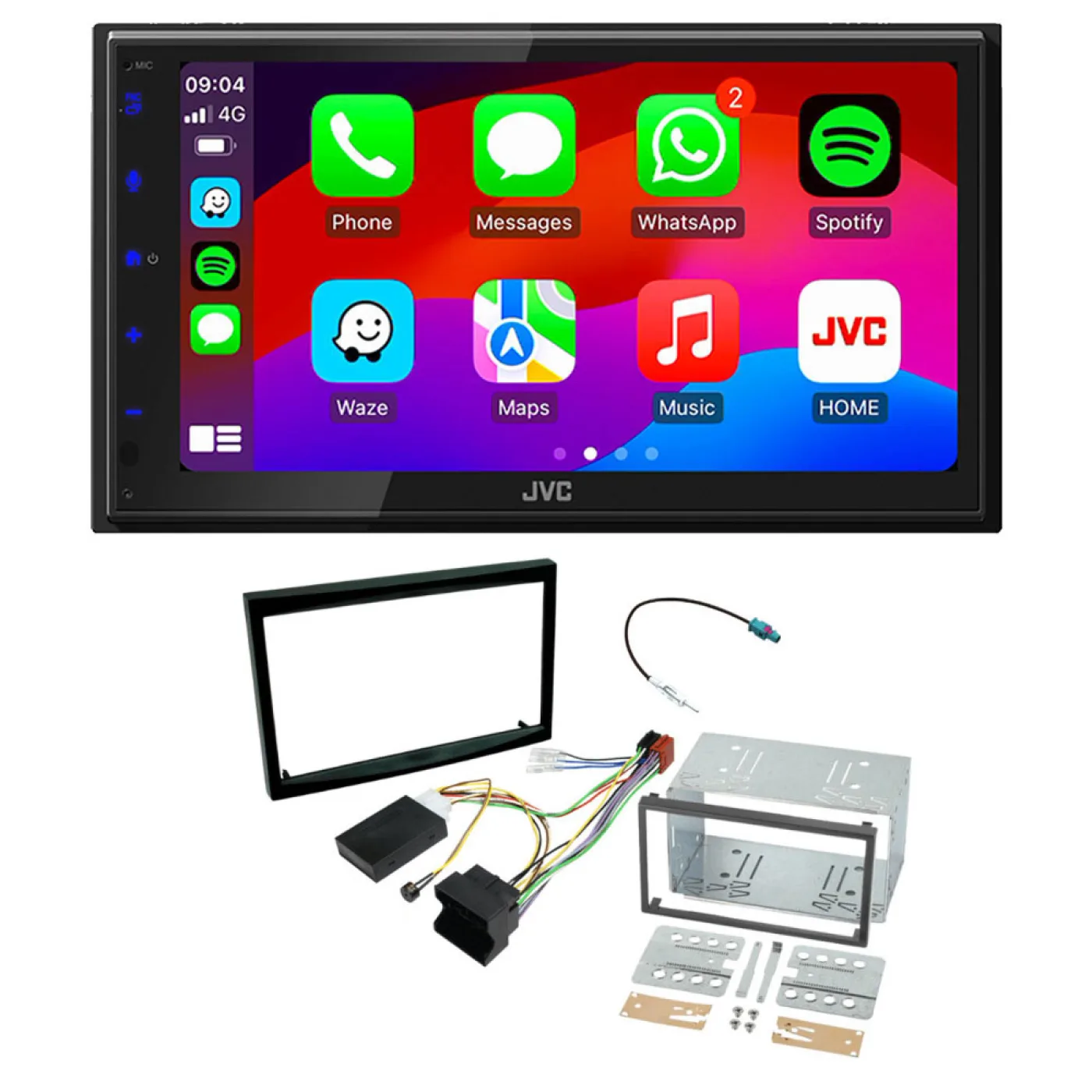

Package Includes
- JVC KW-M593BT 6.8" CarPlay / Android Auto USB, Bluetooth Screen Mirroring Car Stereo
- Double Din Fascia Adaptor Trim (Matt Black)
- 103mm high Double Din Cage Kit
- Steering Wheel Control Interface
- Fakra to Din Antenna Adaptor
- Stereo patch lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Peugeot | Partner | 2008 - 2018 | (II) |
Only suitable for vehicles with steering wheel controls and factory parking sensors
Original Stereo Should Be Look Like This
Fitting kit
Fascia Adaptor
Radio fascia adapter panel to allow the fitting of an aftermarket Double DIN Car stereo upgrade.This fascia is a trim piece that covers the radio cage to give a professional finish when installing an aftermarket double DIN radio.
103mm high Double Din Cage Kit
Car audio metal cage kit 103mm high. This kit is designed to replace the metal cage kit that is usually supplied with your new aftermarket double din head-unit or navigation system. It is used along with fascias that have 103mm high hole sizes.Complete with fixings to attach to the new car radio body
Steering Control Adaptor
CANbus steering wheel control and parking sensor retention interface with quadlock connectors behind the radio.
This interface uses quadlock connections behind the original radio to allow the use of the original steering wheel control buttons with a new aftermarket head-unit. It also provides CANbus outputs as well as Ignition, speed pulse and reverse gear signals to the new stereo.
It has an additional BUZZER to retain the original front and rear parking sensor tones that are lost when replacing the original radio.This interface will also allow you to access the Settings menu on the cars screen menu to change time and date.
Fakra to Din Antenna Adaptor
Male Fakra to Male DIN antenna adapter cable.This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade.This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier
KW-M593BT
Digital Media Receiver featuring 6.8" High Res WSVGA Monitor / Wired Apple CarPlay® & Android Auto™ / iPhone & Android USB Mirroring / Bluetooth® / 13-Band EQ / Short Chassis.
Features
- Apple CarPlay® & Android Auto™ Ready
- USB Mirroring for iPhone / Android
- Advanced Wireless Bluetooth® Technolgy
- High Speed USB port with up to 2.1A High Current Charging
- Rear View Camera Input with Parking Guidelines
- 2 Preouts 2.5V & Subwoofer Out
- 6.8" WSVGA LCD Display & Convenient and Easy-to-Use Capacitive Touch Panel
- Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
- Short body (86mm) for easy installation in a wide range of cars
Apple CarPlay – Connect via USB
Apple CarPlay is a safer and more fun way to use your iPhone in the car via USB connection. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
- Some features, applications, and services are not available in all areas
Android Auto – Connect via USB
Android Auto* was designed with safety in mind, helping you to minimize distractions and stay focused on the road. JVC’s multimedia receiver, connected via USB, combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Spotify.
- Compatible Android phone and compatible active data plan required.
- Some features and devices may not be available in all countries. Subject to availability.
USB Mirroring for iPhone & Android Smartphone.
By installing the “MirroringAPP+”, your iPhone & Android phone* is seamlessly displayed on the JVC receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
Wide Super VGA LCD Display
The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Short Chassis Design
The reduced depth and the P-shape of the chassis contributes to a weight reduction and facilitates easier installation.
Technical Specification
Monitor
- Screen Size 6.8 inches (diagonal) wide
- High Definition Monitor WSVGA (1024 x 600px)
- Touch Panel Type Capacitive
- Display System TN LCD panel
- Drive System TFT active matrix system
- Number of Pixels 1.843.200 (1024H x 600V x RGB)
- Effective Pixels 99.99 %
- Pixel Arrangement RGB striped arrangment
- Back Lighting LED
- Touch Control
- Key Illumination Colour Blue
- Dimmer, Manual/Sync (Auto/On/Off)
- Customizable GUI
- Multilanguage Display, 14 languages
- English(UK(Default) / English US / Spanish / French / German / Italian / Dutch / Portuguese / Arabic / Hebrew / Greek / Polish / Czech / Hungarian.
Radio Tuner
- FM Tuner
- Radio Data System (RDS)
- FM Frequency Range 87.5 ~108.0 MHz (50kHz Step)
- AM Tuner
- AM Frequency Range 531kHz ~ 1611kHz (9kHz Frequency Step)
- Preset Stations 36(FM
- 24ch, AM:12ch)
- Automatic Preset / SSM (FM only)
Media Playback
- Audio Decoder
- MP3 Compatible with Tag USB
- WMA Compatible with Tag USB
- WAV Compatible with Tag USB
- AAC Compatible with Tag USB
- FLAC Compatible with Tag USB
- Video Decoder
- MPEG-1 / MPEG-2 Compatible USB
- MPEG-4 Compatible USB
- WMV Compatible USB
- H.264 Compatible USB
- MKV Compatible USB
- JPEG File Playback USB (For user background only)
- BMP File Playback USB (For user background only)
- PNG File Playback USB (For user background only)
USB
- USB Port(s) x 1
- Location Rear
- USB Standard High Speed
- File System FAT16 / FAT32 / exFAT / NTFS
- USB Mass Storage Class
- Drive Change Mode for Mass Storage Class
- Tag Information Display
- Album Art Display
- List Access
- Category search
- Link Search
- Random / Repeat Play
- Skip
- Time Code Display
- Last Position Memory / Resume
- Digital / Analog Converter (DAC) 24 bit
- Signal-to-Noise Ratio (S/N) 75 dB
- 2.1A Max Power Supply Current
Bluetooth
- Bluetooth Technology V 5.0
- Hands Free Call (HFP) HFP1.8 Wideband Speech
- Advanced Audio Distribution Profile (A2DP) V1.3
- Audio/Video Remote Control Profile (AVRCP) V 1.6
- Phone Book Access Profile (PBAP)
- Alphabetical Search for Phone Book
- Secure Simple Pairing (SSP)
- Audio Codec AAC / SBC
- Noise Canceller (Auto)
- Echo Canceller (Auto)
- Built-in BT Microphone
Android Control
- Android Auto
- Android Auto wired, (via USB)
- USB mirroring for Android
- Android Music Playback (via Bluetooth(R)
iPod/iPhone Control
- CarPlay
- CarPlay wired, (via USB)
- Mirroring for iPhone (via USB)
- iPhone Music Playback (via USB or Bluetooth®)
- Random/Repeat Play
App(s)
- MirrorApp+ via USB
Audio
- Maximum Power Output (Front & Rear) 50W x 4
- Full Bandwidth Power (at less than 1%THD) 22W x 4
- Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
- Output Frequency Band 20 - 20,000Hz
- EQUALIZER
- 13-Band Graphic EQ
- Preset EQ Preset x 7 + User set x 3 / All SRC
- High-Pass Filter/Low-Pass Filter
- Digital Sound Processor (DSP)
- Time Alignment
- Loudness Control (Off/Low/High)
- Bass Boost (Hyper Bass System) (on/off)
Inputs and Outputs
- Audio Inputs and Outputs
- Pre-Out Terminals Front (L+R), Rear (L+R), Subwoofer (mono)
- Pre-Output Level 2.5V
- Pre-Out Impedance 1,4 kΩ
- Video Inputs and Outputs
- Video Out x 1 (V:RCA)
- Colour System NTSC/PAL
- Video Output Level/Impedance 1Vp-p / 75 ohms
- Camera inputs
- Rear view camera Input
General
- Back Up Memory
- GPS Antenna Input
- Wireless Remote Control
- Wired Steering Remote Control Ready
- Learning Direct OEM Remote (Resistive protocol only)
- ISO Connector 22pin (New Type) to ISO Wiring harness
- Short Chassis (86mm)
- Operation Voltage 12 VDC
- Installation Size (W x H x D) 182 x 112 x 86mm
- Weight, inlcuding sleeve and escutcheon 1.27 kg
| Technical | |
|---|---|
| Android Auto | Wired Android Auto Ready |
| Apple CarPlay | Wired Apple CarPlay Ready |
| Rear Camera Input | Yes |
| Screen | Capacitive Touch Panel 6.8 inches (diagonal) wide WSVGA (1024 x 600px) |
| Size | Double Din |
| Plays | MP3, WMA, WAV,AAC, FLAC |
| Button Illumination | Blue |
| Bluetooth | Built In |
| Works with iPhone | Yes (via USB or Bluetooth(R) |
| USB | Rear USB |
| Pre Out | 2 Preouts 2.5V & Subwoofer Out |
