Phoenix Gold ZDC-BMW2 - 6 Channel Harness For BMW With ASD
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:Phoenix gold
- Product Code:ZDC-BMW2
- EAN / UPC:7427288170264
- Warranty:2 Years Warranty
Phoenix Gold ZDC-BMW2
Our ZDC-BMW2 solution makes it easy to upgrade your audio by integrating seamlessly with our amplifiers. Built for a hassle-free installation, with everything you need included, no cutting or splicing required.
Transform your BMW’s audio experience with the Phoenix Gold ZDC-BMW2 harness, specifically designed for BMW vehicles equipped with the Basic Sound System and with an ASD module. This innovative harness addresses a common issue found in these systems: the front door speakers and under-seat woofers are connected together, compromising sound quality and performance.
In the stock configuration, the small 4” door speakers are forced to handle lower bass frequencies, leading to distortion. Simultaneously, the under-seat woofers are required to reproduce midrange and treble frequencies they were not designed to handle, further degrading the audio clarity. The result? A muddled and distorted sound profile that falls far short of your vehicle’s potential.
The ZDC-BMW2 harness resolves this by separating the signal paths of the front door speakers, under-seat woofers, and rear speakers, enabling a fully active configuration. When paired with a Phoenix Gold ZDA6.8* DSP amplifier, this advanced setup allows precise tuning of frequency filters across the entire audio system. Each speaker can be finely calibrated to deliver optimal performance, dramatically reducing distortion, enhancing overall sound clarity, and unlocking the full potential of your vehicle’s sound system. The result is an immersive, balanced, and professional-grade audio experience like never before.
Product Compatibility Chart
| Make | Model | Variations | Years | Notes |
|---|---|---|---|---|
| BMW | 1 Series | F20 (5DR) F21 (3DR) 2ND LCI (2017 >) F21 (3DR) F20 (5DR) (2011 - 2015) F21 (3DR) F20 (5DR) LCI (2015 >) | 2011 - 2019 | |
| BMW | 1 Series | F20 (5DR) F21 (3DR) 2ND LCI (2017 >) F21 (3DR) F20 (5DR) LCI (2015 >) | 2015 - 2019 | |
| BMW | 2 Series | F22 (2014 >) F22 LCI (2018 >) F23 (2015 - 2018) F23 LCI (2018 - 2021) | 2014 - 2021 | |
| BMW | 2 Series | F45 Active Tourer (2014 >) F45 Active Tourer Phev Hybrid (2016 >) F45 LCI Active Tourer (2018 >) F46 Gran Tourer (2015 >) F46 LCI Gran Tourer (2018 >) | 2014 - 2021 | |
| BMW | 3 Series | F30 LCI PHEV Hybrid (2016 >) F30, F31 (Touring) (2012 - 2015) F30, F31 (Touring) LCI (2015 >) F31 (2012 - 2015) F31 Facelift (2015 - 2019) F35 (2012 - 2015) F35 Facelift (2015 - 2018) | 2012 - 2019 | |
| BMW | 3 Series | F34 Gran Turismo (2013 >) F34 LCI Gran Turismo (2016 >) | 2013 - 2020 | |
| BMW | 4 Series | F32 (2013 >) F32 LCI (2018 >) F33 (2014 >) F33 LCI (2018 >) | 2014 - 2019 | |
| BMW | 4 Series | F36 (2014 >) F36 LCI (2018 >) | 2014 - 2020 | |
| BMW | 5 Series | F10 (Saloon) ActiveHybrid (2011 - 2013) F10 (Saloon) F11 (Touring) (2010 - 2013) F10 LCI (Saloon) ActiveHybrid (2013 >) F10 LCI (Saloon) F11 LCI (Touring) (2013 >) F18 (2010 - 2013) F18 Facelift (2013 - 2017) | 2010 - 2017 | |
| BMW | 5 Series | G30 (Saloon) G38 (LWB) G31 (Touring) (2016 >) | 2017 - 2020 | |
| BMW | 6 Series | F12 (2011 >) F12 LCI (2015 >) F13 (2011 >) F13 LCI (2015 >) | 2011 - 2018 | |
| BMW | 6 Series | G32 Gran Turismo (2018 >) | 2017 - 2020 | |
| BMW | 7 Series | G11 (Saloon) G12 (LWB) (2015 >) G11 (Saloon) G12 (LWB) ActiveHybrid (2016 >) | 2015 - 2019 | |
| BMW | M2 | F87 (2016 >) | 2016 - 2022 | |
| BMW | M3 | F80 (2015 - 2019) | 2014 - 2018 | |
| BMW | X1 | F48 (2015 >) F48 LCI (2018 >) F49 (2016 - 2019) | 2016 - 2019 | |
| BMW | X3 | G01 (2018 >) | 2017 - 2019 | |
| BMW | X4 | F26 (2014 >) | 2014 - 2018 | |
| BMW | X4 | 2018 - 2019 | (G02) | |
| BMW | X5 | F15 (2013 >) F15 Phev Hybrid (2015 >) | 2014 - 2018 | |
| BMW | Z4 | E89 Facelift (2013 >) | 2013 - 2018 | |
| MINI | Clubman | F54 (2015 >) F54 Facelift (2019 - 2021) | 2016 - 2021 | |
| MINI | Clubman | 2021 onward | (F54) (2nd Facelift) | |
| MINI | Cooper | Gen 3 (2013 - 2019) Gen 3 Facelift (2019 - 2021) Gen 3 Facelift 2 (2021 - 2024) | 2013 - 2024 | |
| MINI | Countryman | F60 (2017 >) F60 LCI (2021 >) | 2016 - 2023 |
Basic Sound System with ASD
Installation
- Disconnect the OEM harness from your ASD module (located in the boot).
- Connect the ZDC-BMW2 cable to the OEM plug, then plug the other end into your ASD module.
- Connect the black ground wire from the harness to the vehicle’s negative battery terminal (-).
- Connect the yellow power wire from the harness to the vehicle’s positive battery terminal (+).
- Route the underseat woofer cables:
- Route the 4-pin connector with blue wires from the boot to the left front seat.
- Route the 4-pin connector with red wires from the boot to the right front seat
- Disconnect the factory connectors from the underseat woofers beneath each front seat.
- Insert the loop connectors from the ZDC harness into the now-disconnected factory connectors.
- Connect the 4-Pin connectors to the underseat woofers (blue for left, red for right).
- Connect all ZDC-BMW2 connectors in the boot to the ZDA6.8* DSP amplifier.
With this quick and easy process, your physical installation is complete, allowing you to enjoy enhanced sound quality and performance.
Specifications
Key Benefits
- Enhanced Performance
- The ZDA6.8* DSP amplifier delivers higher power output, increasing the dynamic range and overall volume capability of your system.
- Superior Sound Quality
- Featuring Class A/B technology, the ZDA6.8* amplifier significantly improves clarity and fidelity, creating a richer, more immersive audio experience.
Note
- ZDA6.8 is sold separately
- ASD (Active Sound Design) simulates engine noise through the speakers.
Compatible With

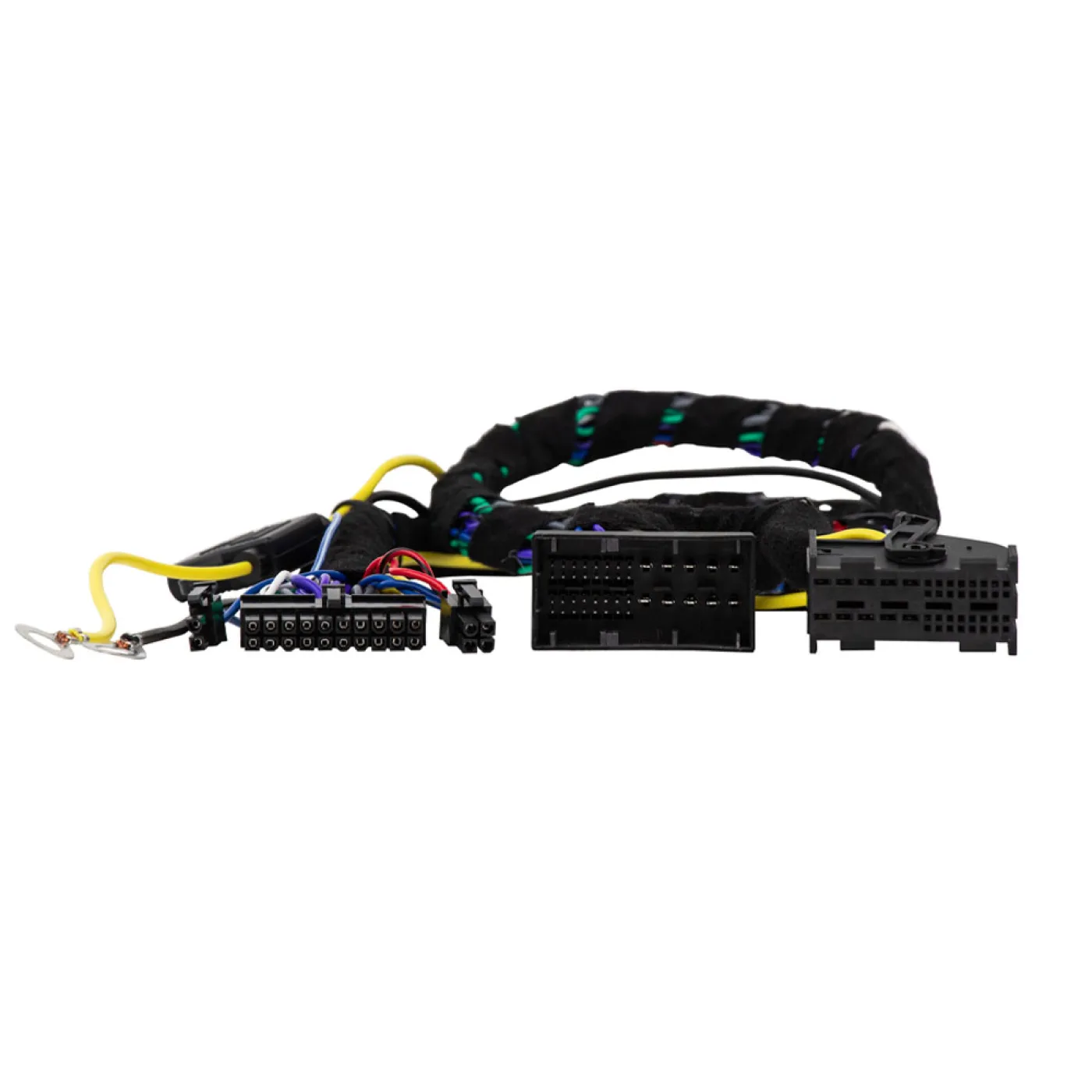

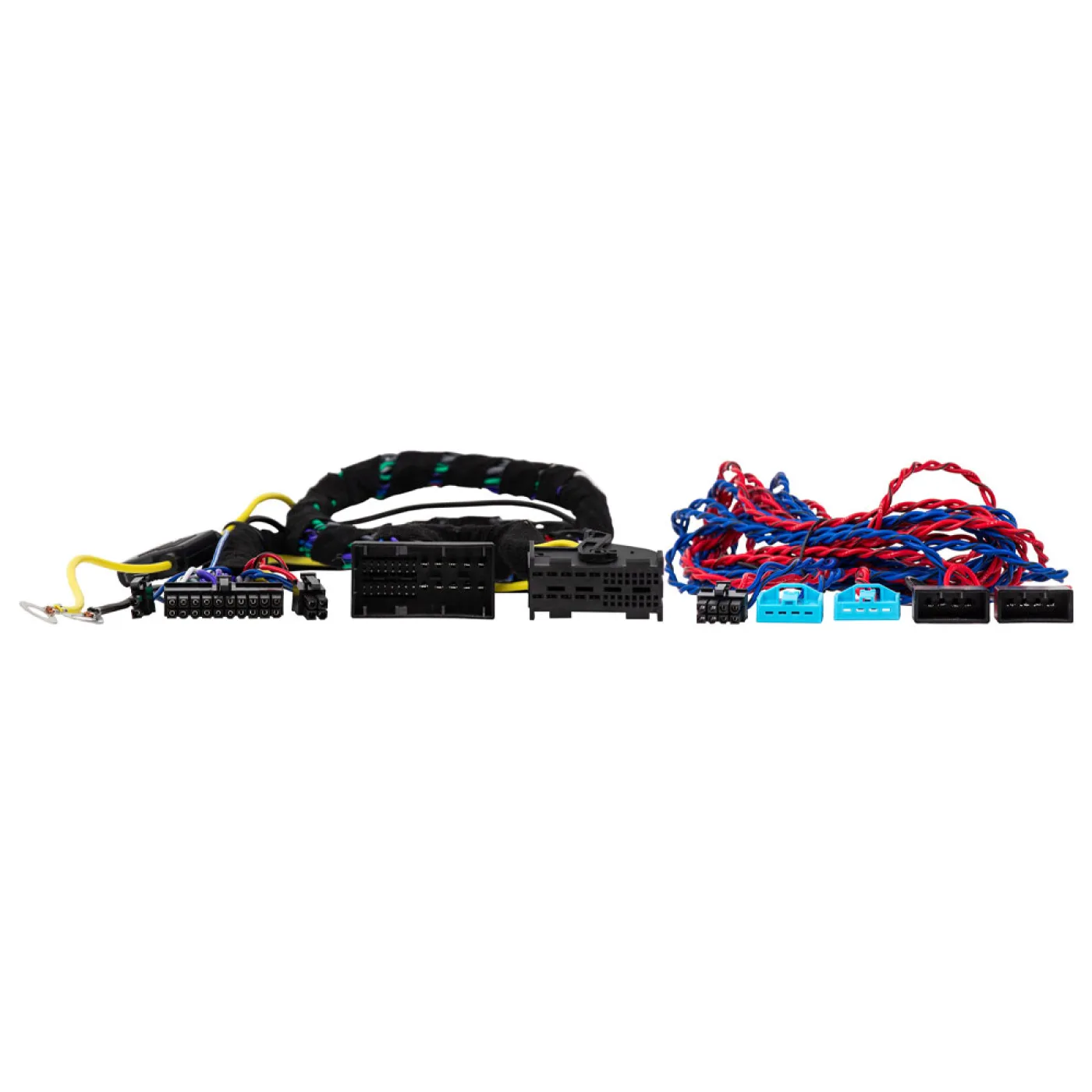

Connectors
- 1x 42-Pin Male Connector
- 1x 42-Pin Female Connector
- 1x 20-Pin Female Molex Connector
- 1x 8-Pin Female Molex Connector
- 1x 4-Pin Female Molex Connector
- 1x 2-Pin Female Molex Connector

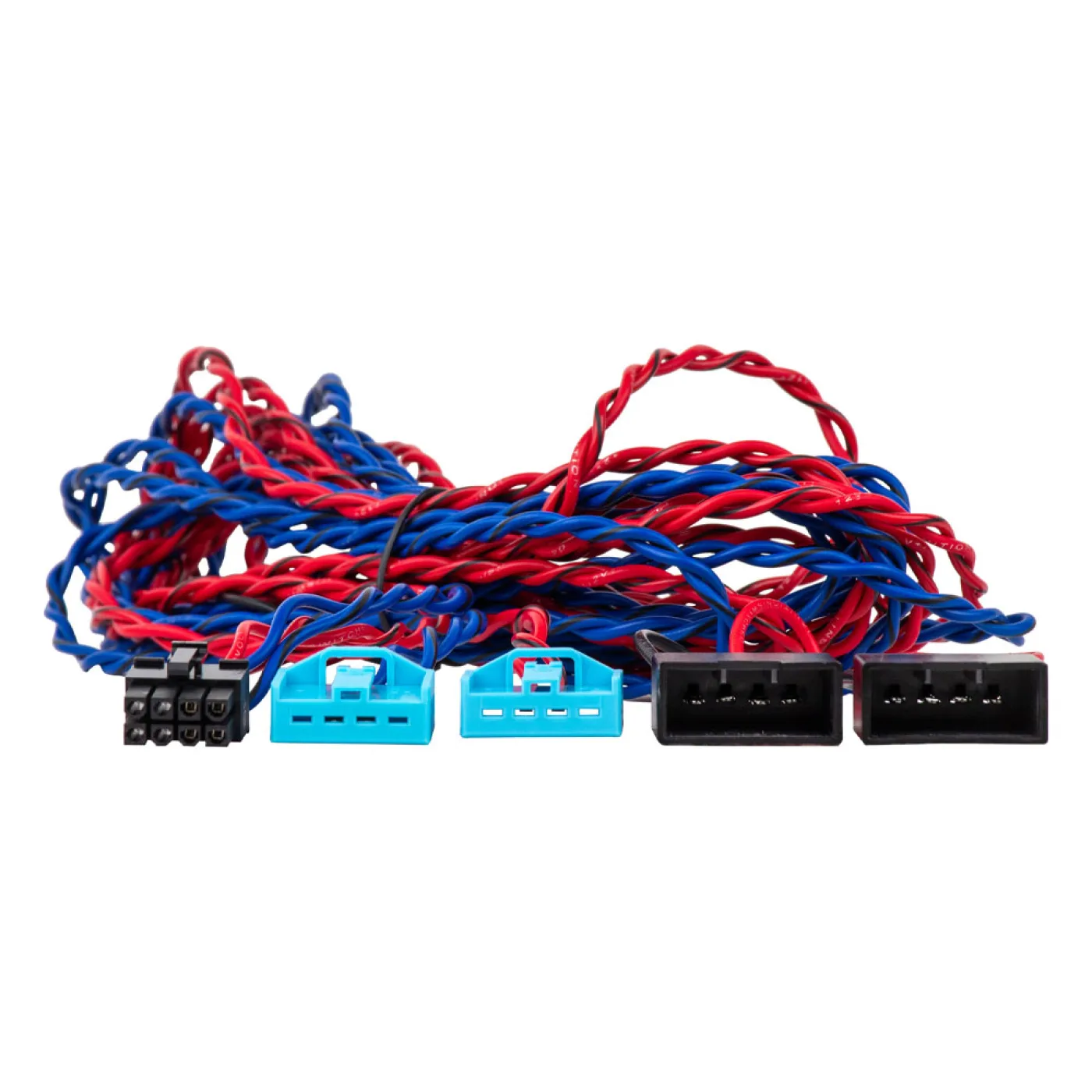

- 2x 4-Pin Female BMW Woofer Connectors
- 2x 4-Pin Male BMW Woofer Connectors
- 1x M8 Yellow Power Cable
- 1x M8 Black Ground Cable
