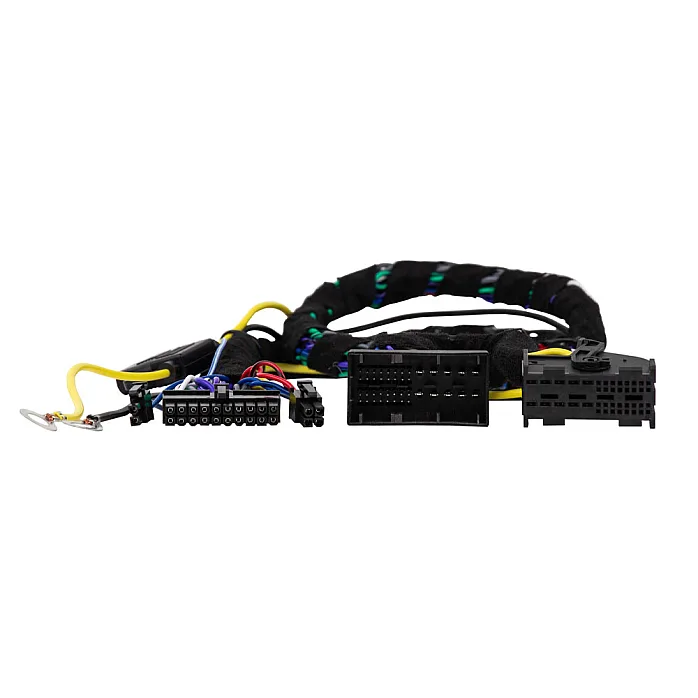

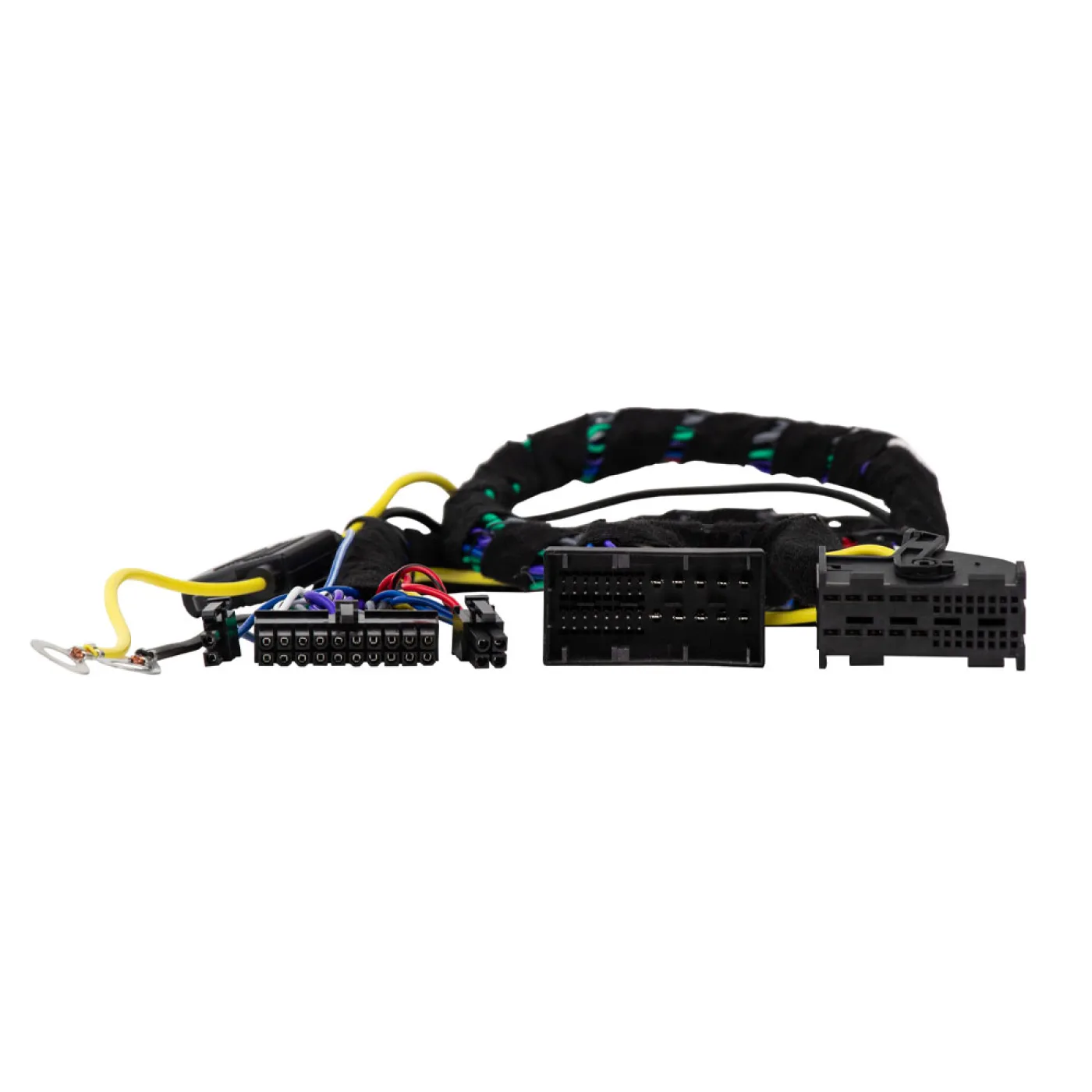

Phoenix Gold ZDC-BMW3 - 4 Channel Harness For BMW With ASD
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:Phoenix gold
- Product Code:ZDC-BMW3
- EAN / UPC:7427288102876
- Warranty:2 Years Warranty
Phoenix Gold ZDC-BMW3
Our ZDC-BMW3 makes it easy to upgrade your audio by integrating seamlessly with our amplifiers. Built for a hassle-free installation, with everything you need included, no cutting or splicing required.
Transform your BMW’s audio experience with the Phoenix Gold ZDC-BMW3 harness, specifically designed for BMW vehicles equipped with the Basic Sound System and with an ASD module. This innovative harness addresses a common issue found in these systems: the front door speakers and under-seat woofers are connected together, compromising sound quality and performance.
In the stock configuration, the small 4” door speakers are forced to handle lower bass frequencies, leading to distortion. Simultaneously, the under-seat woofers are required to reproduce midrange and treble frequencies they were not designed to handle, further degrading the audio clarity. The result? A muddled and distorted sound profile that falls far short of your vehicle’s potential.
Product Compatibility Chart
| Make | Model | Variations | Years | Notes |
|---|---|---|---|---|
| BMW | 1 Series | F20 (5DR) F21 (3DR) 2ND LCI (2017 >) F21 (3DR) F20 (5DR) (2011 - 2015) F21 (3DR) F20 (5DR) LCI (2015 >) | 2011 - 2019 | |
| BMW | 1 Series | F20 (5DR) F21 (3DR) 2ND LCI (2017 >) F21 (3DR) F20 (5DR) LCI (2015 >) | 2015 - 2019 | |
| BMW | 2 Series | F22 (2014 >) F22 LCI (2018 >) F23 (2015 - 2018) F23 LCI (2018 - 2021) | 2014 - 2021 | |
| BMW | 2 Series | F45 Active Tourer (2014 >) F45 Active Tourer Phev Hybrid (2016 >) F45 LCI Active Tourer (2018 >) F46 Gran Tourer (2015 >) F46 LCI Gran Tourer (2018 >) | 2014 - 2021 | |
| BMW | 3 Series | F30 LCI PHEV Hybrid (2016 >) F30, F31 (Touring) (2012 - 2015) F30, F31 (Touring) LCI (2015 >) F31 (2012 - 2015) F31 Facelift (2015 - 2019) F35 (2012 - 2015) F35 Facelift (2015 - 2018) | 2012 - 2019 | |
| BMW | 3 Series | F34 Gran Turismo (2013 >) F34 LCI Gran Turismo (2016 >) | 2013 - 2020 | |
| BMW | 4 Series | F32 (2013 >) F32 LCI (2018 >) F33 (2014 >) F33 LCI (2018 >) | 2014 - 2019 | |
| BMW | 4 Series | F36 (2014 >) F36 LCI (2018 >) | 2014 - 2020 | |
| BMW | 5 Series | F10 (Saloon) ActiveHybrid (2011 - 2013) F10 (Saloon) F11 (Touring) (2010 - 2013) F10 LCI (Saloon) ActiveHybrid (2013 >) F10 LCI (Saloon) F11 LCI (Touring) (2013 >) F18 (2010 - 2013) F18 Facelift (2013 - 2017) | 2010 - 2017 | |
| BMW | 5 Series | G30 (Saloon) G38 (LWB) G31 (Touring) (2016 >) | 2017 - 2020 | |
| BMW | 6 Series | F12 (2011 >) F12 LCI (2015 >) F13 (2011 >) F13 LCI (2015 >) | 2011 - 2018 | |
| BMW | 6 Series | G32 Gran Turismo (2018 >) | 2017 - 2020 | |
| BMW | 7 Series | G11 (Saloon) G12 (LWB) (2015 >) G11 (Saloon) G12 (LWB) ActiveHybrid (2016 >) | 2015 - 2019 | |
| BMW | M2 | F87 (2016 >) | 2016 - 2022 | |
| BMW | M3 | F80 (2015 - 2019) | 2014 - 2018 | |
| BMW | X1 | F48 (2015 >) F48 LCI (2018 >) F49 (2016 - 2019) | 2016 - 2019 | |
| BMW | X3 | G01 (2018 >) | 2017 - 2019 | |
| BMW | X4 | F26 (2014 >) | 2014 - 2018 | |
| BMW | X4 | 2018 - 2019 | (G02) | |
| BMW | X5 | F15 (2013 >) F15 Phev Hybrid (2015 >) | 2014 - 2018 | |
| BMW | Z4 | E89 Facelift (2013 >) | 2013 - 2018 | |
| MINI | Clubman | F54 (2015 >) F54 Facelift (2019 - 2021) | 2016 - 2021 | |
| MINI | Clubman | 2021 onward | (F54) (2nd Facelift) | |
| MINI | Cooper | Gen 3 (2013 - 2019) Gen 3 Facelift (2019 - 2021) Gen 3 Facelift 2 (2021 - 2024) | 2013 - 2024 | |
| MINI | Countryman | F60 (2017 >) F60 LCI (2021 >) | 2016 - 2023 |
Basic Sound System with ASD
Installation
- Disconnect the OEM harness from your ASD module (located in the boot).
- Connect the ZDC-BMW3 cable to the OEM plug, then plug the other end into your ASD module.
- Connect the black ground wire from the harness to the vehicle’s negative battery terminal (-).
- Connect the yellow power wire from the harness to the vehicle’s positive battery terminal (+).
- Plug the ZDC-BMW3 directly into your ZDA4.8* or ZXM400.4ISO* amplifier.
With this quick and easy process, your physical installation is complete, allowing you to enjoy enhanced sound quality and performance.
Why choose the ZDC- harness?
Maximum power and ground capacity: Designed with the largest possible power and ground wires to deliver consistent, reliable performance for your amplifier.
Enhanced signal transfer and noise reduction: Twisted high-level cables and larger speaker output cables ensure the best signal transfer while minimizing noise, giving you clear and precise audio quality.
Easy installation: Direct fit to ZDA4.8* and ZXM400.4ISO* amplifiers.
Protected and streamlined design: All wires are wrapped in tape for added protection and easier handling, with no loose or unnecessary wires or connectors to complicate the setup.
Specifications
Compatible With
- ZDA4.8
- ZDA6.8
- ZXM400.4ISO
Connectors
- 1x 42-Pin Male Connector 1x 42-Pin Female Connector
- 1x 20-Pin Female Molex Connector
- 1x 8-Pin Female Molex Connector
- 1x 4-Pin Female Molex Connector
- 1x 2-Pin Female Molex Connector
- 1x M8 Yellow Power Cable 1x M8 Black Ground Cable
