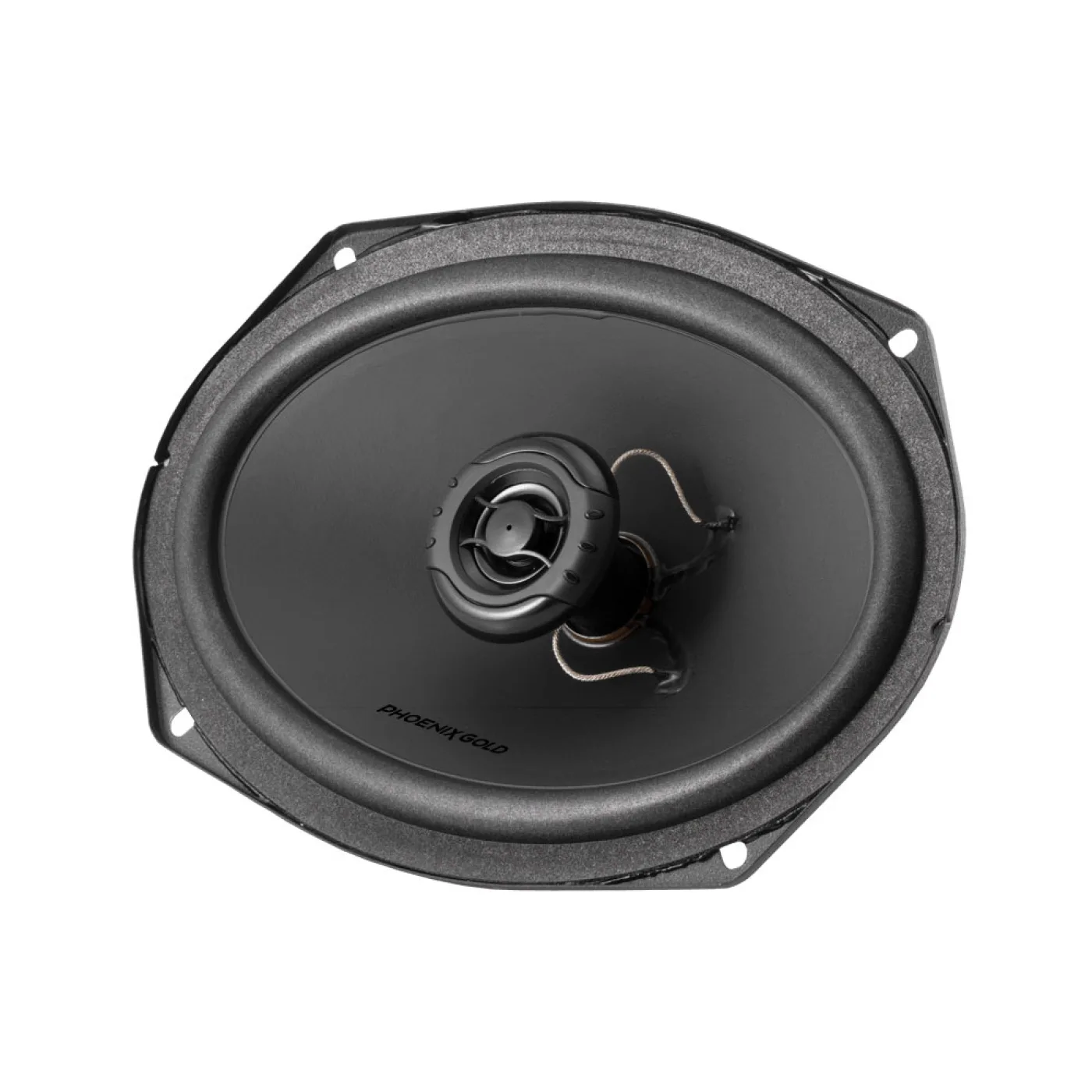

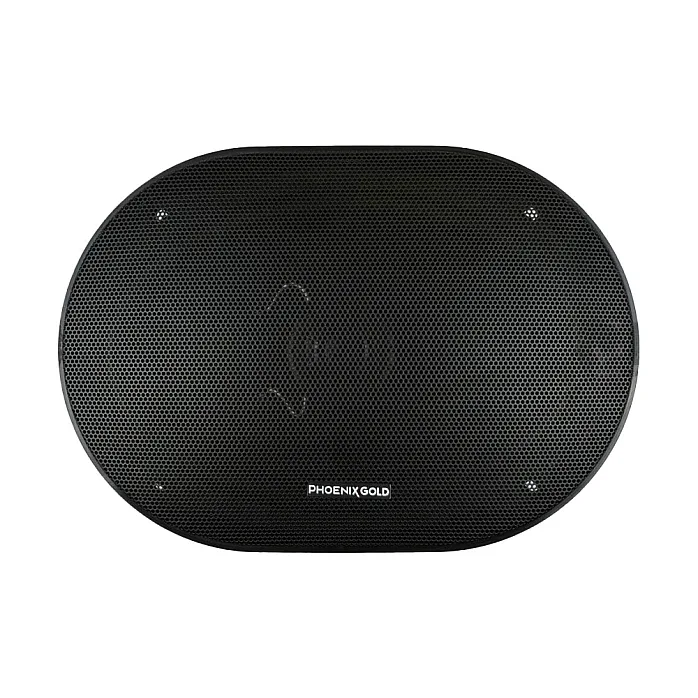

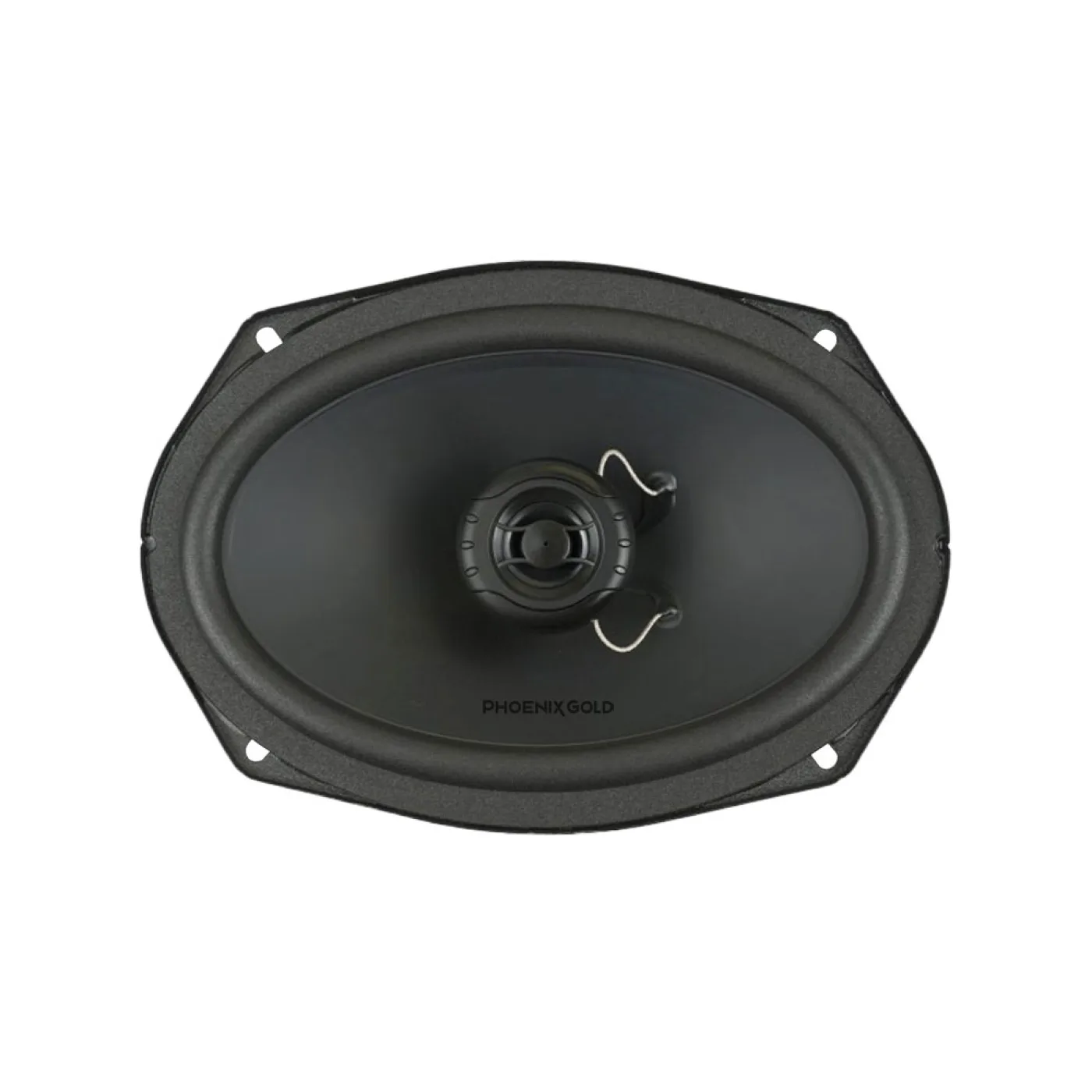

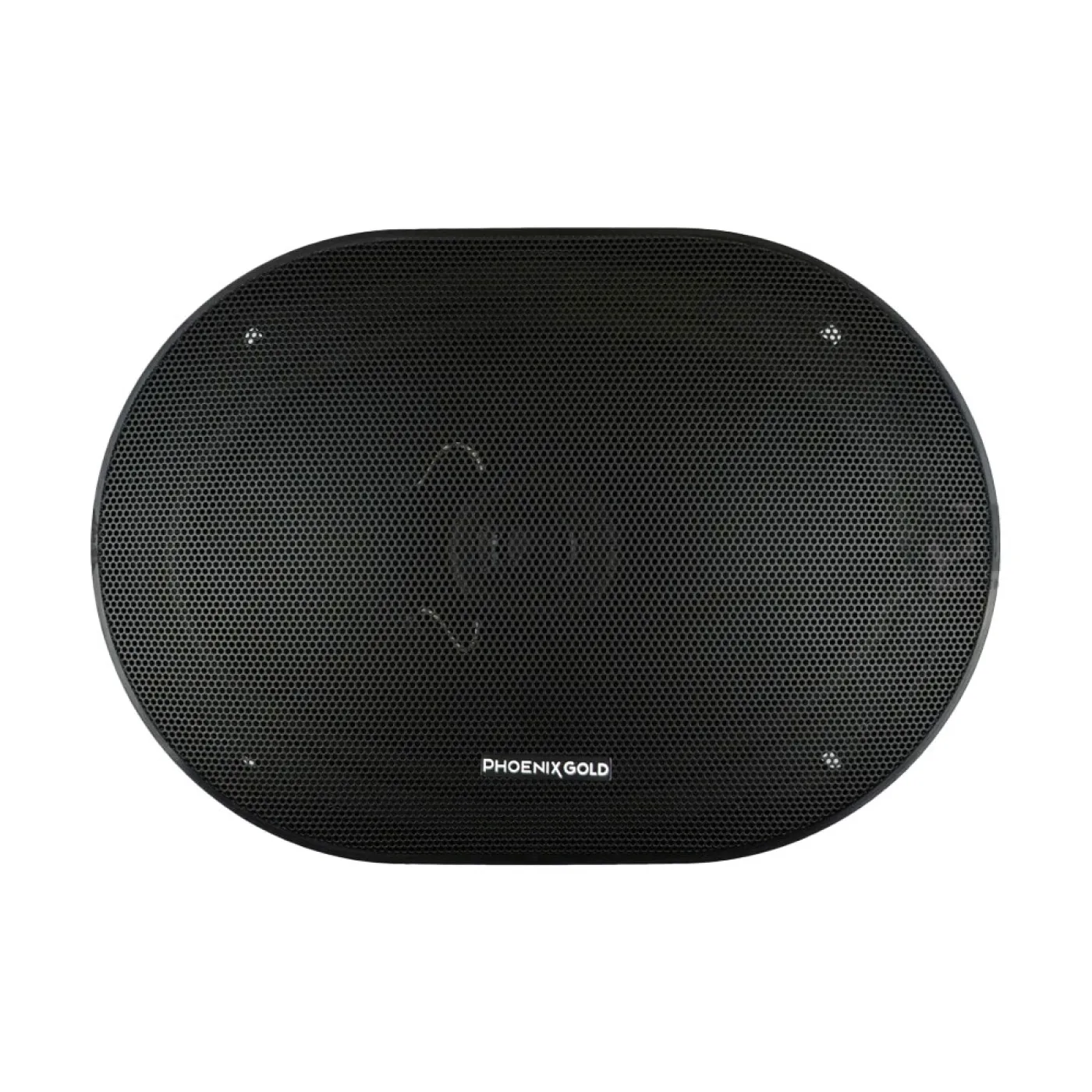

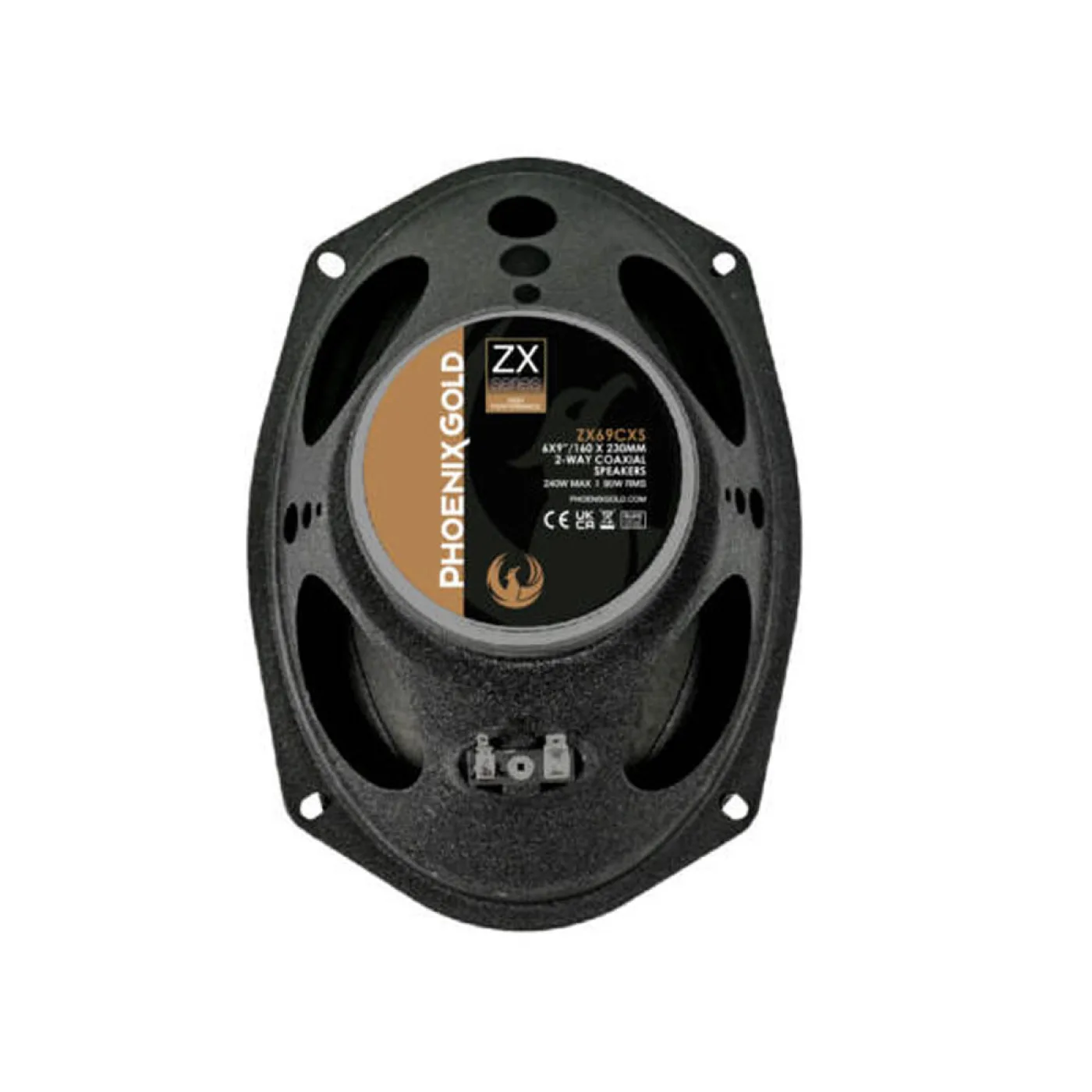

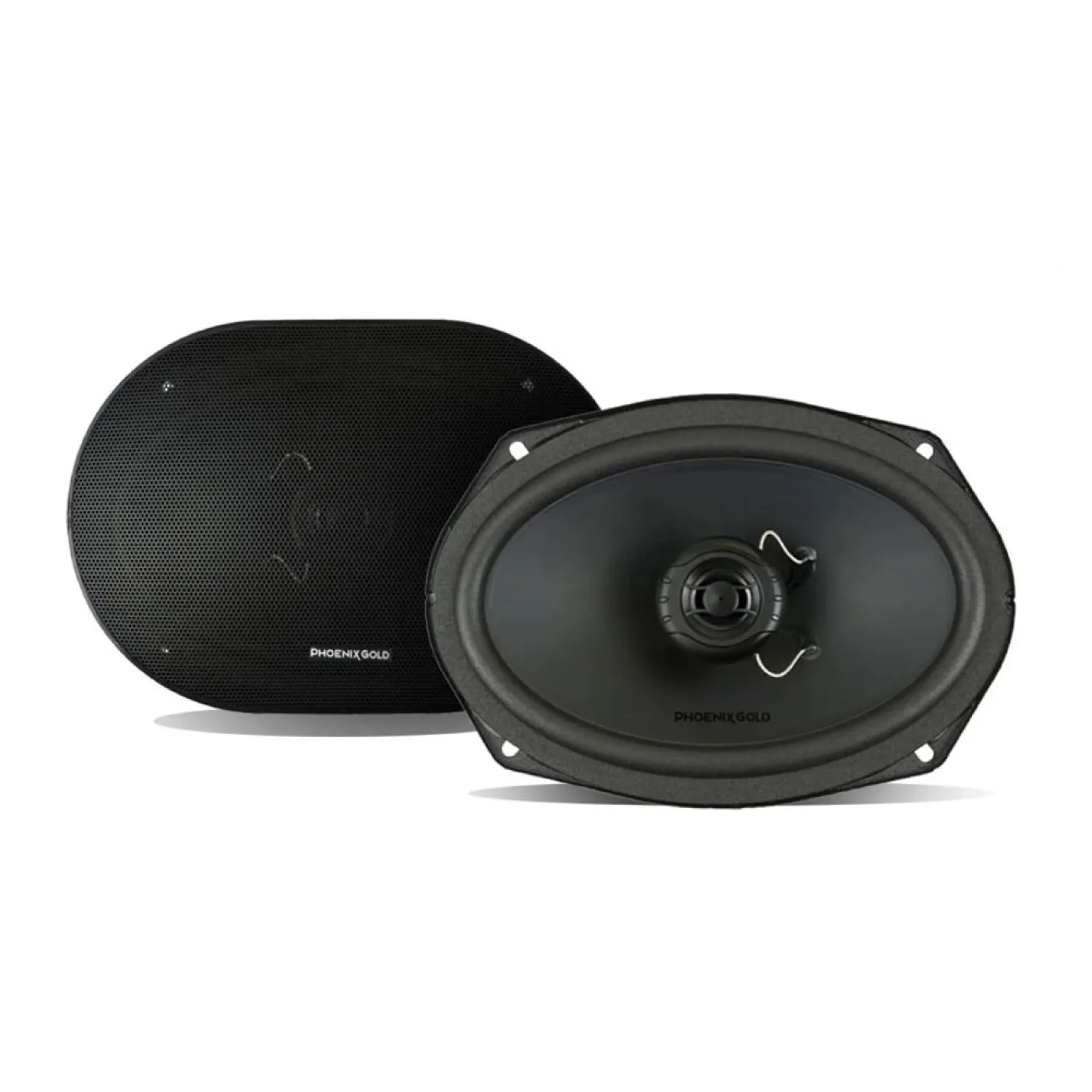

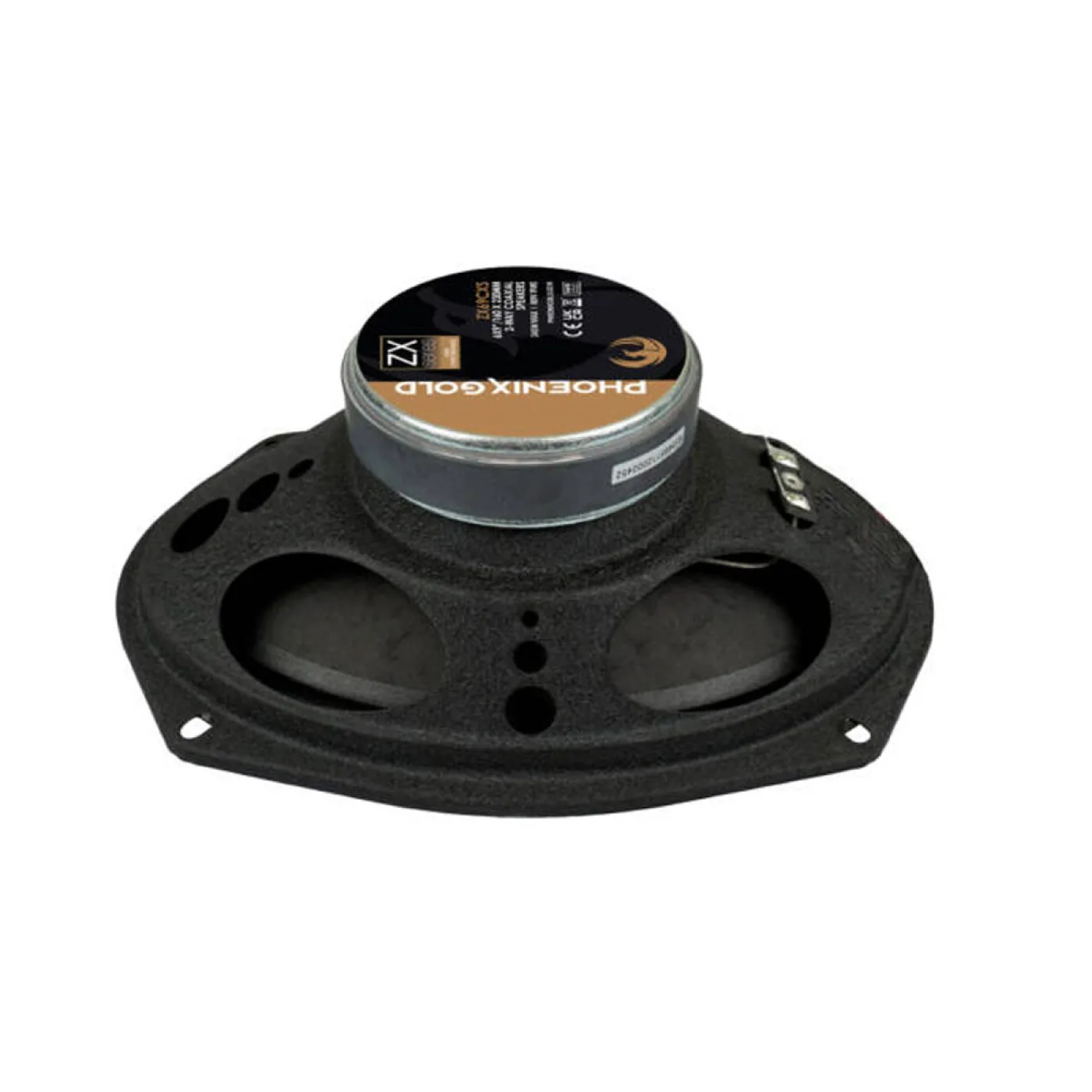

Phoenix Gold ZX69CXS ZX-Series 6" x 9" 2 Way Coaxial Car Speakers
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:Phoenix gold
- Product Code:ZX69CXS
- EAN / UPC:7427288137069
- Warranty:2 Years Warranty
Phoenix Gold ZX69CXS Speakers
The ZX69CXS 6×9″ (166x235mm) 2-way Coaxial Speaker combines sleek design with superior audio performance.
The ZX69CXS speakers are expertly crafted to deliver a smooth and efficient sound experience. They are packed into slim dimensions that seamlessly integrate into your car’s audio system. With 80W RMS power handling and a peak power of 240W, this speaker delivers exceptional sound clarity and deep bass.
Upgrade your car audio system with the Phoenix Gold ZX69CXS, a high-performance 6×9” 2-way coaxial speaker designed to deliver powerful and crystal-clear sound. Engineered for durability and precision, the ZX69CXS combines advanced materials with a robust design to enhance your in-car listening experience.
With 80W RMS power handling and a peak power of 240W, this speaker delivers exceptional sound clarity and deep bass. The 90dB sensitivity ensures efficient performance, while the 65Hz – 20kHz frequency response provides a wide range of sound details.
The ZX69CXS features a laminated-treated paper cone for rich sound reproduction, a 19mm balanced driver Mylar tweeter for crisp highs, and a polyimide voice coil for enhanced durability. The triple-layer UV-treated foam surround ensures long-lasting performance, while the rigid powder-coated steel frame adds strength and stability.
Complete with included speaker grills, the Phoenix Gold ZX69CXS is designed for easy installation and long-term reliability.
Specifications
Specifications
- Speaker Type
- 2-Way Coaxial Speaker
- Speaker Size
- 6×9” (166x235mm)
- Frequency Response
- 65Hz – 20kHz
- Power Handling (RMS)
- 80W
- Power Handling (MAX)
- 240W
- Impedance
- 4Ω
- Sensitivity
- 90dB (1W/1m)
- Voice Coil
- 1” (25mm)
- Mounting Depth
- 74mm
- Mounting Diameter
- 152 x 220mm
- Outer Diameter
- 166 x 235mm
- Speaker Grills
- Included
- Unit
- Sold as pairs
- Weight (Each Speaker)
- 1.1 kg
T/S Parameters
- Re
- 3.6 Ohm
- Fs
- 68.2 Hz
- Qms
- 4.954
- Qes
- 0.97
- Qts
- 0.811
- Cms
- 441 μM/N
- Vas
- 32.28 L
- BL
- 4.803 Tm
- Sd
- 227.57 cm²
- Mms
- 15.058 g
- EBP
- 67
