2 Years Warranty

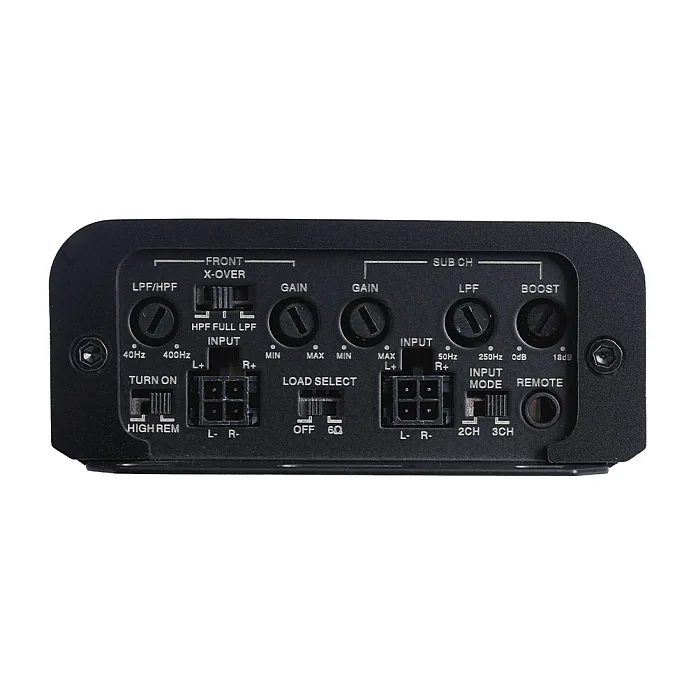

Phoenix Gold ZXM600.3i - 3 Channel Class D Mini Amplifier
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:Phoenix gold
- Product Code:ZXM600.3i
- EAN / UPC:7427288123505
- Warranty:2 Years Warranty
£179.99
Our ZXM600.3i – Mini Amplifier Just Got Better
After the success of the ZXM600.3, we have taken the ZXM600.3i to the next level. Designed with cutting-edge technology, this compact powerhouse delivers 2x75W + 230W RMS Output @ 4 Ohm and 2x125W + 350W RMS Output @ 2 Ohm, all within a chassis that fits comfortably in your hand. Whether you’re upgrading your car audio system or building a new setup from scratch, the ZXM600.3i provides the perfect blend of size, power, and versatility.
Specifications
What’s New in the ZXM600.3i
- Selectable Load Resistors – Fine-tune for optimal power and system matching.
- Quick Connectors – Fast, secure, and tool-free installation for power and signal terminals.
- 20V High-Level Input – Expanded input range for seamless OEM integration.
- Auto Start / Remote Trigger Switch – Choose between automatic or manual activation.
Key Features
- Massive Power & Performance
- Full Class-D technology offers efficiency & performance
- Short circuit/thermal and high/low voltage protection
- Excellent signal-to-noise ratio and FM noise rejection
- Built-in protection LED light status indicator
- Surface-mount component technology
- Ultra-small size for easy installation
- Autostart on high-level input
- Fully adjustable HP & LP filter
Specifications
- Class-D 3-Channel Mini Amplifier
- Power (MAX) 1200W
- Power Ratings (RMS)
- 2x75W + 230W RMS Output @ 4 Ohm
- 2x130W + 350W RMS Output @ 2 Ohm
- Frequency Response
- L/R 20Hz – 25kHz / Sub 10Hz – 250Hz
- Signal to Noise Ratio
- > L/R 86dB / Sub -91dB
- Total Harmonic Distortion (THD)
- < 1%
- Low Pass Filter
- 40Hz – 400Hz (12dB/Oct) Sub 50Hz – 250Hz (24dB/Oct)
- High Pass Filter
- 40Hz – 400Hz (12dB/Oct)
- Crosstalk
- -48dB
- Input Sensitivity
- 0.45V – 20V
- High-Level Input Auto Turn-On
- Input Mode
- 2CH / 3CH
- OIS – OEM Impedance Simulation
- Yes
- Operating Voltage
- 8.5V – 16.8V
- Idle Current
- 0.88A
- Current Draw (Max)
- 56A
- Total Efficiency (4Ω)
- 88%
- Power Terminal
- 10mm²
- Speaker Terminal
- 1mm²
- Dimensions (LxWxH) (Excluding Feet)
- 149 x 83.1 x 34.8mm
- Dimensions (LxWxH) (Including Feet)
- 165 x 83.1 x 34.8mm
