2 Years Warranty

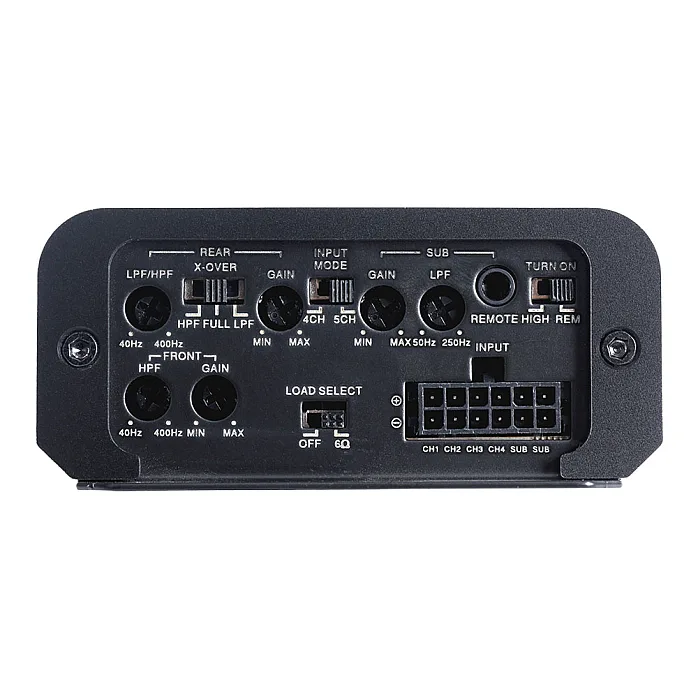

Phoenix Gold ZXM700.5i - 5 Channel Full Class D Car Mini Amplifier
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:Phoenix gold
- Product Code:ZXM700.5i
- EAN / UPC:7427288143398
- Warranty:2 Years Warranty
£199.99
Our ZXM700.5i Mini Amplifier Just Got Better.
After the success of the ZXM700.5, we have taken the ZXM600.5i to the next level. Designed with cutting-edge technology, this compact powerhouse delivers 4x60W + 230W RMS Output @ 4 Ohm and 4x100W + 350W RMS Output @ 2 Ohm, all within a chassis that fits comfortably in your hand. Whether you’re upgrading your car audio system or building a new setup from scratch, the ZXM600.3i provides the perfect blend of size, power, and versatility.
Specifications
What’s New in the ZXM700.5i
- Selectable Load Resistors – Fine-tune for optimal power and system matching.
- Quick Connectors – Fast, secure, and tool-free installation for power and signal terminals.
- 20V High-Level Input – Expanded input range for seamless OEM integration.
- Auto Start / Remote Trigger Switch – Choose between automatic or manual activation.
Key Features
- Massive Power & Performance
- Full Class-D technology offers efficiency & performance
- Short circuit/thermal and high/low voltage protection
- Excellent signal-to-noise ratio and FM noise rejection
- Built-in protection LED light status indicator
- Surface-mount component technology
- Ultra-small size for easy installation
- Autostart on high-level input
- Fully adjustable HP & LP filter
Specifications
- Class-D 3-Channel Mini Amplifier
- Power (MAX) 1500W
- Power Ratings (RMS)
- 4x60W + 230W RMS Output @ 4 Ohm
- 4x100W + 350W RMS Output @ 2 Ohm
- Frequency Response
- F/R 20Hz – 25kHz / Sub 10Hz – 260Hz
- Signal to Noise Ratio
- > F/R 84dB / Sub -89dB
- Total Harmonic Distortion (THD)
- < 1%
- Low Pass Filter
- 40Hz – 400Hz (12dB/Oct) Sub 50Hz – 250Hz (24dB/Oct)
- High Pass Filter
- 40Hz – 400Hz (12dB/Oct)
- Crosstalk
- -50dB
- Input Sensitivity
- 0.45V – 20V
- High-Level Input Auto Turn-On
- Input Mode
- 4CH / 5CH
- OIS – OEM Impedance Simulation
- Yes
- Operating Voltage
- 8.6V – 16.86
- Idle Current
- 1.24A
- Current Draw (Max)
- 70A
- Total Efficiency (4Ω)
- 85%
- Power Terminal
- 10mm²
- Speaker Terminal
- 1mm²
- Dimensions (LxWxH) (Excluding Feet)
- 186 x 83.1 x 37.3mm
- Dimensions (LxWxH) (Including Feet)
- 202 x 83.1 x 37.3mm
