Phoenix Gold ZXMPGM1 Cadillac, Chevrolet and Opel/Vauxhall Power Up Kit with Class-D 4 Channel Mini Amplifier
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:Phoenix gold
- Product Code:ZXMPGM1
- EAN / UPC:7427307008554
- Warranty:2 Years Warranty

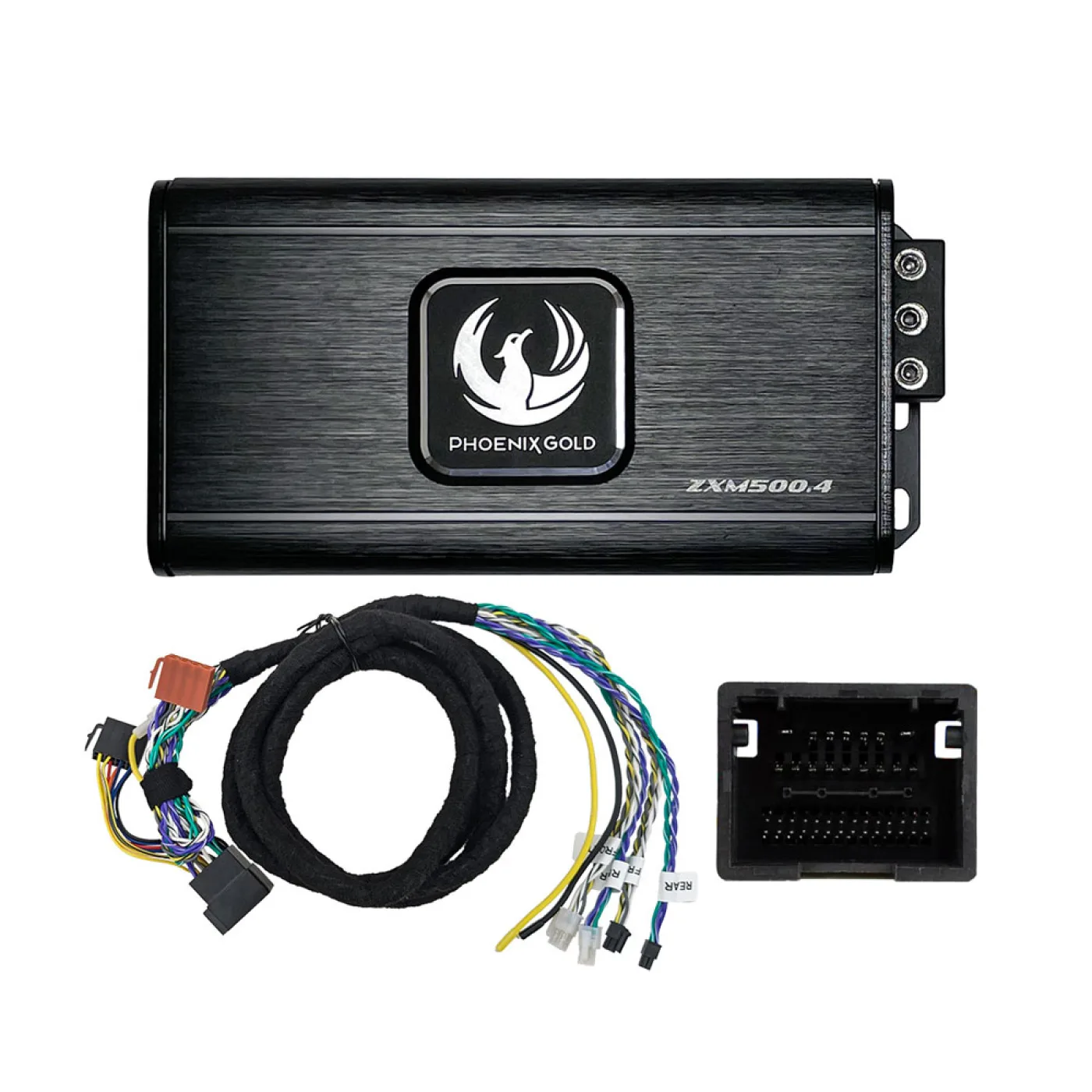

ZXMPGM1 is a power-up kit made for Chevrolet and Opel/Vauxhall vehicles (for a full model list please view Vehicle Applications). The ZXMPGM1 power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle. The ZXMPGM1 includes a ZXM500.4 Amplifier and ZXMISOT2 ISO-T harness.
Utilising the high-level signals from your vehicle and passing it through the 4-channel 500W amplifier transforming and amplifying the audio signal before sending it to your speakers, gives them a real boost in both output and performance delivering an all new and improved audio experience with ZXMPGM1.
The amplifier boasts a sleek, compact design while delivering substantial power in a remrkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.

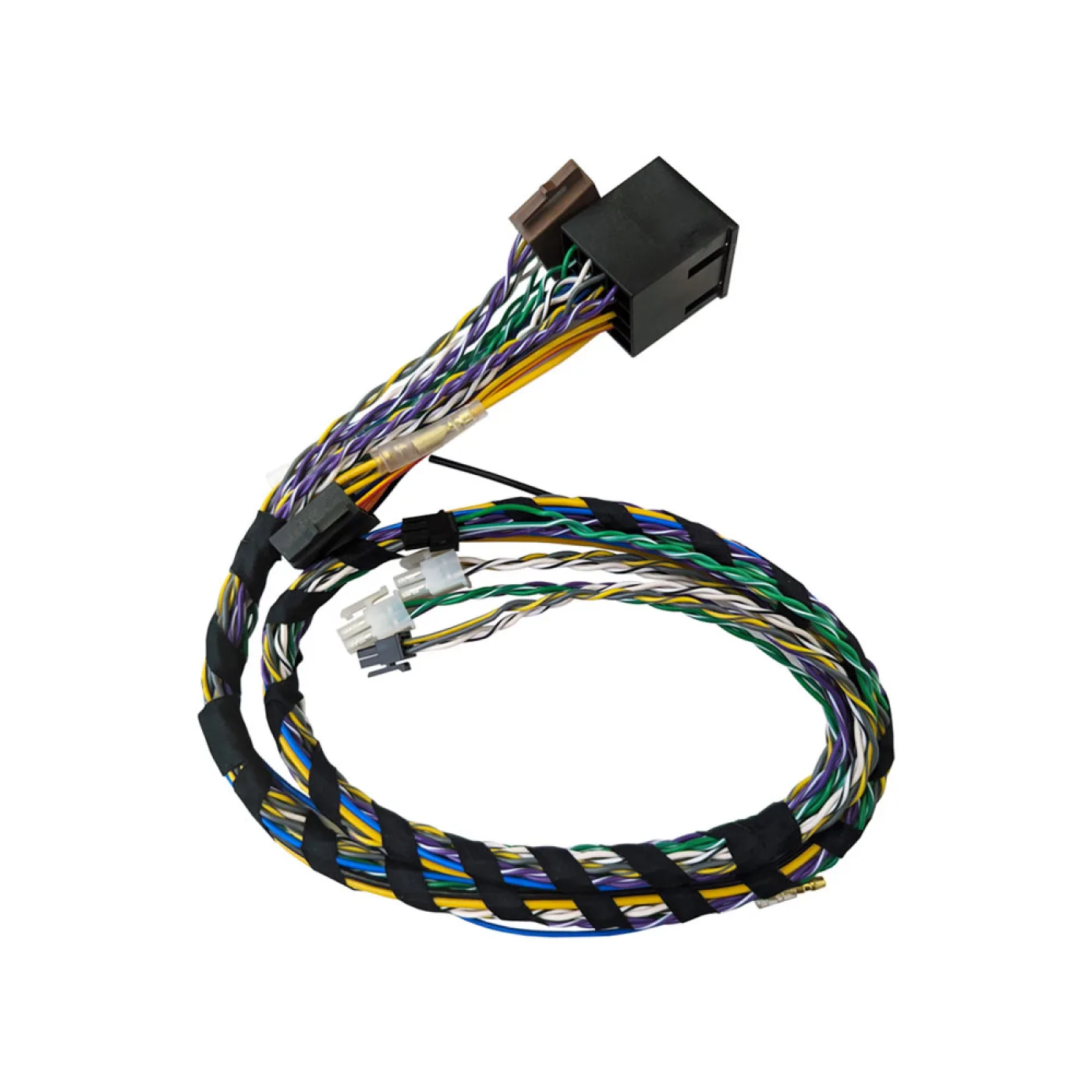

The ZXMISOT2 – 2.2M ISO-T Harness is the perfect accessory when installing the ZXM500.4 amplifier. This 220cm long harness is installed between the amplifier and vehicle, taking high-level input signal from the car and passing it through the amplifier and sending it to the speakers, giving you extra power.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Cadillac | CTS | 2008 - 2013 | |
| Chevrolet | Aveo | 2012 onward | |
| Chevrolet | Camaro | 2009 - 2015 | |
| Chevrolet | Cruze | 2009 - 2015 | |
| Chevrolet | Equinox | 2009 - 2018 | |
| Chevrolet | Orlando | 2011 - 2018 | |
| Chevrolet | Sonic | 2012 - 2020 | |
| Chevrolet | Spark | 2013 - 2021 | |
| Chevrolet | Trax | 2013 - 2017 | |
| Opel | Adam | 2013 - 2019 | |
| Opel | Astra | 2010 - 2015 | J |
| Opel | Cascada | 2013 - 2019 | |
| Opel | Combo | 2012 - 2018 | D |
| Opel | Corsa | 2014 - 2019 | E |
| Opel | Insignia | 2008 - 2013 | |
| Opel | Meriva | 2010 - 2017 | B |
| Opel | Mokka | 2012 - 2016 | |
| Opel | Zafira | 2011 - 2019 | C |
| Opel | Zafira Tourer | 2011 - 2019 | |
| Vauxhall | Adam | 2013 - 2019 | |
| Vauxhall | Astra | 2010 - 2015 | J |
| Vauxhall | Cascada | 2013 - 2019 | |
| Vauxhall | Combo | 2012 - 2018 | D |
| Vauxhall | Corsa | 2014 - 2019 | E |
| Vauxhall | Insignia | 2008 - 2013 | |
| Vauxhall | Meriva | 2010 - 2017 | B |
| Vauxhall | Mokka | 2012 - 2016 | |
| Vauxhall | Zafira | 2011 - 2019 | C |
| Vauxhall | Zafira Tourer | 2011 - 2019 |
Basic Sound System
ZXMPGM1 Power-up Kit Key Features
- Quick and easy install
- No modifications needed on the vehicle
- Invisible integration
- Sound quality superior to the original one
- No additional accessories required
- All in one box

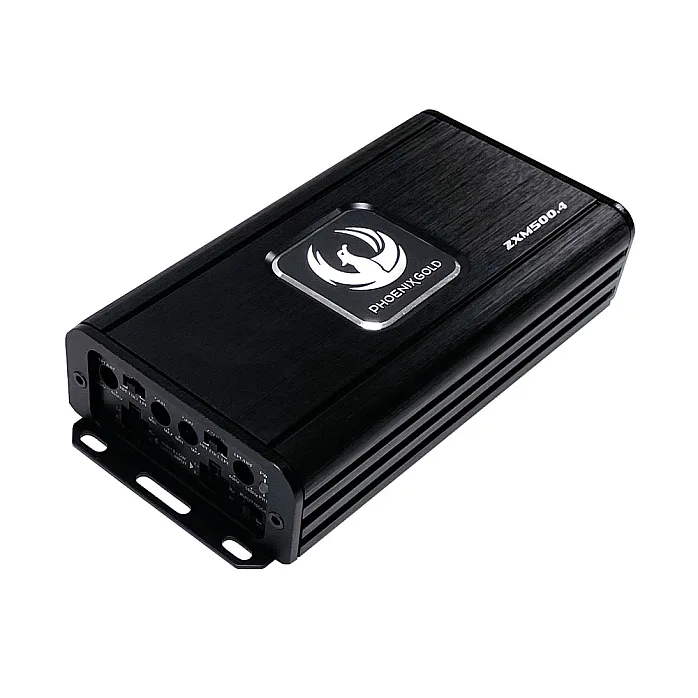

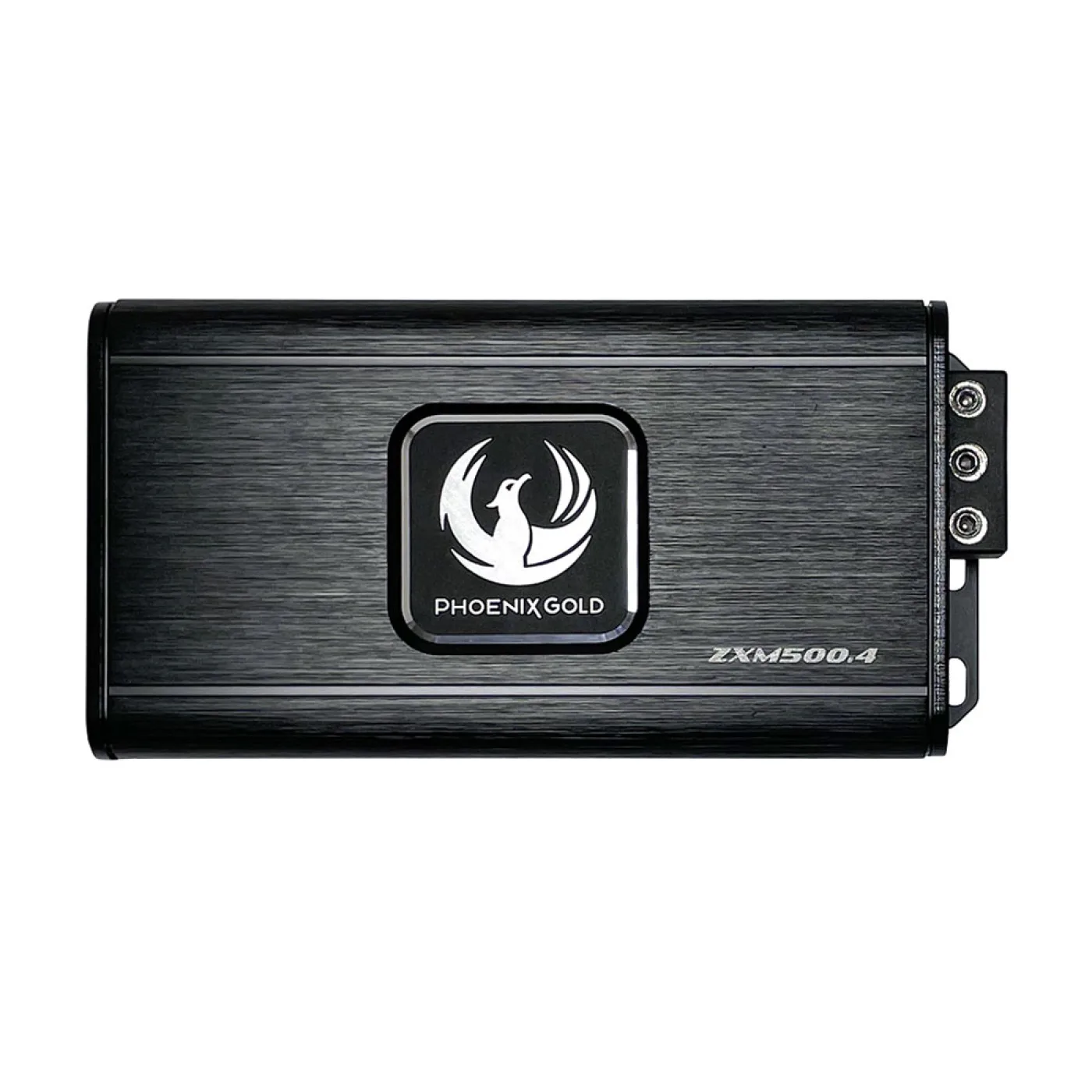

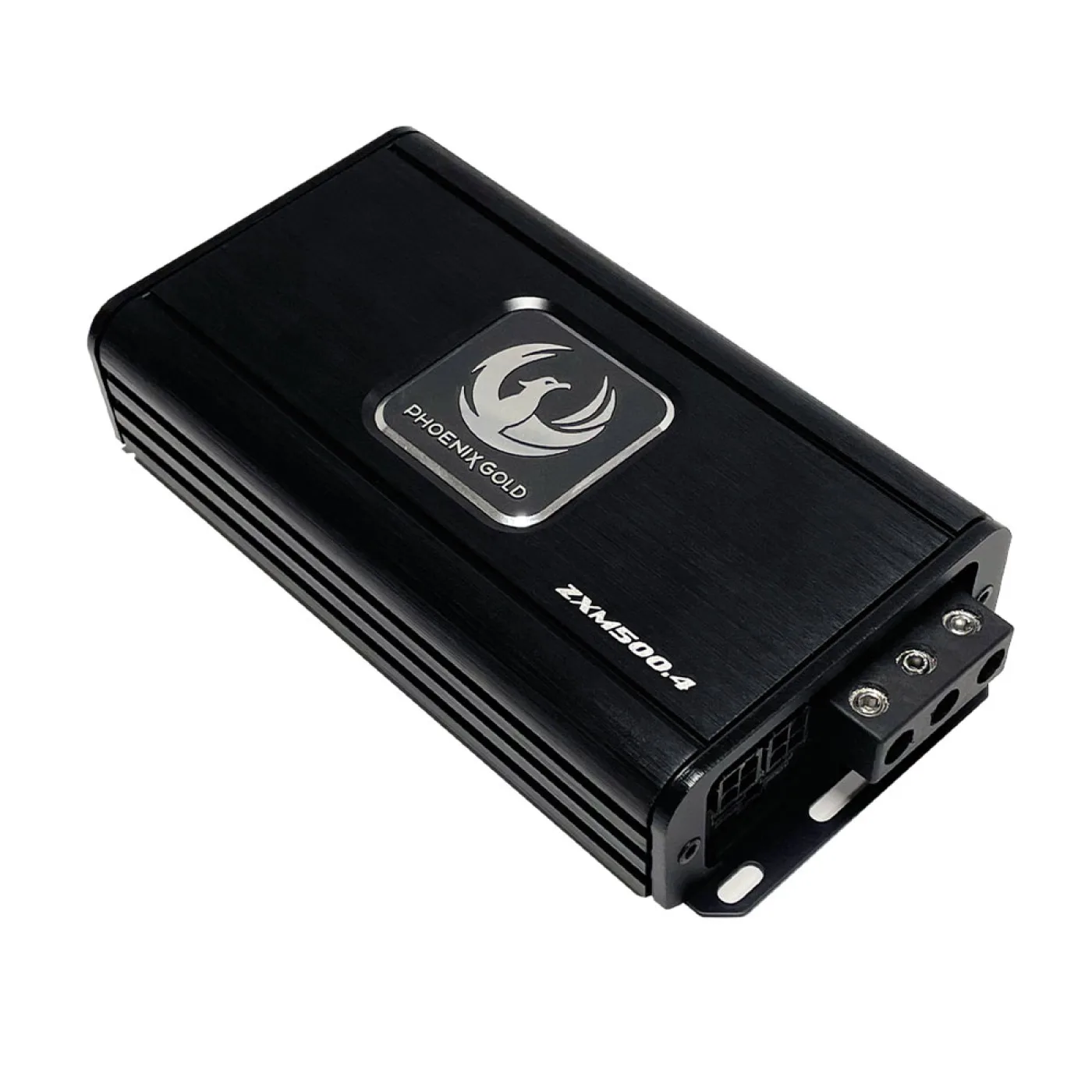

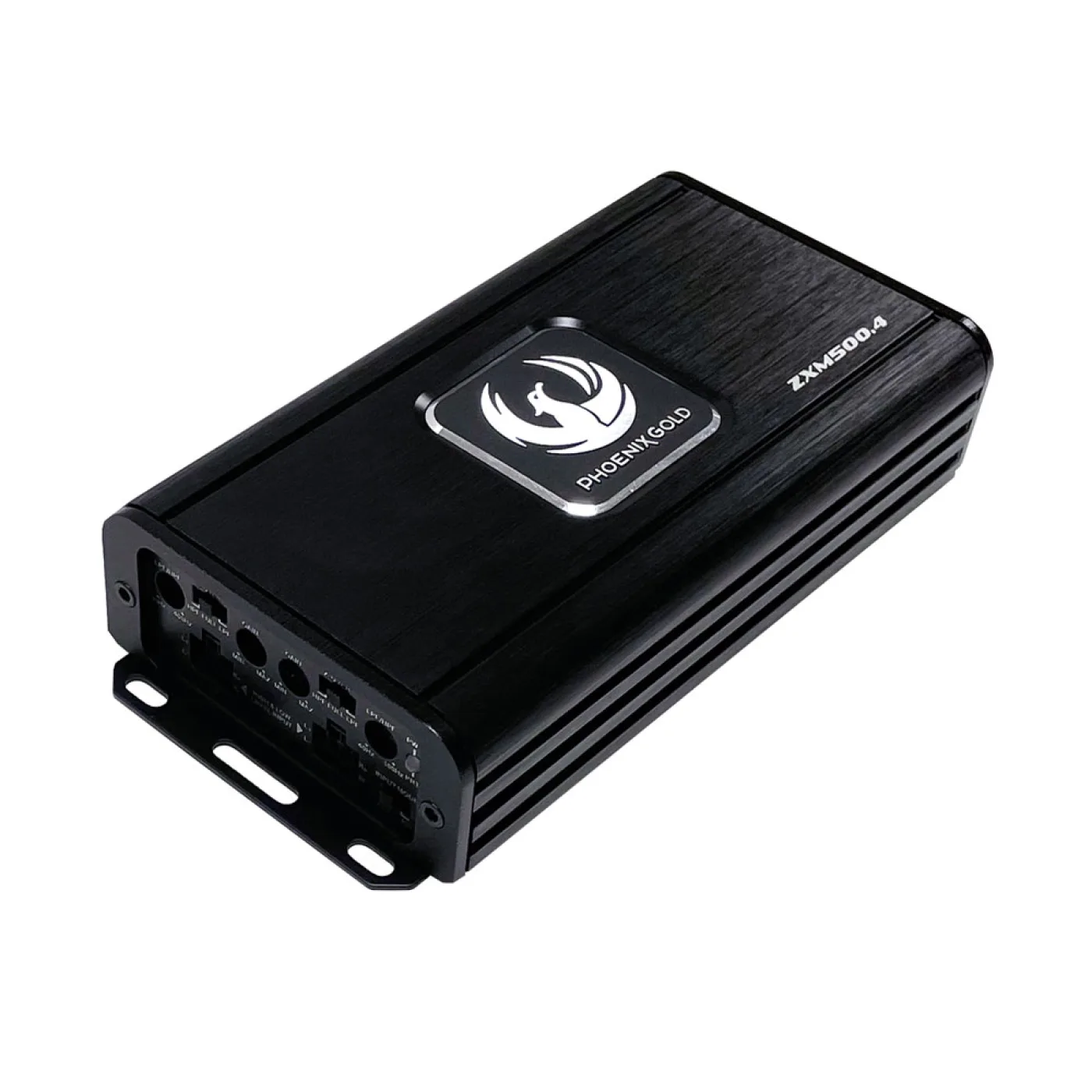

The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
Key Features
- Massive Power & Performance
- Full Class-D technology offers efficiency & performance
- Short circuit/thermal and high/low voltage protection
- Excellent signal-to-noise ratio and FM noise rejection
- Built-in protection LED light status indicator
- Surface mount component technology
- Ultra small size for easy installation
- Autostart on high-level input
- Full adjustable HP & LP filter
Specifications
Specifications
- Class-D 4-Channel Mini Amplifier
- Power (MAX) 1000W
- Power Ratings (RMS)
- 125W x 4 @ 2Ohm
- 80W x 4 @ 4Ohm
- 250W x 2 @ 4Ohm bridged
- Frequency Response
- 20Hz – 20kHz
- Signal to Noise Ratio
- > 90dB
- Total Harmonic Distortion
- < 0.3%
- Low Pass Filter
- 40Hz – 400Hz (12dB/Oct)
- High Pass Filter
- 40Hz – 400Hz (12dB/Oct)
- High-Level Input Auto Turn-On
- Dimensions (L x W x H) 165 x 83.1 x 34.8mm
