Pioneer 17cm 165mm Speaker Upgrade Kit for VW Passat B6 Front Door
- Availability:In Stock
- Available:3 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:TS-G1720F + CT25VW06
- EAN / UPC:3778663166360
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Volkswagen | Passat | 2005 - 2015 | Also compatible with Passsat CC |
Front door. 165mm 16.5cm Also compatible with Passsat CC
This Kit Will Suit Front Doors.
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.

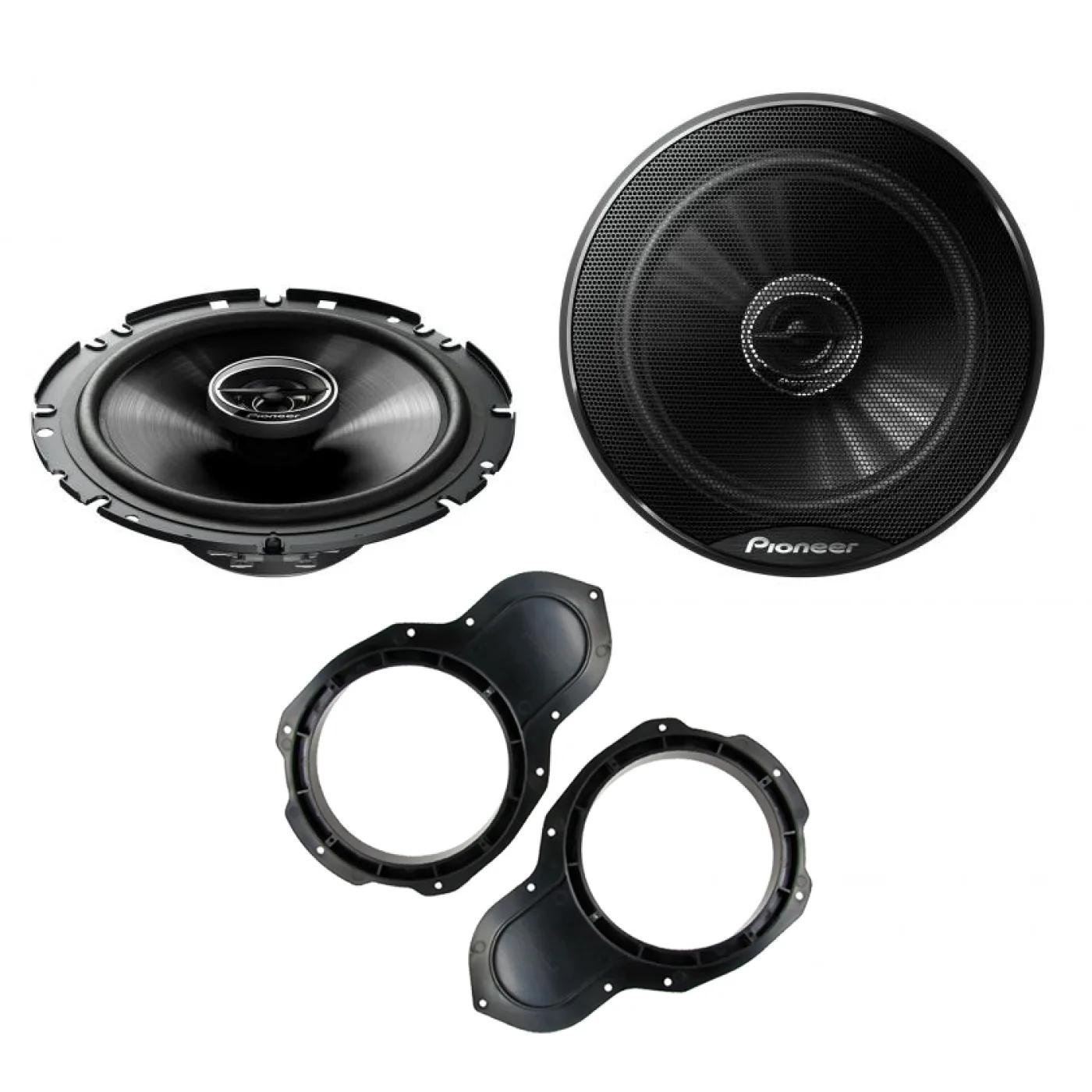

Package Includes
- Pioneer TS-G1720F G-series 17cm 6.3/4 inch 2-Way 300W Coaxial Car Speakers
- CT25VW06 165mm Front Door Speaker Adaptor
Pioneer TS-G1720F G-series 17cm 6.3/4 inch 2-Way 300W Coaxial Car Speakers
For better-sounding drives.
Discover the renewed G-series
The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.
TS-G1720F
Upgrade your in-car sound in a smart and affordable way with the TS-G1720F. This 17cm 2-way coaxial speaker delivers up to 40 Watts of nominal power and has a maximum power output of 300 Watts. It also features:
IMPP Cone
Enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.
Main Features
- Weight 0.59 kg
- Coaxial Speakers
- Cut-out Hole 144 mm
- Size 17 cm
- Mounting Depth 49.7 mm
- Impedance 4 Ω
- Frequency response 36 - 18 000 Hz
- 2 Way
- Sensitivity 90 dB
- Lowest resonance frequency 81 Hz
- Maximum power input 300 W
- Nominal input power 40 W
- Woofer materialIMPP Composite Cone
- Midrange size 30 mm
- Voice Coil typeCopper
- Voice Coil bobbin type KAPTON
- Magnets Y35
