1 Year Warranty

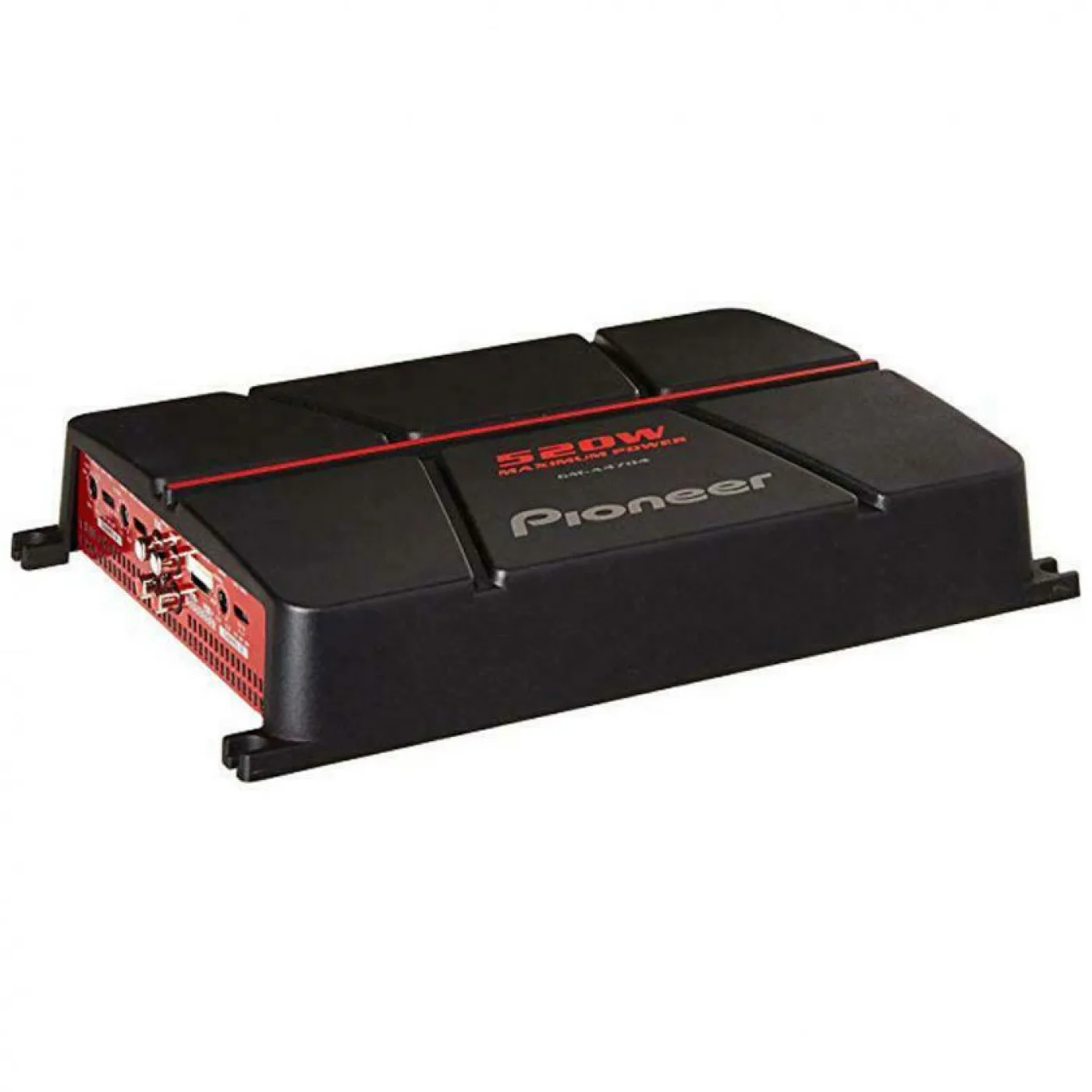

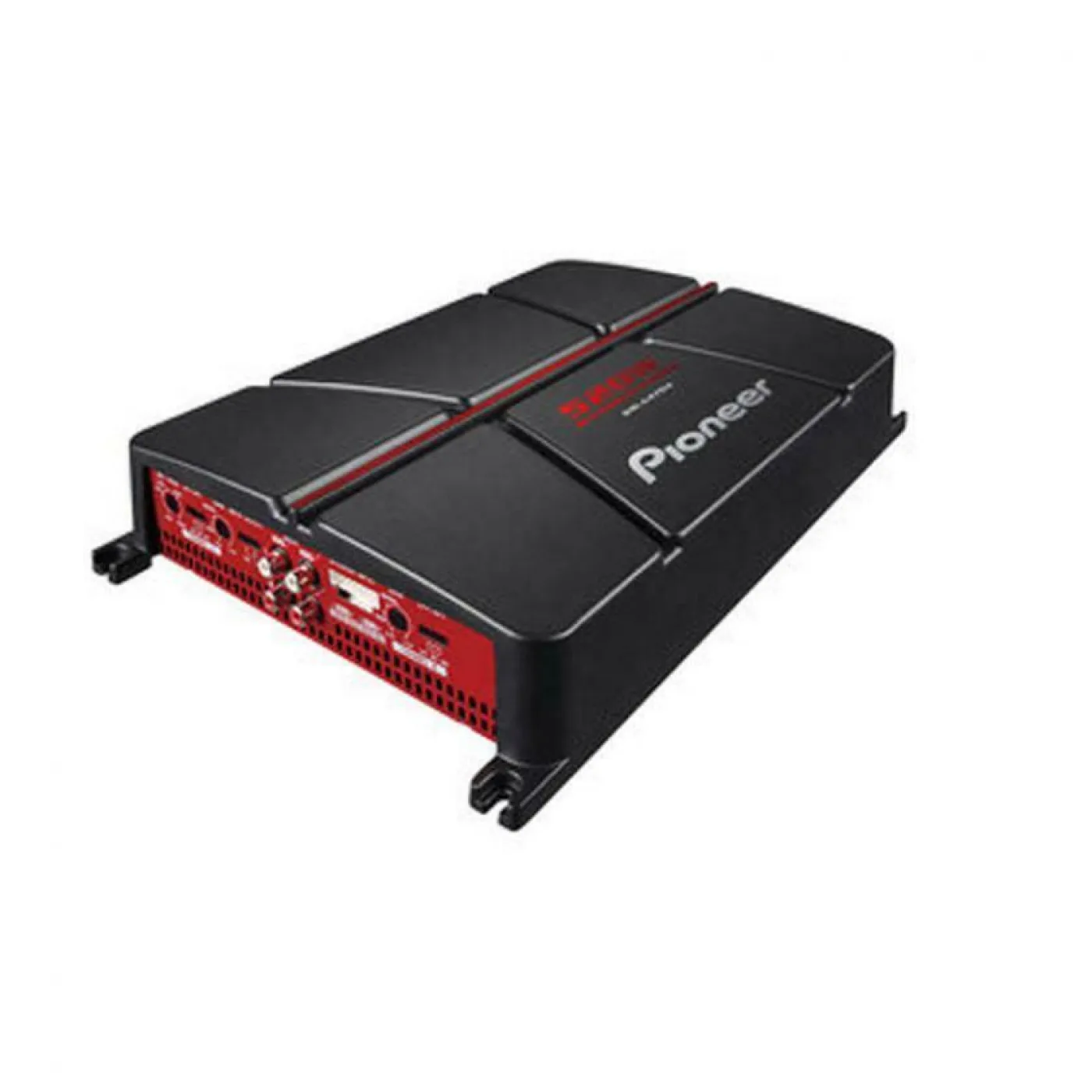

Pioneer GM-A4704 Powerful 4-Channel Bridgeable 520 Watt Car Audio Amplifier
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:GM-A4704
- EAN / UPC:7426871604568
- Warranty:1 Year Warranty
£119.99
Order within for same-day dispatch
Compact Power
A combination of great design and massive power, the GM-A4704 amplifier gives you total installation freedom and no distortion. With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for.
This 4-channel amp allows you to drive multiple speakers and subwoofers, it’s also bridgeable to power a single sub.
4 Channel combine impressive power with big sound for a loud, clear and distortion-free music experience.
Main Features
- Chassis size (W x H x D) 326(W) x 60(H) x 215(D)
- Unit weight 2.0
- Speaker Terminals Screw-type
- Speaker Input Level 3 - 26 V
- Max. current consumption 20.5A
- 4-channel
- Maximum power 520W (Bridged) or 2 x 80W (4 Ω) or 4 x 130 W (2 Ω)
- CEA 2006 Power 2 x 130W (4 Ω)
- Continuous power output 4 x 40W (4 Ω) or 2 x 130W (4Ω bridged) or 4 x 65 W (2 Ω)
- Load impedance capability 2-8 ohm allowable (stereo)
- Frequency response 10Hz ~ 70kHz (+0dB , -3dB)
- Distortion < 0.05 %
- S/N ratio > 94 dB
- LPF 80 Hz (-12 dB/oct)

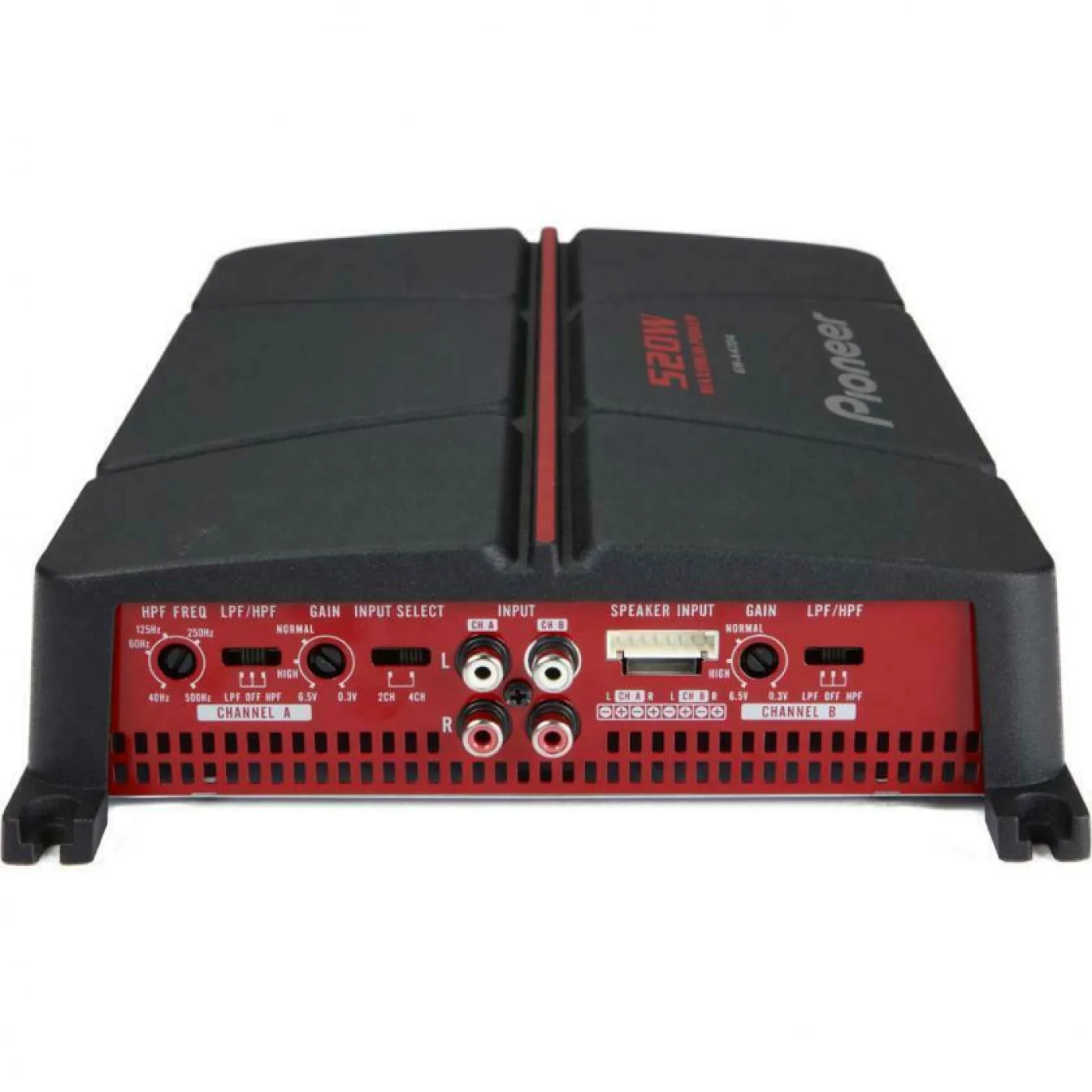

Connections
- High Voltage Input 300 mV - 6.5 V
| Amplifier | |
|---|---|
| Dimension | (W x H x D) 326(W) x 60(H) x 215(D) |
| Frequency Response | 10Hz ~ 70kHz (+0dB , -3dB) |
| Impedance Capability | 2-8 ohm allowable (stereo) |
| S/N ratio | > 94 dB |
| Speaker Terminals | Screw-type |
| Unit Weight | 2.0 |
