1 Year Warranty

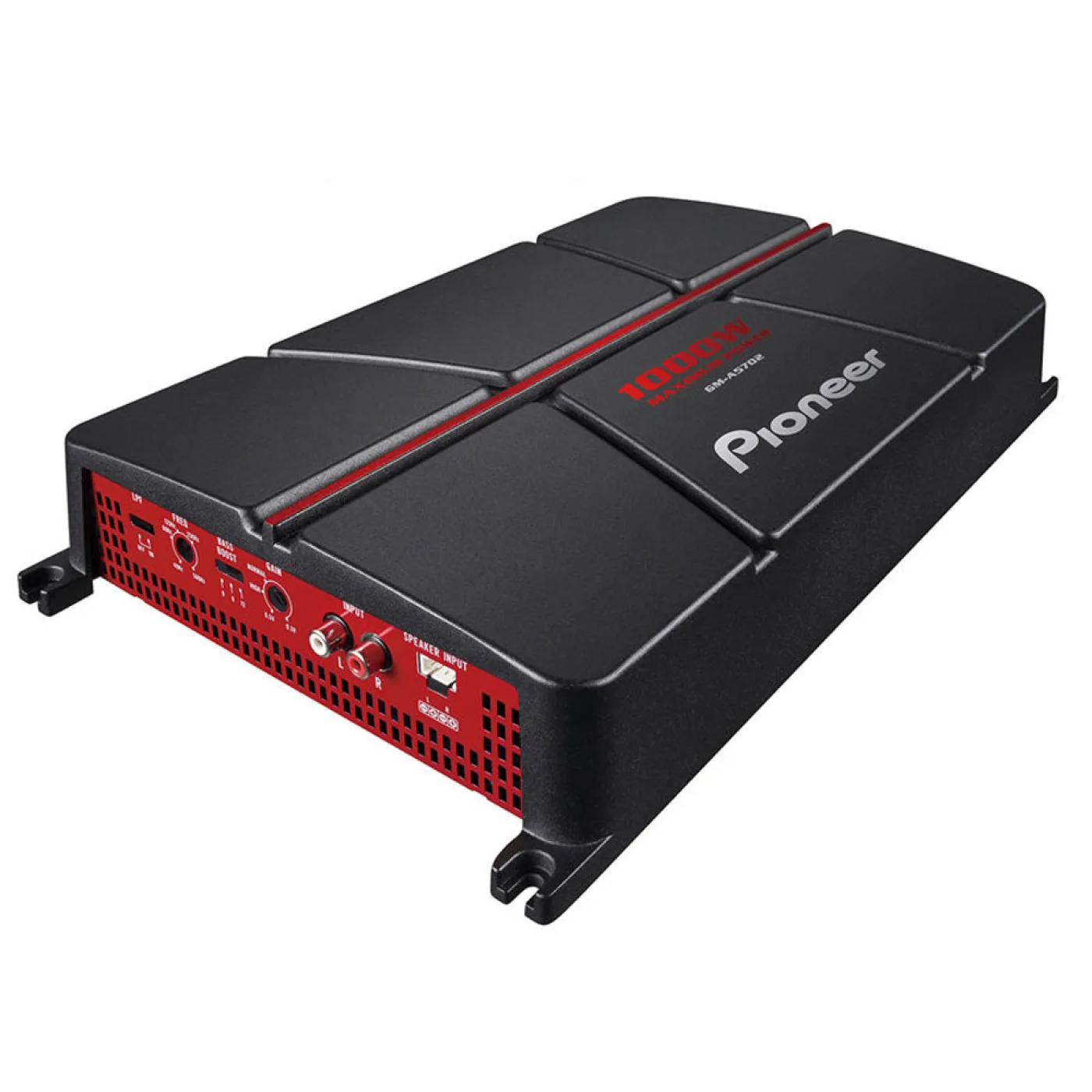

Pioneer GM-A5702 2 Channel Bridgeable 1000W Car Audio Amplifier

Availability:In Stock
Available:4 in stock
Item Condition:New
Brand:Pioneer
Product Code:GM-A5702
EAN / UPC:3784974806727
Warranty:1 Year Warranty

£119.99

<p>Designed to enhance your in-car audio experience, the powerful GM-A5702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V , you can turn your in-car audio experience into the sound staging environment that you’re looking for.</p>

Configure Your Perfect Audio Setup

Designed to enhance your in-car audio experience, the powerful GM-A5702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V , you can turn your in-car audio experience into the sound staging environment that you’re looking for.

The GM-A5702 offers support for 2 Ohm and 4 Ohm speakers, and can produce a massive power of 1000 W.

Variable LPF

adjust your low-pass filter frequency for greater audio system flexibility.

Main Features

Chassis size (W x H x D) 356(W) X 60(H) X 215(D) mm
Unit weight 2.2
Maximum power input 1000W (Bridged) or 2 x 300W (4 Ω) or 2 x 500 W (2 Ω)
2-channel
CEA 2006 Power 2 x 150W (4 Ω)
Continuous power output2 x 150W (4 Ω) or 1 x 480W (4Ω bridged) or 2 x 240 W (2 Ω)
Load impedance capability 2-8 ohm allowable (stereo)
Frequency response 10Hz ~ 70kHz (+0dB , -3dB) Hz
Distortion < 0.05 %
S/N ratio > 96 dB
Bass Boost 50Hz; 0/6/12dB
LPF 40-500 Hz (-12 dB/oct)
Speaker Terminals Screw-type
Speaker Input Level 3 - 26 V
Max. current consumption 36A

Connections

High Voltage Output 300 mV - 6.5 V

Amplifier
Dimension	W x H x D) 356(W) X 60(H) X 215(D) mm
Frequency Response	10Hz ~ 70kHz (+0dB , -3dB) Hz
Impedance Capability	2-8 ohm allowable (stereo)
Power Output	2 x 150W (4 Ω) or 1 x 480W (4Ω bridged) or 2 x 240 W (2 Ω)
S/N ratio	> 96 dB
Speaker Input Level	3 - 26 V
Speaker Terminals	Screw-type
Unit Weight	2.2
