1 Year Warranty

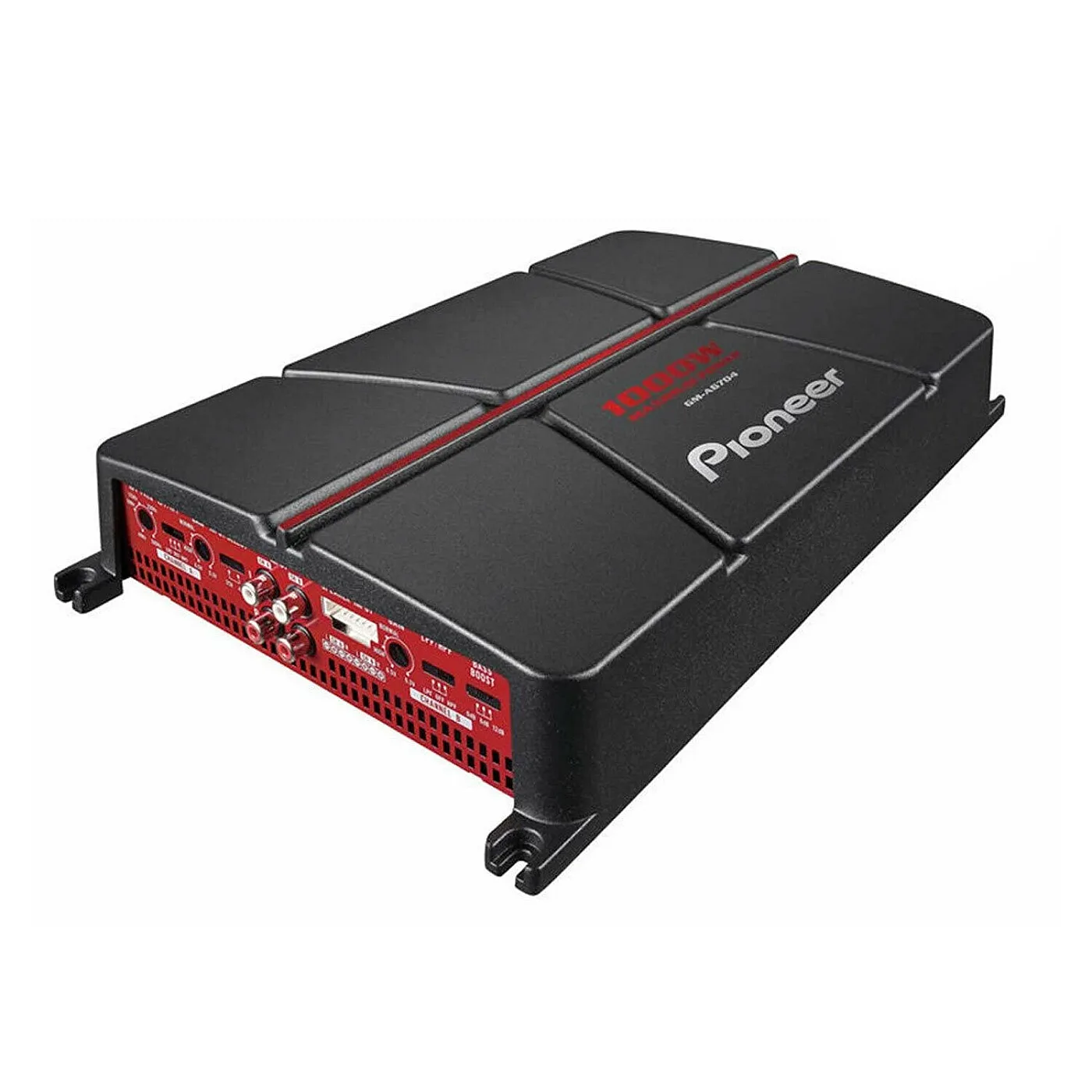

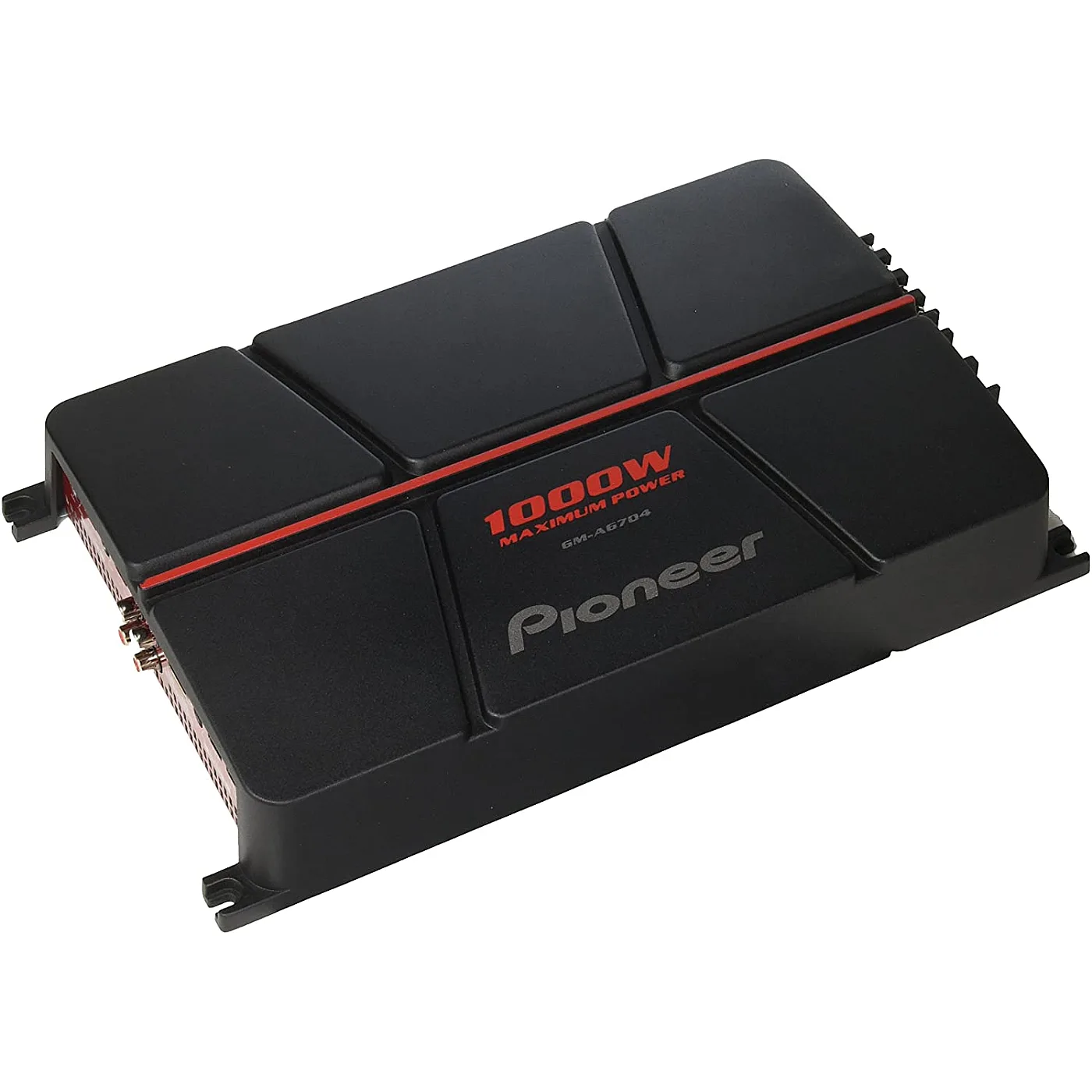

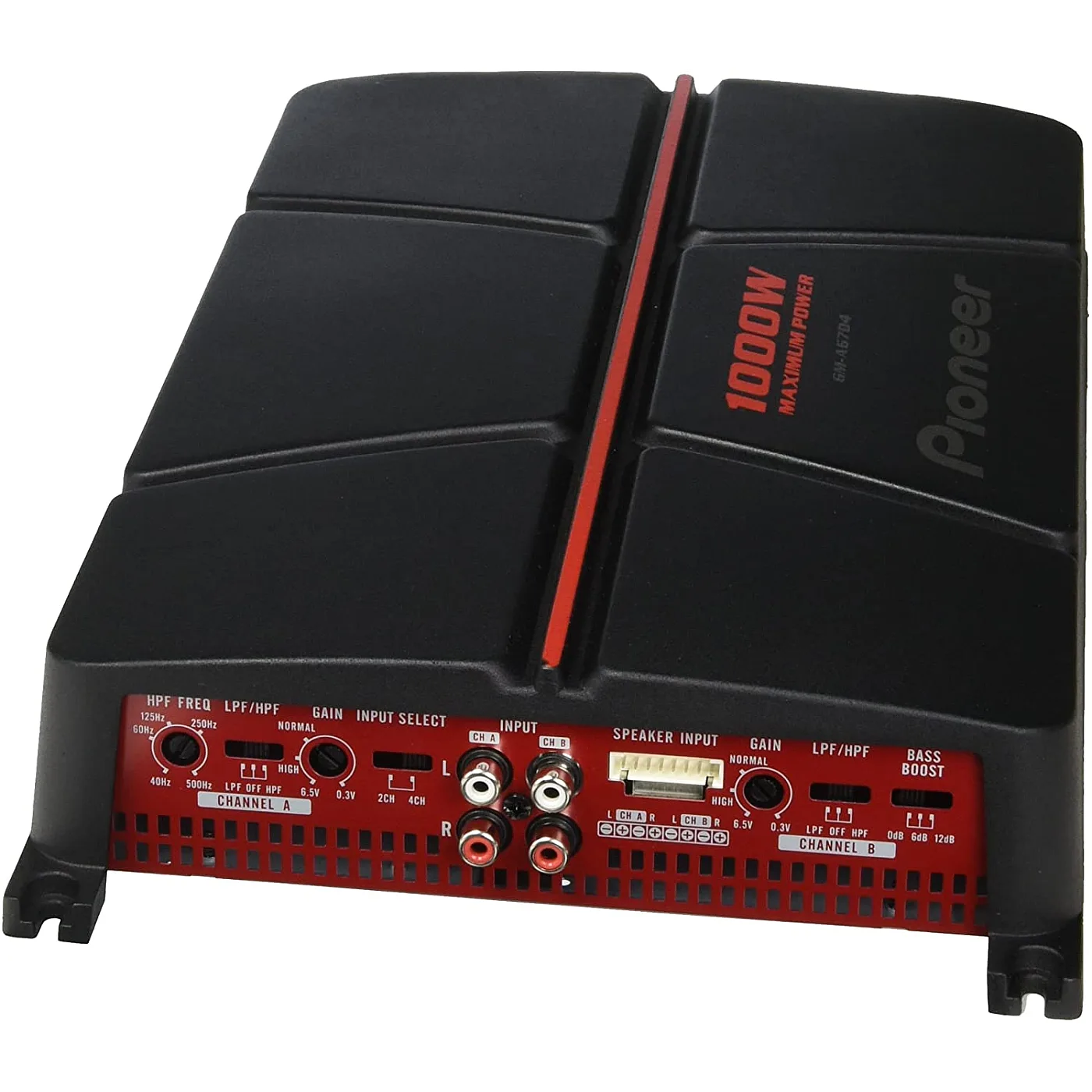

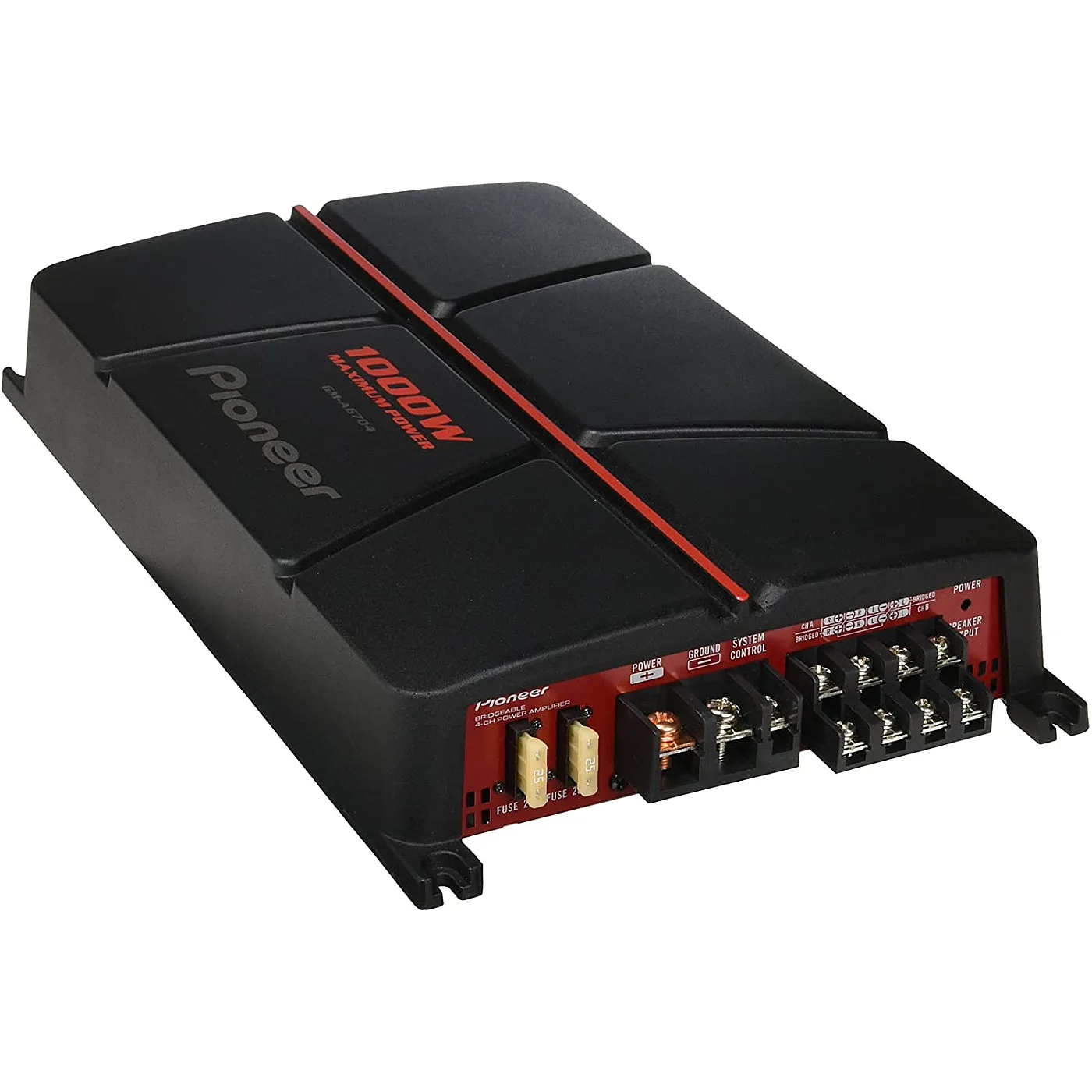

Pioneer GM-A6704 4 Channel 1000W Bridgeable Amplifier for Speakers / Subwoofer
- Availability:In Stock
- Available:3 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:GM-A6704
- EAN / UPC:3784975348318
- Warranty:1 Year Warranty
£129.99
Amplify Your Audio Experience.
Give into your deepest desire for power. Work it out how you want with the bridgeable amps. Just consider the consequences whatever you do: pure and clean, distortion-free power.
The GM-A6704 will ignite your system, but keep the heat under wraps. These amps are techno wonders and will rumble you to the core.
4-Channel
Combine impressive power with big sound for a loud, clear and distortion-free music experience.
Variable HPF
Adjust your high-pass filter frequency for greater audio system flexibility.
Variable LPF
Adjust your low-pass filter frequency for greater audio system flexibility.
Main Features
- HPF 40-500Hz (-12 dB/oct)
- Speaker Terminals Screw-type
- Speaker Input Level 3 - 26 V
- Max. current consumption 31A
- Chassis size (W x H x D) 356(W) X 60(H) X 215(D)
- Unit weight 2.2
- Maximum power input 1000W (Bridged) or 4 x 170W (4 Ω) or 4 x 250 W (2 Ω)
- 4-channel
- CEA 2006 Power 4 x 60W (4 Ω)
- Continuous power output4 x 60W (4 Ω) or 4 x 95W (2Ω) or 2 x 190 W (4Ω bridged)
- Variable LPF
- Load impedance capability 2-8 ohm allowable (stereo)
- Frequency response 10Hz ~ 70kHz (+0dB , -3dB) Hz
- Distortion < 0.05 %
- S/N ratio > 95 dB
- Bass Boost 50Hz; 0-12dB
- LPF 40-500Hz (-12 dB/oct)
Specifications
Connections
- High Voltage Output 300 mV - 6.5 V
Audio
- Variable HPF
| Amplifier | |
|---|---|
| Dimension | (W x H x D) 356(W) X 60(H) X 215(D) |
| Frequency Response | 10Hz ~ 70kHz (+0dB , -3dB) Hz |
| Impedance Capability | 2-8 ohm allowable (stereo) |
| Power Output | 1000W (Bridged) |
| S/N ratio | > 95 dB |
| Speaker Terminals | Screw-type |
| Unit Weight | 2.2 Kg |
