Pioneer SPH-DA77DAB 6.8" WVGA Screen Wireless Android Auto/ CarPlay DAB Bluetooth Car Stereo Upgrade Pack
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:SPH-DA77DAB + DAB-A1 + CA-IU.52C + ND-BC9 + CMOS-320
- EAN / UPC:7427307002569
- Warranty:1 Year Warranty

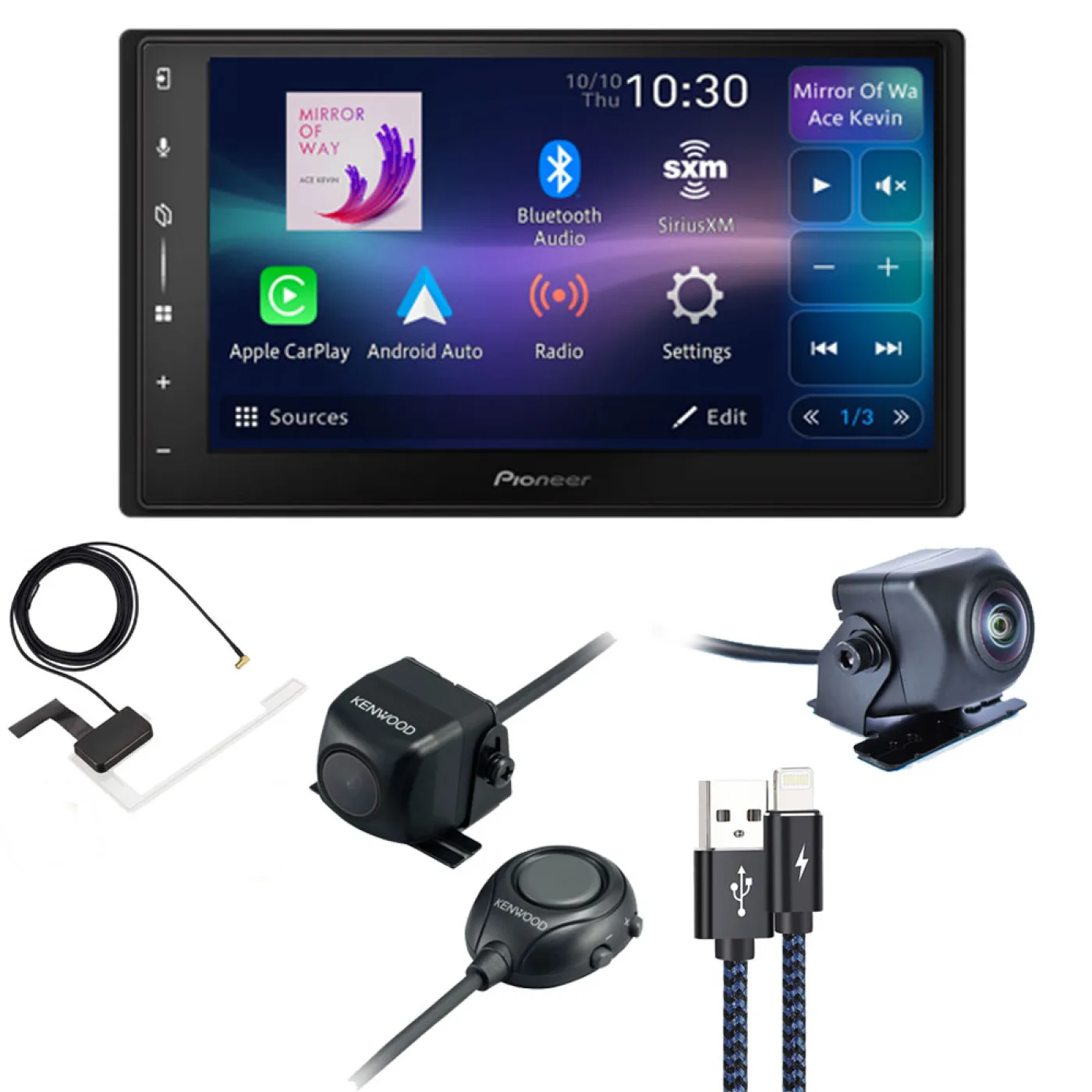

Package Includes
- Pioneer 6.8 WVGA Capacitive Multi-touch Weblink 3.0 Android Auto/ CarPlay DAB Car Stereo
- DAB Aerial
- Kenwood Universal Reversing Multi View Camera For Av Screens Front Rear
- Pioneer Universal High-Precision High-Resolution Back-up Camera
- Pioneer iPhone Charger Cable UDB to Lightning Cable Braided iPhone USB Fast Charging Cable 3FT
Pioneer SPH-DA77DAB
Pioneer SPH-DA77DAB. Getting the latest technology doesn’t have to break the budget with the Pioneer SPH-DA77DAB featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.
Choose from a host of entertainment options, including USB with Full HD video playback supported**, DAB+ tuner, AM/FM tuner or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.
To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.
Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.
Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!
The Pioneer SPH-DA77DAB is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!
Main Features
- Mechafree, iconic cosmetic design, with large 6.8” Capacitive Multi-touch touchscreen panel
- Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
- Improved GUI allowing for simple smartphone connectivity, compatible with Apple CarPlay and Android Auto
- 1Din – Short Chassis backside design
- RGB illumination
- Single Rear USB with 1.5A power supply (Type A)
- USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
- Rear View and 2nd Camera Input
- Bluetooth (A2DP/HFP/AVRCP) DAB / DAB+ Digital Radio built-in (Optional DAB Antenna required)
- Bluetooth®: handsfree calling, phonebook transfer, audio streaming (A2DP). (External BT microphone included)
- Wired Remote Input
- CAN-BUS support (No HUD)
- Advanced audio features
- Wireless Android Auto and CarPlay and its direct launch key, (Easy to use)
- 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
- Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)
SPH-DA360DAB vs SPH-DA77DAB comparison
SPH-DA77DAB Chassis design
SPH-DA77DAB Installation Benefit
Specifications
General
- Mechafree 6.8” WVGA Capacitive touchscreen
- Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
- USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
- Bluetooth® and DAB / DAB+ Digital Radio combined
- Digital Radio Tick Mark approved product
- Siri Eyes Free
- Advanced audio features
- Premium sound quality
- RGB
- multicolour key illumination and LCD display
- iPhone Direct Control
- Compatible with Android
- Reverse camera compatible (Optional ND-BC9)
- 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
- Selectable wall paper (User customisation with jpeg file)
Connectivity
- Apple CarPlay (wireless & wired)
- Android Auto (wireless & wired)
- WEBLINK 3.0
- Rear USB / Rear Aux-In
- Made for iPhone / Compatible with Android
- USB Mirroring via WebLink® 3.0 for iOS, Android smartphone/tablets
- Wired Remote Control / Rear View Camera Input
- Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)
Audio and Video
- 13-BAND GEQ and Time alignment
- 3Way Network Mode
- Video output & Audio 3 Pre-Out (4V)
DOP Related
- EZ MyCarSetting
- Setting Memory for Agricultural Business
- Start Stop Function
Bluetooth
- Pioneer Bluetooth for hands-free calling & audio streaming
- Bluetooth auto pairing
- External microphone Included
- Wireless audio browsing
Audio
- Premium Sound Quality
- MOSFET 50W x 4 Max Output Power
- Music Browsing
- 13-band Graphic Equaliser
- Low Pass/High Pass Filter
- 3 x 4 Volt RCA Pre-outs
Tuner
- DAB/DAB+ Digital Radio
- Auto Tune, Pre-set buttons
- Digital Radio Tick Mark approved product
- RDS FM/AM Tuner
- 24 Pre-set
File Playback
- Audio
- WMA/MP3/WAV/AAC/FLAC
- Video
- H.264/Mpeg4/JPEG/TS/ WMV/MKV/FLV/TS
Accessories
- Included - Microphone for Hands-free Calling
- Included - USB extension cable
Kenwood CMOS-320 Universal Reversing Multi View Camera For Av Screens Front Rear
Universal Multi View Camera
The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles and increasing the number of viewing options including corner views and adding graphic guidelines to the camera image. Easily switch between the many viewing options using the touch screen from a compatible DNN, DNX or DDX receiver.
Key Features
- Universal Multi View Camera
- Night, Normal, Wide, Corner & Overhead View
- Switch Unit Included
- 1/3.6" Colour CMOS sensor
- Waterproof unit with flexible mount base
- NTSC Video Signal Out (RCA)
- Can be installed on the front or rear side of the car
Specifications
Camera Unit
- Camera Type 1/3.6" colour CMOS sensor
- Colour type
- Effective number of pixels roughly 330000
- High sensitivity Pixels
- Output video Wide-angle Mirror Image (for rearview)/Wide-Angle normal Image (for Front View
- Waterproof chassis
- Mounting system Fexible mount base
- Installation positions Rear
- Camera ID setting
- Rear view switching Reverse line
- Front view switching by remote or Kenwood unit
- Guideline view
- Guideline Adjustments Size, Horizontal Direction, Red Line Position
- Image Adjustments Centering, Right-and-Left, Up-And-Down Angle
- High voltage protection
- Wide angle lens
- Focal length f
- 1.05mm, F value 2
- Horizontal Angle view +/- 195°
- Vertical Angle View +/- 145°
- Illumination range approx. 0.9 to 100000 lux
- Iris System Electronic
- White balance Automatically
- Scanning System Interlace
- Synchronizing System Internal
- Video output level 1Vpp, 75Ω
- Video signal format NTSC (Mirror view)
- Connection cable (DC+video) 5 m
General Specifications
- Operating voltage 14.5V (9 ~ 16V Allowable)
- Maximum Current Consumption 0.1A
- Dimensions (WxHxD) 23.4 x 23.4 x 26.1mm
- Weight 23 gr.
- Dimensions Switch Unit (WxHxD) 27.5 x 32.8 x 12 mm
- Weight Switch Unit 10 gr.
- Operation Temperature Range -30°C ~ 70°C
- Storage Temperature Range -40°C ~ 80°C
ND-BC9 Universal High-Precision High-Resolution Back-up Camera
This high-precision, high-quality, NTSC universal camera giving you a full view of everything the rear-view mirror fails to show. The high-sensitivity camera has a 159° wide viewing angle and the embedded CMOS sensor automatically adjusts brightness in light or dark driving conditions. The camera even eliminates over-exposed images by removing the white streaks as direct sunlight enters the lens.
- Compatible with any CVBS rear camera input.
- A 10-metre long (3 m + 7 m) cable is included in the package.
- Pioneer's ND-BC9 in E-mark certified.
Pioneer products that show the IP67 rating are dust and water resistant, offering protection against dust ingress and protection against short periods of immersion in water. (Maximum 30 minutes at 1 metre depth).
Main Features
- Dimensions Camera: 23.8 mm x 23.8 mm x 25.5 mm
- Weight Camera: 188 g
- Sensor Type: 1/4" CMOS
- Viewing Angle: Horizontal: 159° / Vertical: 117°
- Video System: NTSC
- Pixels: 0.3 M - 310.000p 350 TV lines
- Mirrored Image: Yes
- Connection Type: RCA
- Rating: IP67
- Power Supply: 14.4 V DC (10.8 V to 15.1 V)
- Current Consumption: <100 mA " 14.4 V
- Operating Temperature: -30° to +70° Celsius
- Cable: 10 m (3 m + 7 m)
Pioneer CA-IU.52C
iPhone USB to lightning cable for use with the Pioneer CD-IH202 or CD-IV202AV iPhone 5 iPod kits when using the Apple lightning digital AV adaptor or Apple lightning to VGA adaptor to charge your phone.
Durable & Flexible
The nylon lightning braided quick charge cable made of nylon ensures excellent anti-twist and abrasion resistance properties. The elaborate connector can withstand over 10,000 connections and will never be damaged during intensive daily use.
2.4A Fast Charge & Sync
This iPhone charger cable supports fast charging (up to 2.4A) while preventing overheating and overcharging, ensure that you and your devices are safe, sync and charge at the same time at the fastest speeds on your windows PC or Mac.
What you will get
(3 FT USB charger cable) can be conveniently used freely in the bedroom, office or even the back seat of the car.
Perfect Compatibility
This iPhone charger cable is fully compatible with iPhone 13 /13 Pro/ 13 Pro Max/ 13 Mini/ 12 /12 Pro/ 12 Pro Max/ 12 Mini/ 11/ 11 Pro/ 11 Pro Max/ XS / XS Max / XR / X / 8 / 8 Plus / 7 / 7 Plus / 6s / 6s Plus /6 Plus / 6 / SE / 5s / 5c / 5
| Technical | |
|---|---|
| Android Auto | Yes |
| Apple CarPlay | Yes |
| Dab Radio | Yes |
| MirrorLink Ready | Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets. |
| Navigation System | Yes |
| Screen | 6.8 WVGA screen with capacitive Multi-touch panel |
| Size | Double Din |
| Max. Power Output | MOSFET 50W x 4 Max Output Power |
| Button Illumination | RGB |
| Bluetooth | Yes |
| Aux In | Rear |
| USB | Single Rear USB with 1.5A power supply (Type A) |
| Pre Out | Video output & Audio 3 Pre-Out (4V) |
