Sold Out1 Year Warranty
Pioneer TS-W32S4 12" 30cm Champion Series Component Subwoofer 1500W
- Availability:Out Of Stock
- Item Condition:New
- Brand:Pioneer
- Product Code:TS-W32S4
- EAN / UPC:7427306998245
- Warranty:1 Year Warranty
£89.99

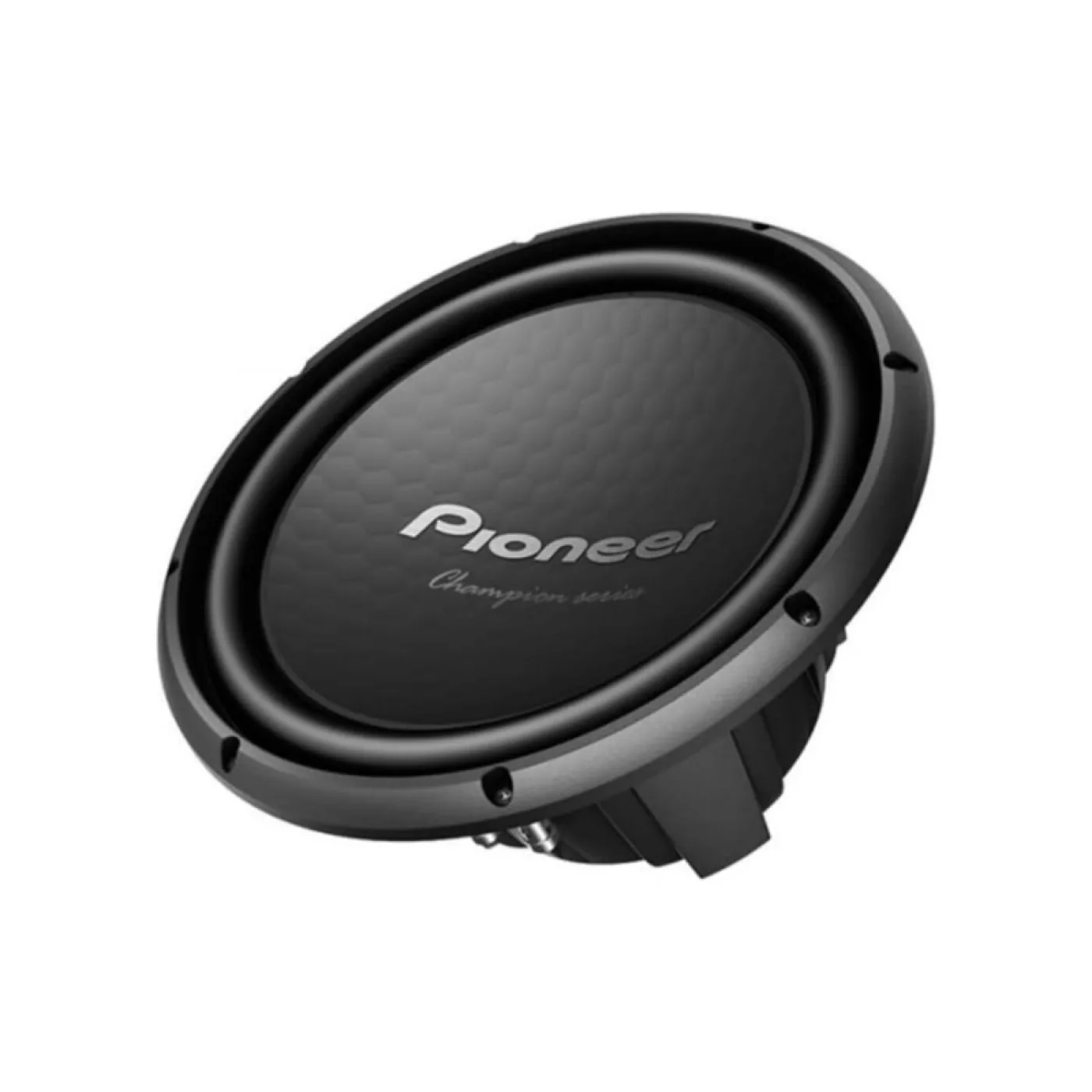

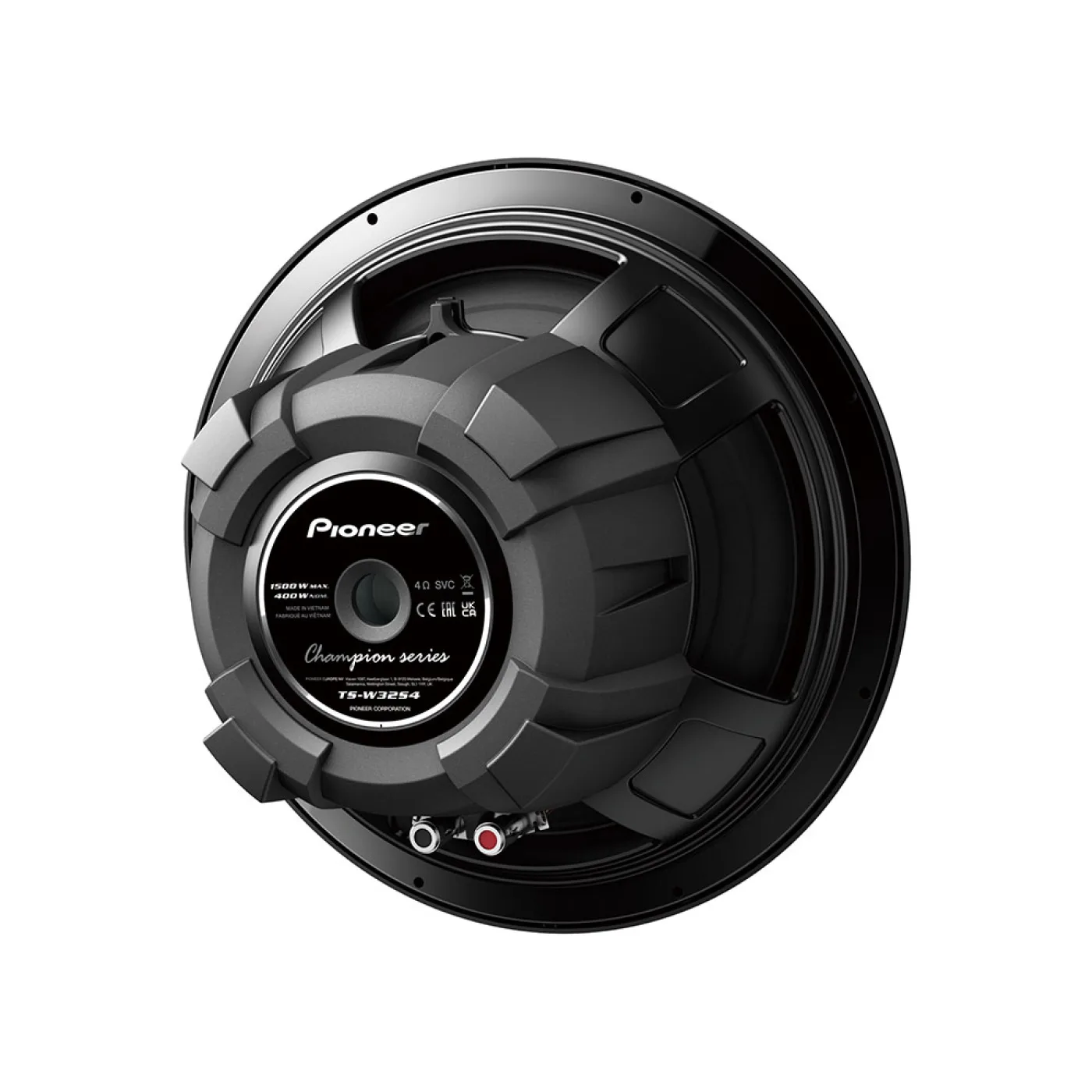

Pioneer TS-W32S4 30 cm / 12" Champion Series Component Subwoofer, 1500 W MAX. 400 W NOM.
Deep & Loud. This Is The Champion Sound!
Get deep and loud powerful bass in your car – from the pedigree of world record-breaking Champion Series subwoofers.

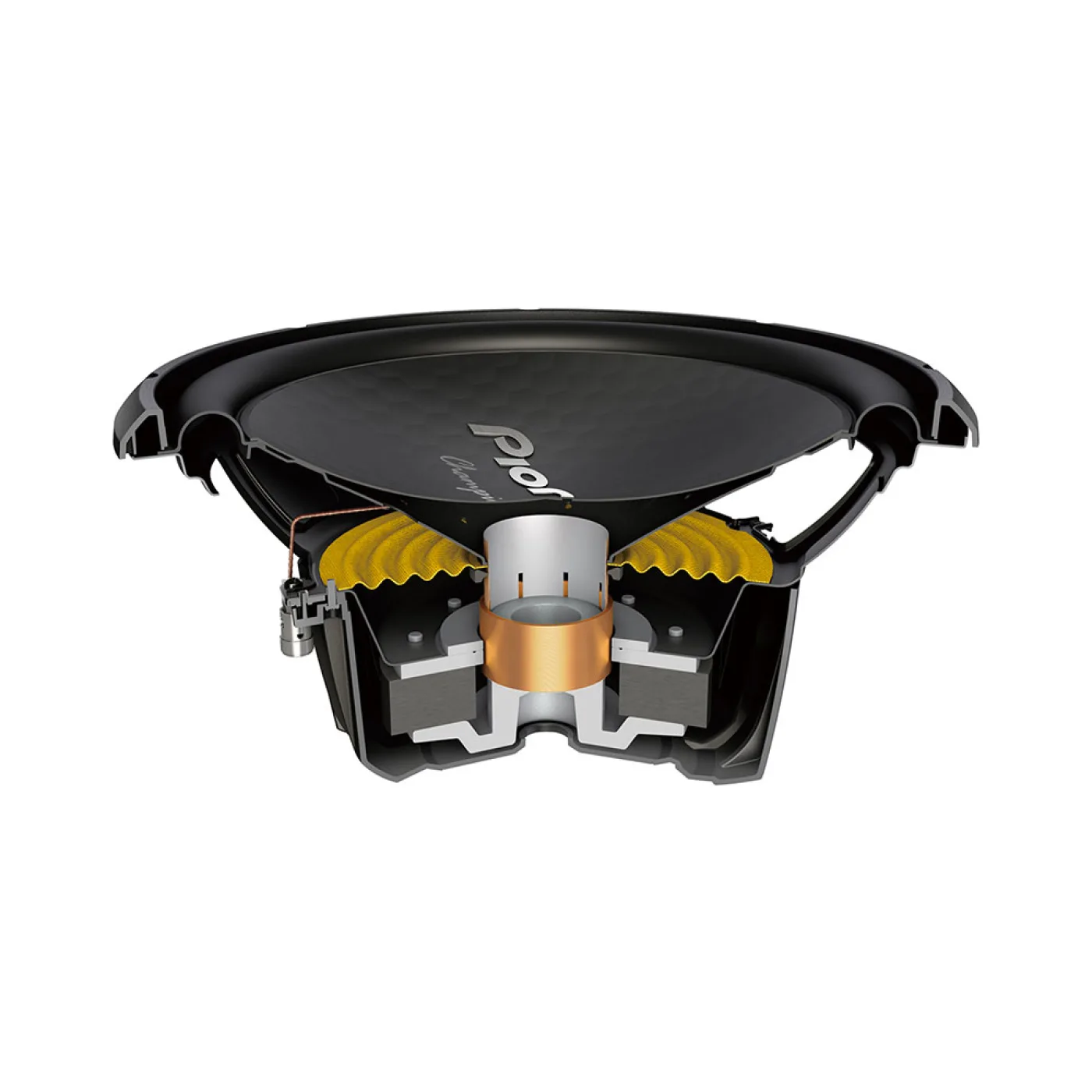

The TS-W32S4 Champion Series subwoofer features a light and rigid seamless cone, which delivers superior reliability, durability and rock solid bass, from it's lightweight yet ultra-rigid structure. All of these combined gives you high power handling and high endurance at high sound pressure levels.
TS-W32S4 is a 30 cm / 12" subwoofer, suitable for enclosed use, delivering 1500 W Maximum Power and 400 W Nominal Power.
CarSoundFit App
Car sound simulator application for an improved in-car sound experience
Specifications
Specifications
- CarSoundFit App
- Size 30cm / 12inch
- Type Component Subwoofer
- Maximum power 1500W
- Continuous power output 400W
- Frequency response 22 Hz to 1.6 kHz
- Sensitivity 90 dB
- Impedance 4 Ω
- Mounting Depth 146 mm
- Woofer Cut-Out Hole 281 mm
- Woofer material Paper
- Voice Coil type Single Voice Coil
- Voice Coil bobbin type Aluminium
- Terminals Push
- Magnets FERRITE
- Recom.Enclosure [l] 35.4 L
- Recom. Enclosure [ft3] 1.25 ft3
- Weight 3.76 kg
- Dimensions 318 (Diam.) x 163 mm
Thiele/Small Parameters
- Qts 0.61
- Fs [Hz] 30 Hz
- Vas [ft3] 2.04 ft3
- Vas [l] 57.7 L
- Xmax [mm] 11.6 mm
