RECOIL 10-606-K6 6 Pack Relay Kit (5-pin 30/40A 12V SPDT relays with sockets and in-line ATC fuse holders)
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:RECOIL
- Product Code:10-606-K6
- EAN / UPC:7427282752480
- Warranty:1 Year Warranty
£44.99
Order within for same-day dispatch
RECOIL 6 Pack Relay kit (5-pin 30/40A 12V SPDT relays with sockets and in-line ATC fuse holders)

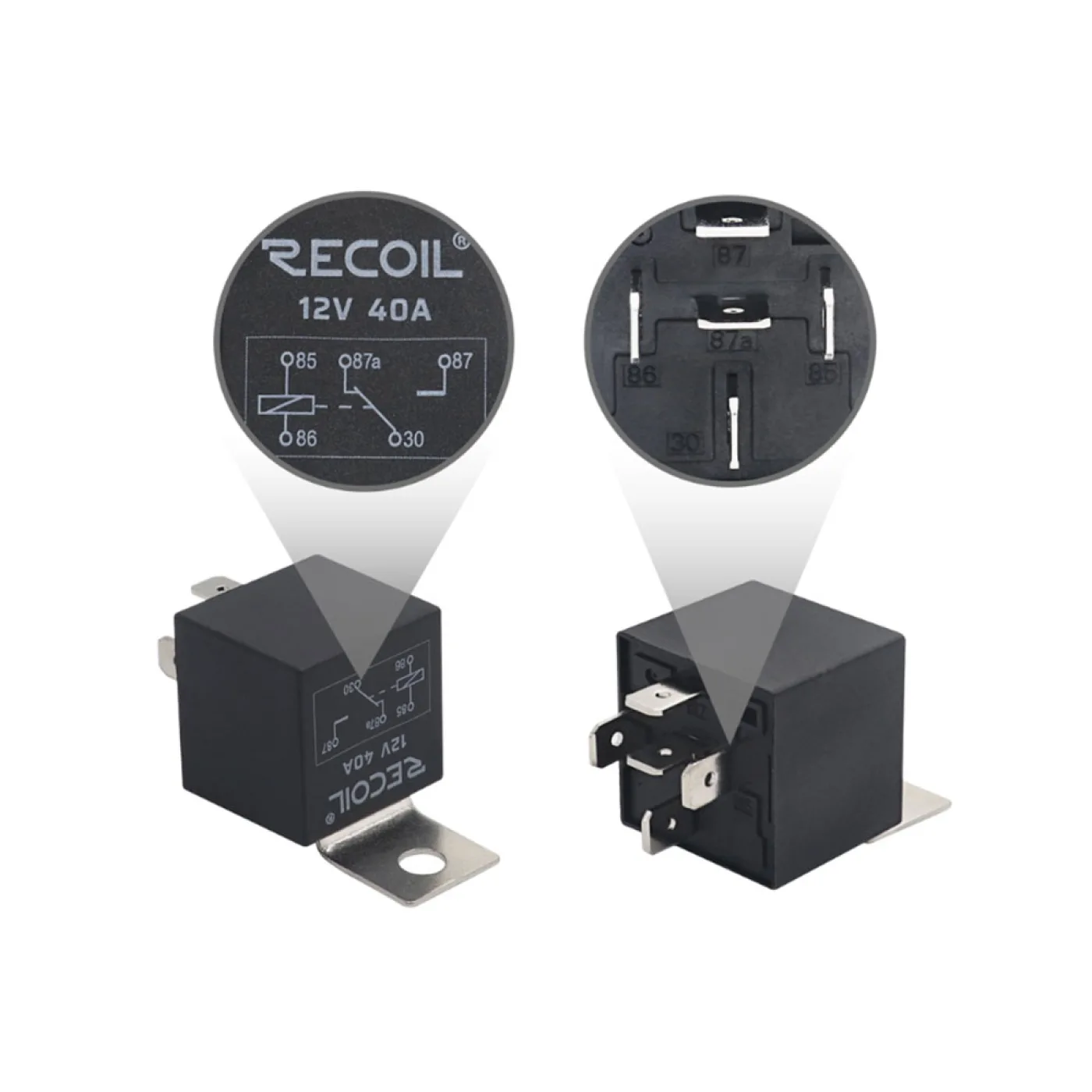

Bosch style 12VDC (14V Max) 5-Pin SPDT (Single Pole Double Throw) relay with 40A/30A high switching capability.

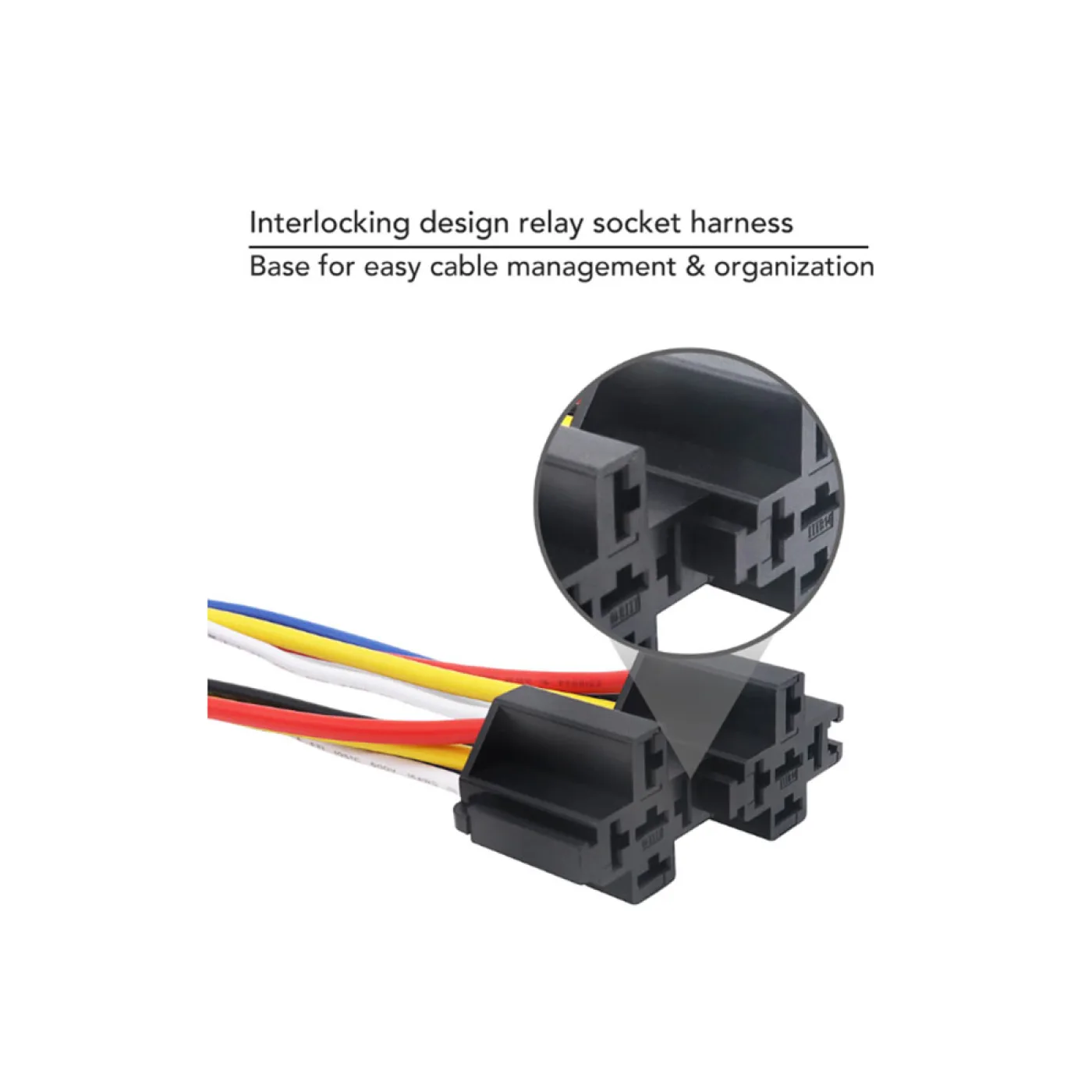

Interlocking design relay socket harness base for easy cable management & organization.

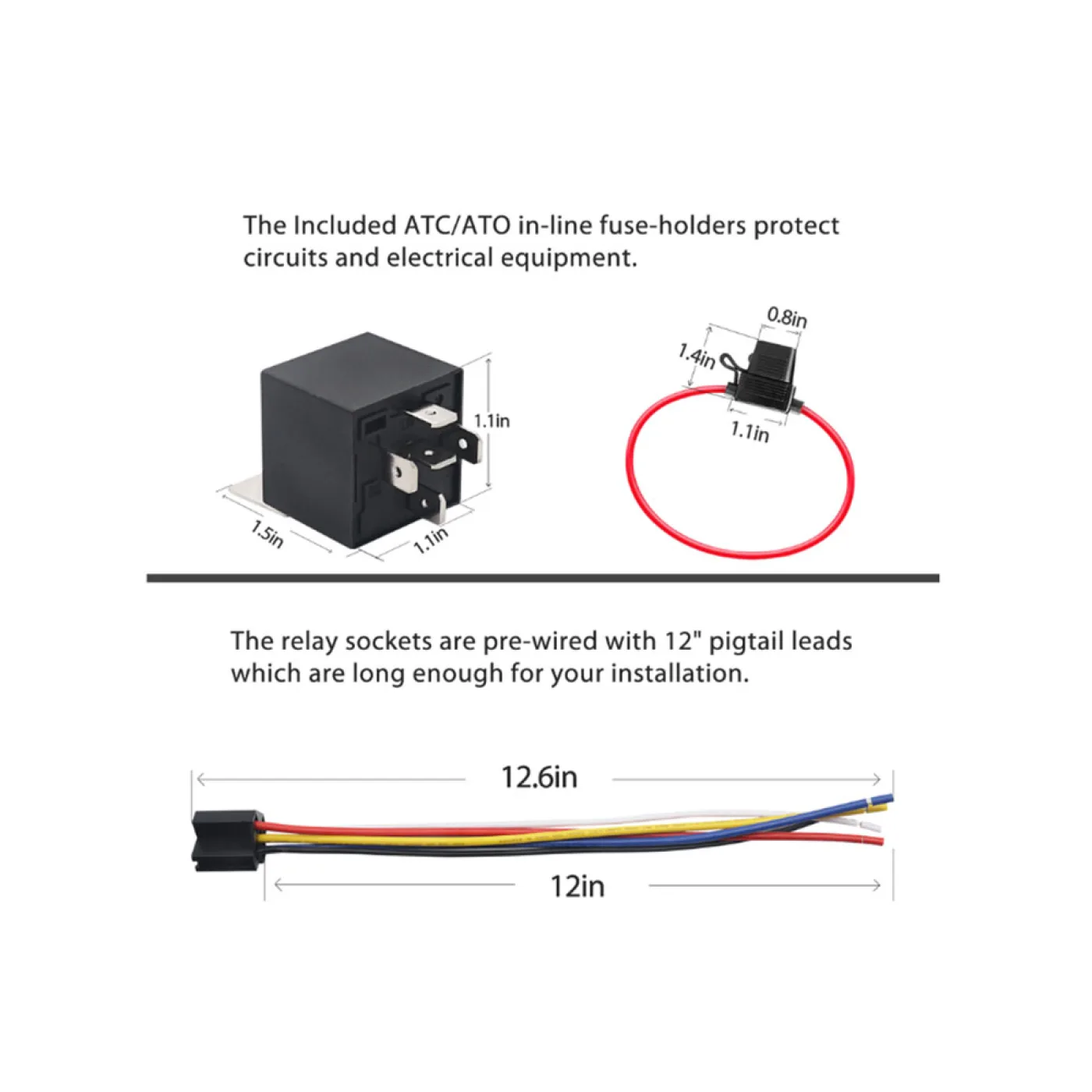

The relay sockets are pre-wired with 12″ pigtail leads, which are long enough for your installation

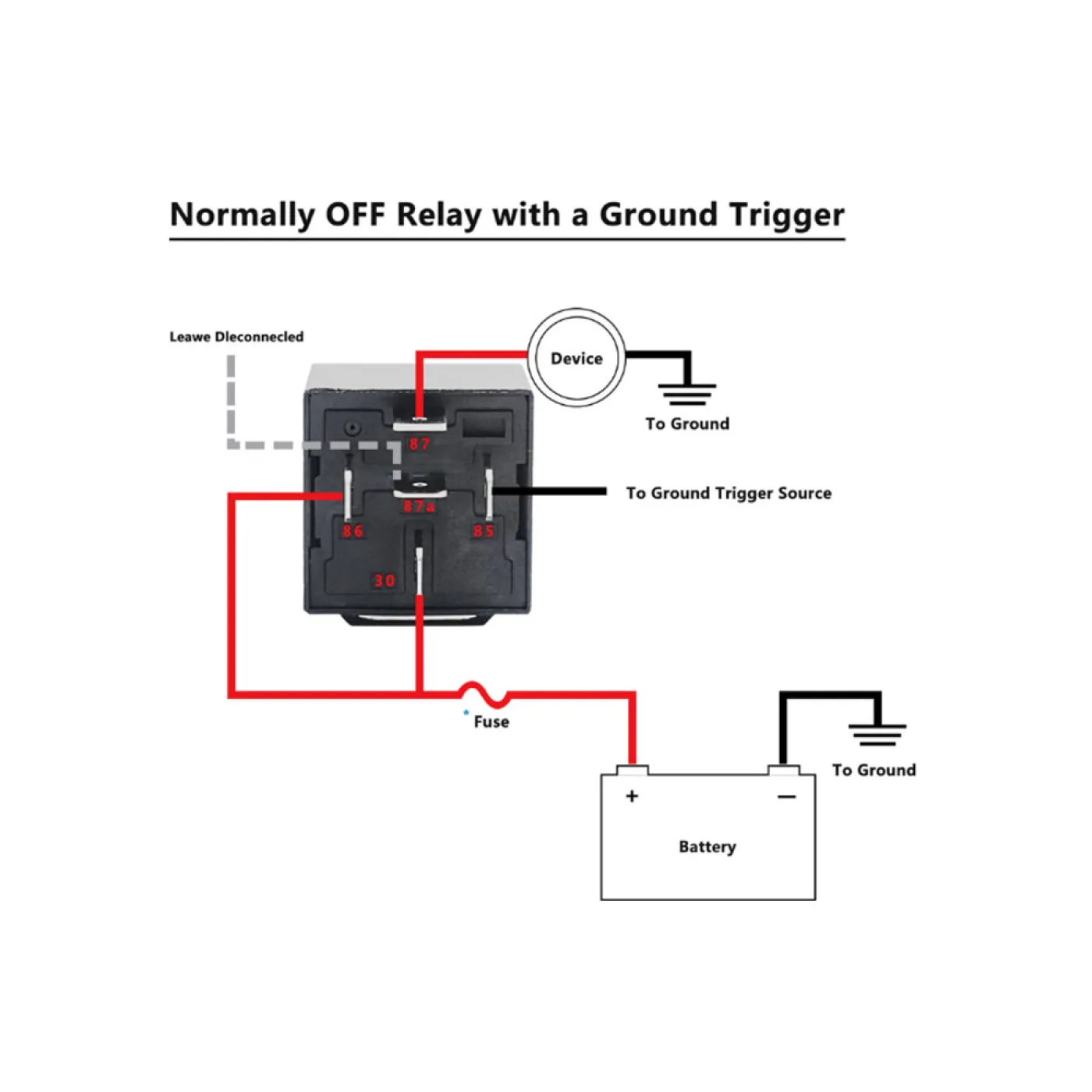

Wire Specifications
- Black – Ground (85)
- Red – VDC (30)
- White – Trigger (86)
- Yellow – Output N/C (87a)
- Blue – Output N/O (87)
Relay harnesses are made of 12AWG pure Oxygen Free Copper as a conductor to ensure its excellent electrical conductivity. The Included ATC/ATO in-line fuse-holders protect circuits and electrical equipment

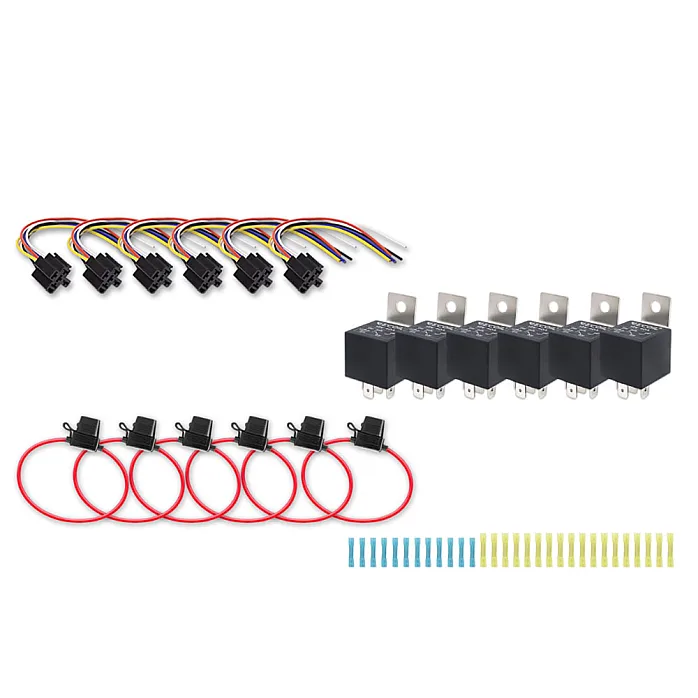

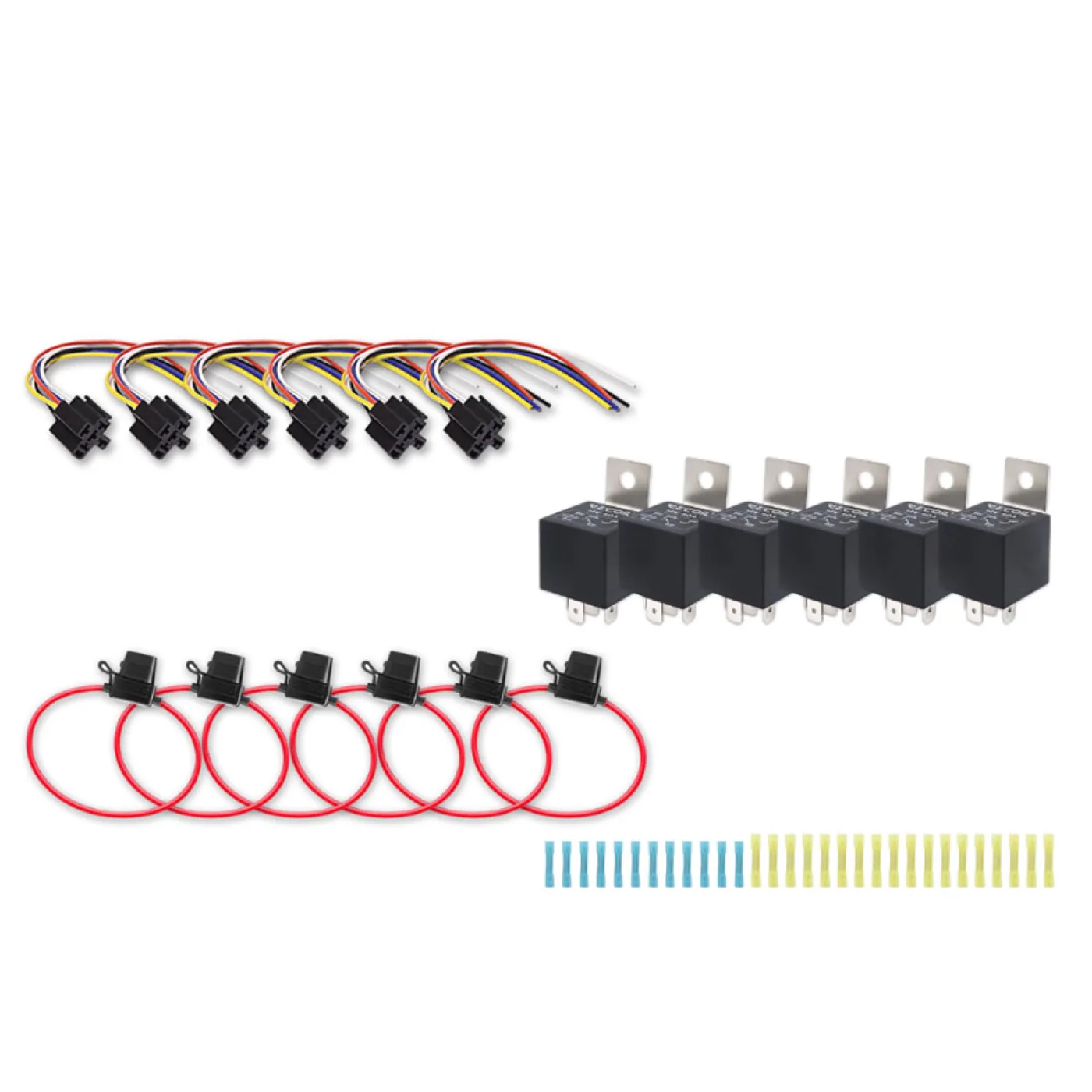

Relay Kit Includes
- 6 x relays
- 6 x relay sockets with wires
- 6 x in-line ATC fuse holders
