Recoil DII400.4 Ultra Compact Class D 4 Channel Bridgeable Amplifier Max 800 Watts
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:RECOIL
- Product Code:DII400.4
- EAN / UPC:7427288192624
- Warranty:1 Year Warranty
Recoil DII400.4 Amplifier
Class D 4-Channel Amplifier, 800 Watts Max Power, RMS 100 Watts x 4@2 Ohm; RMS 60 Watts x 4@4Ohm; RMS (Bridged): 200 Watts x 2@4Ohm

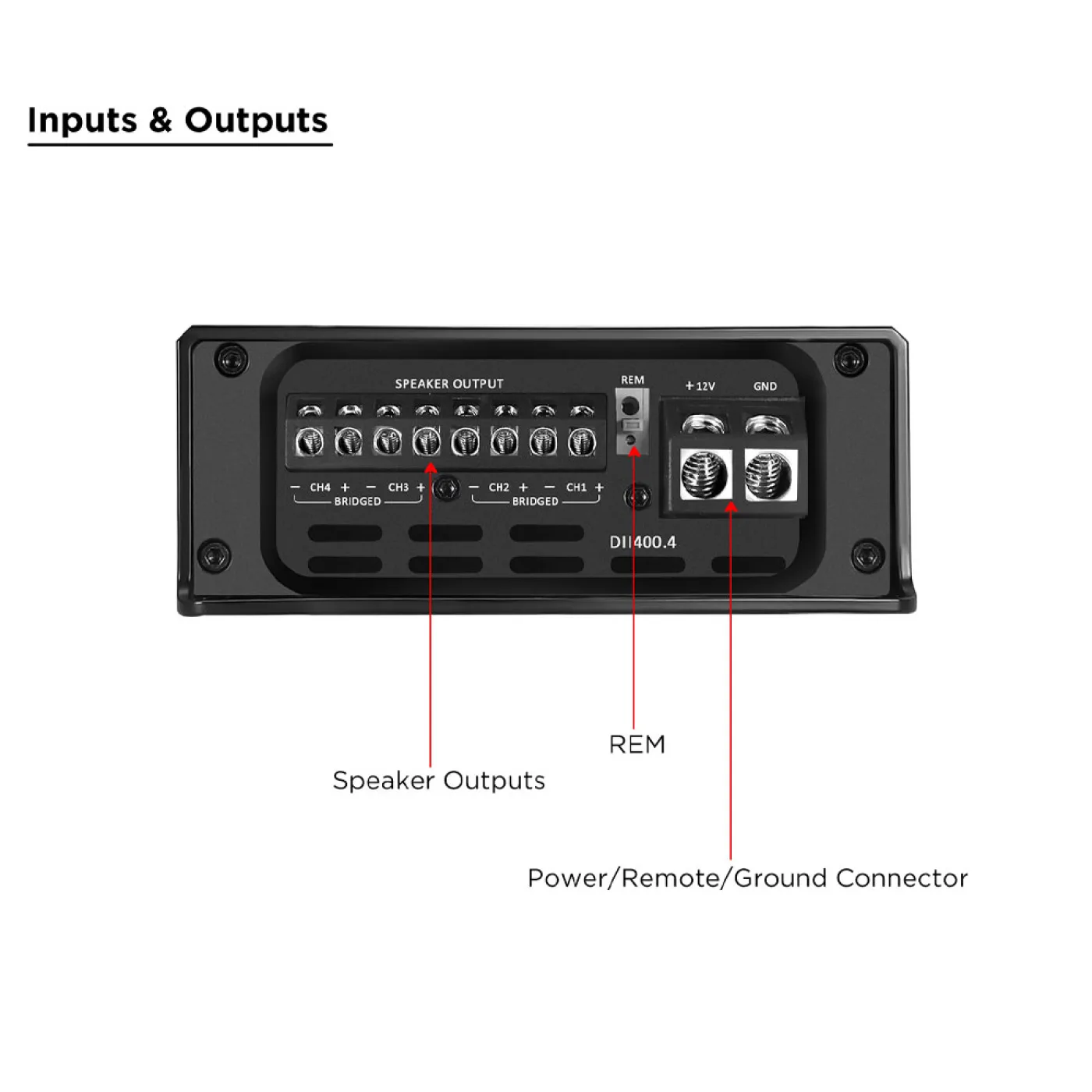

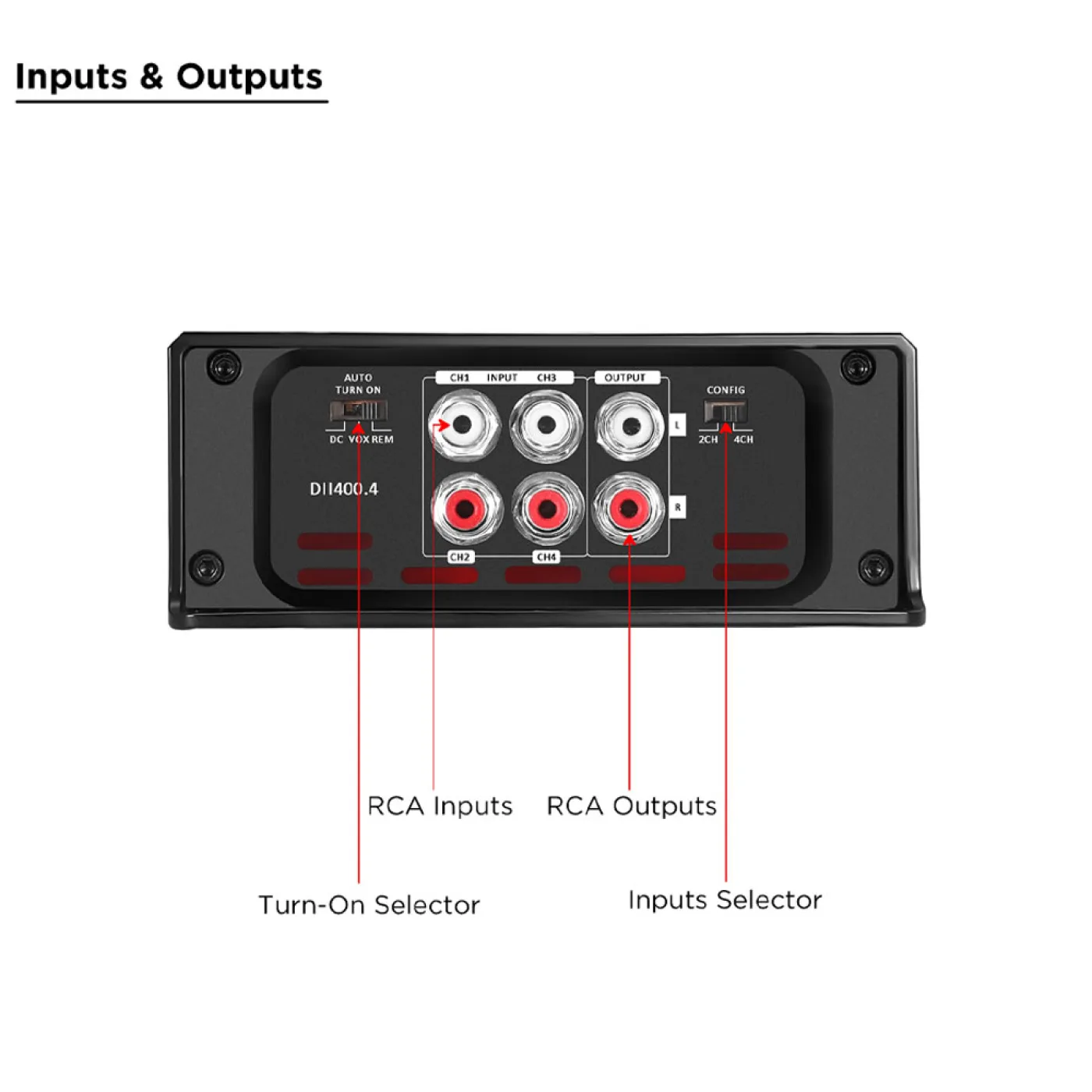

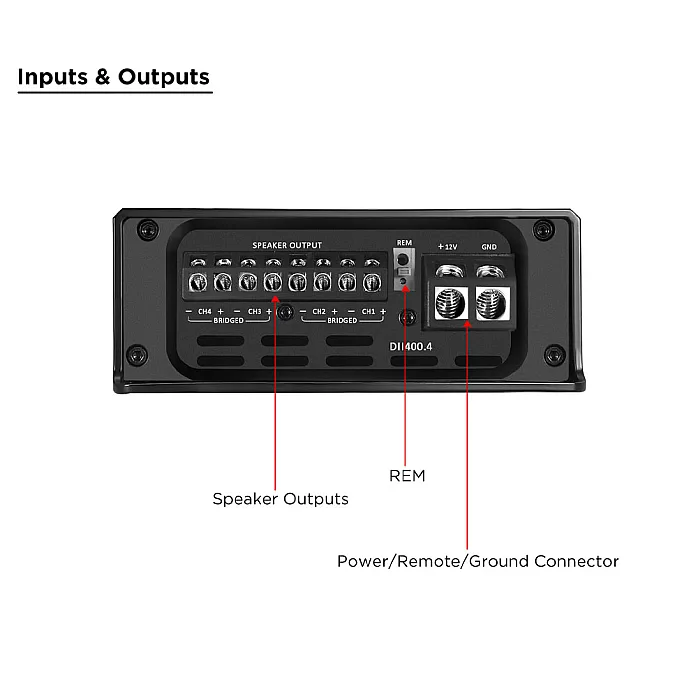

Features: RCA level and speaker level inputs / Turn-on mode selection (REM, VOX, DC) / RCA pass-through outputs / Thermal, voltage, speaker, short circuit protection / 2/4 channel input switch

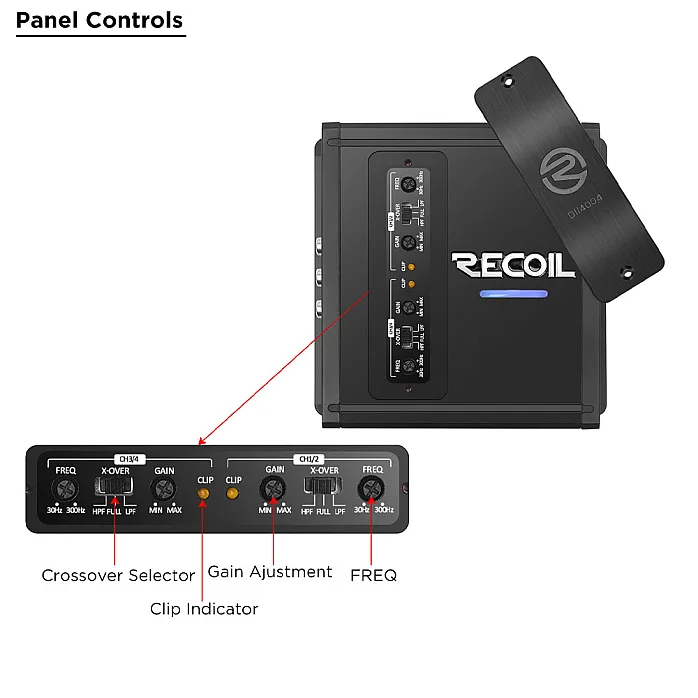

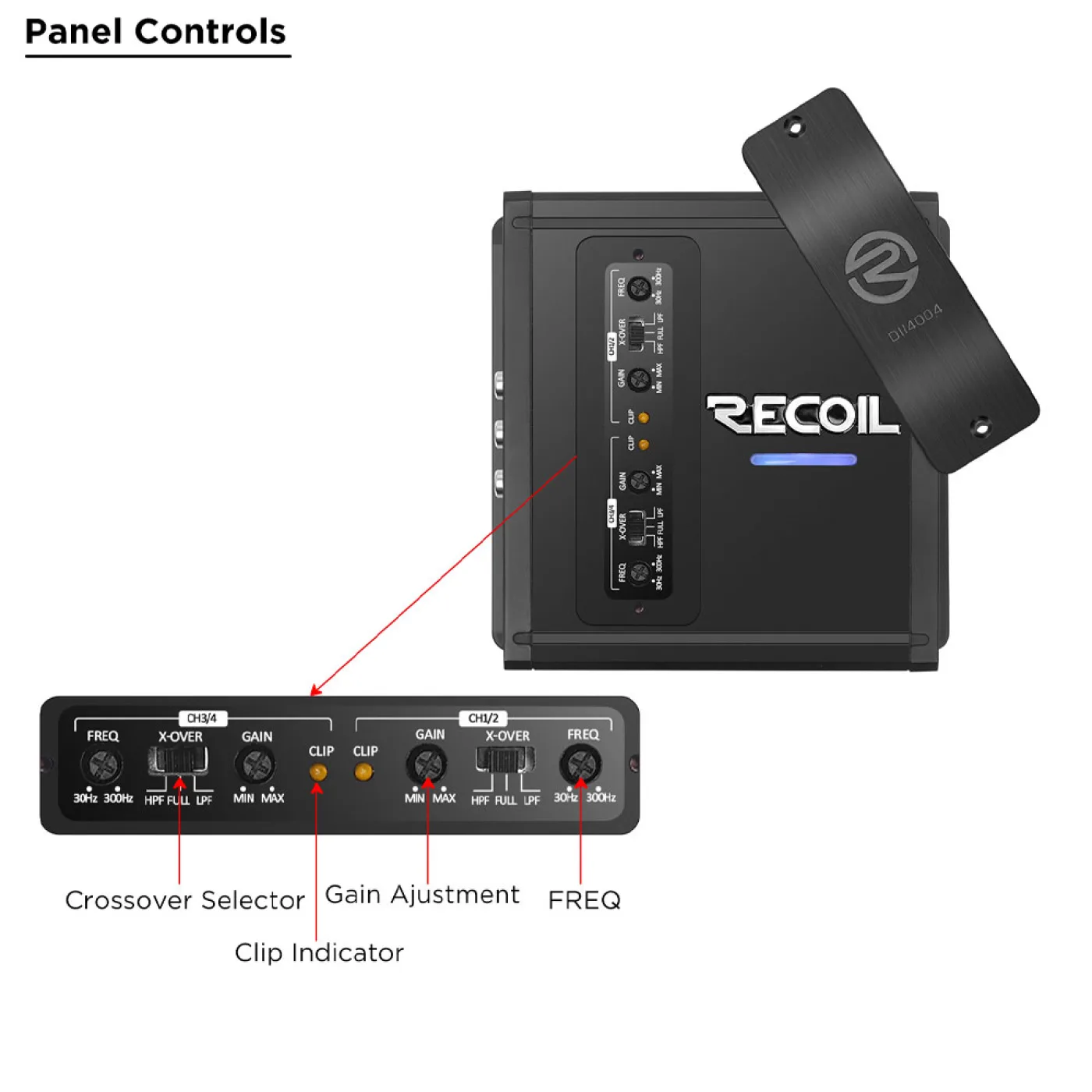

Top mounted clip LED indicator and control panel for easy access, such as the gain, LPF, HPF, crossover, etc.
DII series amps are designed with conformal coated circuit board protects against dust and water. They can be used for powersports, marine, golfcart and bike applications.
Highly efficient heatsinks keep the amplifier cool with a sophisticated new look. Ultra-compact dimension: 5.55″ x 5.37″ x 2.09″ (141mm x 136.5mm x 53mm)
Specifications
Specifications

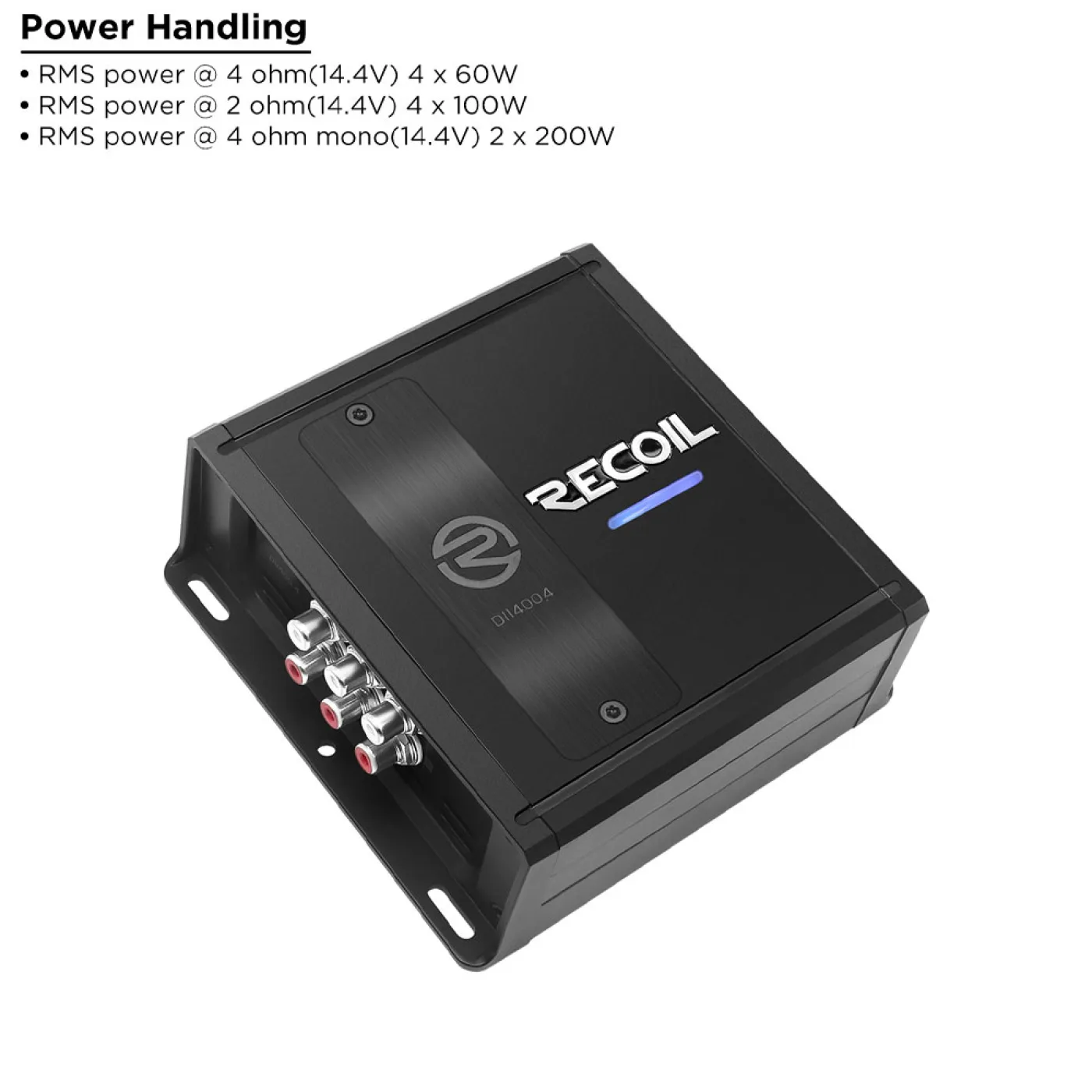

- RMS power @ 4 ohm (14.4V)
- 4 x 60W
- RMS power @ 2 ohm (14.4V)
- 4 x 100W
- RMS power @ 1ohm (14.4V)
- N/A
- RMS power @ 4 ohm mono (14.4V)
- 2 x 200W
- Frequency Response
- 10Hz-24KHz
- Signal to Noise
- 85dB
- Efficiency @ 4 ohm
- 78%
- Input Sensitivity
- 0.2V-12V
- High Pass Filter
- 3OHz -300Hz
- Low Pass Filter
- 3OHz-300Hz
- Fuse Rating (ATC)
- 40A

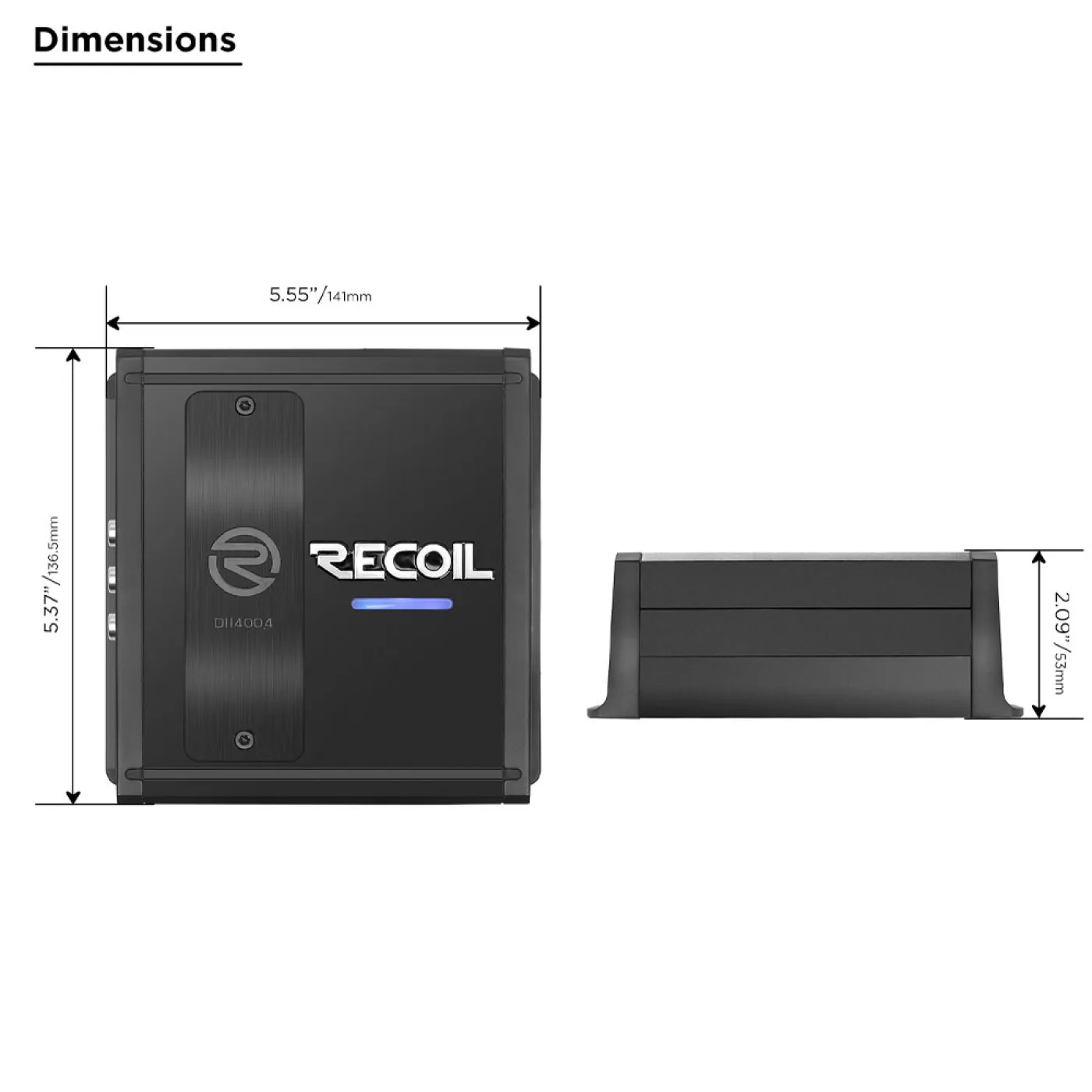

- Dimensions (mm)
- 5.55″ x 5.37″ x 2.09″(141mm x 136.5mm x 53mm)
