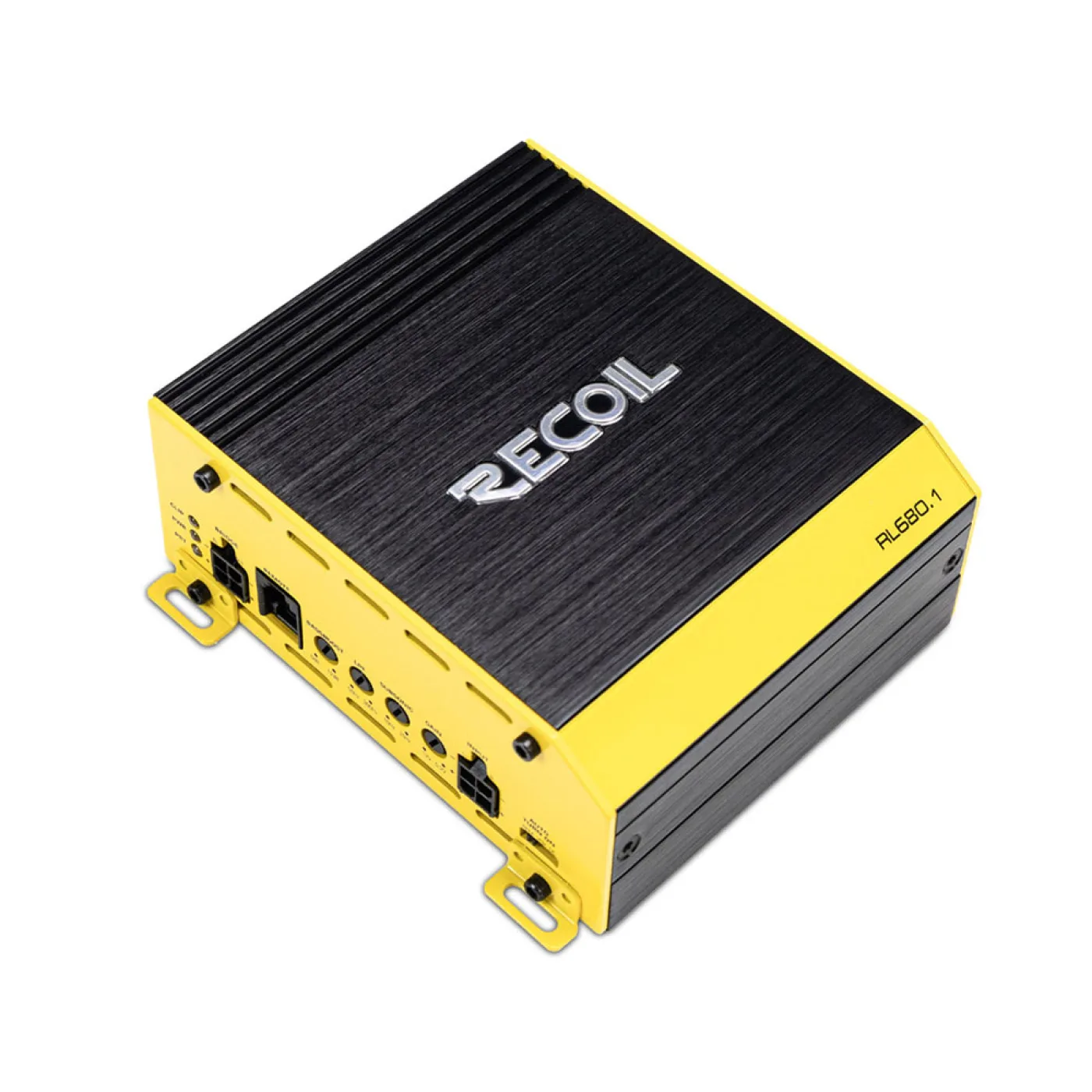

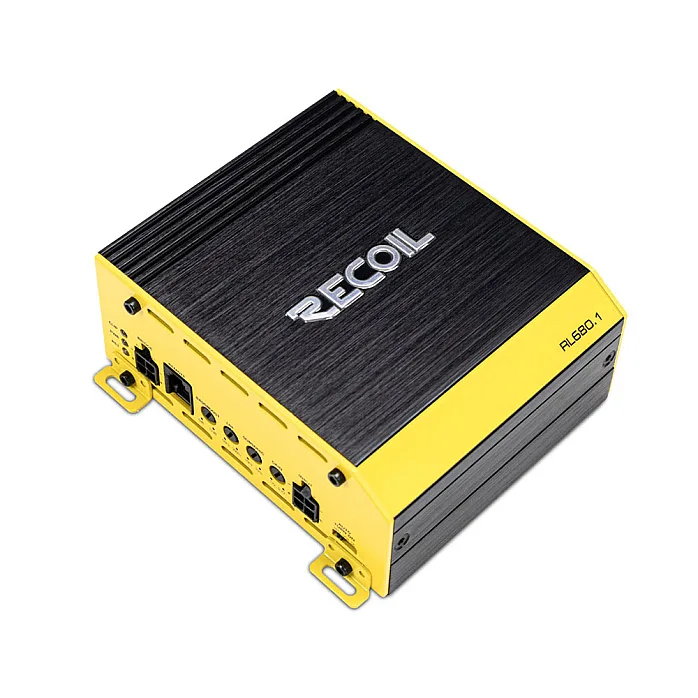

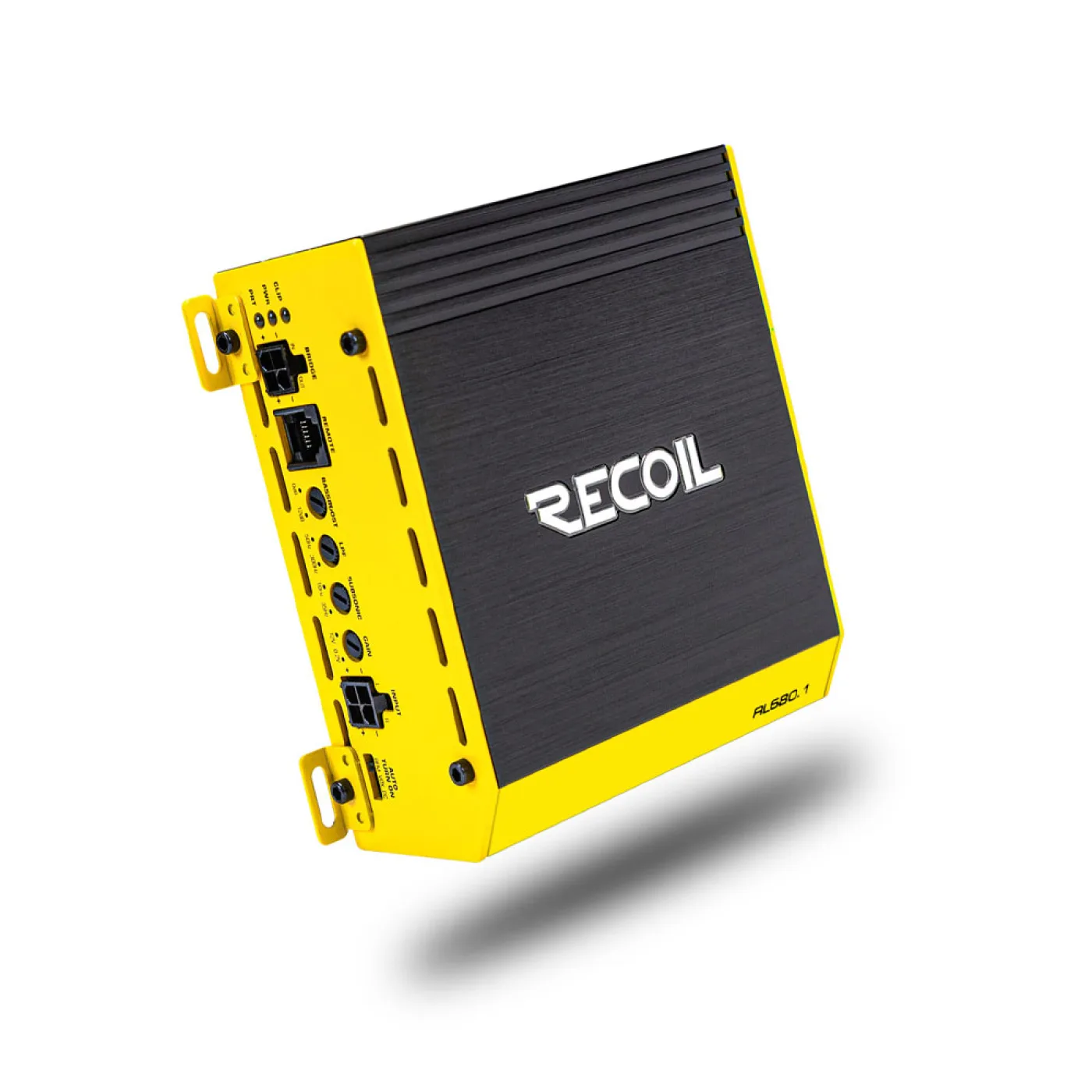

Recoil RL680.1 Class D Mono Car Amplifier 680W
- Availability:In Stock
- Available:4 in stock
- Item Condition:New
- Brand:RECOIL
- Product Code:RL680.1
- EAN / UPC:7427288196318
- Warranty:1 Year Warranty
£99.99
Recoil RL680.1 Mono Amplifier
RL680.1 680 Watts Class-D Mono Amplifier
Specifications
Specifications
- 4 Way Protection Circuit
- Thermal, Voltage, Speaker, DC

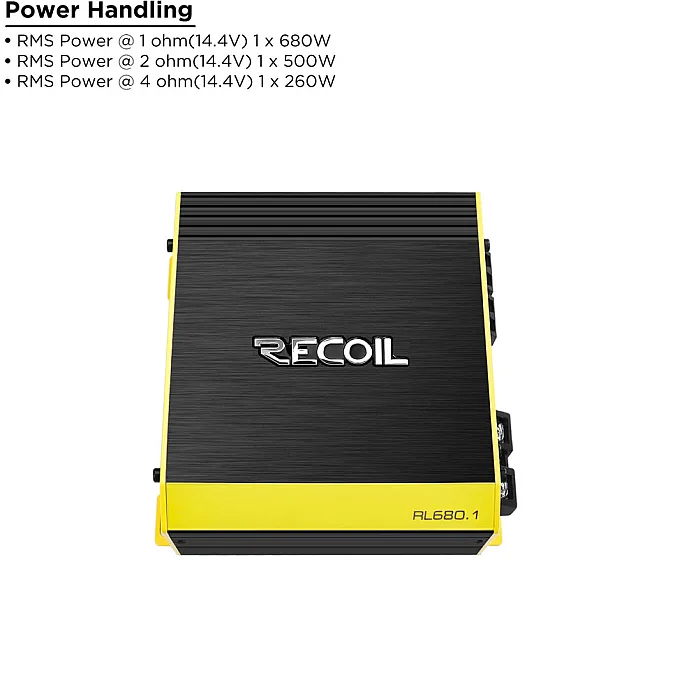

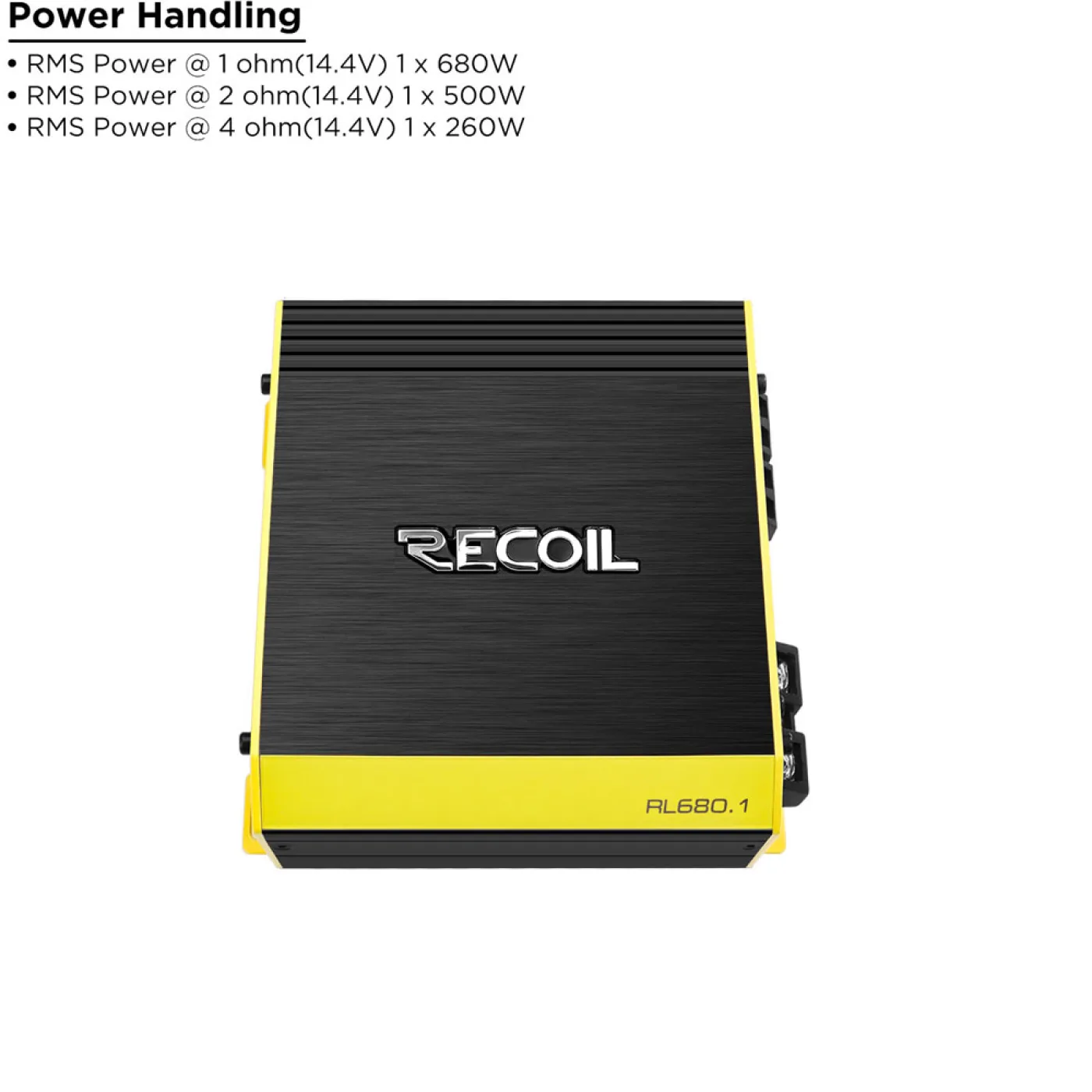

- Power @1Ohm (14.4V)
- 680W x 1
- Power @2Ohm (14.4V)
- 500W x 1
- Power @4Ohm (14.4V)
- 260W x 1
- Power (Bridged) @4Ohm (14.4V)
- N/A
- Power (Bridged) @2Ohm (14.4V)
- N/A
- Operating Voltage
- 9V-16V
- Idling Current (Power On)
- 690mA
- Frequency Response
- 10Hz-300Hz
- Signal to Noise Ratio (SNR)
- 94dB
- THD+N (@1W)
- 0.23%
- Input Sensitivity(Low Level)
- 220mV-12V
- Input Sensitivity(High Level)
- N/A

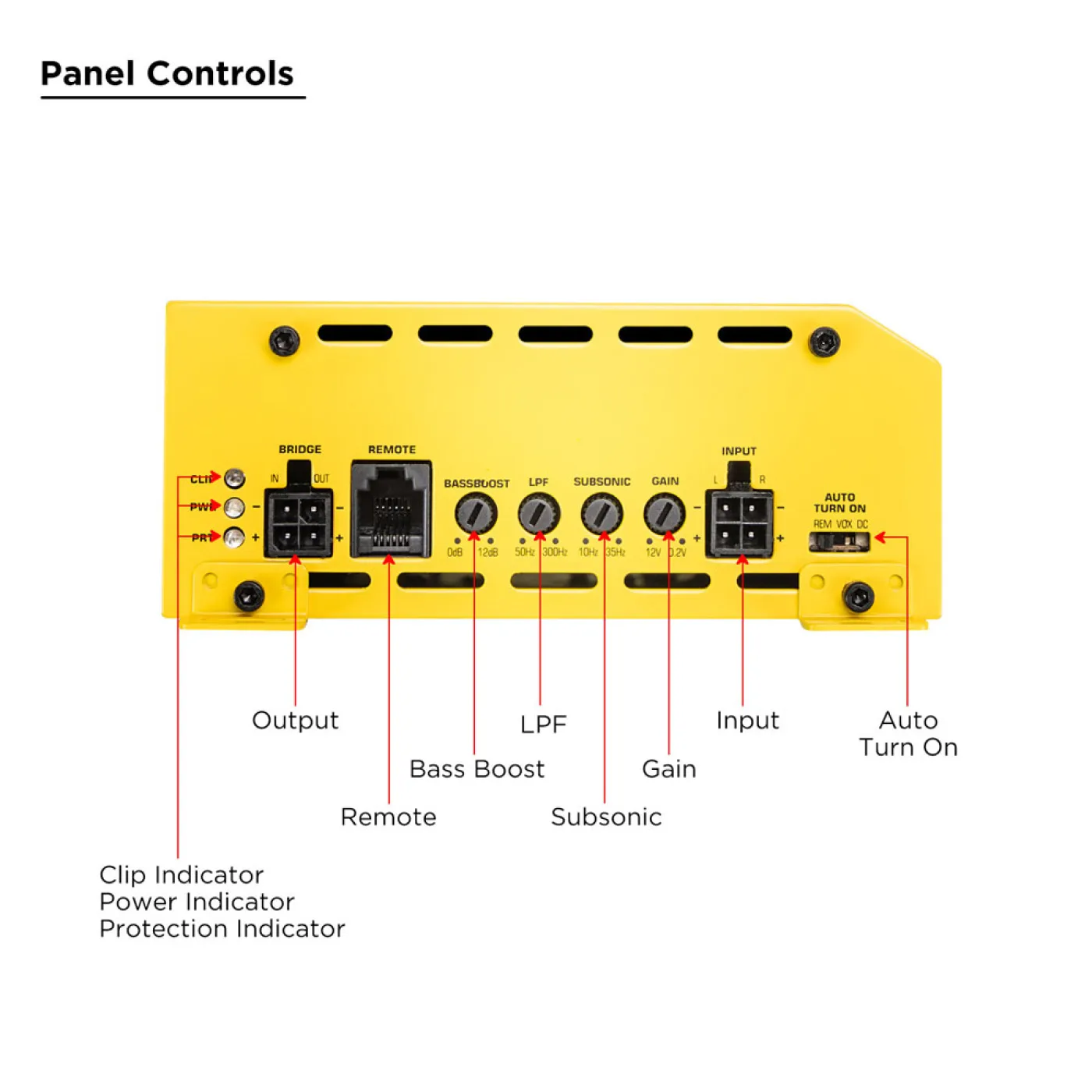

- Bass Boost
- 0-12dB
- Subsonic Filter
- 10Hz-35Hz
- Crossover LPF
- 50Hz-300Hz
- Crossover HPF
- N/A
- Bass Remote
- Yes
- Clip Indication
- 1%
- Fuse Rating
- 40A

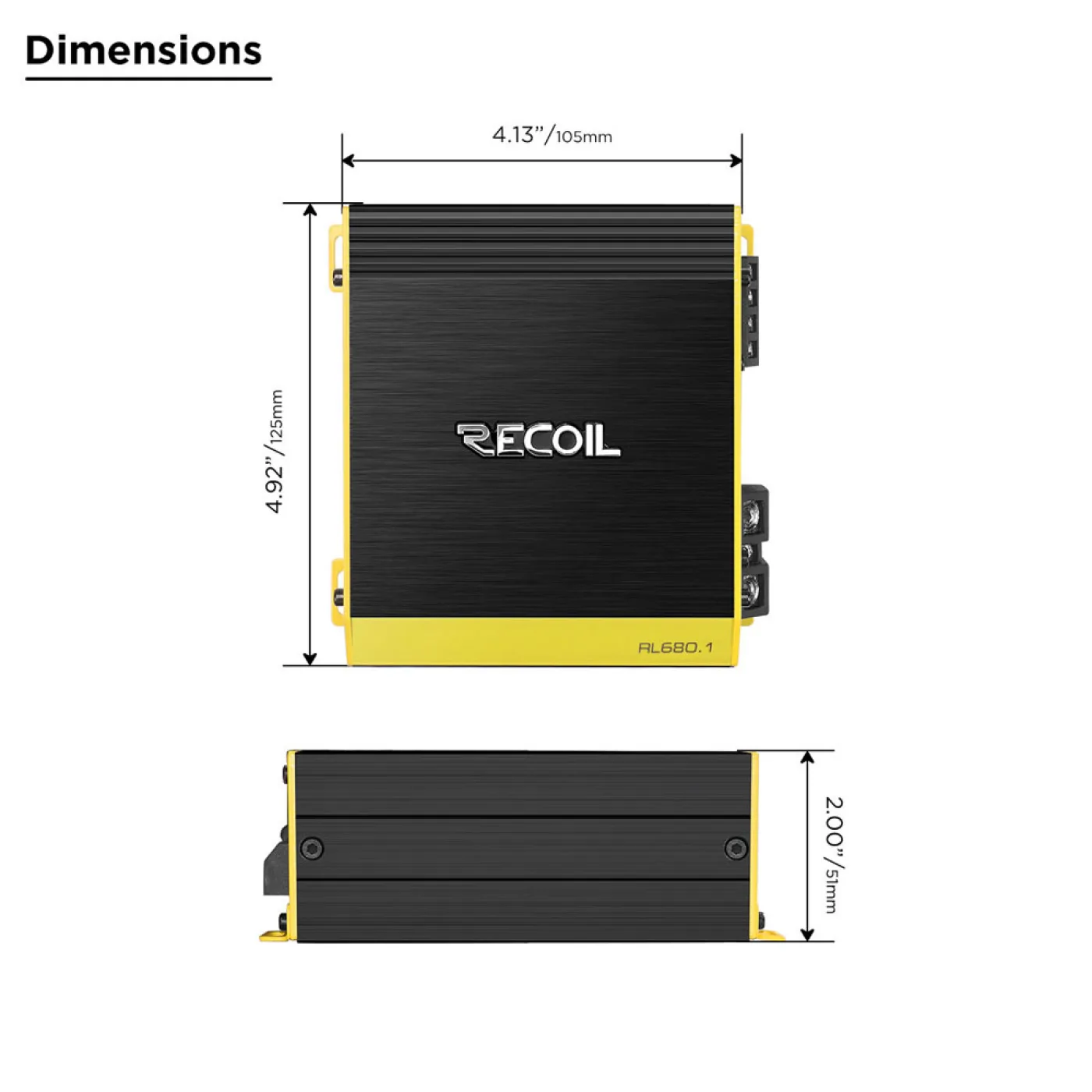

- Dimensions
- 4.13″x4.92″x2″(105mmx125mmx51mm)
