Renault Master 2010-2019 Pioneer 6.8" Wired CarPlay / Android Auto Bluetooth Stereo Upgrade Pack
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:SPH-DA150BT + FK-948/2
- EAN / UPC:7427307034232
- Warranty:1 Year Warranty

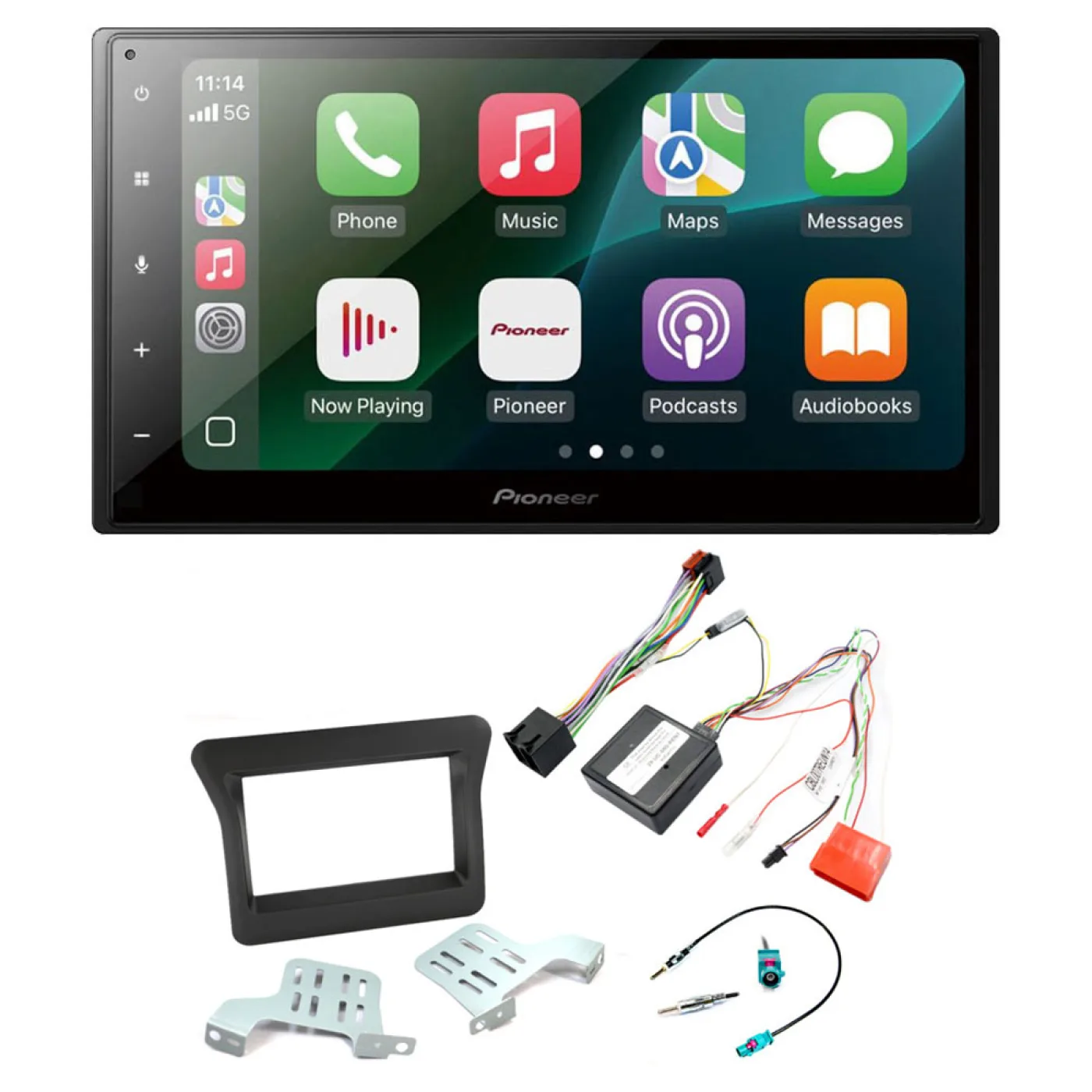

Package Includes
- Pioneer SPH-DA150BT Mechafree 6.8" Capacitive Touchscreen Apple CarPlay / Android Auto Bluetooth Stereo
- Double Din Fascia with Side Fix Brackets
- Steering wheel control interface
- Fakra to DIN Antenna Adaptor
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Renault | Master | 2010 - 2019 |
There are several different original radio options for these vans, this kit is for vehicles with the below style original radios.
Type 2
Type 4
Fitting kit
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Steering Control Adaptor
A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.
CANBus steering wheel audio control and CANbus interface for select Renault vehicles with either "Update List" radios and a seperate display above the original radio. This interface will retain the use of the steering wheel control buttons when fitting an after market head unit, as well as providing CANbus outputs, ignition, illumination, speed pulse, handbrake and reverse gear.(depends on vehicle)
The CANBus steering control signal runs through the display or original navigation unit, if the display or navigation unit is removed this interface will not function.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Male Fakra to Male DIN car aerial antenna adapter cable. This cable adapts from a Fakra connector in the car to a standard aftermarket DIN antenna connector, this is used when fitting an aftermarket stereo upgrade.
SPH-DA150BT
Mechafree 6.8" Capacitive touchscreen multimedia player, with easy smartphone connectivity via a simple USB cable supporting compatible applications including Apple CarPlay®, Android Auto™ and USB Mirroring for Android®, Bluetooth®, 13-Band GEQ, advanced audio features and premium audio quality.
Key Features
- Installation Type: 2-DIN
- Navigation: Via Android Auto , Via Apple CarPlay
- Screen Size: 6.8 inch
- LCD Screen Type: Capacitive Touchscreen
- Apple CarPlay® Connection: Wired
- Android Auto™ Connection: Wired
- DAB Antenna Lorem Ipsum
- Bluetooth
- Customisable Key and Display Illumination
- Multi color illumination:
Specifications
Audio Features
- Graphic Equaliser
- 13-Band
- High Pass Filter
- Low Pass Filter
- FLAC
- Subwoofer Control
Tuner Features
- RDS FM Radio
Connections
- Camera Input
- 1
- RCA AV Input
- 1
- RCA Rear AV Output:
- RCA Pre Outs
- 3. (Front, rear and subwoofer)
- Aux-in
- 1 Rear AV Aux-In
Other Specifications
- Rear View Camera
- Optional ND-BC9 (Sold Separately)
- Hand Held Remote Control
- Optional CD-R33 (Sold separately)
- Steering Wheel Control
- Supported
- Mechafree
- Short Chassis
| Technical | |
|---|---|
| Android Auto | Wired |
| Apple CarPlay | Wired |
| Navigation System | Via Android Auto , Via Apple CarPlay |
| Screen | 6.8" Capacitive Touchscreen |
| Size | Double DIN |
| Tuner | Yes |
| Button Illumination | Customisable Key and Display Illumination |
| Bluetooth | Yes |
| iPod Ready | Yes |
| Works with iPhone | Yes |
| Aux In | Rear AV Aux In |
| Pre Out | 3. (Front, rear and subwoofer) |
