Renault Trafic 2014-2022 Pioneer 6.8" CarPlay / Android Auto Bluetooth DAB Stereo Upgrade Kit (NAVIGATION SYSTEMS)
- Availability:In Stock
- Available:8 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:SPH-DA160DAB + Aerial + FK-942-NAV
- EAN / UPC:7427306996272
- Warranty:1 Year Warranty

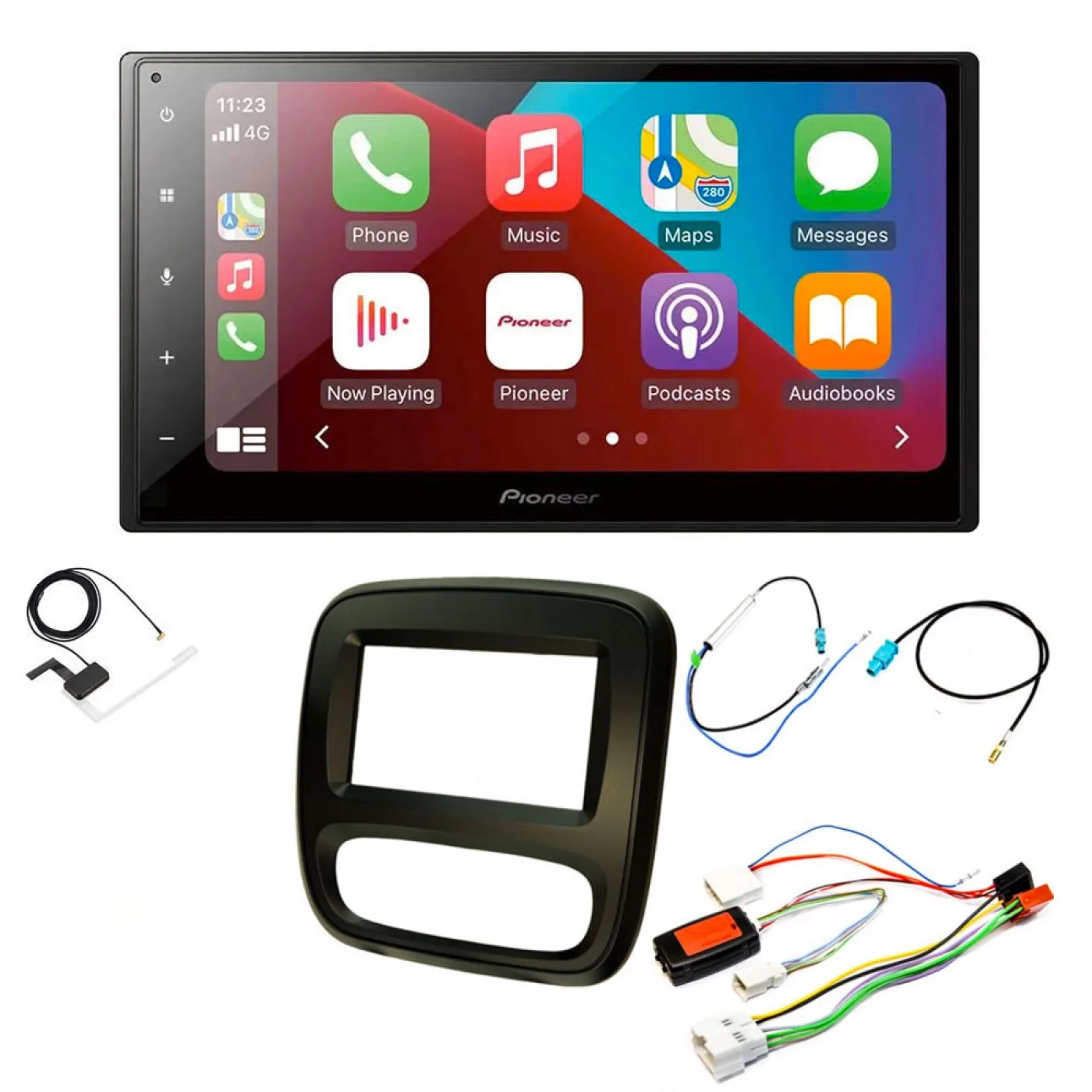

Package Includes
- Pioneer SPH-DA160DAB 6.8" Capacitive Touch Screen Bluetooth Apple Car Play DAB
- DAB Antenna Aerial
- Double Din Fascia (Matt Black)
- Steering Wheel Control Interface
- Fakra Male to SMB Female DAB Adaptor
- Fakra to DIN Aerial Adaptor Cable With 12v Phantom Power
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Renault | Trafic | 2014 - 2022 | III |
Original Stereo Should Be Look Like This
ON SOME LATE VEHICLES AROUND 2018 AND NEWER YOU MAY NEED TO MANUALLY WIRE IN A SEPARATE IGNITION LIVE FEED AS THESE VEHICLES MAY NOT NATURALLY HAVE THIS SUPPLY WITHIN THE ORIGINAL RADIO PLUGS LIKE THE OLDER MODELS HAD.
SOME VEHICLES WITH STOP START FEATURE WILL REQUIRE AN INTERFACE TO BE INSTALLED INLINE WITH THE POWER ISO PLUG OF THE NEW STEREO.
THE INTERFACE WILL ALLOW THE UNIT TO STAY POWERED WHEN THE VEHICLE ENGINE SHUTS DOWN AND RESTARTS.
IF YOU ARE EXPERIENCING THIS WITH YOUR NEW INSTALLATION YOU WILL NEED A 10-603 ADAPTER IN ADDITION TO THE FITTING KIT.
Part in question is:
ONLY SUITABLE FOR MODELS WITH ORIGINAL OEM NAVIGATION SYSTEMS , FOR MODELS WITH BASIC STANDARD RADIOS PLEASE USE FK-942
Fitting kit
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version. This kit uses side fixing brackets to mount the new radio for a flush fit, so no cage is required. For single DIN fitting a universal pocket will need to be acquired.
Steering Control Adaptor
A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.
This interface will allow you to retain the use of the steering wheel controls on vehicles with an original fit navigation unit. This interface also adapts from the white connector in the vehicle to standard after market ISO connectors. This interface will give volume, seek/track, source and telephone commands to compatible after market head units.
Fakra Male to SMB Female DAB Adaptor
Use this adapter to adapt a fakra DAB connector in a car to a DAB SMB connector on an after market DAB radio.
Fakra to DIN Aerial Adaptor Cable with 12v Phantom Power
This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector. The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.
Powerful Entertainment For Your Car.
The 2-Din SPH-160DAB lets you connect to a compatible iPhone or Android phone using a single USB cable, which will allow you to control Apple CarPlay, Android Auto and Waze (Via Android Auto or Apple CarPlay) from your dashboard in a convenient and safe way. It plays DAB/DAB+ Digital Radio, audio/video content from USB devices.
Additionally, this car AV player features Bluetooth, allowing you to stream your music or call hands-free over a wireless connection.
Upgrade your music with high-grade audio functions: The 13-band graphic EQ allows you to customise the sound settings to your own preferences.
Main Features
- Apple CarPlay
- Android Auto
- DAB+
- Digital Radio Tick Mark Approved product
- Bluetooth®
- Mechafree
- USB Input
- Spotify Via Android Auto or Apple CarPlay
- Waze Via Android Auto or Apple CarPlay
- Multi colour illumination
- FM Radio
- Camera Input
- Screen 6.8" Capacitive Touchscreen
- Plays
- Your iPod, iPhone, Android Smartphone
- Bluetooth audio
- Via USB:
- MP3, WMA, AAC, WAV and FLAC audio files
- H.264, MKV, FLV, MPEG4, MPEG2 (PS) and TS video files in Full HD
- JPEG and BMP image files
- Customisable Key and Display Illumination
- Installation Type 2-DIN
- Accessories Included:
- 1 USB extension cables
- 1 Microphone for hands-free calling
- USB Input Rear USB (1 Amp)
Specifications
Screen Features
- 6.8" Capacitive Touchscreen
Apple Compatibility
- Made for iPod / iPhone
- Siri Eyes Free
- Works with iPhone
Android Compatibility
- Compatible with Android
- Display Mirroring for Android
Audio
- FLAC
- 13-band Graphical EQ
- MOSFET 50 W x 4 Amplifier
- Graphic Equaliser
- 13-band
- Listening Position Selector
- High Pass Filter
- Low Pass Filter
- Subwoofer Control
- RCA Pre-Outs 3. (Front, rear and subwoofer)
- DAB+ Digital
Tuner Features
- RDS FM Radio
Bluetooth
- Hands Free Calling (Hands Free Profile)
- Music Streaming
- Additional Bluetooth Features Audio streaming
- Compatibility
- HFP/A2DP/SPP
- Pioneer Bluetooth
Connections
- Aux-in 1 rear AV Aux-In
- RCA AV Input
- RCA AV Rear Output
- Hard Wired Remote Ready
- ISO connector
| Technical | |
|---|---|
| Dab Radio | Yes |
| Screen | 6.8" Capacitive Touchscreen |
| Size | Double DIN |
| Plays | MP3, WMA, AAC, WAV and FLAC audio files |
| Max. Power Output | 4 x 50W MOSFET |
| Tuner | Yes |
| Display Illumination | Multi-colour display and screen |
| Button Illumination | Customisable Key and Display Illumination |
| Bluetooth | Yes |
| Android Ready | Yes |
| iPod Ready | Yes |
| Works with iPhone | Yes |
| Aux In | Rear Aux In |
| USB | Rear USB |
| Pre Out | 3 (Front, Rear, Subwoofer) |
