Toyota Aygo 2005 - 2014 JVC 6.8" Screen USB Bluetooth Wireless CarPlay / Android Auto Stereo Upgrade Pack
- Availability:In Stock
- Available:9 in stock
- Item Condition:New
- Brand:JVC
- Product Code:KW-M785DBW + Aerial + FKIT-TOYOTA-70
- EAN / UPC:7427307017617
- Warranty:1 Year Warranty
£328.99
<p>Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Wireless Apple CarPlay, Android Auto & Android Mirroring / DAB+ tuner / Hi-Res Audio / Bluetooth® / 13-band EQ / Rear Cam Input / Short Chassis.</p>

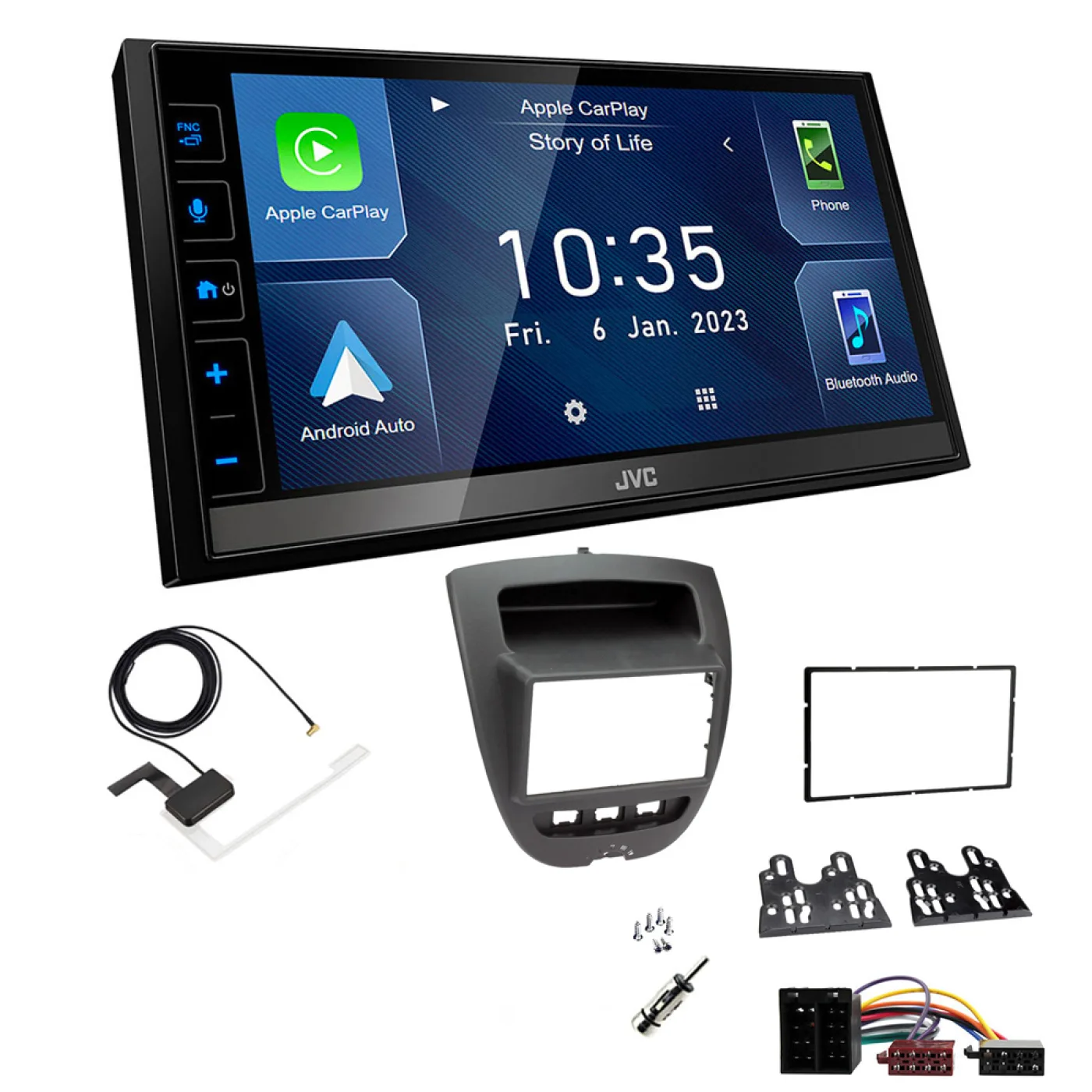

Package Includes
- JVC KW-M785DBW 6.8" Screen USB Bluetooth Wireless Apple CarPlay Android Auto
- DAB Aerial
- Double Din Fascia Panel (Black)
- Wiring Harness
- Aerial Adaptor
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Toyota | Aygo | 2005 - 2014 |
Fitting kit
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a single din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Wiring Harness
The wiring harness will allow to install the stereo without having to cut any wires. This ISO - ISO Inverted adapter is required when replacing your factory fitted radio with an aftermarket radio. It will convert the original vehicle power & speaker wiring connectors to a standard ISO connector. Simply plug one end of the adapter into your cars wiring harness and the other into your new radio.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Wireless Apple CarPlay, Android Auto & Android Mirroring / DAB+ tuner / Hi-Res Audio / Bluetooth® / 13-band EQ / Rear Cam Input / Short Chassis.
Features
- 6.8" WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
- Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
- Supports Android Auto & Apple Car Play wirelessly and with a USB cable.
- Bluetooth(R) Wireless Technology (*Available functions depend on cell phone).
- Rear High Speed USB port. Up to 1.5A Max Charge.
- MP3 / WMA / AAC / WAV / FLAC - music file playback.
- MPEG1 / MPEG2 / MPEG4 / H.264 / MKV / WMV - video file playback.
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
- 3 RCA line outs (2.5V) to upgrade your system with power amplifiers to create a more immersive audio experience.
- 1x AV input / 1x Video output / 1x Rear View Camera input.
- DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
- Supports USB Mirroring for Android with Mirroring OA for JVC App.
- Short chassis (75mm) for easy installation.
- Steering wheel remote control adapter input (Optional, car specific interface required).
- Wireless IR remote controller ready
Specifications
Monitor
- Screen Size 6.8 inches (diagonal) wide
- Touch Control
- Panel Type WVGA Capacitive
- Display System TN LCD panel
- Drive System TFT active matrix system
- Number of Pixels 1,152,000 (800 x 480 x RGB)
- Effective Pixels 99.99 %
- Pixel Arrangement RGB striped arrangment
- Back Lighting LED
- Key Illumination Colour RGB
- Variable Colour Illumination
- Dimmer Manual/Sync (Auto/On/Off)
- Customizable GUI
- Multilingual Display 14 languages
- English(UK/US) / Spanish / French / German / Italian / Dutch / Russian / Portuguese / Hebrew / Greek / Polish / Czech / Hungarian.
- Viewing Angle Adjustment (0 - 20 degree, default
- 0 degree) 4steps
Radio Tuner
- DAB+ Tuner
- DAB+ Frequency Band III 174.928MHz to 239.2MHz
- DAB-DAB / DAB-FM Auto Switch
- Seamless DAB-FM Blending
- FM Tuner
- Radio Data System (RDS) (with Radio Text Plus)
- FM Stereo/Mono Switch
- FM Frequency Range 87.5 ~ 108.0MHz (50kHz step)
- FM Usable Sensitivity 6.2dBf (0.56μV/75 ohms)
- FM Quieting Sensitivity (46dB) 15.2dBf (1.58μV /75 ohms)
- FM Stereo Separation 40 dB (1kHz)
- AM Tuner
- AM Frequency Range 531kHz ~ 1,611kHz (9kHz Frequency Step)
- AM Sensitivity 28.5 μV
- Preset Stations 20 (FM:15ch, AM:5ch)
- Tuner Preset Memory
- Automatic Preset / SSM
Media Playback
- Audio Decoder
- MP3 Compatible with Tag
- WMA Compatible with Tag
- WAV Compatible with Tag
- AAC Compatible with Tag
- FLAC Compatible with Tag
- Video Decoder
- MPEG-1 / MPEG-2 Compatible
- MPEG-4 Compatible
- WMV Compatible
- H.264 Compatible
- MKV Compatible
- JPEG File Playback For user background only
- BMP File Playback For user background only
- PNG File Playback For user background only
USB
- USB Port(s) x 1
- Location Rear
- USB Standard x1 (High Speed)
- File System FAT16 / FAT32 / exFAT
- USB Mass Storage Class
- Drive Change Mode for Mass Storage Class
- Tag Information Display
- Album Art Display
- List Access
- Alphabet Search
- Category search
- Link Search
- Random / Repeat Play
- Skip
- Time Code Display
- Last Position Memory / Resume
- Digital / Analog Converter (DAC) 24 bit
- Frequency Response 20 Hz ~ 20kHz
- Total Harmonic Distortion (THD) 0.01 % (1 kHz)
- Signal-to-Noise Ratio (S/N) 98.5 dB
- Dynamic Range 89 dB
- 1.5A Max. Power Supply Current
Bluetooth®
- Built-In Bluetooth (Version 5.0)
- Voice Dialing
- Supported profiles Multi profile
- Hands Free Call (HFP) HFP1.8 Wideband Speech
- Advanced Audio Distribution Profile (A2DP) V1.3.2
- Audio/Video Remote Control Profile (AVRCP) V1.6.2
- Phone Book Access Profile (PBAP)
- Alphabetical Search for Phone Book
- Serial Port Profile (SPP)
- 2 Phones Full-Time Connection
- Audio Codec AAC / SBC
- JVC Streaming DJ with up to 5 Bluetooth devices
- Auto Pairing
- Noise Canceller
- Echo Canceller
- Wired Microphone included
Wi-Fi Control
- Built-in Wi-Fi
- IEEE Standard 802.11 a/b/g/n/ac
- Frequency Range Dual Band (2.4GHz/5GHz)
Android Control
- Android Auto
- Android Auto wired (via USB)
- Android Auto wireless (WiFi)
- Wired mirroring (via USB / mirroring app needed)
iPod/iPhone Control
- CarPlay
- CarPlay wired (via USB)
- CarPlay wireless (WiFi)
App(s)
- Mirroring OA for JVC
- Google Play (Android) https
- //play.google.com/store/apps/details?id=com.jvckenwood.mirroringOAjvc&hl=en&gl=US
Audio
- Maximum Power Output (Front & Rear) 50W x 4
- Full Bandwidth Power (at less than 1%THD) 22W x 4 (Front & Rear)
- Speaker Load Impedance 4 Ω ~ 8 Ω
- Output Frequency Band 20 Hz ~ 88.000Hz
- Equalizer
- 13-Band Graphic EQ
- Preset EQ Preset x8 + User x4 / Source
- Volume Link EQ
- 3-Way X'over
- High-Pass Filter/Low-Pass Filter
- Digital Sound Processor (DSP)
- Time Alignment
- Time Alignment
- Sound Enhancement
- Space Enhancement
- Sound Response
- Sound Lift
- Loudness Control
- Bass Boost (Hyper Bass System)
Inputs and Outputs
- Audio Inputs and Outputs
- Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
- Pre-Out Impedance Less than 600 ohms
- Pre-Out Level/Impedance 2.5V/10k ohms
- Audio Output level (mini jacks) 2V / 25k ohms
- Subwoofer Output with Level/Frequency Control
- Video Inputs and Outputs
- Video Input Level/Impedance 1.0Vp-p / 75 ohms
- AV Input mini jack (AV-IN or Camera switchable)
- Video Out RCA
- Colour System NTSC/PAL
- Video Output Level/Impedance 1.0Vp-p / 75 ohms
- Camera inputs
- Rear view camera Input
- Convert AV-input to camera input
General
- Back Up Memory
- Installer Memory
- GPS Antenna Input
- DAB Antenna Input
- Wireless Remote Control Ready (RM-RK258 required)
- Wired Steering Remote Control Ready
- Learning Direct OEM Remote
- ISO Connector 16pin Mitsumi to ISO Wiring harness
- Short Chassis
- Operation Voltage 12 VDC
- Dimensions (W x H x D) 180mm x 100mm x 75mm
- Installation Size (W x H x D) 182mm x 111mm x 75mm
- Weight, inlcuding sleeve and escutcheon 1.2kg
| Technical | |
|---|---|
| Android Auto | Yes |
| Apple CarPlay | Yes |
| Dab Radio | Built-in |
| Screen | 6.8" Clear Resistive Touch Monitor |
| Size | Double Din |
| Plays | MP3, WMA, WAV,AAC, FLAC |
| Max. Power Output | MOS-FET 50W x 4 |
| Tuner | FM, AM Tuner |
| Radio Data System | Yes |
| Button Illumination | RGB |
| Bluetooth | Built In |
| iPod Ready | Yes (via USB or Bluetooth(R)) |
| Works with iPhone | Yes (via USB or Bluetooth(R)) |
| USB | Rear USB |
| Pre Out | 3 RCA Pre Out |
