Vauxhall Astra, Antara, Zafira 6.8" Wireless CarPlay / Android Auto DAB+ Bluetooth Stereo Upgrade Pack
- Availability:In Stock
- Available:3 in stock
- Item Condition:New
- Brand:Kenwood
- Product Code:DMX6523DABS + Aerial + CTKVX10
- EAN / UPC:7427307024455
- Warranty:1 Year Warranty

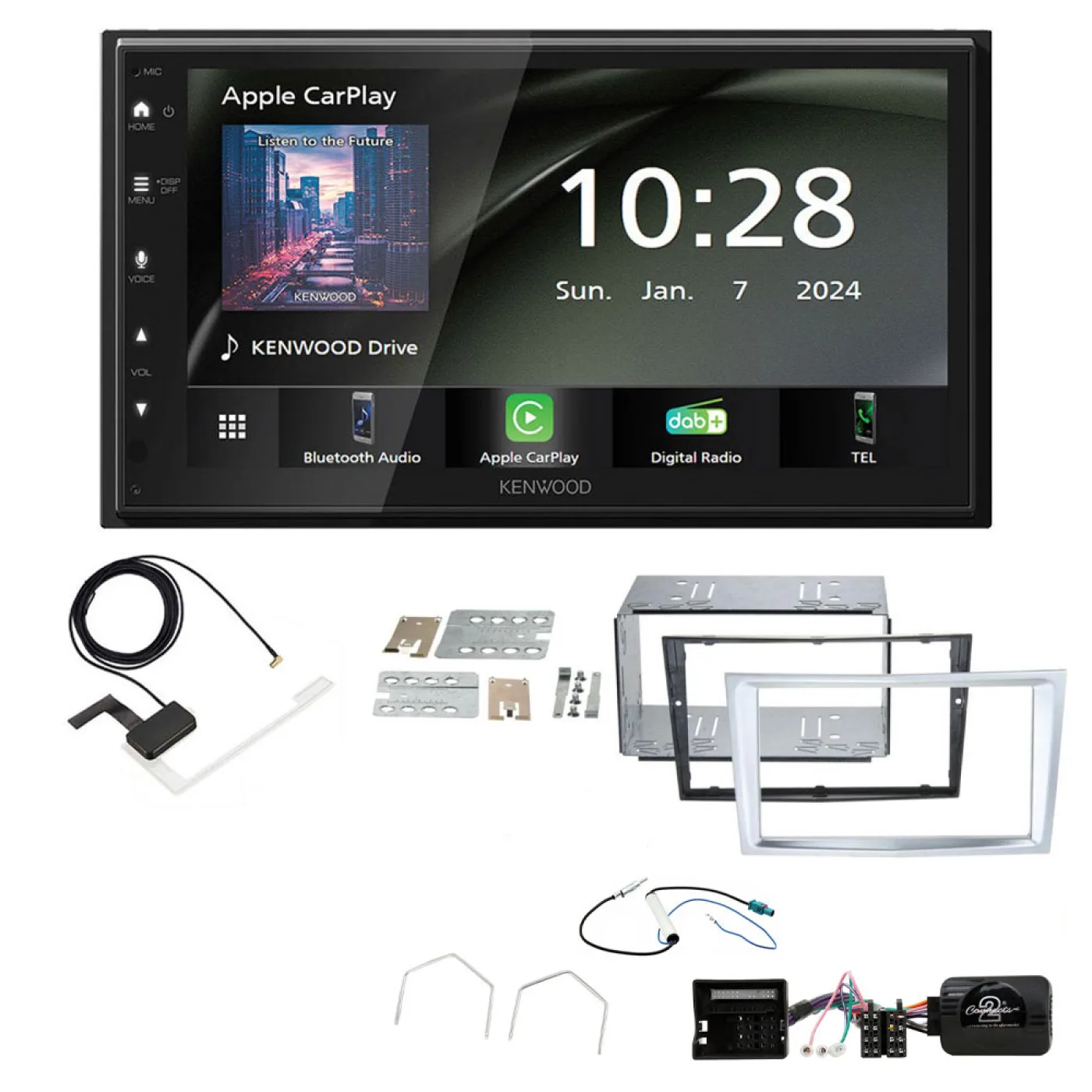

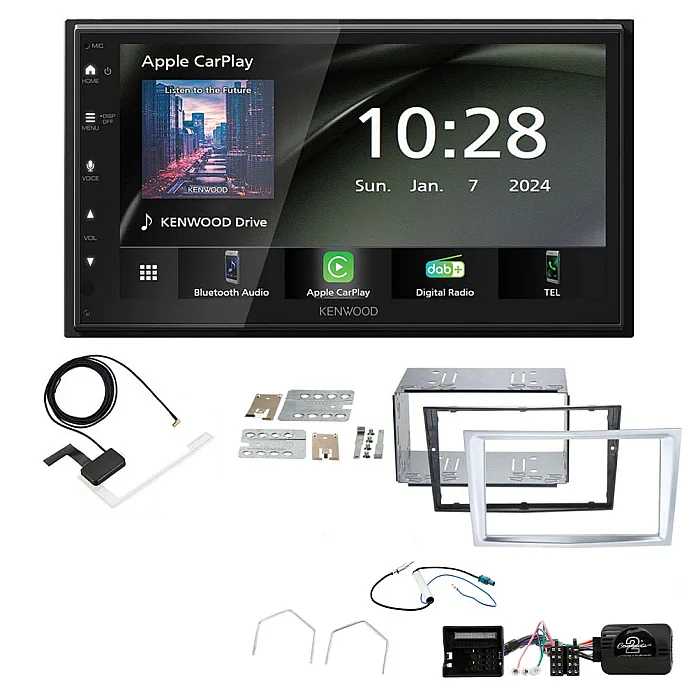

Package Includes
- Kenwood DMX6523DABS 6.8" WSVGA Screen Wireless CarPlay / Android Auto, Mirroring, DAB+ Bluetooth Stereo
- DAB Aerial
- Double Din Fascia Adaptor (Matt Chrome)
- CAN-Bus Steering wheel Control Adaptor
- Aerial Adaptor
- Stereo Removal Keys
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Vauxhall | Antara | 2006 - 2010 | |
| Vauxhall | Astra | 2004 - 2010 | H |
| Vauxhall | Zafira | 2005 - 2014 | B |
CD30/CDC40/CD50/CD70, Quadlock (Fakra)
Fitting kit
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Steering Wheel Interface
A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Stereo Removal Keys
Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.
DMX6523DABS
Digital AV Receiver • 6.8" WSVGA Display • Wireless Apple CarPlay®/Android Auto™ & iPhone & Android Mirroring • DAB+ Tuner
Key Features
- 6.8" WSVGA Display with Capacitive Touch Panel.
- Wired & Wireless CarPlay® & Android Auto™
- True Wireless Mirroring, 2-Way Touch Control for iPhone & Android
- Built-in DAB+ Digital radio Tuner
- Built-in Bluetooth® technology for Handsfree calling & Audio Streaming.
- High Current 2.1A Charging USB port.
- Front & Rear + Subwoofer (Mono) Preouts - 2.5V
- 13 Band EQ & Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Single DIN Short Chassis Design for easy installation
Apple CarPlay – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
*Some features, applications, and services are not available in all areas.
Android Auto™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
* Compatible Android phone required.
Wireless Mirroring for smartphone
By installing the “MirroringAPP+”, your iPhone & Android phone* screen is seamlessly displayed on the receiver's large screen wirelessly. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
*Selected smartphones only
Built-in DAB+ Digital Radio Tuner
DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality crystal clear sound and doesn't suffer from the same types of interference or static issues than with analogue AM/FM radio. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.
Easy Installation With a Compact Rear Chassis
Despite its double-DIN display, the L-shaped chassis is only half sized than conventional double-DIN units.
The reduced depth and the L-shape of the chassis contributes to a weight reduction and facilitates easier installation.
High Resolution WSVGA (1024 x 600px) LCD Display
The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Sound Adjustment Features
For optimal sound tuning enhancements.
Specifications
General Features
- DIN Size 2 DIN
- Smooth GUI
- Selectable GUI Background Wallpaper
- Key Illumination White color
- Attenuator with Smooth Volume Return
- Touch Sensor Tone
- Optional IR remote controller, (KNA-RCDV331)
- Digital Clock (24H)
- Built-in Bluetooth
- DAB Tuner Built-in
- Made for iPhone
- Apple CarPlay – Connect Wirelessly or via USB
- Android Auto™ – Connect Wirelessly or via USB
- Wireless Mirroring for iPhone/Android
- Firmware upgreadable
Monitor Features
- Screen Type 6.8" Wide SVGA
- Display Type Glare
- Display Panel Capacitive
- Display film Anti Fingerprint
- High Resolution WSVGA Screen 1024 x 600 pixel
- LCD backlight White LED
- Display Mode 3 Mode (Normal(default) / 16
- 9 / 4:3)
- Screen Adjustments Brightness / Tint / Color / Contrast
- Dimmer function Manual/Sync
- Dimmer Level Auto/On/Off
- Visual Source Mode Mirorring / CarPlay / Android Auto.
- Mechanism type Fixed
- NTSC/PAL judge (Auto)
- Display Off Mode
Multimedia GUI Features
- OSDC Type Graphic
- Menu text 14 languages:
- English(UK)(Default)
- English(US)
- Spanish
- French
- German
- Italian
- Dutch
- Portuguese
- Arabic
- Hebrew
- Greek
- Polish
- Czech
- Hungarian
- Demonstration Mode
- Top Menu Customize
- Opening Screen Type standard
- Wallpaper customizable 6 x presets + 2 x user set
- R-CAM interrupt
- R-CAM Parking Guide Lines, Built-in, customizable
Network & Wifi Features
- WiFi built-in
- Frequency Range 5 GHz (5,745– 5,825 GHz)
- Output Power 5GHz / SISO
- 13.78 dBm
- Wireless connection for Apple CarPlay
- Wireless connection for Android Auto
- Wireless connection for iPhone & Android Mirroring With MirrorApp+ application
Tuner Features
- FM Reception
- AM (MW/LW) Reception
- Tuning mode Auto1/Auto2/Manual
- Up/Down Seek/Scan
- Tuner Presets (FM/AM) 36 Presets (24FM / 12AM)
- Automatic Memory Entry (AME)
- Radio Data System
- Radio Text Plus
- Traffic Information
- Local search
- AF Regional Selectable
- AF/AF Reg/OFF
- Enhanced Other Networks Function (EON)
- Program Type Function (PTY)
CE DAB Tuner Features
- DAB+ tuner built-in
- Digital Radio Certification Mark
- Intelligent seek
- Tuning mode / Seek mode Auto1/Auto2/Manual
- Service preset 15 ch * 1 bank presets,
- Service list by alphabet order
- Alphabet Search
- DAB-DAB/DAB-FM auto switch
- Seamless DAB-FM blendings
- DLS (Dynamic Label)
- PTY (Programme Type) search
- Announcement Switching (ASW) Select
- Slide Show
- Soft linking
- Antenna power supply on/off switch
Bluetooth General Features
- Hands Free Profile (HPF) Ver. 1.8
- Audio Streaming (A2DP), (SBC/AAC)
- Simple Secure Pairing (SSP)
- Phonebook Access Profile (PBAP)
- PBAP call history Up to 20 entries of dialed, received and missed calls
- Audio/Video Remote Control Profile (AVRCP), V1.6
- iPhone & Android automatic pairing via USB
- Private mode
- Interrupt call request
- Voice Control
- Noise Canceller
- Echo Canceller
- High-quality noise canceling microphone built-in
- Bluetooth firmware upgradeable, Included in system updates
Playable Audio File
- AAC (*.aac) files are playable USB
- MP3 files are playable USB
- WMA (.wma) files are playable USB
- WAV (.wav) files are playable USB
- FLAC files are playable USB
CE_Playable Video File
- MPEG1/2 files are playable USB
- MPEG4 files are playable USB
- WMV files are playable USB
- H.264 files are playable USB
- mkv files are playable USB
USB Features
- USB terminal, rear side / 1m cable / fix
- USB Type 2.0 High speed
- Drive Change
- File System FAT16 / FAT32 / exFAT / NTFS
- Tag Information Display
- Album Art Display
- Repeat Play Folder/File/All
- Random play Folder
- Category search
- Link Search
- Last Position Memory / Resume
- Time code display
- USB ports maximum output current 2.1A
iPhone Features
- Connection via
- USB / Bluetooth
- Plug & Play
- Made for iPhone
- Tag Information Display
- Time Code Display
- List Access
- Album art support
- Random Play
- Repeat Play
- Skip
- iAP over Bluetooth
- Works with Apple CarPlay Wired & Wireless
Android Phone Control
- Connection via USB / Bluetooth
- Works with Android Auto Wired & Wireless
- Android Open Accessory Protocol (For Android Auto)
Audio Features
- Max. Output Power 4 x 50W
- Primary Power Output 4 x 22W
- Pre-out 2 RCA
- FRONT/REAR + SUB(mono)
- Pre-out Output Level 2.5V
- Volume Offset
- Volume Type DSP
- Built-in Amplifier Off
- Balance/Fader Control
- Beep On/Off
Multimedia DSP Features
- Position Preset 4 Presets
- Position Preset
- Graphic Equalizer 13 bands
- G-EQ manual setting
- G-EQ adjustable level, +9db / -9dB
- Time Alignment 0 ~ 610cm
- HPF Cut Off Frequency 14 steps
- HPF Cut Slope Level 4 steps
- Low Pass Filter (LPF) (Non-Fading)
- LPF Cut Off Frequency 14 steps
- LPF Cut Slope Level 4 steps
- X'over
- Speaker Size Control
- Channel Level Control
- Loudness
- Tweeter volume
- Bass Boost
- Source Volulme Offset source independent
Connectivity
- DC-Cord 22pin (New Type) to ISO
- Reverse sensor wire
- Parking sensor (handbrake) wire
- Power Control (P.CON) wire
- Dimmer control wire
- Preout 2 x RCA (Front/rear) + Sub (mono)
- Video Out RCA x1 (Source
- USB)
- Rear View Camera Input Dedicated RCA Video-in
- GPS Aerial Input GPS antenna included
- FM Antenna Input JASO connector
- DAB Aerial input SMB
- External microphone input 3,5mm mini-jack
- OEM Wired Remote Control ready, Optional interface needed
- Learning Steering Remote Function
DMX6523DAB vs DMX7722DAB
Smaller 6.8" Screen / 7" Screen
2 Pre Outs / 3 Pre Outs
Built in Microphone / Wired Microphone
Single Din Chassis / Double din Chassis
Higher Resolution / Slightly Lower Resolution
| Technical | |
|---|---|
| Apple CarPlay | Works with Apple CarPlay |
| Dab Radio | Yes |
| MirrorLink Ready | Android USB Mirroring |
| Screen | Double Din 6.8" WSVGA Display with Capacitive Touch Panel. |
| Plays | AAC, MP3, WMA, WAV, FLAC files ar files are playable USB |
| Max. Power Output | 4 x 50W |
| Tuner | 36 Presets (24FM / 12AM) |
| Radio Data System | Yes |
| Button Illumination | White color |
| Bluetooth | Built-in Bluetooth |
| Android Ready | Work With Android Auto |
| USB | Rear side / 1m cable / fix / 2.0 High speed |
