1 Year Warranty
Vauxhall Astra H, Corsa D, Zafira B Kenwood Digital Media Receiver DAB+ Digital Radio Bluetooth Car Stereo Upgrade Kit
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:Kenwood
- Product Code:KMM-BT508DAB + FKIT-VAUXHALL-41
- EAN / UPC:7427307001500
- Warranty:1 Year Warranty
£148.99

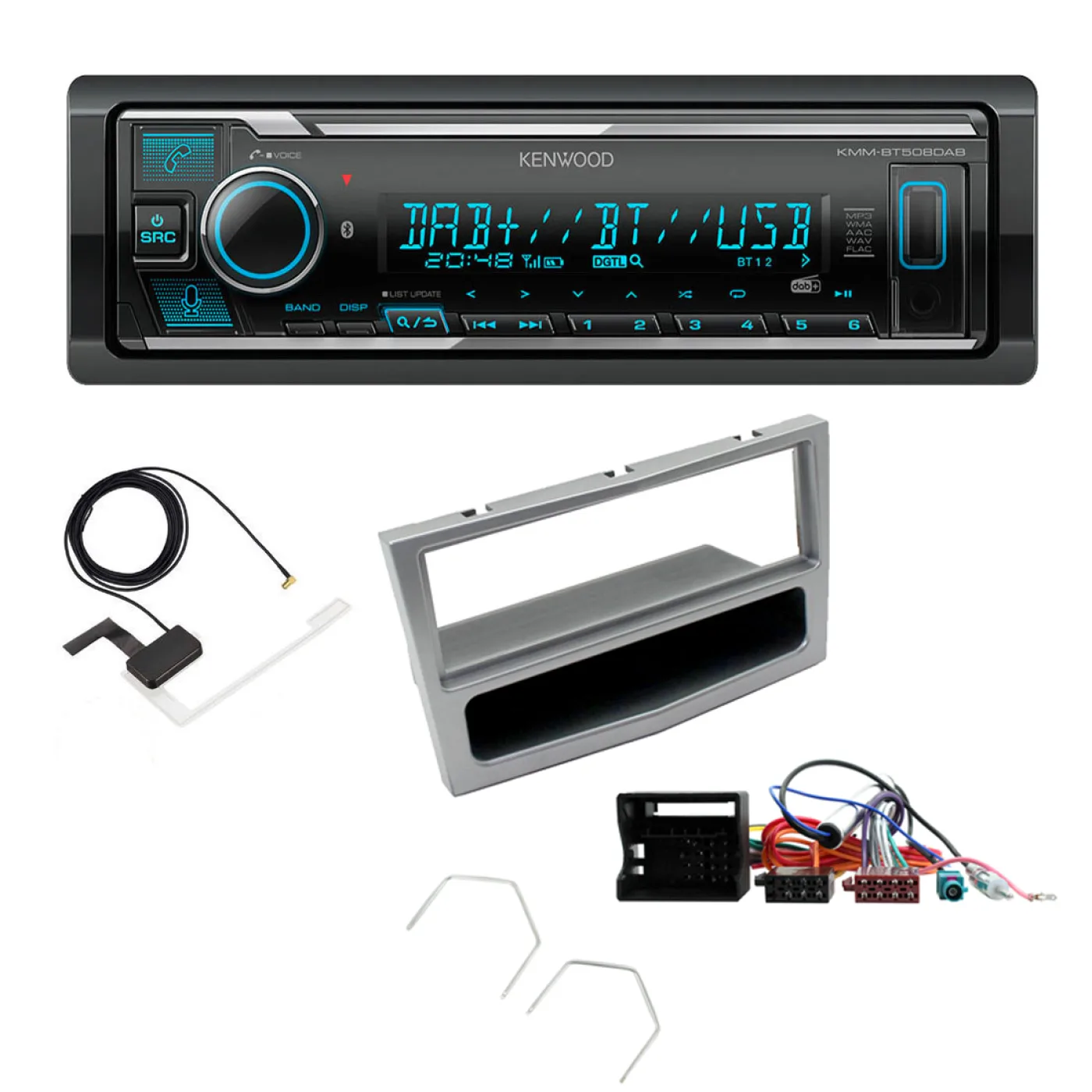

Package Includes
- Kenwood KMM-BT508DAB Digital Media Receiver Digital Radio DAB+, Bluetooth
- DAB Aerial
- Fascia Panel Adaptor (Matte Chrome) With Centre Crease
- Wiring Harness & Aerial Adaptor
- Stereo Removal Keys
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Vauxhall | Astra H | 2004 - 2010 | |
| Vauxhall | Corsa | 2006 - 2014 | D |
| Vauxhall | Zafira | 2005 - 2014 | B |
This kit is for the NON-AMPLIFIED systems on these vehicles only.
With FAKRA To DIN Antenna Connector, Connection: Quadlock (Fakra)
Fitting kit
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Wiring Harness
The wiring harness will allow to install the stereo without having to cut any wires. This adapter is required when replacing your factory fitted radio with an aftermarket radio. It will convert the original vehicle power & speaker wiring connectors to a standard ISO connector. Simply plug one end of the adapter into your cars wiring harness and the other into your new radio.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Removal Keys
Suitable for the removal of all ISO Radios which have 2 or 1 square or round slots/holes on each side of the stereo.
Installation Note:
- Connect red cable to an ignition driven live.
- Orange cable requires connection to illumination wire but only if the radio requires this for dimming purposes at night.

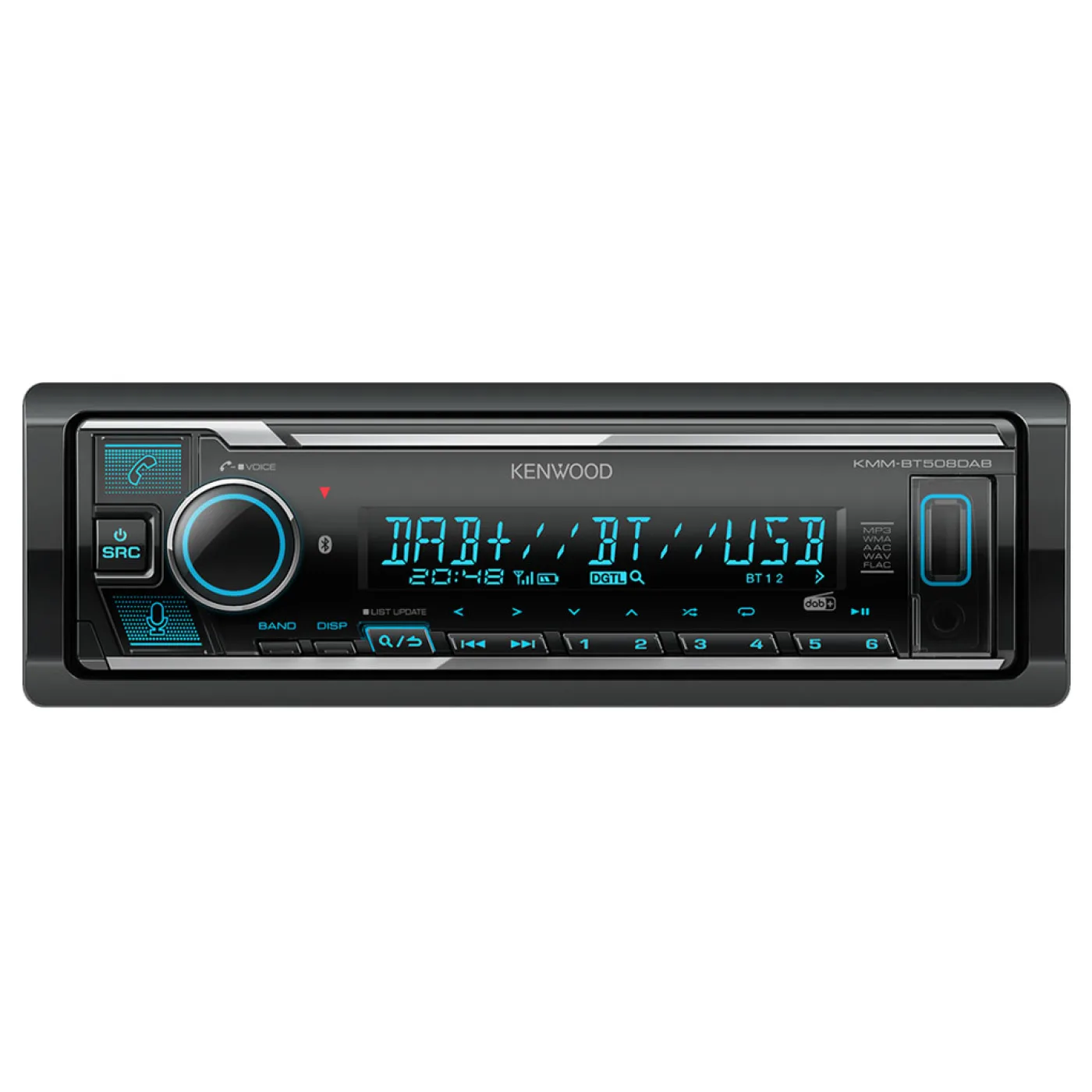

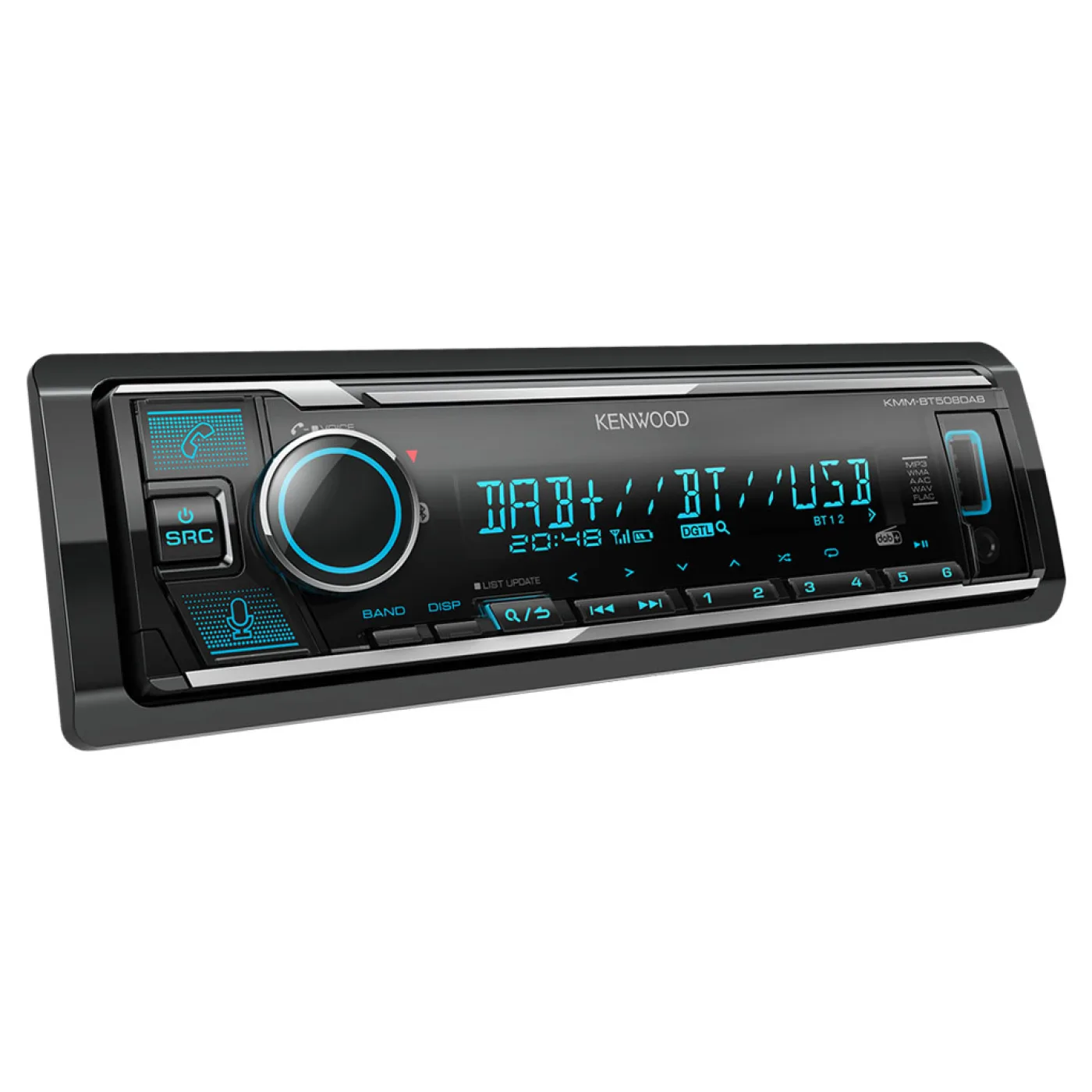

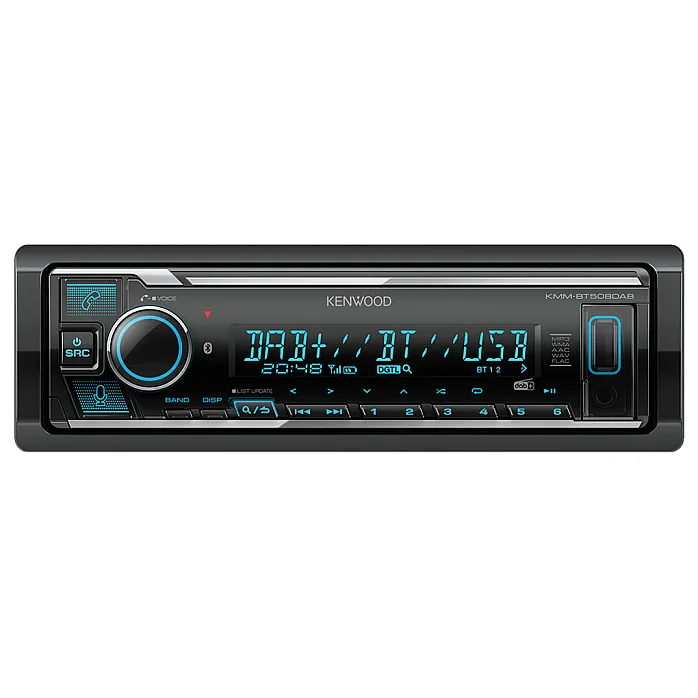

The product
KMM-BT508DAB
Enjoy convenient control. Cristal clear Digital Radio DAB+. Built-in Bluetooth technology for hands-free calls and music streaming, the ability to use your smartphone like a wireless remote control and interactions with Amazon Alexa cloud-based voice service. The Digital Sound Processor, Time Alignment & 13-Band EQ ensures you of optimal sound tuning enhancements.
Key Features
- DAB+ Digital radio, analog FM radio with RDS functionality and AM radio reception.
- Bluetooth technology for hands-free calls and music streaming.
- Dual Phone Connection switches automatically between the 2 paired phones for incoming calls.
- Use your smartphone like a wireless remote control with the KENWOOD Remote app.
- MP3 / WMA / AAC / WAV / FLAC music file playback.
- DSP, DTA and 13-Band EQ for optimal sound tuning enhancements.
- 2 high power (2,5V) RCA preouts to connect multiple power amplifiers.
- Wide 1,5 line LCD display with high contrast, wide viewing angle & variable-colour backlight.
- Menu language in English(default), Russian, Spanish, French or German.
- Short body (100mm) for easy installation
Specifications
General Features
- DIN Size 1 DIN
- Detachable Faceplate
- Key Illumination Variable LED
- Rotary Encoder & Control Knob
- Dual Accent Key Handsfree & Audio Streaming
- Back-up Memory Tuner presets & menu settings
- Attenuator with Smooth Volume Return
- Touch Sensor Tone
- Digital Clock (24H)
- Clock display when power-off default off
- All-off Select (20/40/60 minutes)
- Built-in Connector Mitsumi, 16 pin
- ISO connector Mitsumi to ISO cable
- Bluetooth unit built-in
- USB interface x 1 (Front)
- Firmware upgreadable
- Mechless receiver
- Short body
Display Features
- Display Type Liquid Crystal Display (LCD)
- Display Layout 2 line text + custom icons
- Vertical Aligment Liquid Crystal Display
- Yes
- Display Illumination Variable by RGB LED
- Dimmer Control Manual / Set by Timer
- Brightness control 0 - 31 steps
- Demo Mode
- Menu text in selectable language English(default) / Spanish / French / German / Russian
Cosmetics Features
- Dress plate Piano Black
- Preset key finish Piano Black
- Escutcheon finish Piano Black
- Volume & operation knob or wheel Transparant Lighting & Chrome Finished Ring
- Triangle Illumination Red LED
- Front terminals dust cover
- Key illumination Variable by RGB LED
- Illuminated front USB port Variable by RGB LED
- Brightness Control (Key) 0 - 31 step
- Dimmer Control (Key) Manual / Set by Timer
- Variable color illumination
- Color Zone Concept 2 zone colour control
- Brightness zone concept 2 zone brightness control
- Chrome-finished accents Volume knod & faceplate
Tuner Features
- Station Select Manual / Preset
- FM Reception
- AM (MW/LW) Reception
- Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
- Preset memory w/o back-up power
- Mixed preset memory (FM & AM) 6 presets
- Up/Down Seek/Scan
- Automatic Memory Entry (AME)
- FM Stereo / Mono Selector
- Radio Data System
- Radio Text Plus
- Traffic Information
- Local search
- AF Regional Selectable
- AF/AF Reg/OFF
- Auto TP search
- Enhanced Other Networks Function (EON)
- Program Type Function (PTY)
CE DAB Tuner Features
- DAB+ tuner built-in
- Digital Radio Certification Mark
- Intelligent seek
- Ensemble seek
- Tuning mode / Seek mode Auto1/Auto2/Manual
- Service preset 6 ch * 3 bank presets,
- Auto service memory (AME)
- Service list by alphabet order
- Preset list
- Related service
- Audio interrupt standby by PTY
- Audio interrupt standby by announcement
- DAB-RDS integrated TI
- Traffic Information
- DAB-AF (Alternative frequency)
- Announcement Switching (ASW) Select
- DMB Audio (Digital multimedia broadcasting)
- Soft linking
- Antenna power supply on/off switch
- DAB Antenna Included
Playable Audio File
- AAC (*.m4a) files are playable USB
- AAC (*.aac) files are playable USB
- MP3 files are playable USB
- WMA (.wma) files are playable USB
- WAV (.wav) files are playable USB
- FLAC files are playable USB
USB Features
- USB terminal Front with dust cover
- USB Type 2.0 High speed
- MP3, WMA, AAC, WAV, FLAC playback
- Repeat/Scan/Random search
- Repeat / Random Play
- Direct search
- Resume play
- Time code display
- 1,5A Smartphone Quick Charge
iPod Features
- Made for iPod & iPhone *
- Yes
- USB Direct Control (Audio, 1 wire, Lightning-connector)
- with optional cable KCA-iP103
- Music playback
- Yes
- Alphabet search
- Yes
- Skip search
- Yes
- Related search
- Yes
- Direct Search
- Yes
- iPod EQ Mode
- Yes
- Control by hand
- Yes
- App & iPod control mode
- Yes
- Spotify App Link
- Yes
- iAP over Bluetooth
- Yes
- iTunes Radio App
- yes iAP1
- Reverse browsing
- Yes
- Battery charge + power control
- Yes
- * Always update to latest Apple firmware
Audio Features
- Maximum Output Power 50W x 4
- MOSFET Power IC
- Auxiliary Type Mini-jack, front panel
- Pre-out 2 RCA
- Pre-out Output Level 2.5V
- Preout Rear / Subwoofer Switchable
- Subwoofer Reference Level Adj
- 2-Way X'over network
- 3-Way x'over (bi-amp connection)
- Tone Control / Easy EQ 13 band, 8 presets
- Balance/Fader/Loudness Control
- Bass Boost Circuit Off/+1/+2/+3/+4/+5
- Att.(-20dB) with smooth Volume Return
- Easy 3-band EQ mode
- Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
- Digital Sound Processor (DSP) Built-in
- Digital Time Aligment (DTA)
- Low- & High-pass Filter
- Speaker Size Control Front/rear/subwoofer independently
- Kenwood Sound Reconstruction
- Sound Reconstruction
- Space Enhancer
- Realizer
- Stage EQ
- Drive EQ
Bluetooth General Features
- Max num. of regist. phones for HFP & A2DP 5 phones
- Hands Free Profile with High Sound Quality HFP V1.7.1
- Max num. of regist. phones for HFP 5 phones
- 2 phones fulltime connection
- Audio Streaming (A2DP)
- High Quality Audio Streaming SBC/AAC
- Max num. of regist. units for A2DP 5 units
- Serial Port Profile (SPP)
- Phonebook Access Profile (PBAP)
- iPhone & Android automatic pairing via USB
- KENWOOD Remote App Ready
- KENWOOD Music Mix Support
- Amazon Alexa ready
- Catchphone / Call Waiting
- Private mode
- Alphabet Search (Phonebook)
- Noise Canceller
- Echo Canceller
- Phone device status display
- Audio device status display
- Signal strength display
- Remaining battery display
- Bluetooth Paring Indicator
- High-quality noise canceling microphone Rear Wired
- Bluetooth firmware upgradeable
- * depends on phone model/make & Kenwood unit

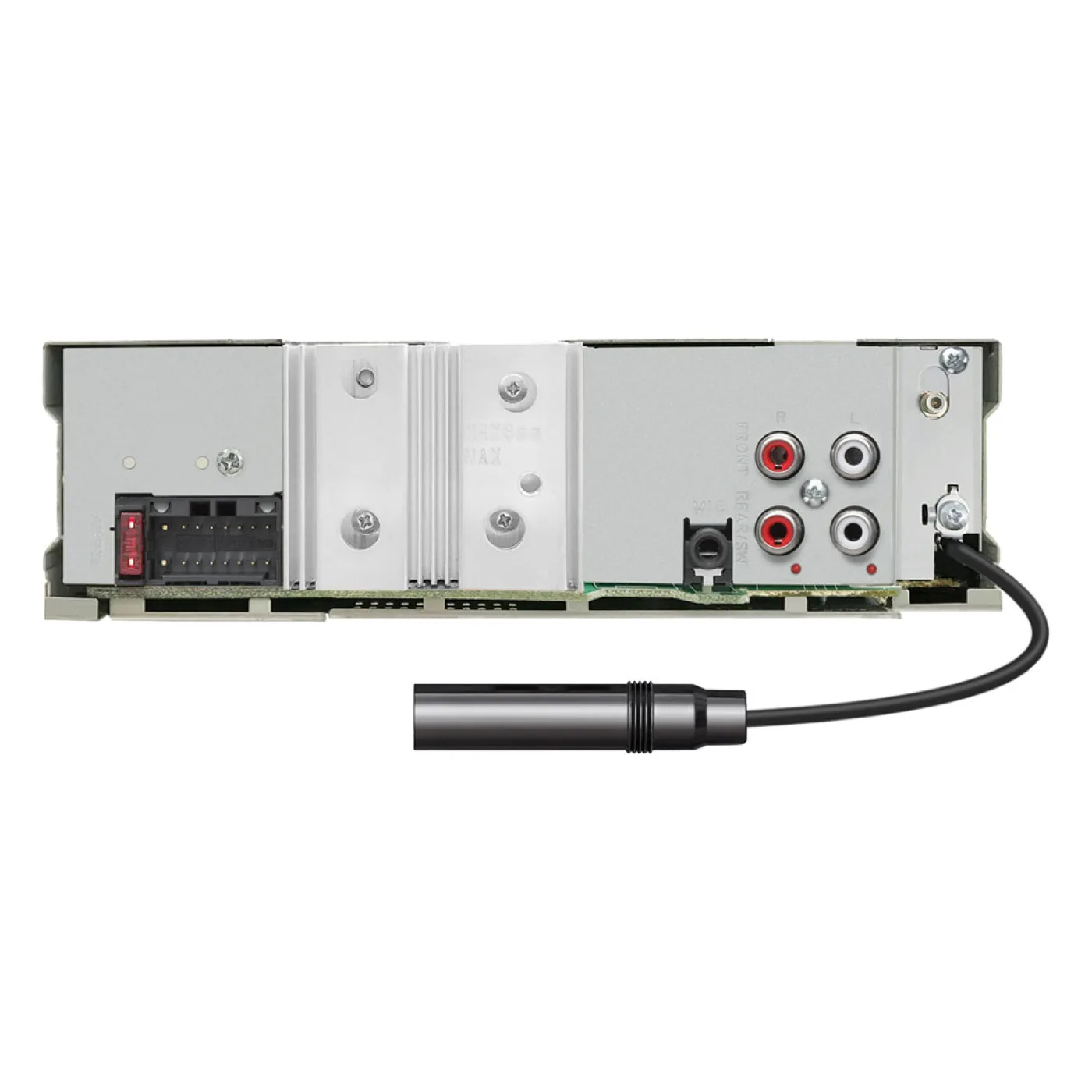

Connectivity
- Front USB & AUX Input
- OEM Wired Remote Control ready
- DC-Cord Mitsumi to ISO
- Power Control (P.CON) wire
- Amplifier pre-out 2 x RCA
- Front + Rear/Sub (selectable)
- FM Antenna Input JASO connector
- DAB Aerial input SMB connector
- External microphone input 3,5mm mini-jack
| Technical | |
|---|---|
| Dab Radio | Yes |
| Size | Single Din |
| Plays | MP3/WMA/AAC/WAV |
| Max. Power Output | 50W x 4 MOSFET |
| Tuner | FM AM Tuner |
| Radio Data System | Yes |
| Display Illumination | Wide 1,5 line LCD display with high contrast, wide viewing angle & variable-colour backlight |
| Button Illumination | Variable LED |
| Bluetooth | Built In |
| Android Ready | Yes |
| iPod Ready | Yes |
| Works with iPhone | Yes |
| Aux In | Front Aux In |
| USB | Front with dust cover |
| Pre Out | 2 Pre Out |
