Vauxhall Vivaro 2014-2018 (STANDARD RADIO) Pioneer 6.8" Wired CarPlay / Android Auto Bluetooth Stereo Upgrade Pack
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:SPH-DA150BT + FK-942
- EAN / UPC:7427307026244
- Warranty:1 Year Warranty

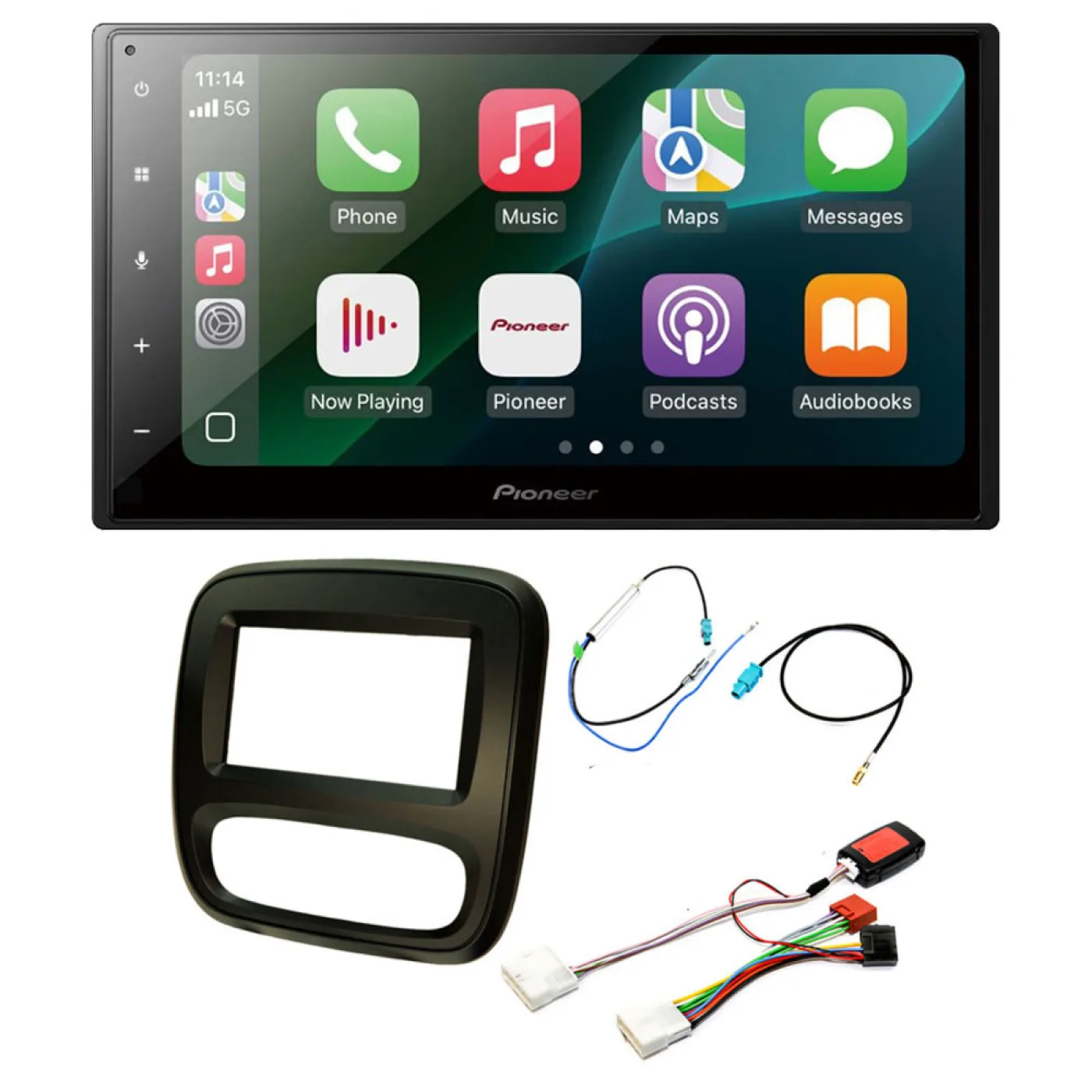

Package Includes
- Pioneer SPH-DA150BT Mechafree 6.8" Capacitive Touchscreen Apple CarPlay / Android Auto Bluetooth Stereo
- Double Din Fascia (Matt Black)
- Steering Control Interface Adaptor
- Fakra to DIN Aerial Adaptor
- Fakra Male to SMB Female DAB Adaptor
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Vauxhall | Vivaro | 2014 - 2018 | B |
Original Stereo Should Be Look Like This
ON SOME LATE VEHICLES AROUND 2018 AND NEWER YOU MAY NEED TO MANUALLY WIRE IN A SEPARATE IGNITION LIVE FEED AS THESE VEHICLES MAY NOT NATURALLY HAVE THIS SUPPLY WITHIN THE ORIGINAL RADIO PLUGS LIKE THE OLDER MODELS HAD.
SOME VEHICLES WITH STOP START FEATURE WILL REQUIRE AN INTERFACE TO BE INSTALLED INLINE WITH THE POWER ISO PLUG OF THE NEW STEREO.
THE INTERFACE WILL ALLOW THE UNIT TO STAY POWERED WHEN THE VEHICLE ENGINE SHUTS DOWN AND RESTARTS.
IF YOU ARE EXPERIENCING THIS WITH YOUR NEW INSTALLATION YOU WILL NEED A 10-603 ADAPTER IN ADDITION TO THE FITTING KIT.
Part in question is:
ONLY SUITABLE FOR MODELS WITH THE ORIGINAL BASIC STANDARD RADIO , FOR MODELS WITH ORIGINAL NAVIGATION SYSTEM RADIOS PLEASE USE FK-942-NAV
Fitting kit
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version. This kit uses side fixing brackets to mount the new radio for a flush fit, so no cage is required. For single DIN fitting a universal pocket will need to be acquired.
Steering Control Adaptor
A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.
This interface will allow you to retain the use of the steering wheel controls with a standard original radio.
Fakra to DIN Aerial Adaptor Cable With 12v Phantom Power
This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector. The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.
Fakra Male to SMB Female DAB Adaptor
Use this adapter to adapt a fakra DAB connector in a car to a DAB SMB connector on an after market DAB radio.
SPH-DA150BT
Mechafree 6.8" Capacitive touchscreen multimedia player, with easy smartphone connectivity via a simple USB cable supporting compatible applications including Apple CarPlay®, Android Auto™ and USB Mirroring for Android®, Bluetooth®, 13-Band GEQ, advanced audio features and premium audio quality.
Key Features
- Installation Type: 2-DIN
- Navigation: Via Android Auto , Via Apple CarPlay
- Screen Size: 6.8 inch
- LCD Screen Type: Capacitive Touchscreen
- Apple CarPlay® Connection: Wired
- Android Auto™ Connection: Wired
- DAB Antenna Lorem Ipsum
- Bluetooth
- Customisable Key and Display Illumination
- Multi color illumination:
Specifications
Audio Features
- Graphic Equaliser
- 13-Band
- High Pass Filter
- Low Pass Filter
- FLAC
- Subwoofer Control
Tuner Features
- RDS FM Radio
Connections
- Camera Input
- 1
- RCA AV Input
- 1
- RCA Rear AV Output:
- RCA Pre Outs
- 3. (Front, rear and subwoofer)
- Aux-in
- 1 Rear AV Aux-In
Other Specifications
- Rear View Camera
- Optional ND-BC9 (Sold Separately)
- Hand Held Remote Control
- Optional CD-R33 (Sold separately)
- Steering Wheel Control
- Supported
- Mechafree
- Short Chassis
| Technical | |
|---|---|
| Android Auto | Wired |
| Apple CarPlay | Wired |
| Navigation System | Via Android Auto , Via Apple CarPlay |
| Screen | 6.8" Capacitive Touchscreen |
| Size | Double DIN |
| Tuner | Yes |
| Button Illumination | Customisable Key and Display Illumination |
| Bluetooth | Yes |
| iPod Ready | Yes |
| Works with iPhone | Yes |
| Aux In | Rear AV Aux In |
| Pre Out | 3. (Front, rear and subwoofer) |
