VW Caddy 2003 - 2015 Alpine Front Door 8" / Top Dash Tweeter Upgrade Kit
- Availability:In Stock
- Available:4 in stock
- Item Condition:New
- Brand:Alpine
- Product Code:SXE-2035S + SXE-1006TW + CT25VW04 + CT55-VW02
- EAN / UPC:7427282696241
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Volkswagen | Caddy | 2003 - 2015 |
Wiring adapters are included for the door speakers.
The tweeters will need to be wired in manually either to the wiring in the top of the dash if present or if no wiring is available directly to the wiring on the stereo plug.
The Tweeter will also require mounting by the installer and will not be a direct installation.
The kit will give great mid and high ranges as well as great bass from the 8" woofer.
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.

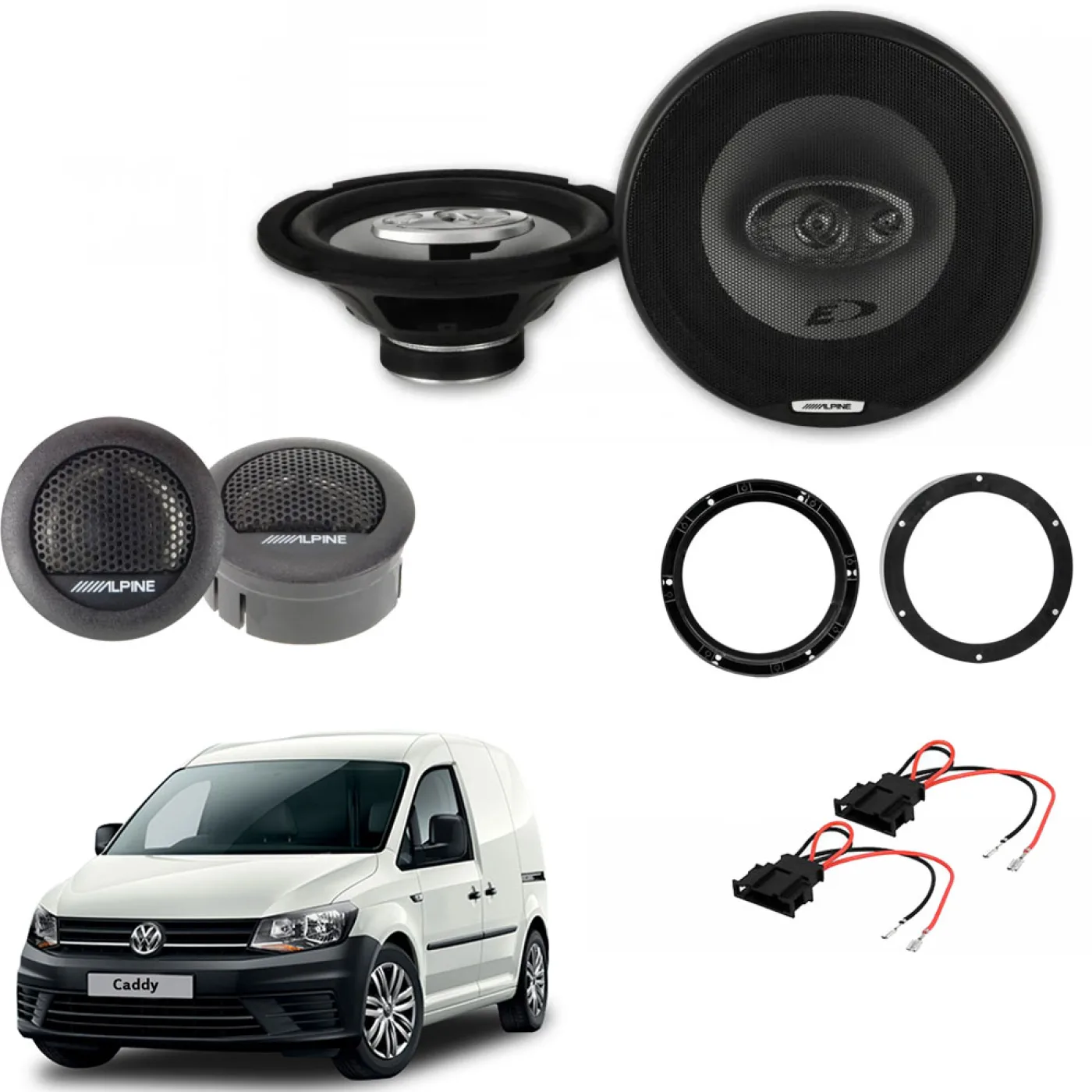

Package Includes
- Alpine 8" 20cm 3 Way Coaxial 280W Car Door Shelf Speakers
- Alpine Mylar-Titanium Balanced Dome 3cm Tweeter 280W Peak Power
- 200mm Speaker Adaptor
- Speaker Adaptor Plugs
Alpine SXE-2035S 8" 20cm 3 Way Coaxial 280W Car Door Shelf Speakers
Alpine´s Type-E Series lineup gives you high quality, excellent performance and easy installation. Their affordable price make them a great value, too.
Specifications
SYSTEM
- Coaxial 3-Way Speaker
Speaker Units
- Woofer
- 200 mm (8") DIA, Cone Type
- Mid
- 28 mm (9/8") DIA, Dome Type
- Tweeter
- 16 mm (5/8") DIA, Dome Type
Power Handling
- 280 Watts Peak
Power Handling
- 45W RMS
Impedance
- 4 ohms
Sensitivity
- 90 dB/W (1m)
Frequency Response
- 40 Hz - 20 KHz
Woofer Voice Coil Diameter
- 25 mm
Mid Voice Coil Diameter
- 13 mm
Woofer Edge Material
- Foam
Mid Edge Material
- PEI
Diaphragm Material
- Woofer
- Coated Craft Paper
- Mid
- PEI
Magnetic Material
- Woofer
- Barrium Ferrite
- Mid
- Neodymium
- Tweeter
- Piezo
Mounting Depth/Drop-in Mounting
- 75 mm
Weight (One Speaker)
- 850 gr. (2lbs, 35oz)
Gross Weight
- 2.4 Kg
Alpine SXE-1006TW Mylar-Titanium Balanced Dome 3cm Tweeter 280W Peak Power
This compact, high performance tweeter is a very efficient way to upgrade all existing sound systems
Designed for easy installation, the SXE-1006TW will greatly enhance your system’s treble response with the additional benefit of directional control. This is a highvalue upgrade for any sound system.
Features
Specifications
Tweeter
- Mylar-Titanium Balanced Dome Tweeter
- Neodymium Motor (½ inch, 13mm)
- Magnet Material
- Neodymium Magnet
- Inbuilt passive x-over [-6db/oct.]
General
- Installation Accessories Included
Specifications
Power Handling
- Peak Power
- 280 Watts
- RMS Power
- 45 Watts
Dimensions
- Tweeter Mounting Diameter
- 30 mm
- Tweeter Mounting Depth
- 17,5 mm
General
- Frequency Response
- 4kHz - 20kHz
- Sensitivity
- 88dB SPL (1W@1m)
