VW Caddy MK3 - 2003-2010 Pioneer 250W Speaker & Kenwood 150 W Active Compact Under Seat Subwoofer
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:TS-R1750S + CT25VW16 + CT55-VW02 + KSC-PSW7EQ
- EAN / UPC:7427282745086
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Volkswagen | Caddy | 2003 - 2010 | MK3 2K/2KN. Front Door 165mm |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.

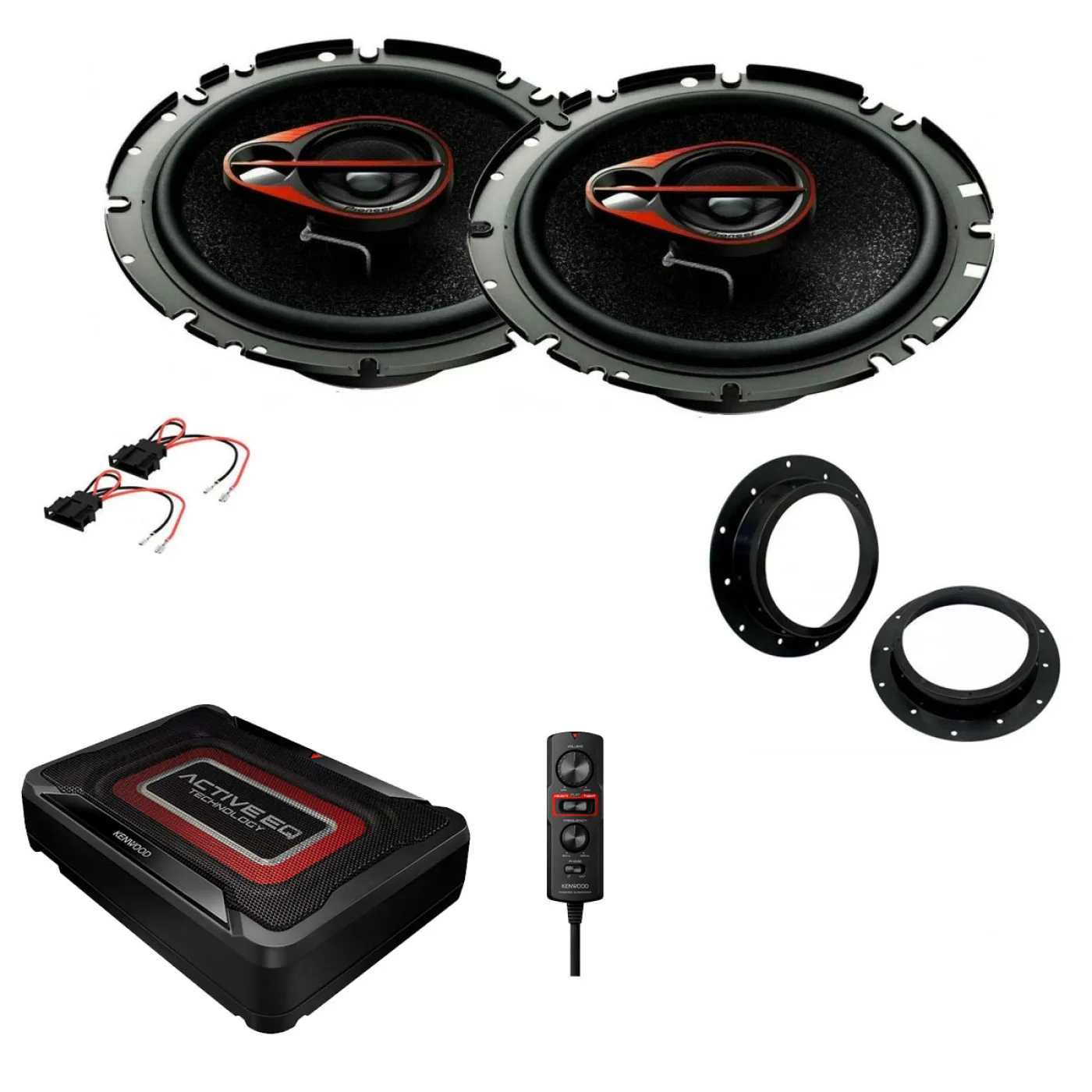

Package Includes
- Pioneer 6.5" 17cm 3 Way Coaxial Car Speakers
- 165mm Front Door Speaker Adaptor
- Speaker Adaptor Plugs
- Kenwood KSC-PSW7EQ Car Audio Active Compact Under Seat Subwoofer
Strong, Solid Performance
Our sporty looking TS-R speakers tap the full potential of your in-car audio setup. Aimed at providing loud and clear output for any type of music, their sound quality results from a multilayer mica matrix woofer cone which ensures punching bass and improved midrange frequency response. You’ll enjoy a sound that is more accurate, with full-bodied bass.
MMM Cone
Enjoy a wider dispersion of sound with deeper bass through the Multi-layer Mica matrix cone
Main Features
- Tweeter material Piezoelectric
- Midrange size 42 mm
- Voice Coil type Aluminium Bobbin & Copper Wire
- Dimensions 165 x 64 mm
- Weight 1.40 kg
- Cut-out Hole 137 mm
- Mounting Depth 47 mm
- Coaxial Speakers
- 3 way
- Maximum power 250 / Total Power Both Speakers 500 Watts
- Nominal input power 40 W
- Impedance 4 Ω
- Frequency response 36 – 31,000
- Woofer Size 17 cm
- Woofer material Multilayer Mica Matrix Cone
- Tweeter size 15 mm
KSC-PSW7EQ Compact Powered Subwoofer
- Max Power 160W
- Wired Remote Controller
- Active EQ Technology Switch
- Class D Amplifier
- (W)280mm x (H)70mm x (D)200mm
Compact Design
Allows for installation almost anywhere, including tight spaces such as under a seat or panel.
Remote Control Sound Adjustment
- Volume : Input sensitivity control knob
- ACTIVE EQ : Equalizer selector switch
- Frequency : Cut-off freqeuncy control knob
- Phase : Phase select switch
Three types of bass to match the music of various genres equipped with ACTIVE EQ TECHNOLOGY.
New Diaphragm Speaker
The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm.
This suppresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music.
Flexible Connectivity and Installation
Supports speaker level input to connect OEM receiver without RCA outputs.
Power turns on from either speaker level or RCA signal.
Specifications
Specifications
- Woofer Size 200mm x 130mm
- Max Power (W) 160W
- Current Consumption 5.9A
- Sensitivity (dB at 1m) 89dB
- Frequency Response (Hz) 40Hz - 200Hz (-15dB)
- Speaker Level Input (Speaker Level Input)
- Signal Sensing Turn-on (Speaker Level or RCA)
- Dimension (W x H x D) 280mm x 70mm x 200mm
- Weight 2.6kg
- Remote Control Cable Length 5m
