VW Golf MK7, MK7.5 2012 -2020 Pioneer 6.8" Screen Wireless Android Auto/Apple CarPlay Bluetooth DAB+ Stereo Upgrade Pack
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:VW Golf MK7 / 7.5 SPH-DA77DAB Upgrade Kit
- EAN / UPC:7427307032238
- Warranty:1 Year Warranty

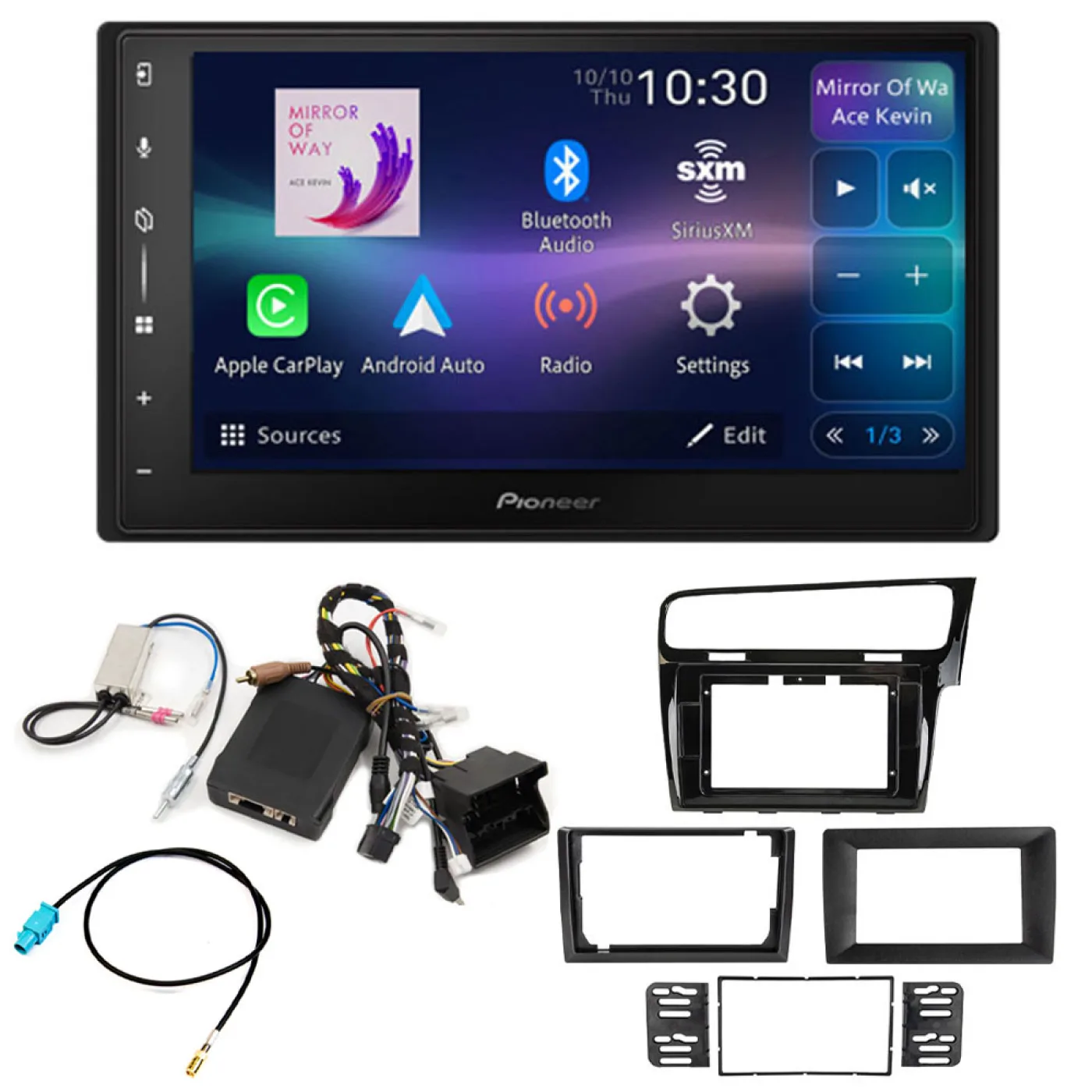

Package Includes
- Pioneer SPH-DA77DAB 6.8" WVGA Capacitive Multi-touch Panel Screen Weblink 3.0 Android Auto/ Apple CarPlay DAB Car Stereo
- Double Din Fascia Adaptor
- Integration Module CAN Bus Adaptor
- Male Fakra to Female SMB DAB Antenna Adapter Cable
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Volkswagen | Golf | 2012 - 2020 | MK7 and MK 7.5 |
(Optional CT51-VW01 if vehicle has SOS)
We don’t have a usb retention .
Supported Features with CD-SVW-UAR.006AE
Steering Wheel Controls
- Previous Music
- Next Music
- Volume control
- Voice Command
- Assist system button
- Phone button
- Back button
- Scroll switch
HVAC Settings
- The HVAC settings are shown and also controllable via the Head unit.
- Front windshield heating
- Climate controls (Temperature/ Fan speed/ Airco/ Seat heating/ Auto/ Sync/ Air recirc./ Windscreen defroster/ Steering wheel heating/ Off)
- Profile
- Rear controls
- Pop up of the climate screen (on/off)
- Air care climatron
- Automatic air recirculation
- Automatic auxiliary heater
- Automatic windscreen heating
- Automatic supplementary heater
Doors Status (Open/Close)
- The status of the doors are visually shown on the Head unit
- Front left & right
- Rear left & right
- RHD/LHD
ESC
- Activated/ ESC off/ ESC sport
Tyres
- TPMS reset
- Speed warning
- Winter tyres mode
- Warning at
TPMS
- Advanced (Active) TPMS with sensors on each tire
Driver Assistance Settings
- Lane assist (adaptive lane guidance/ steering wheel vibration)
- Front assist (advance warning/ display distance warning)
- ACC ( Adaptive cruise control)
- ACC distance selected
- Driver alert system
- Dynamic Road Sign Display
- Proactive occupant protection (Active protection)
- Manoeuvre braking
- Side assist
- Side assist brightness
- Speed warning exceed
- Warning at over
Parking
- Activate automatically (Auto activate)
- Front/ Rear Volume
- Front/ Rear tone setting
- Entertainment fading
- Front/ Rear/ Left/ Right sensors
Light Settings
- Activation
- Headlight range
- Dynamic light assistance
- Switch on time
- Auto headlights
- Automatic headlight control in rain
- Daytime running lights
- Convenience turn signal
- Travel mode/ Travel mode reversed
- Instrument/switch lightning
- Door background lightning
- Roof background lightning
- Front background lightning
- Background lightning
- Footwell lightning
- Coming Home/ Leaving Home Function
- Dynamic cornering light
Mirrors and Wipers
- Synchronous adjustment
- Lower in reverse
- Fold in when locking
- Automatic wiping in rain
- Rear window wiping in reverse
Opening and Closing
- Convenience opening ( all windows/ driver/ off)
- Door unlocking ( all doors/ single door/ vehicle side)
- Automatic locking
- Easy open
- Interior monitoring
Instrument Cluster
- Current consumption
- Average consumption
- Convenience consumers
- Eco tips
- Travelling time
- Distance travelled
- Average speed
- Digital speed display
- Speed warning
- Oil temperature
- Reset "Since start" driving data
- Reset "Long-term" driving data
Time & Date
- Clock time Source
- Time
- Automatic Summertime
- Time zone
- Time format
- Date
- Date Format
Fitting kit
Fascia Adaptor
These adaptors will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Integration Module CAN Bus Adaptor
Pioneer CD-SVW-UAR.006AE Integration Module for VAG cars
Interface to the Pioneer station with a UART connector allowing you to obtain control from the steering wheel and transfer some information from the car to a non-factory radio (air conditioning, parking sensors). It also allows you to connect an aftermarket reversing camera (RCA connector). Interface for VAG group cars (VW, Skoda, Seat).
The interface is intended for some Pioneer multimedia stations and VAG group cars. The module allows you to control the new radio from the steering wheel, allows you to visualize the factory parking sensors and visualize the air conditioning settings. If you also connect a non-factory reversing camera (with an RCA connector) to the new radio, you can also use this module to connect.
Fitting kit
Aerial Adaptor
Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)
Pioneer SPH-DA77DAB
Pioneer SPH-DA77DAB. Getting the latest technology doesn’t have to break the budget with the Pioneer SPH-DA77DAB featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.
Choose from a host of entertainment options, including USB with Full HD video playback supported**, DAB+ tuner, AM/FM tuner or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.
To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.
Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.
Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!
The Pioneer SPH-DA77DAB is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!
Main Features
- Mechafree, iconic cosmetic design, with large 6.8” Capacitive Multi-touch touchscreen panel
- Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
- Improved GUI allowing for simple smartphone connectivity, compatible with Apple CarPlay and Android Auto
- 1Din – Short Chassis backside design
- RGB illumination
- Single Rear USB with 1.5A power supply (Type A)
- USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
- Rear View and 2nd Camera Input
- Bluetooth (A2DP/HFP/AVRCP) DAB / DAB+ Digital Radio built-in (Optional DAB Antenna required)
- Bluetooth®: handsfree calling, phonebook transfer, audio streaming (A2DP). (External BT microphone included)
- Wired Remote Input
- CAN-BUS support (No HUD)
- Advanced audio features
- Wireless Android Auto and CarPlay and its direct launch key, (Easy to use)
- 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
- Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)
SPH-DA360DAB vs SPH-DA77DAB comparison
SPH-DA77DAB Chassis design
SPH-DA77DAB Installation Benefit
Specifications
General
- Mechafree 6.8” WVGA Capacitive touchscreen
- Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
- USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
- Bluetooth® and DAB / DAB+ Digital Radio combined
- Digital Radio Tick Mark approved product
- Siri Eyes Free
- Advanced audio features
- Premium sound quality
- RGB
- multicolour key illumination and LCD display
- iPhone Direct Control
- Compatible with Android
- Reverse camera compatible
- 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
- Selectable wall paper (User customisation with jpeg file)
Connectivity
- Apple CarPlay (wireless & wired)
- Android Auto (wireless & wired)
- WEBLINK 3.0
- Rear USB / Rear Aux-In
- Made for iPhone / Compatible with Android
- USB Mirroring via WebLink® 3.0 for iOS, Android smartphone/tablets
- Wired Remote Control / Rear View Camera Input
- Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)
Audio and Video
- 13-BAND GEQ and Time alignment
- 3Way Network Mode
- Video output & Audio 3 Pre-Out (4V)
DOP Related
- EZ MyCarSetting
- Setting Memory for Agricultural Business
- Start Stop Function
Bluetooth
- Pioneer Bluetooth for hands-free calling & audio streaming
- Bluetooth auto pairing
- External microphone Included
- Wireless audio browsing
Audio
- Premium Sound Quality
- MOSFET 50W x 4 Max Output Power
- Music Browsing
- 13-band Graphic Equaliser
- Low Pass/High Pass Filter
- 3 x 4 Volt RCA Pre-outs
Tuner
- DAB/DAB+ Digital Radio
- Auto Tune, Pre-set buttons
- Digital Radio Tick Mark approved product
- RDS FM/AM Tuner
- 24 Pre-set
File Playback
- Audio
- WMA/MP3/WAV/AAC/FLAC
- Video
- H.264/Mpeg4/JPEG/TS/ WMV/MKV/FLV/TS
Accessories
- Included - Microphone for Hands-free Calling
- Included - USB extension cable
| Technical | |
|---|---|
| Android Auto | Yes |
| Apple CarPlay | Yes |
| Dab Radio | Yes |
| MirrorLink Ready | Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets. |
| Navigation System | Yes |
| Screen | 6.8 WVGA screen with capacitive Multi-touch panel |
| Size | Double Din |
| Max. Power Output | MOSFET 50W x 4 Max Output Power |
| Button Illumination | RGB: multicolour key illumination and LCD display |
| Bluetooth | Yes |
| Aux In | Rear |
| USB | Single Rear USB with 1.5A power supply (Type A) |
| Pre Out | Video output & Audio 3 Pre-Out (4V) |
