VW T5.1, T6 Kenwood 6.5" 2-Way Coaxial Car Front Door Speaker Under Seat Subwoofer Upgrade Pack
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:Kenwood
- Product Code:KFC-PS1797 + KSC-PSW7EQ + CT25VW16 + CT55-VW02
- EAN / UPC:7427282745109
- Warranty:1 Year Warranty

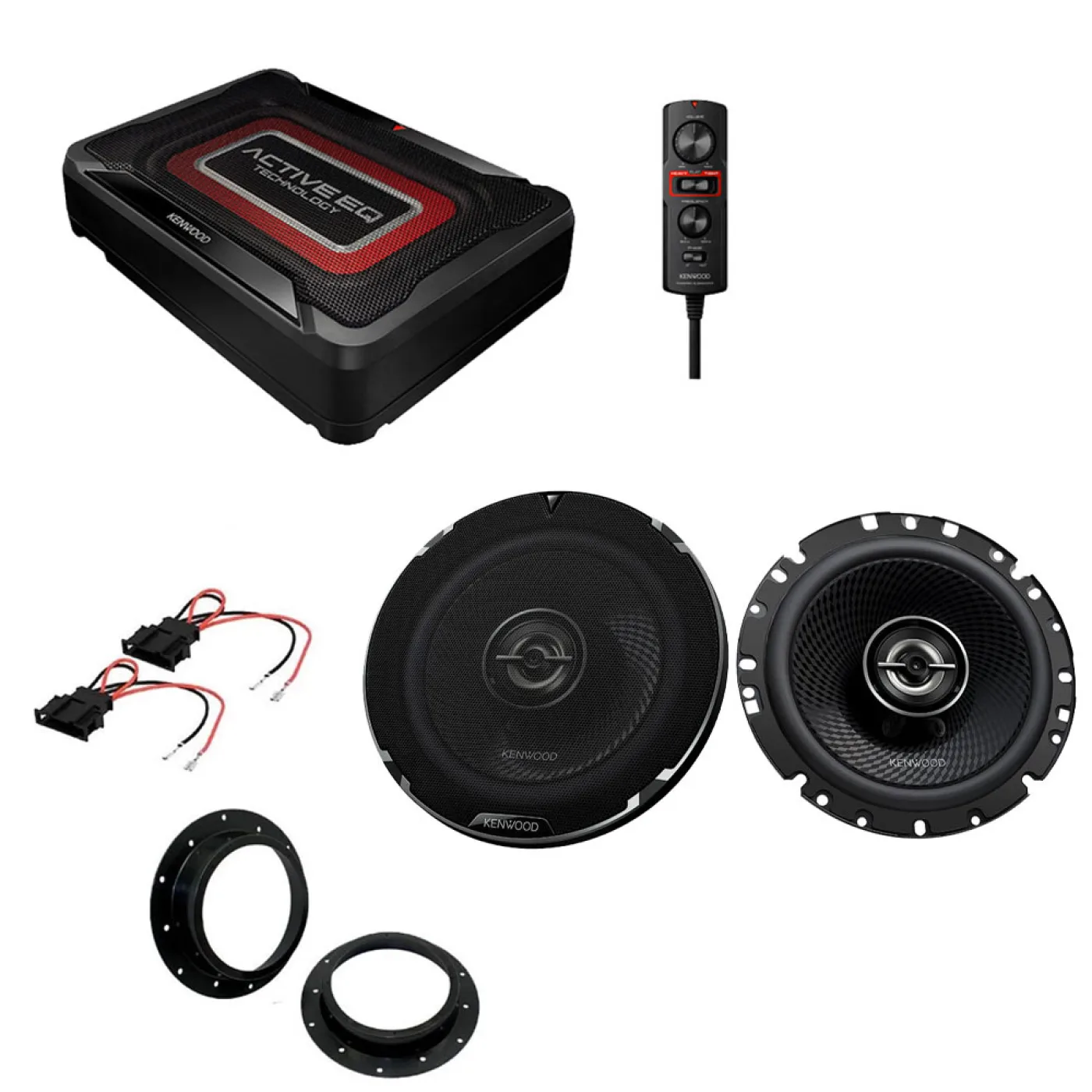

Package Includes
- Kenwood KFC-PS1797 PS Series 6.5" (17cm) 2-Way Coaxial Car Speakers
- Kenwood KSC-PSW7EQ Car Audio Active Compact Under Seat Subwoofer
- 165mm Front Door Speaker Adaptor
- Speaker Adaptor Plugs
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Volkswagen | Transporter | 2010 - 2015 | T5.1 |
| Volkswagen | Transporter | 2016 - 2019 | T6 |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.
Kenwood KFC-PS1797 Performance Standard Series Speaker System
17cm, 2-Way Performance Standard Speaker System. Features 350W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate.
Key Features
- 17cm 2-Way Performance Standard Speaker System
- Woofer cone with Diamond Array Pattern Sound Tune Up Technology
- Black Coloured Elegant Design with Silver Accents
- Acoustic Sound Harmonizer Technology
- Sound Field Enhancer Technology
- 30mm Balanced Dome Tweeter with Neodymium Magnet
- 350W Peak Input Power / 100W RMS Input Power
- Low Tweeter Height Design for Shallow Install Space
- Grille assembly included
Specifications
Speaker Features
- Speaker System 2-way 2-speaker
- Speaker Type Coaxial
- Diamond Array Pattern Woofer Cone
- Sound Field Enhancer
- Acoustic Sound Harmonizer
- Black-painted Woofer Yoke Plate
- Factory Location Fit
Speaker/woofer Specifications
- Peak Input Power 350W
- Rated Input Power 100W
- Woofer Cone material Black Polypropylene (PP) Cone
- Woofer cone dimensions 170mm Ø
- Speaker Basket Steel (Black painted)
- Magnet type Ferrit (Ø85 x t12)
- Speaker Surround Rubber
- Sensitivity 88dB/W/m
- Frequency Response 73Hz ~ 18000Hz
- Speaker Impedance 4Ω
- Dimensions with Grill (WxHxD) 179 x 179 x 66.2mm
- Dimensions w/o Grill (WxHxD) 165 x 165 x 54mm
- Mouting Hole Diameter Ø 139.6mm
- Mounting Depth 48mm
- Tweeter Height 6mm
Tweeter Specifications
- Cone Size 30mm
- Cone Material Silver Balanced Dome
- Magnet Type Neodymium
Accessories
- Screws (Parker-type) Ø 4 x 25mm, 8 pieces
- Speed nut φ 4, 8 pieces
- Adhesive tape pad 1 piece(s)
- Grille assembly included
- Speaker cable 0.5m
KSC-PSW7EQ Compact Powered Subwoofer
- Max Power 160W
- Wired Remote Controller
- Active EQ Technology Switch
- Class D Amplifier
- (W)280mm x (H)70mm x (D)200mm
Compact Design
Allows for installation almost anywhere, including tight spaces such as under a seat or panel.
Remote Control Sound Adjustment
- Volume : Input sensitivity control knob
- ACTIVE EQ : Equalizer selector switch
- Frequency : Cut-off freqeuncy control knob
- Phase : Phase select switch
Three types of bass to match the music of various genres equipped with ACTIVE EQ TECHNOLOGY.
New Diaphragm Speaker
The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm.
This suppresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music.
Flexible Connectivity and Installation
Supports speaker level input to connect OEM receiver without RCA outputs.
Power turns on from either speaker level or RCA signal.
Specifications
Specifications
- Woofer Size 200mm x 130mm
- Max Power (W) 160W
- Current Consumption 5.9A
- Sensitivity (dB at 1m) 89dB
- Frequency Response (Hz) 40Hz - 200Hz (-15dB)
- Speaker Level Input (Speaker Level Input)
- Signal Sensing Turn-on (Speaker Level or RCA)
- Dimension (W x H x D) 280mm x 70mm x 200mm
- Weight 2.6kg
- Remote Control Cable Length 5m
