VW Transporter T5, T6 High Level Brake Light Camera (BARN DOORS) With Addon Interface Adaptor
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:InCarTec
- Product Code:CVC-VW-003 + 27-300
- EAN / UPC:7427307019178
- Warranty:1 Year Warranty
Package Includes
- InCarTec CVC-VW-003 High Level Brake Light Camera (BARN DOORS)
- InCarTec Rear Camera Addon Interface Adaptor
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Volkswagen | Transporter | 2003 - 2009 | T5 |
| Volkswagen | Transporter | 2009 - 2015 | T5.1 |
| Volkswagen | Transporter | 2015 - 2019 | T6 |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Special rear view camera specially designed for Volkswagen Transporter T5/T6 (2003-2017) vehicle models with Barn Doors
This camera secures into the third (high level) brake light housing on the back of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.
Features
- 12v power
- Colour CMOS image, NTSC.
- 170° View Angle
- IP68 Waterproof
- Includes power cable and 10 metre video cable

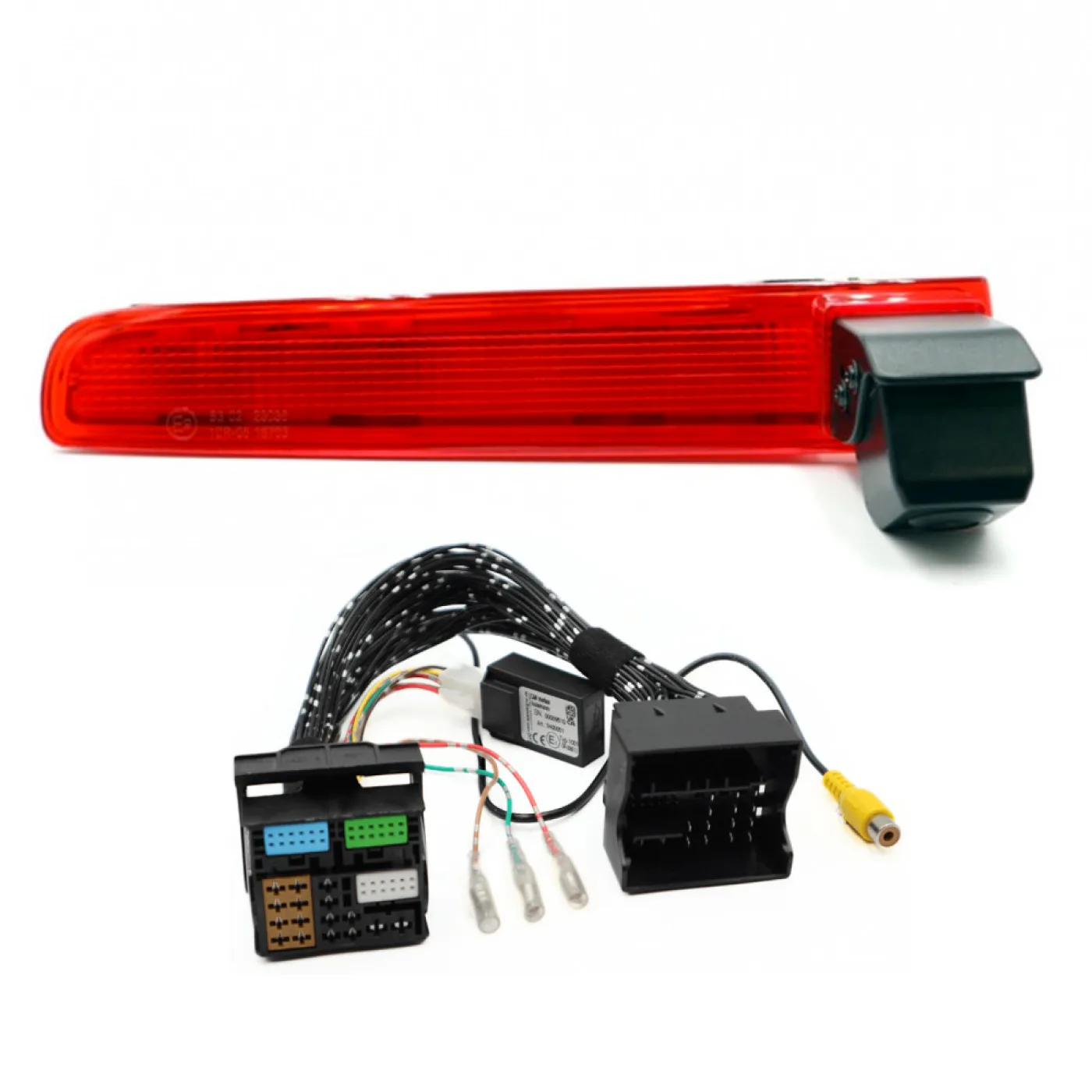

Below is an image of the camera and the supplied cables
InCarTec 27-300 Rear Camera Addon Interface Adaptor For Volkswagen
Add a reverse view NTSC camera to select Volkswagen vehicle models with Composition Media/Discover Media (MIB STD2 PQ/+NAV) systems.
This interface is a camera add on kit which allows you to add an aftermarket rear view camera whilst retaining the use of your factory head unit. This harness has a built in interface to give ignition power and a reverse feed to the camera.
Suitable for the following Volkswagen vehicle models with factory OPS, MIB STD2 PQ/+NAV, Composition Media/Discover Media, 1x SD Slot vertically left or 1x SD slot each vertically left and right and CD drive above the 6.33 inch monitor:
Compatibility Notes
NOT compatible with 1K8035150_ head unit models. The head unit model number can be found by accessing the info/about menu on the head unit. 27-300 will work with most Composition Media head units, but there are some that do not accept a camera input at all. NOT compatible with the following model numbers XXX035820A, XXX035820, XXX035819A, XXX035819 or XXX035812. The head unit model number can be found by accessing the info/about menu on the head unit to check before purchase.
Below are example images of the VW Composition Media and Discover Media radios from VW T6 and Caddy vans that this interface is compatible with.
VW Composition Media
VW Discover Media
Not Compatible With The Following Radios.
VW Composition Audio
