Ford Transit Custom 2012-2021 Focal Component Front Door Car Speakers Under Seat Subwoofer Upgrade Kit
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:Focal
- Product Code:165AS + CT25FD14 + CT55-FD02 + KSC-PSW7EQ
- EAN / UPC:7427282744843
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | Transit Custom | 2012 - 2021 |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.

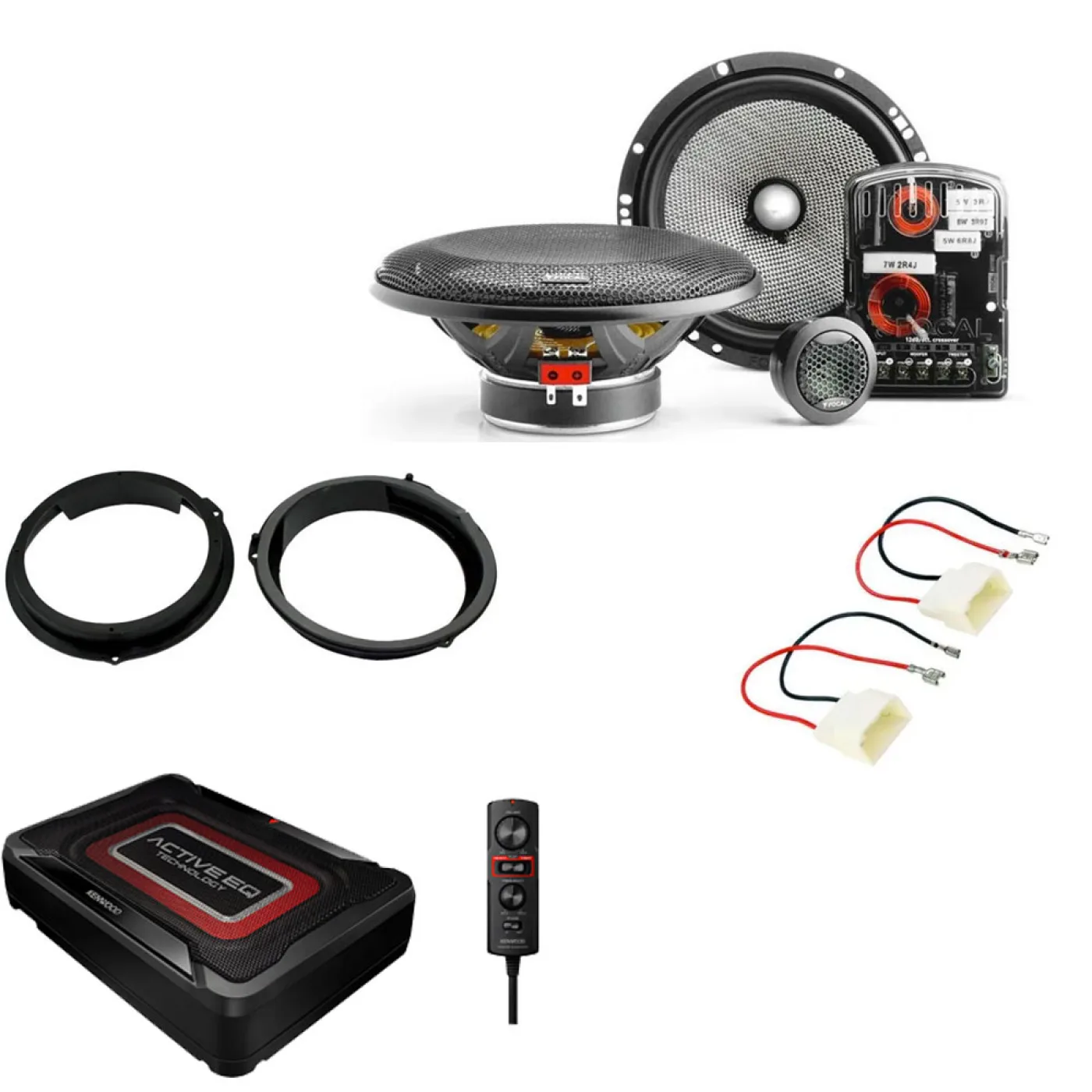

Package Includes
- Focal Access Series 2-Way 16.5cm 6.5" Component Car Speakers
- 165mm Front Door Speaker Adaptor
- Speaker Adaptor Plugs
- Kenwood KSC-PSW7EQ Car Audio Active Compact Under Seat Subwoofer
Discover New Musical Sensations
With Focal's Access 165 AS, you can discover new musical sensations. Become part of the world of performance with a kit that offers multiple configuration possibilities to enhance your audio installation. This range's reference model is a best-seller with a worldwide reputation.
Cutting-Edge Technologies and Innovative Materials
DFS ® cone, aluminium inverted dome tweeter; Focal's engineers have paid special attention to every detail to bring you a truly satisfying listening experience without breaking the bank. By using cutting-edge technologies and innovative materials, Focal has reached its objective... Listen to the result!
Specifications
What Makes It Special
- DFS® cone (Dual Fiberglass Structure)
- High sensitivity (direct connection to car stereo)
- High power handling, great bass
Accessories
- Grilles included
Techinal Specifications
- Woofer
- 61/2" (165mm)
- Voice-coil diameter
- 1" (25mm)
- Voice-coil height
- 07/16" (11mm)
- Magnet
- 31/3" (85mm)
- Tweeter
- Aluminum inverted dome
- Ajustable Tweeter level
- 3 positions (-3/0/+3dB)
- Crossover
- 12dB/oct
- Max. power
- 120 Watts
- Nom. power
- 60 Watts RMS
- Sensitivity (2.83V/1m)
- 91.3dB
- Frequency response
- 60Hz – 20kHz
- Accessories
- Supplied grilles
KSC-PSW7EQ Compact Powered Subwoofer
- Max Power 160W
- Wired Remote Controller
- Active EQ Technology Switch
- Class D Amplifier
- (W)280mm x (H)70mm x (D)200mm
Compact Design
Allows for installation almost anywhere, including tight spaces such as under a seat or panel.
Remote Control Sound Adjustment
- Volume : Input sensitivity control knob
- ACTIVE EQ : Equalizer selector switch
- Frequency : Cut-off freqeuncy control knob
- Phase : Phase select switch
Three types of bass to match the music of various genres equipped with ACTIVE EQ TECHNOLOGY.
New Diaphragm Speaker
The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm.
This suppresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music.
Flexible Connectivity and Installation
Supports speaker level input to connect OEM receiver without RCA outputs.
Power turns on from either speaker level or RCA signal.
Specifications
Specifications
- Woofer Size 200mm x 130mm
- Max Power (W) 160W
- Current Consumption 5.9A
- Sensitivity (dB at 1m) 89dB
- Frequency Response (Hz) 40Hz - 200Hz (-15dB)
- Speaker Level Input (Speaker Level Input)
- Signal Sensing Turn-on (Speaker Level or RCA)
- Dimension (W x H x D) 280mm x 70mm x 200mm
- Weight 2.6kg
- Remote Control Cable Length 5m
