Ford Transit Custom (Limited/Sport) 2016-2018 Pioneer 6.8" Wireless Android Auto / CarPlay DAB+ Stereo Upgrade Pack
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:SPH-DA77DAB + Aerial + FK-9261/5
- EAN / UPC:7427307021942
- Warranty:1 Year Warranty
Upgrade your Ford Transit Custom with this complete fitting kit designed for seamless installation of a Double DIN aftermarket car stereo head unit. This kit is specifically engineered for the Limited and Sport model variants (2016-2018), featuring the display above the radio, DAB, and front passenger airbag switch on the factory radio.
This comprehensive kit includes a pre-wired CANbus interface that ensures easy connection and retains crucial features such as steering wheel controls, as well as DAB and front passenger airbag switch.
The Pioneer SPH-DA77DAB features the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.

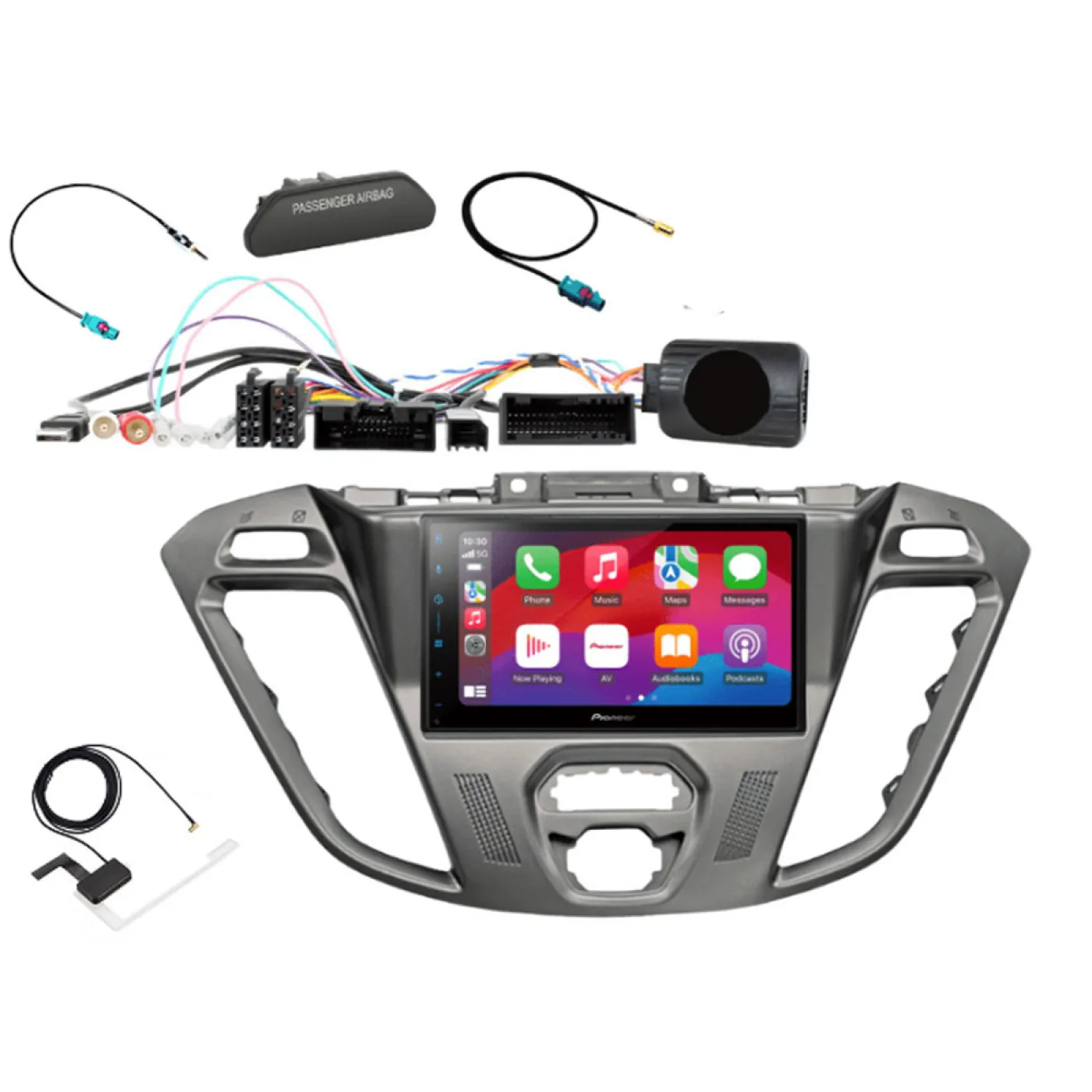

Package Includes
- Pioneer SPH-DA77DAB 6.8" Wireless Android Auto / Apple CarPlay DAB Car Stereo
- DAB Aerial
- Fascia With Brackets
- Steering Control Interface with OEM Display
- Fakra to DIN Antenna Adaptor
- Male FAKRA to DAB Retention Cable
- Ford Passenger Airbag Button
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | Transit Custom | 2016 - 2018 | MK1 |
An additional OEM lock and hazard switch assembly (FORD-F1519127) may be required if the original can not be retained.
This kit is only for 2016-2018 Limited and Sport model variants with display above the radio, DAB as standard and passenger airbag switch on the original radio
Original Stereo Should Be Look Like This
Key Features:
Steering Wheel Control Retention: Maintain full functionality of your factory steering wheel controls, including volume, track change, and more.
CAN Ignition & Speed Pulse: Essential for seamless integration with navigation systems, allowing for speed pulse and ignition connections.
DAB Retention Cable: This kit includes a DAB retention cable that converts the original Fakra DAB antenna connector to a female SMB connector, ensuring you can keep the factory DAB aerial, a standard feature on Euro 5 Limited and Sport model variants.
Passenger Airbag Light Assembly: The kit includes a Ford OEM passenger airbag light assembly button, preventing airbag warning lights from appearing on your dashboard after the radio change. This part is required for vehicles with the airbag status light integrated into the original radio, found on Limited and Sport model variants.
Pioneer SPH-DA77DAB included: The Pioneer SPH-DA77DAB features the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.
Fitting kit
Fascia Adaptor
Fascia kit to install a double din after market radio. This kit comes with side fix mounting brackets, no fitting cage is needed. Phoenix Silver colour, usually found on the Base models.
COLOUR: PHOENIX SILVER
Fitting kit
Steering Control Adaptor
CANbus interface allowing the use of the steering wheel controls when installing a new aftermarket head unit.
Fitting kit
Fakra to DIN Antenna Adaptor Cable
Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.
Ford OEM Passenger Airbag Light Assembly
Use when changing the radio in a Ford vehicle that has the original passenger airbag light built into the original radio.
If the van originally has an airbag status light on the radio the airbag light assembly (included in this kit) will be needed, this stops airbag warning lights appearing on the dashboard.
Fitting kit
Fakra DAB male to DAB SMB Female Antenna Adaptor
Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)
Limited and Sport Model Variants
Limited and Sport models of the Ford Transit Custom come with a Radio/ CD with DAB system with 3.5" dot matrix multifunctional display, Ford SYNC with Emergency Assistance and audio streaming, USB connectivity, Steering wheel remote audio controls and four front speakers. These models also come with front passenger airbag switch built into the original radio system.
Pioneer SPH-DA77DAB
Pioneer SPH-DA77DAB. Getting the latest technology doesn’t have to break the budget with the Pioneer SPH-DA77DAB featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.
Choose from a host of entertainment options, including USB with Full HD video playback supported**, DAB+ tuner, AM/FM tuner or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.
To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.
Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.
Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!
The Pioneer SPH-DA77DAB is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!
Main Features
- Mechafree, iconic cosmetic design, with large 6.8” Capacitive Multi-touch touchscreen panel
- Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
- Improved GUI allowing for simple smartphone connectivity, compatible with Apple CarPlay and Android Auto
- 1Din – Short Chassis backside design
- RGB illumination
- Single Rear USB with 1.5A power supply (Type A)
- USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
- Rear View and 2nd Camera Input
- Bluetooth (A2DP/HFP/AVRCP) DAB / DAB+ Digital Radio built-in (Optional DAB Antenna required)
- Bluetooth®: handsfree calling, phonebook transfer, audio streaming (A2DP). (External BT microphone included)
- Wired Remote Input
- CAN-BUS support (No HUD)
- Advanced audio features
- Wireless Android Auto and CarPlay and its direct launch key, (Easy to use)
- 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
- Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)
SPH-DA360DAB vs SPH-DA77DAB comparison
SPH-DA77DAB Chassis design
SPH-DA77DAB Installation Benefit
Specifications
General
- Mechafree 6.8” WVGA Capacitive touchscreen
- Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
- USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
- Bluetooth® and DAB / DAB+ Digital Radio combined
- Digital Radio Tick Mark approved product
- Siri Eyes Free
- Advanced audio features
- Premium sound quality
- RGB
- multicolour key illumination and LCD display
- iPhone Direct Control
- Compatible with Android
- Reverse camera compatible
- 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
- Selectable wall paper (User customisation with jpeg file)
Connectivity
- Apple CarPlay (wireless & wired)
- Android Auto (wireless & wired)
- WEBLINK 3.0
- Rear USB / Rear Aux-In
- Made for iPhone / Compatible with Android
- USB Mirroring via WebLink® 3.0 for iOS, Android smartphone/tablets
- Wired Remote Control / Rear View Camera Input
- Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)
Audio and Video
- 13-BAND GEQ and Time alignment
- 3Way Network Mode
- Video output & Audio 3 Pre-Out (4V)
DOP Related
- EZ MyCarSetting
- Setting Memory for Agricultural Business
- Start Stop Function
Bluetooth
- Pioneer Bluetooth for hands-free calling & audio streaming
- Bluetooth auto pairing
- External microphone Included
- Wireless audio browsing
Audio
- Premium Sound Quality
- MOSFET 50W x 4 Max Output Power
- Music Browsing
- 13-band Graphic Equaliser
- Low Pass/High Pass Filter
- 3 x 4 Volt RCA Pre-outs
Tuner
- DAB/DAB+ Digital Radio
- Auto Tune, Pre-set buttons
- Digital Radio Tick Mark approved product
- RDS FM/AM Tuner
- 24 Pre-set
File Playback
- Audio
- WMA/MP3/WAV/AAC/FLAC
- Video
- H.264/Mpeg4/JPEG/TS/ WMV/MKV/FLV/TS
Accessories
- Included - Microphone for Hands-free Calling
- Included - USB extension cable
| Technical | |
|---|---|
| Android Auto | Yes |
| Apple CarPlay | Yes |
| Dab Radio | Yes |
| MirrorLink Ready | Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets. |
| Navigation System | Yes |
| Screen | 6.8 WVGA screen with capacitive Multi-touch panel |
| Size | Double Din |
| Max. Power Output | MOSFET 50W x 4 Max Output Power |
| Button Illumination | RGB: multicolour key illumination and LCD display |
| Bluetooth | Yes |
| Aux In | Rear |
| USB | Single Rear USB with 1.5A power supply (Type A) |
| Pre Out | Video output & Audio 3 Pre-Out (4V) |
