JL Audio C2-400x 4" 10cm 2-Way Car Coaxial Speakers System With Sound Deadening Sheet
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:JL Audio
- Product Code:C2-400x + RKXSK
- EAN / UPC:7427306995817
- Warranty:1 Year Warranty

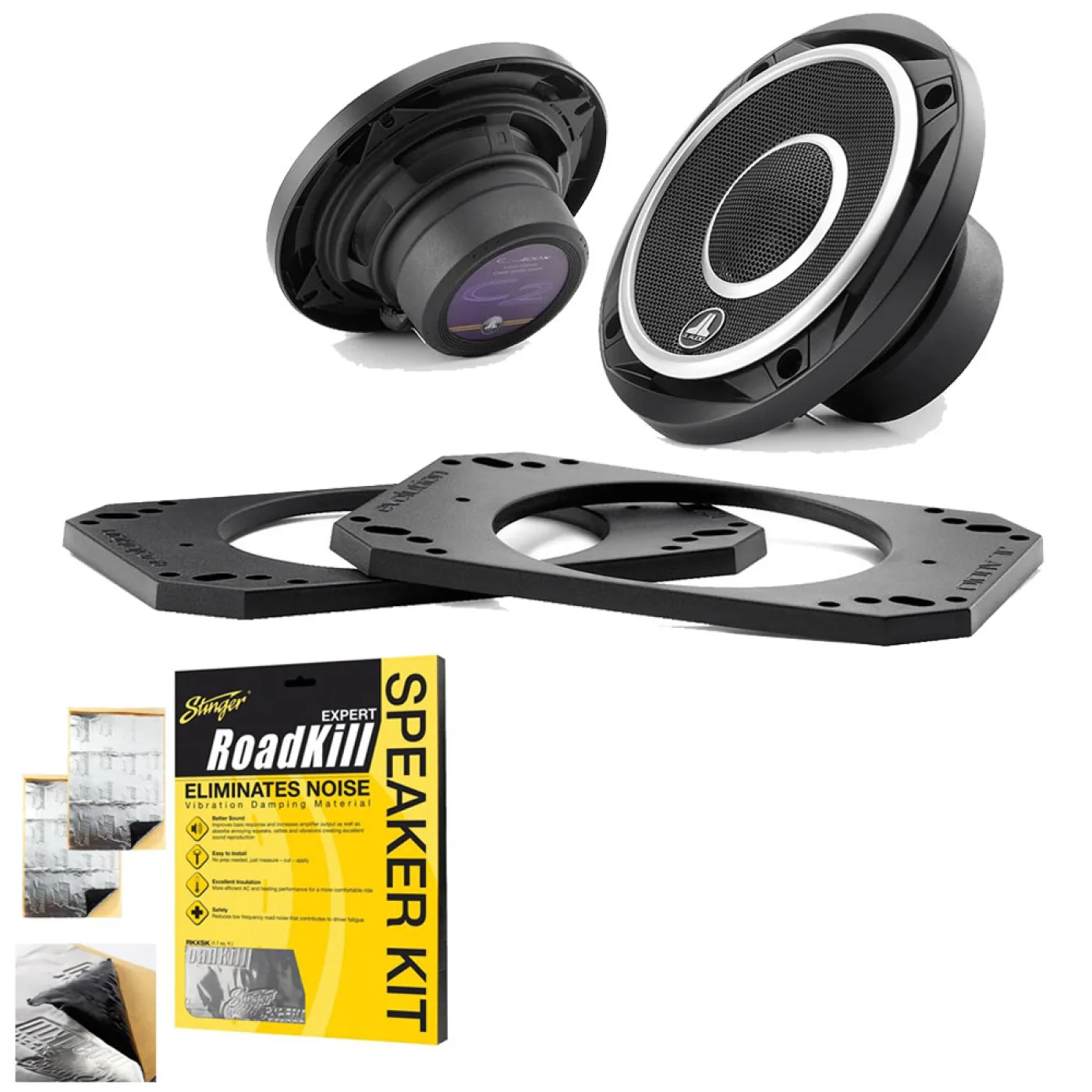

Package Includes

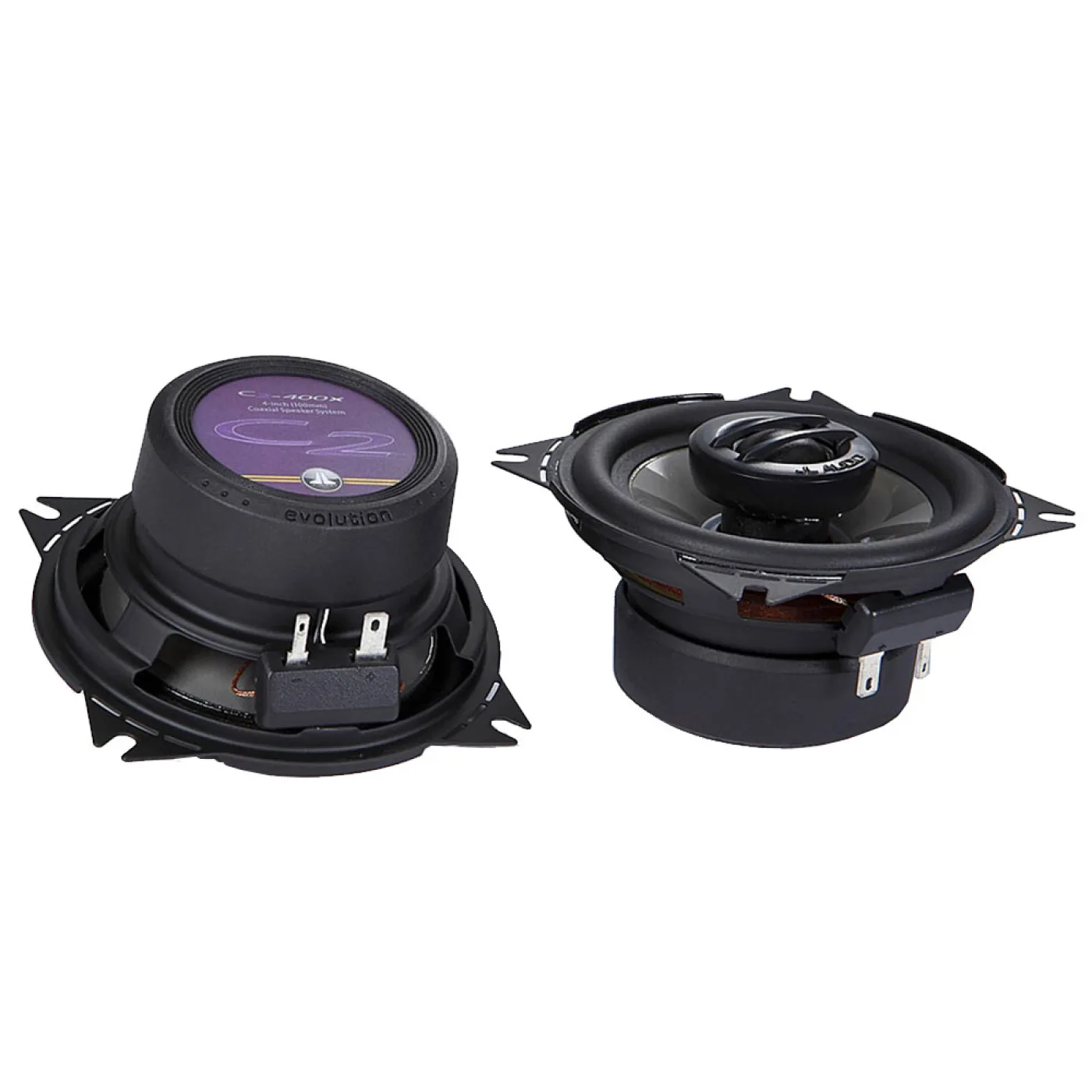

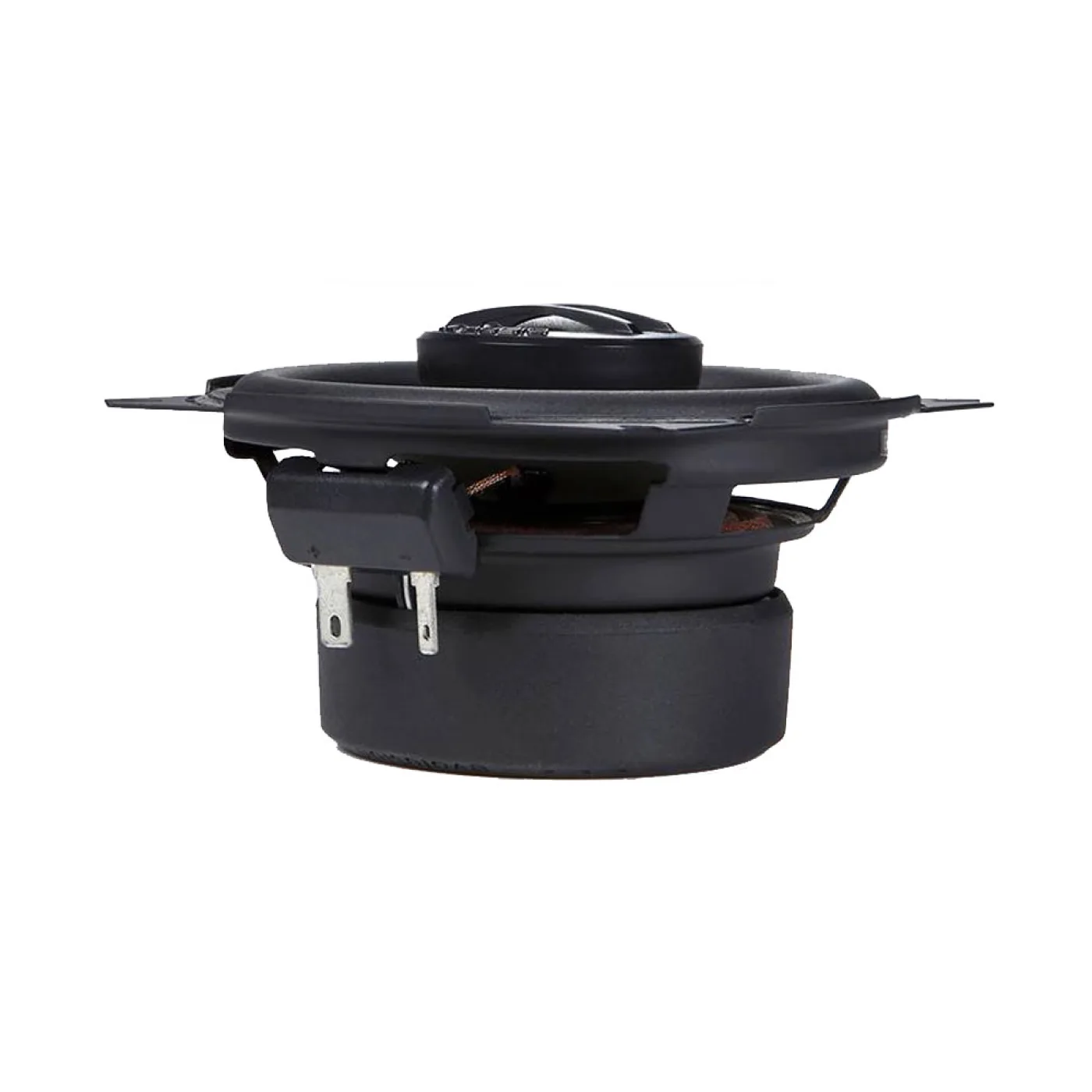

- JL Audio C2-400x 4" 10cm 2-Way Car Coaxial Speakers System
- Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
C2-400x
Coaxial Speaker System: 4-inch (100 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-400x system features 4-inch (100 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

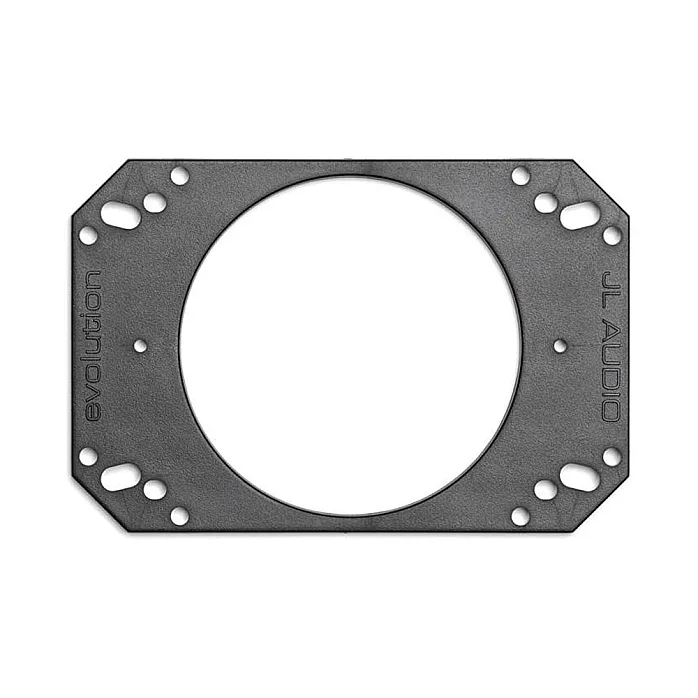

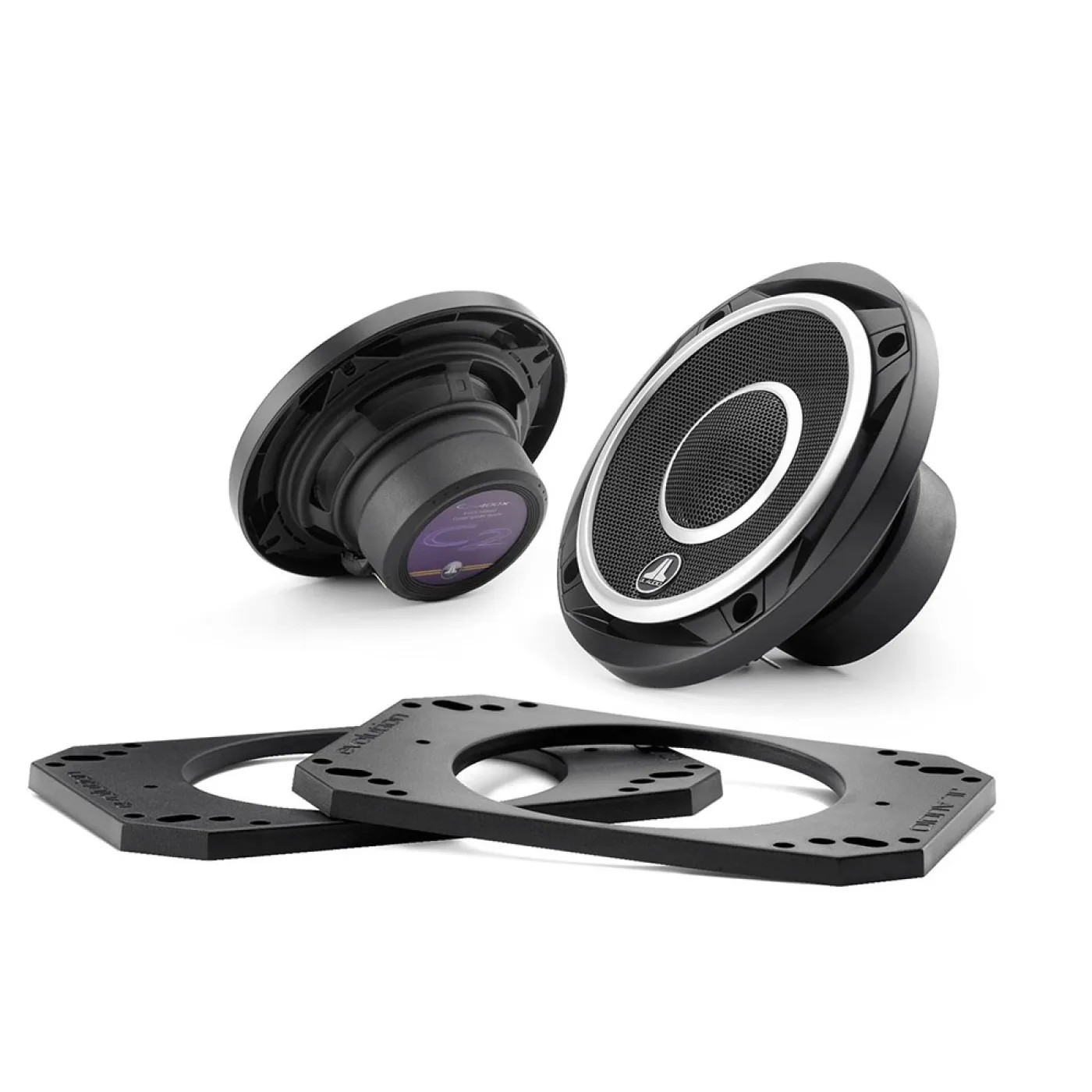

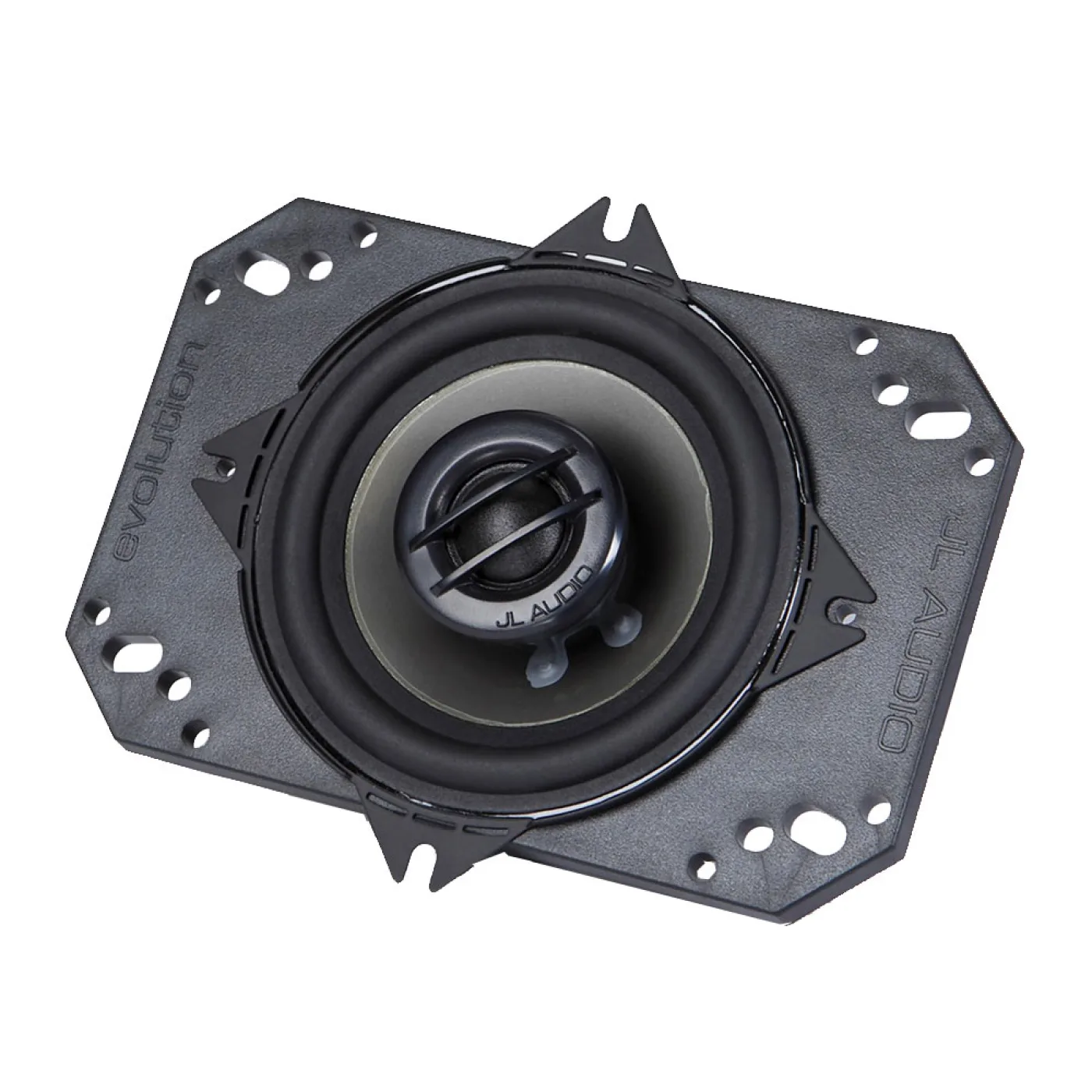

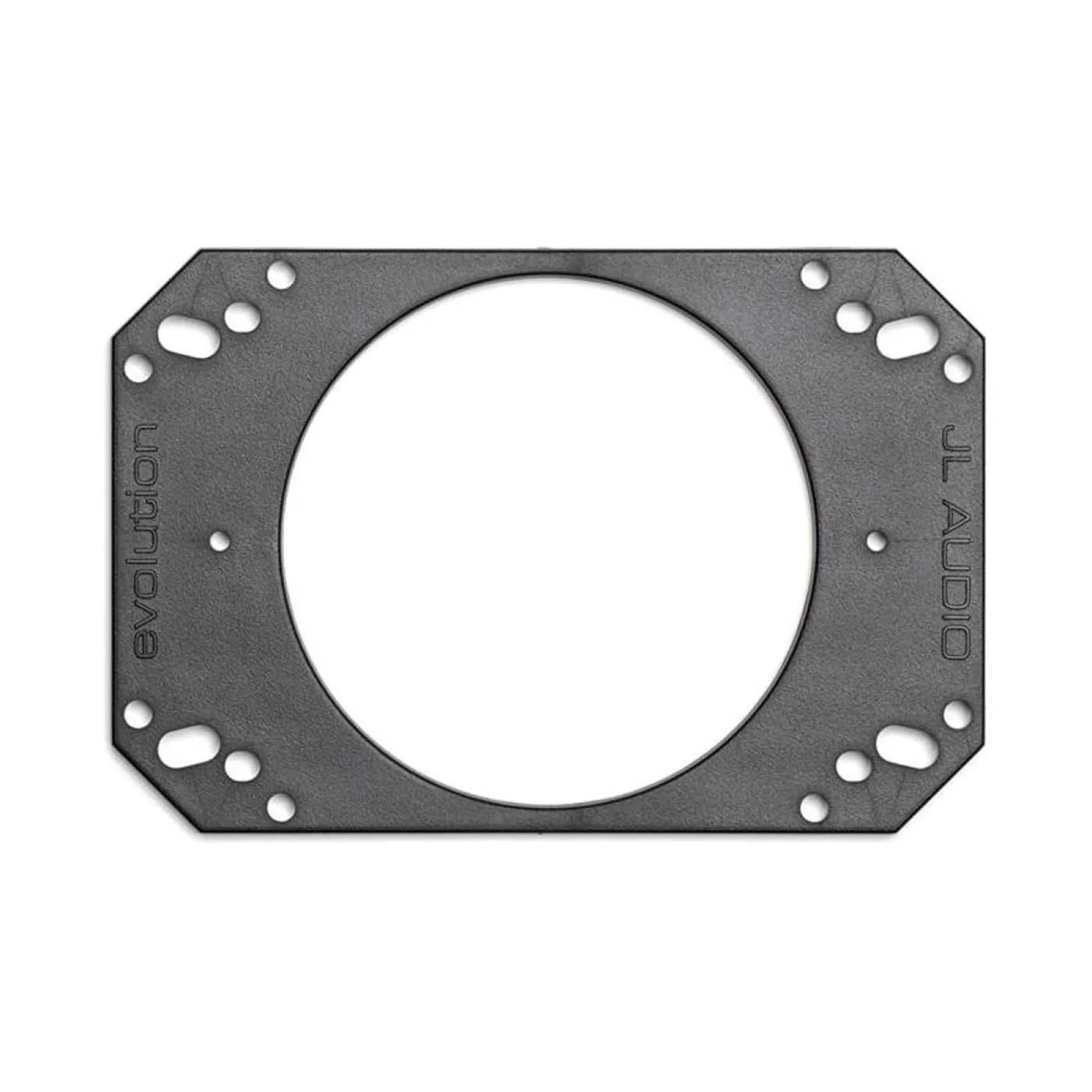

Breakaway mounting tabs on the woofer frame allow the C2-400x to be installed in four-hole or two-hole configurations. Injection-Molded adaptor plates are also included to allow mounting of the C2-400x speakers into a 4 x 6 (100 x 150 mm) speaker location.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

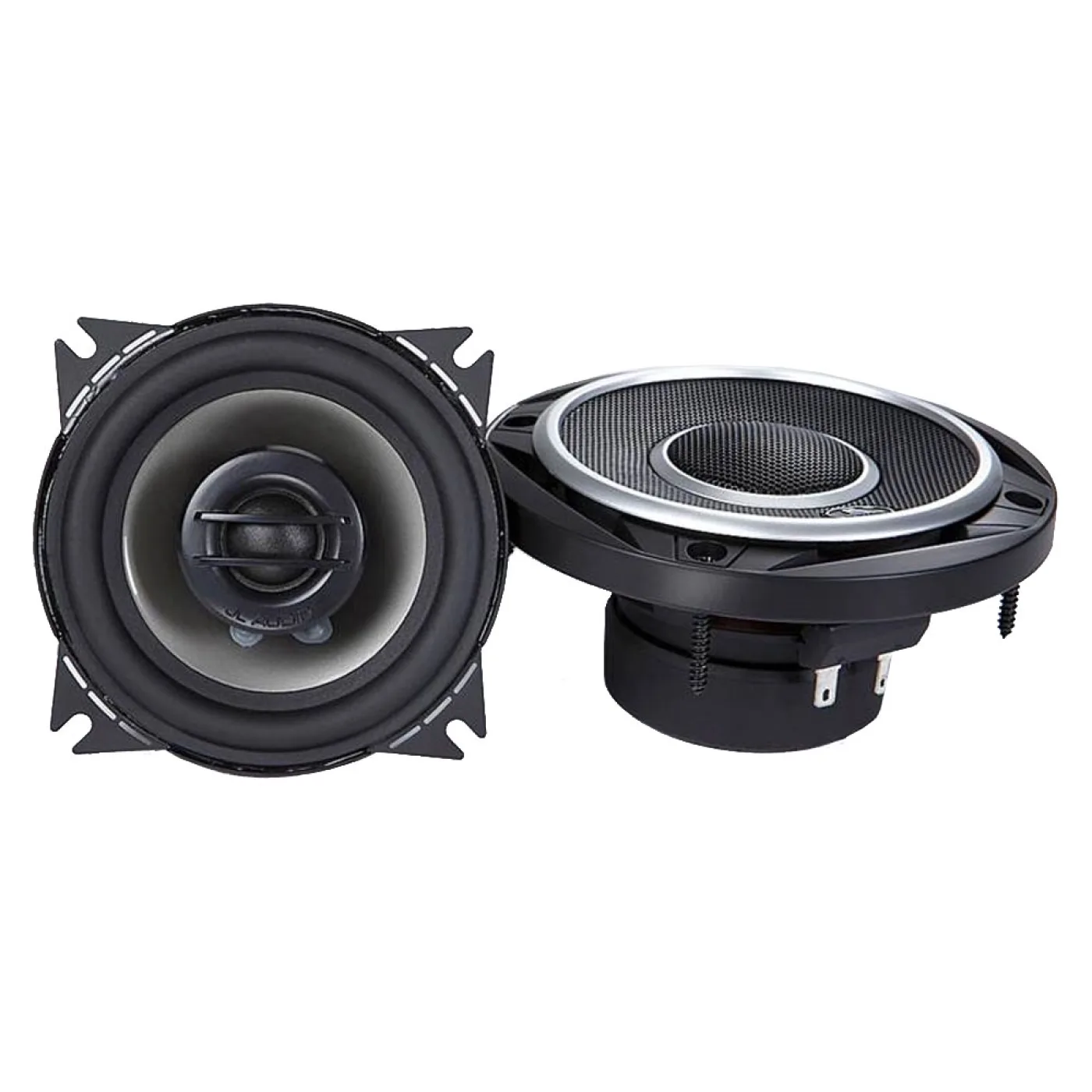

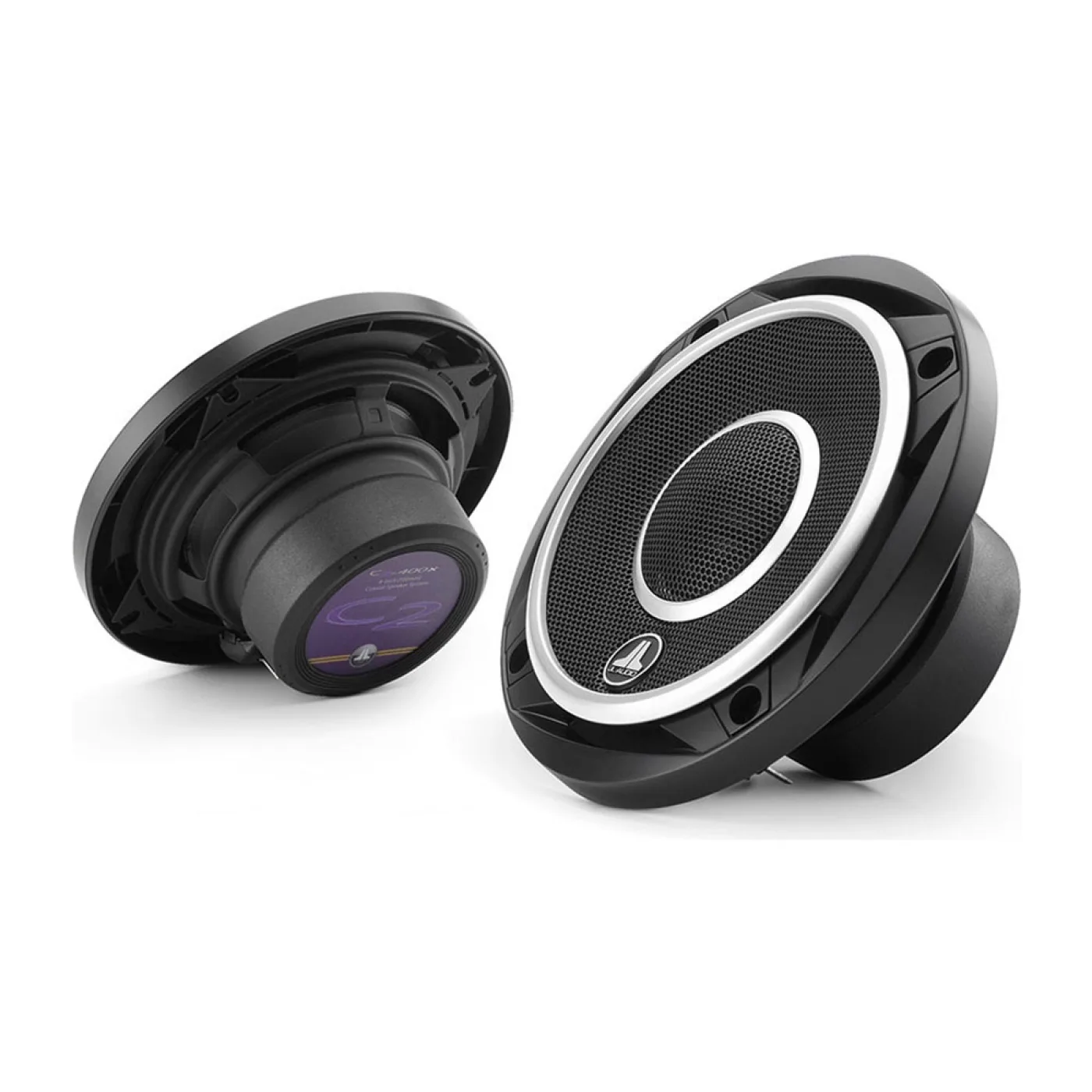

Speaker grilles are included: each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Specifications
General Specifications
- Continuous Power Handling (RMS) 35 W
- Recommended Amplifier Power (RMS) 10 - 50 W / Ch.
- System Efficiency 84.5 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 71 Hz - 22 KHz ± 3 dB
Coaxial Physical Specifications
- Frame Outer Diameter* (A) 4.02 in / 102 mm
- Grille Tray Outer Diameter (B) 5.20 in / 132 mm
- Motor Outer Diameter (C) 2.36 in / 60 mm
- Frontal Coaxial Tweeter Protrusion** (D) 0.56 in / 14 mm
- Frontal Grille Protrusion*** (E) 0.66 in / 17 mm
- Mounting Hole Diameter (F) 3.81 in / 97 mm
- Mounting Depth (G) 1.81 in / 46 mm
What's in the Box
- 2 x 4" 2-way speakers
- 2 x Grilles
- 2 x 4x6 adapter brackets
- 8 x Self-tapping screws (#8 x 1-3/8")
- 8 x Speed clips
- 4 x Self-tapping screws (#8 x 8mm)
- 2 x Crimpable female quick slides (0.205"/5.2mm)
- 2 x Crimpable female quick slides (0.11"/2.8mm)
- 2 x JL Audio logo grille badges
- Owner's Manual
- Paper template
Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
- Expert level sound dampening
- Aluminum outer layer
- Self adhesive
- Easy installation
- Use on all metal panels, doors, roof, floor, firewall & trunk
- Kills panel resonance, squeaks and rattles
- Highest damping vs. weight ratio of any material available
- Improves overall audio frequency response and bass output
- Speaker kit
Fitting kit
Expert RoadKill Published Specifications
- Minimum Thickness 0.080in
- Minimum Weight 0.65bs/ft2
- Aluminum Layer- 6 mils
