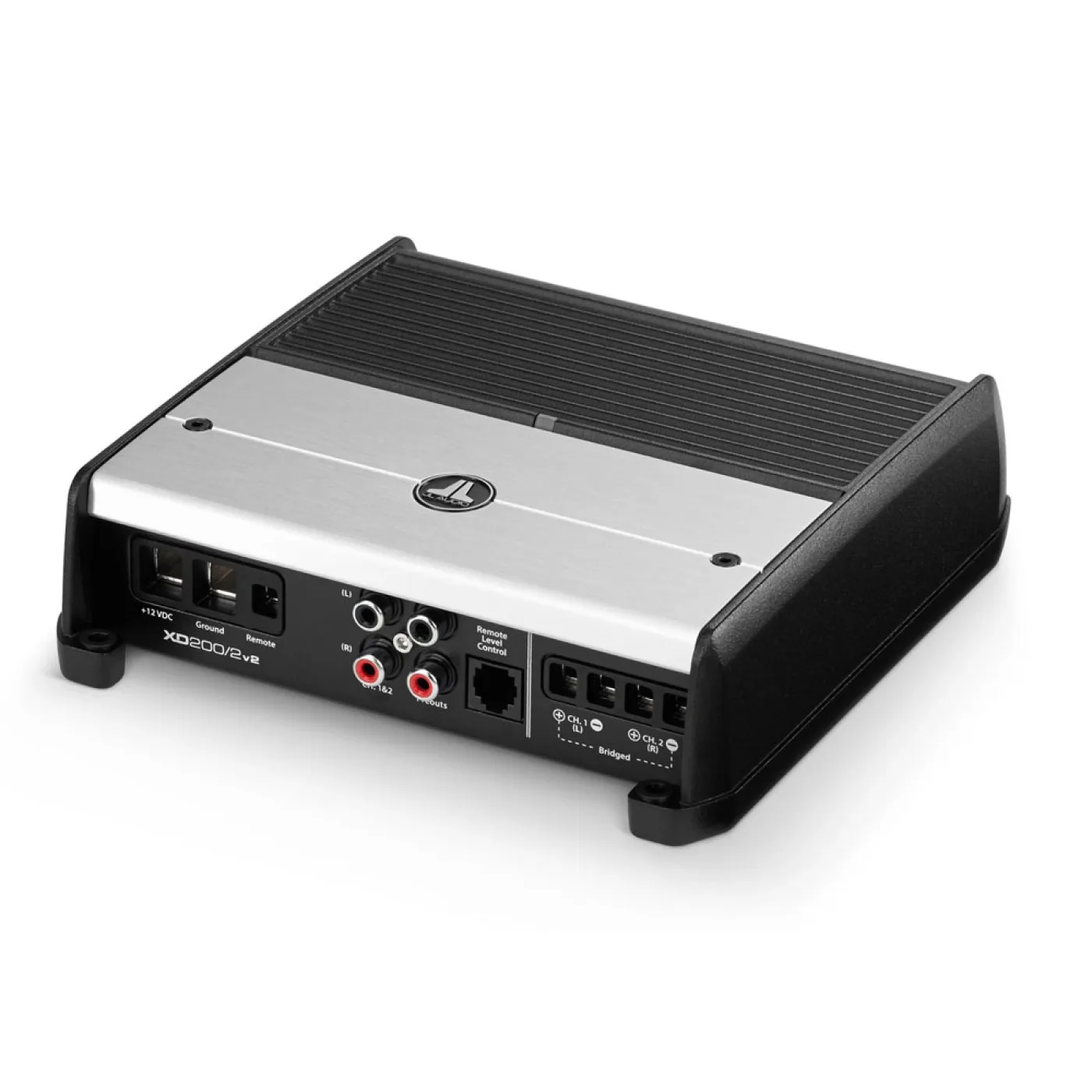

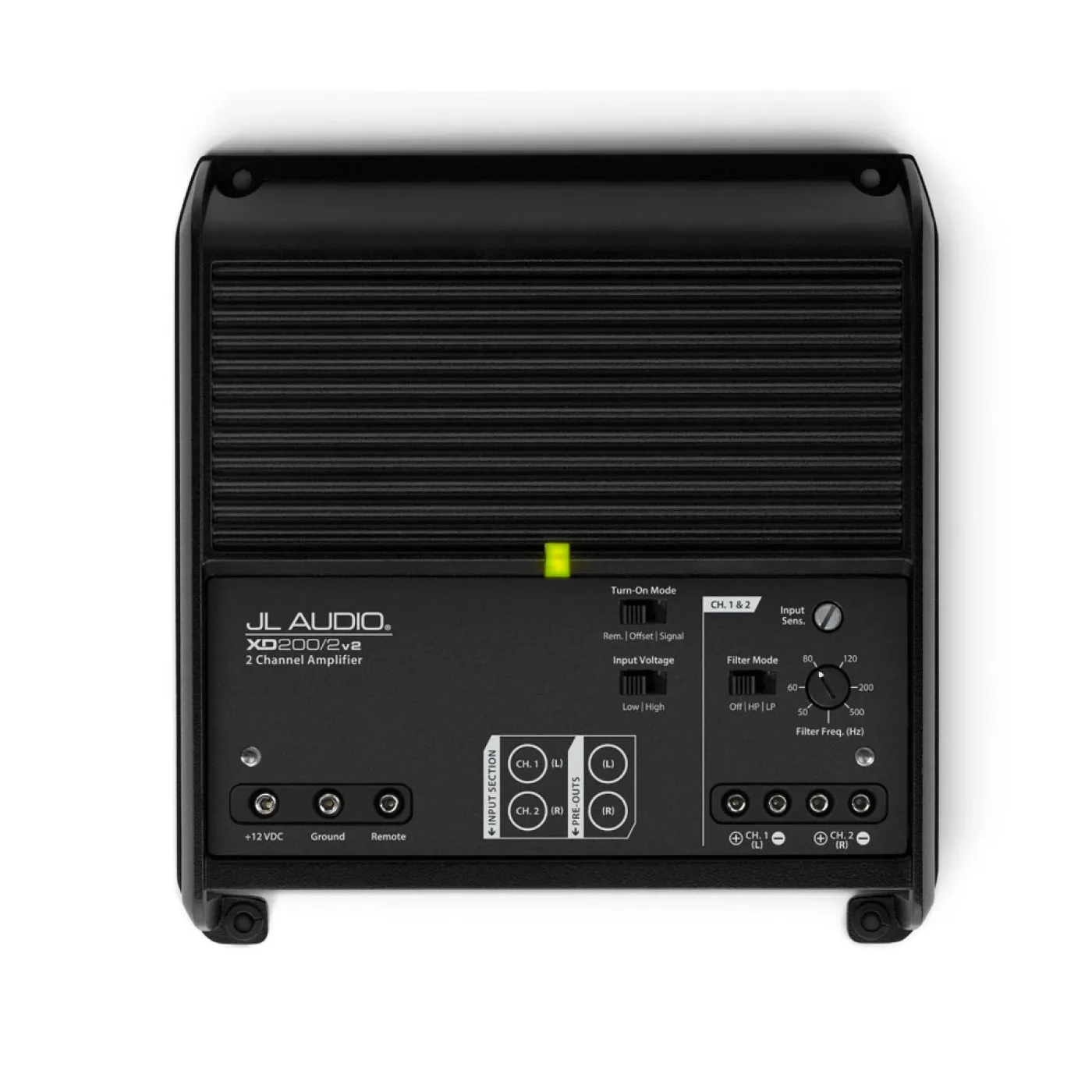

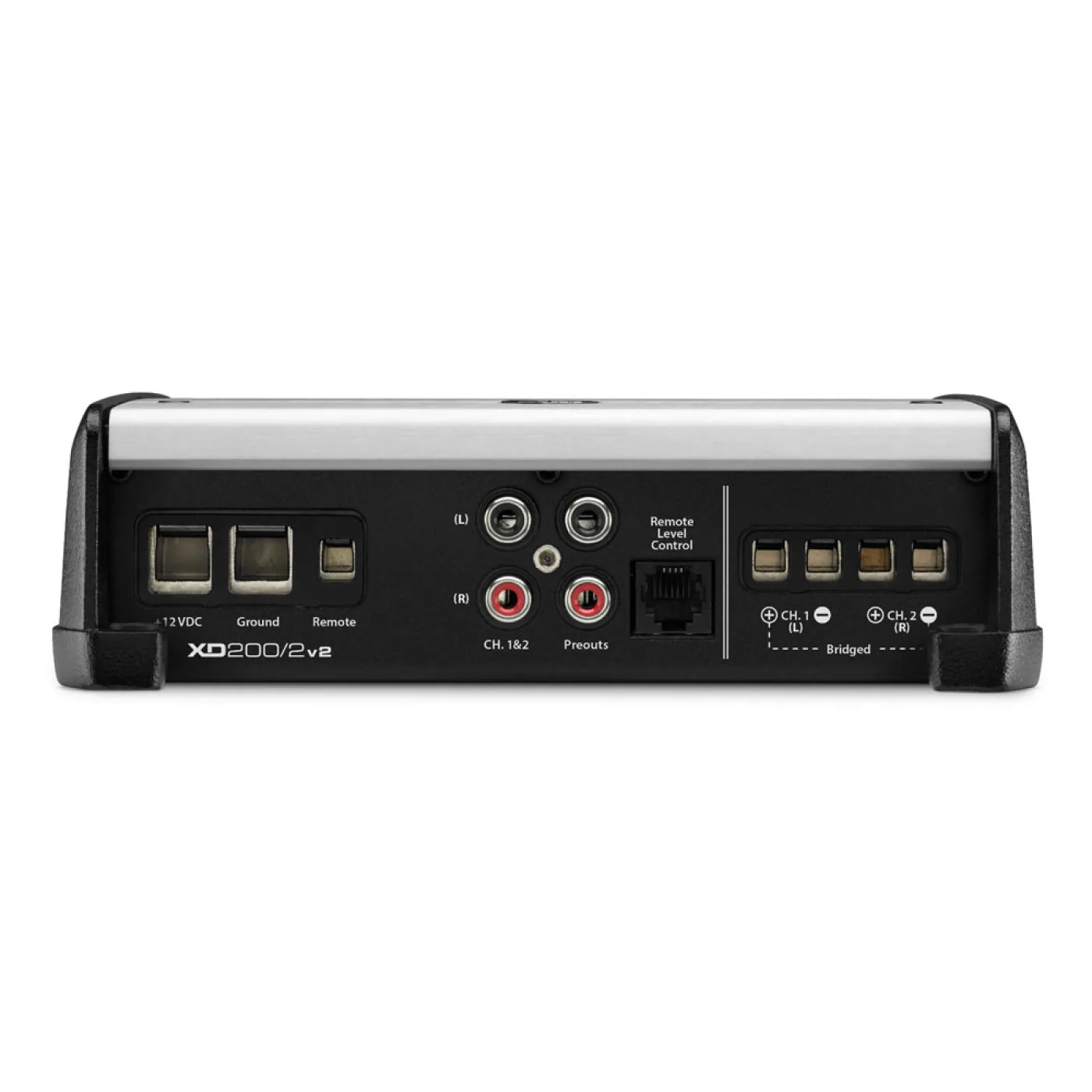

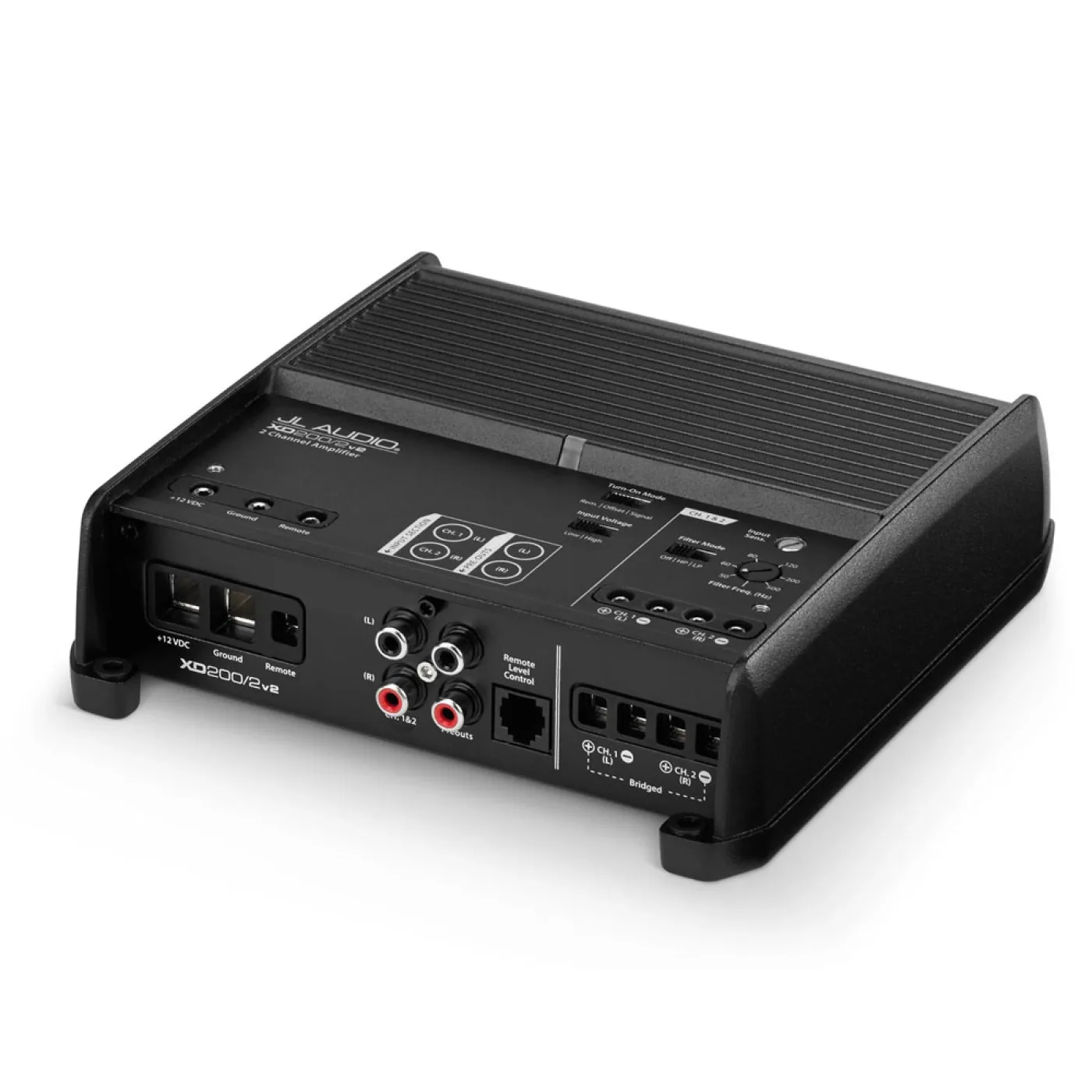

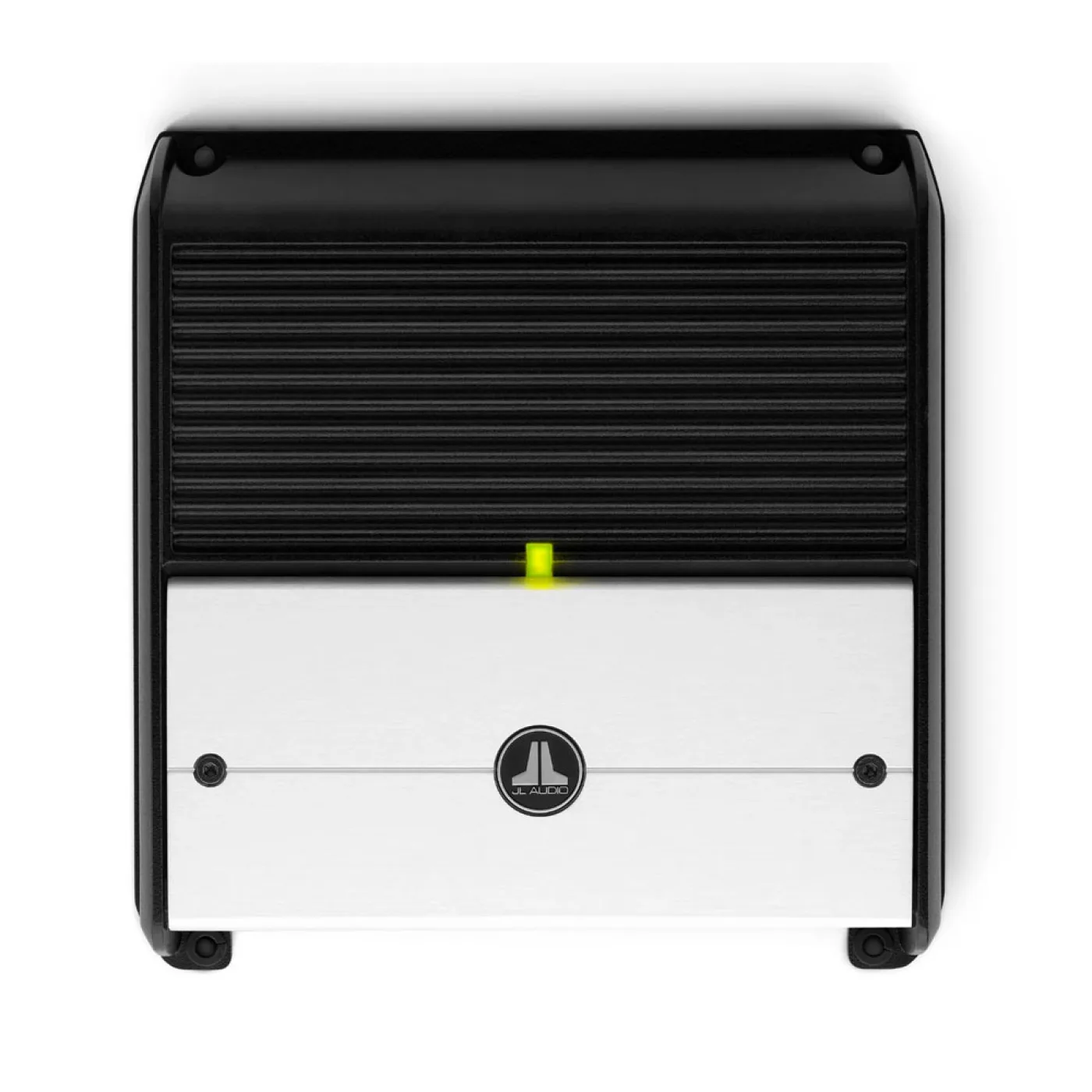

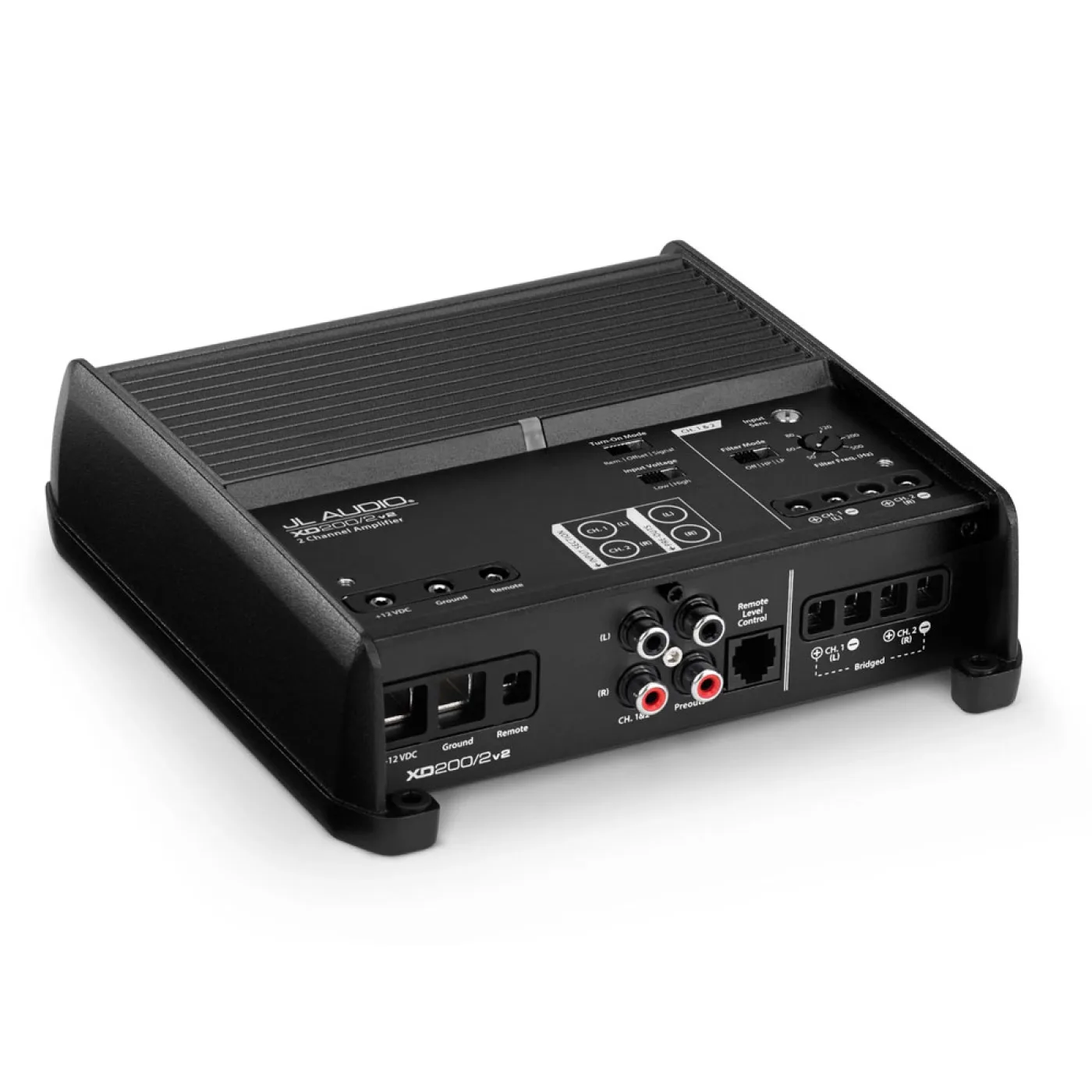

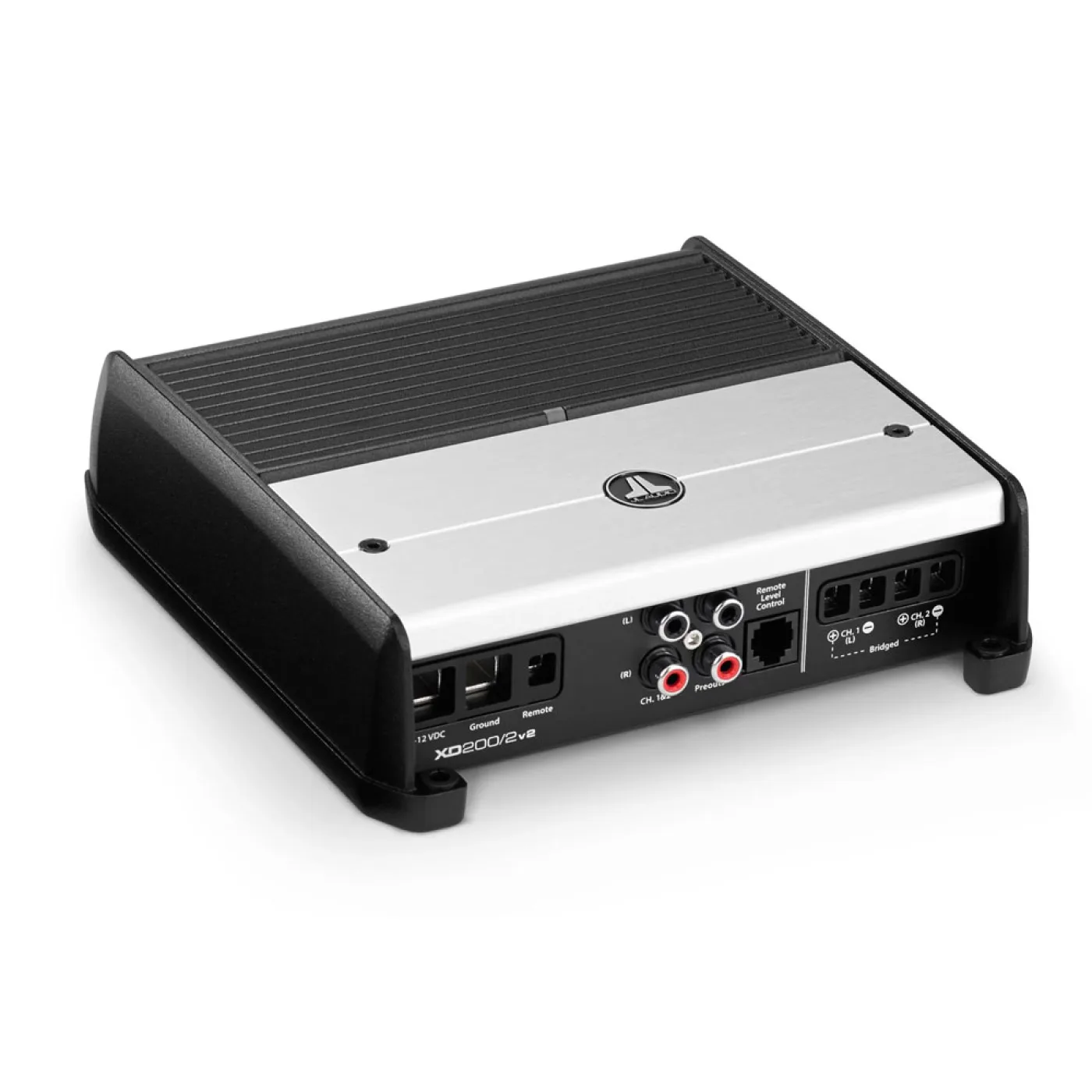

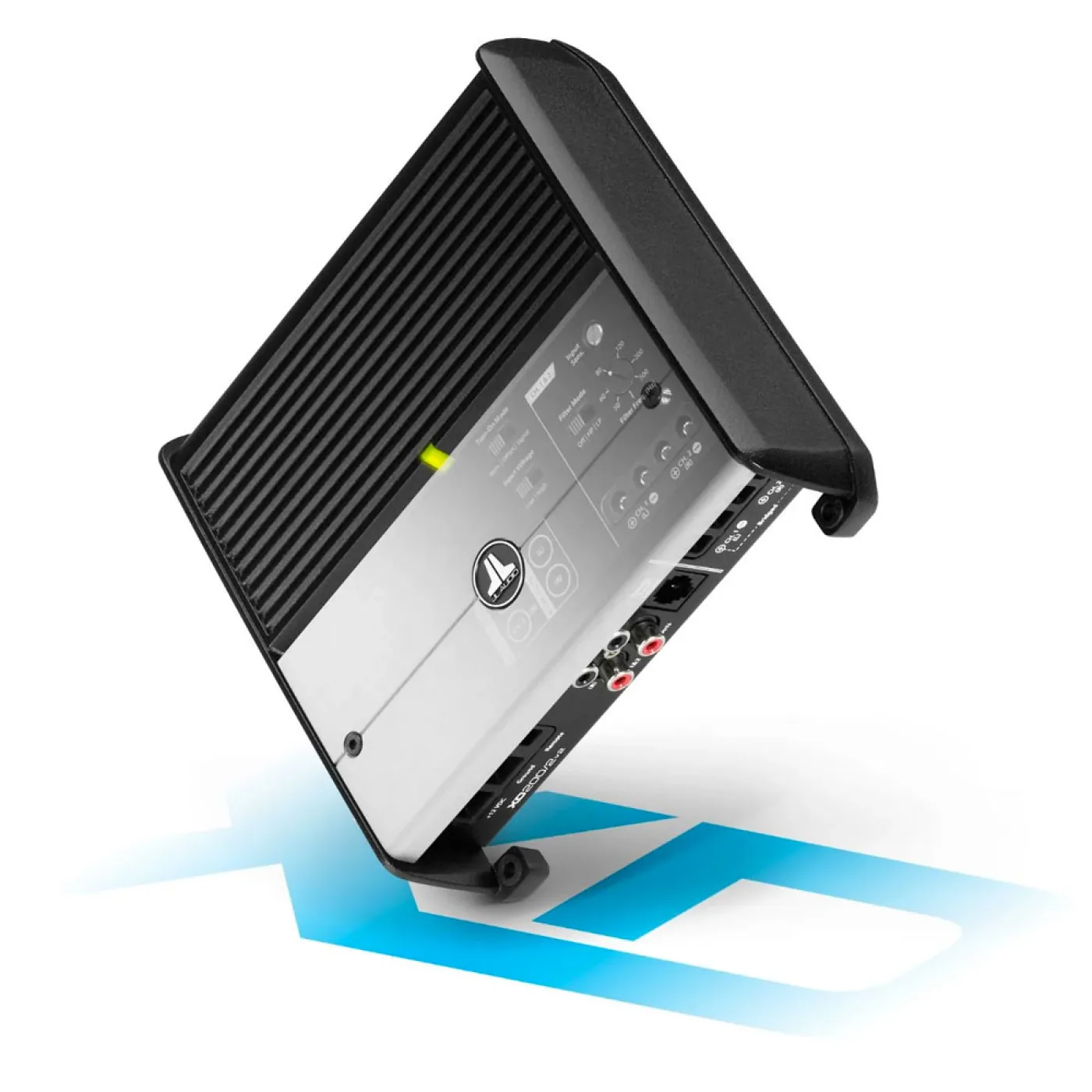

JL Audio XD200/2v2 2 Channel Class D Full-Range Car Amplifier, 200W
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:JL Audio
- Product Code:XD200/2v2
- EAN / UPC:7427306995879
- Warranty:1 Year Warranty
XD200/2v2 2 2 Channel Car Amplifier
2-Channel Class D Full-Range Amplifier, 100 W x 2 @ 2 Ω / 75 W x 2 @ 4 Ω - 14.4V
This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
The XD200/2v2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz.
The XD200/2v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.
This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
Specifications
General Specifications
- Frequency Response 12 Hz - 22 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω >150 / 50 Hz
- Damping Factor @ 2 Ω >75 / 50 Hz
- THD+N @ Rated Power <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min.Copper Power / Ground Wire Gauge 8 AWG wire
- Fuse Rating 20 A (AFS, AGU or MaxiFuse™)
Signal Processing
- Filter Mode(s) Low-Pass or High-Pass
- Filter Slope(s) 12 dB/octave
- Filter Frequency Range 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometer
- Filter Defeat Function
- Remote Level Control Optional (HD-RLC)
- Security Cover for Controls
- Pass-Through Preamp Output Buffered
Physical Specifications
- Height (H) 2.05 in / 52 mm
- Width (W) 6.85 in / 174 mm
- Depth (D) 7.09 in / 180 mm
- Net Weight 3.75 lb / 1.70 kg
Specifications
Rated Continuous (RMS) Power @ 14.4 V
- @ 4 Ω 75 W RMS x 2
- @ 2 Ω 100 W RMS x 2
- Bridged @ 4Ω 200 W RMS x 1
Rated Continuous (RMS) Power @ 12.5 V
- @ 4 Ω 60 W RMS x 2
- @ 2 Ω 90 W RMS x 2
- Bridged @ 4Ω 180 W RMS x 1
