Land Rover Defender 90 Kenwood Active Compact Under Seat Subwoofer & Dash Car Speaker Upgrade Kit
- Availability:In Stock
- Available:10+ in stock
- Item Condition:New
- Brand:Kenwood
- Product Code:KSC-PSW7EQ + KFC-S1066
- EAN / UPC:7427282744881
- Warranty:1 Year Warranty
£164.99
Order within for same-day dispatch
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Land Rover | Defender |

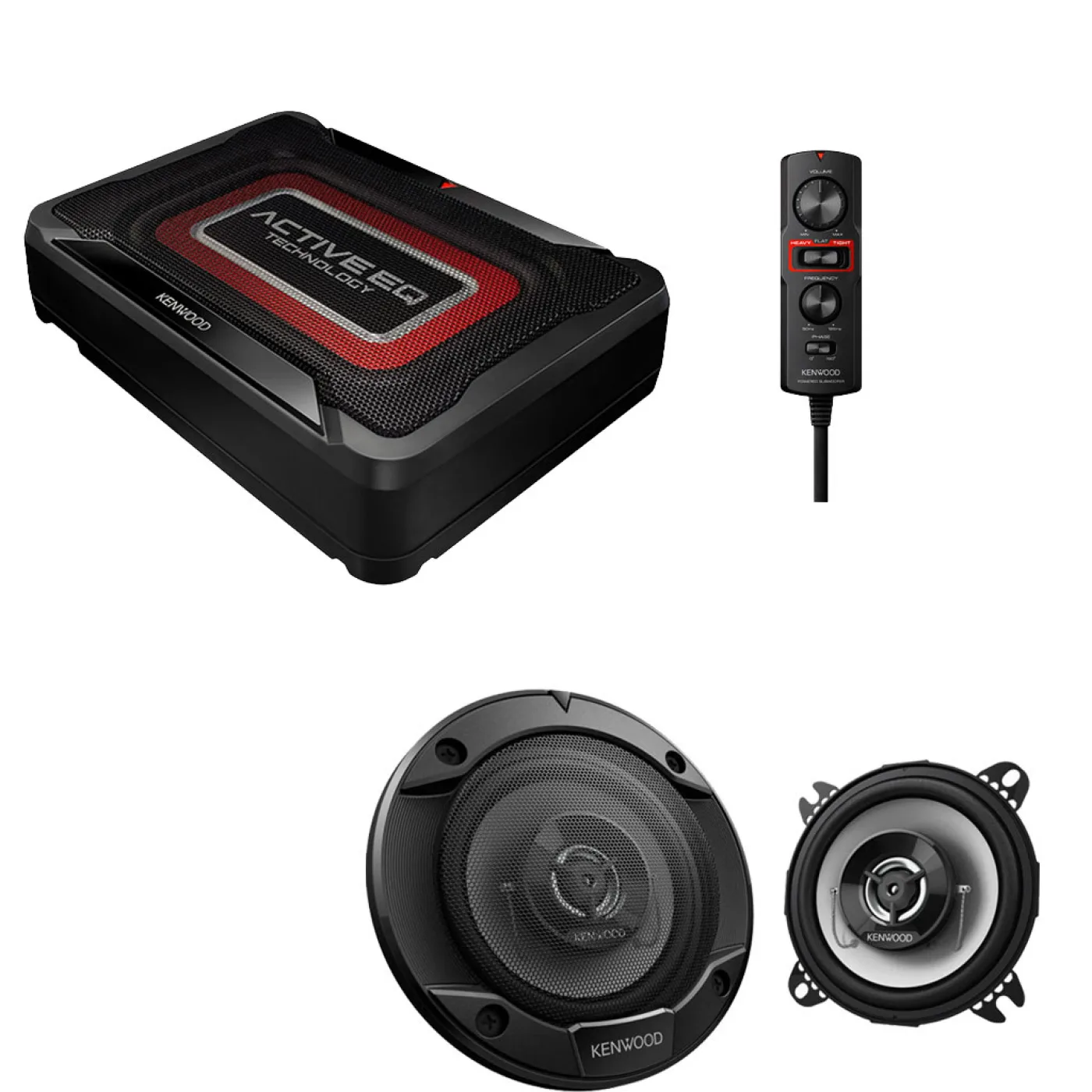

Package Includes
- Kenwood KSC-PSW7EQ Car Audio Active Compact Under Seat Subwoofer
- Kenwood 4" 10cm Stage Sound Series 220W 2 Way Coaxial Car Speakers
KSC-PSW7EQ Compact Powered Subwoofer
- Max Power 160W
- Wired Remote Controller
- Active EQ Technology Switch
- Class D Amplifier
- (W)280mm x (H)70mm x (D)200mm
Compact Design
Allows for installation almost anywhere, including tight spaces such as under a seat or panel.
Remote Control Sound Adjustment
- Volume : Input sensitivity control knob
- ACTIVE EQ : Equalizer selector switch
- Frequency : Cut-off freqeuncy control knob
- Phase : Phase select switch
Three types of bass to match the music of various genres equipped with ACTIVE EQ TECHNOLOGY.
New Diaphragm Speaker
The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm.
This suppresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music.
Flexible Connectivity and Installation
Supports speaker level input to connect OEM receiver without RCA outputs.
Power turns on from either speaker level or RCA signal.
Specifications
Specifications
- Woofer Size 200mm x 130mm
- Max Power (W) 160W
- Current Consumption 5.9A
- Sensitivity (dB at 1m) 89dB
- Frequency Response (Hz) 40Hz - 200Hz (-15dB)
- Speaker Level Input (Speaker Level Input)
- Signal Sensing Turn-on (Speaker Level or RCA)
- Dimension (W x H x D) 280mm x 70mm x 200mm
- Weight 2.6kg
- Remote Control Cable Length 5m
KFC-S1066 STAGE SOUND SERIES, 10cm Flush Mount 2-way 2-Speaker System
Key Features
- STAGE SOUND SERIES
- Flush Mount Speaker
- 2-Way 2-Speaker System
- 10 cm Polypropylene Woofer Cone
- Heavy-Duty Woofer Magnet Circuit
- 25mm Blanced Dome Tweeter
- Tweeter Sound Field Enhancer & Electro-Dynamic Driver
- 220W Peak Power
- 21W RMS Power
- Speaker grill included
Speaker/woofer Specifications
- Peak Input Power 220W
- Rated Input Power 21W
- Woofer Cone material Polypropylene (PP) Cone
- Speaker Basket Steel
- Speaker Surround Cloth
- Sensitivity 88dB/W/m
- Frequency Response 50Hz ~ 22000Hz
- Speaker Impedance 4Ω
- Dimensions with Grill (WxHxD) 134 x 134 x 60mm
- Dimensions w/o Grill (WxHxD) 104 x 104 x 46.2mm
- Mounting Depth 43mm
- Mouting Hole Diameter Ø 94mm
- Tweeter Height 8mm
- Speaker Weight with Grille (pc.) 437gr
- Speaker Weight w/o Grille (pc.) 391gr
- Gross Weight 930gr
- Weight of Magnet 160gr
Tweeter Specifications
- Cone Size 25mm
- Cone Material Balanced Dome
Accessories
- Screws (Parker-type) Ø 4 x 25mm, 8 pieces
- Speed nut φ 4, 8 pieces
- Speaker grille included
- Speaker cable 0.3m
